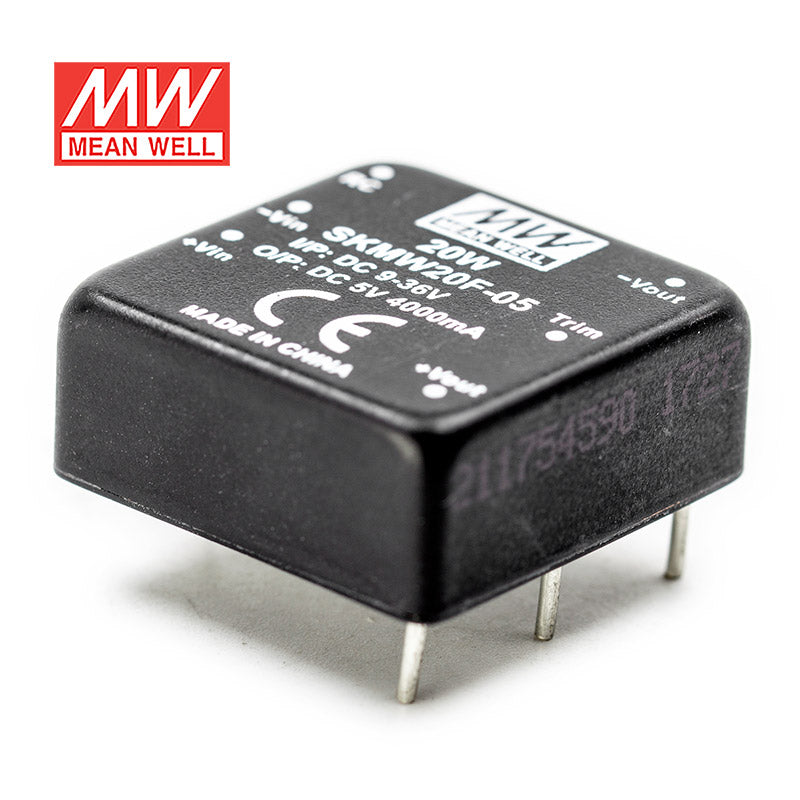

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKMW20F-05 DC-DC Converter - 20W - 9~36V in 5V out

SKU:

SKMW20F-05

Please for Pricing

Notify me when it's back in stock

Description

Features

DIP 1"x1" package with industry-standard pinout

Operating temperature range -40~+85°C

4:1 ultrawide input range

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 89%

Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage

1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty

General Specification

Voltage accuracy	±1.5%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, automatic recovery
Working temperature	-40°C to +85°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient	0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm)	25.425.410.2mm (110.4 inch)
Potting material	Black coated copper with a non-conductive base

Specifications

Brand

Mean Well
Series

SKMW Series
Power Rating

20 Watt
Output Voltage

5 Volt
Rated Current

4 Ampere
Input Voltage

9V~36V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

2.54 cm
Width

2.54 cm
Height

1.02 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKMW20F-05 to power a 5V industrial controller or sensor module from a 9-36V source?

Yes, this model is designed for constant-voltage 5V output and accepts a 9-36V input range. It can supply up to 4A with a 20W power rating, so it fits 5V industrial or automation electronics that stay within those limits.

Is the SKMW20F-05 suitable for embedded systems that need a regulated 5V rail in a compact enclosure?

It can be a fit when the embedded load needs constant 5V and no more than 4A. The housing size is 25.4 × 25.4 × 10.2 mm and the weight is 0.018 kg, which helps in space-constrained equipment.

Can this converter be used in automation equipment that runs across different nominal input voltages?

Yes, the listed 9-36V input range gives flexibility for equipment that may use different DC bus levels within that span. The output remains constant voltage at 5V with up to 20W available.

Is the SKMW20F-05 appropriate for indoor or harsh-temperature equipment cabinets?

The specified operating temperature is -40°C to +85°C, so the temperature range is broad for industrial environments. No IP rating is listed in the provided specs, so the product data does not define outdoor or washdown protection.

What is the difference between the SKMW20F-05 and the other SKMW20F models?

All SKMW20F models in this group are rated at 20W. The sibling outputs are 3.3V at 4.5A for SKMW20F-03, 12V at 1.67A for SKMW20F-12, and 15V at 1.33A for SKMW20F-15, while this model is 5V at 4A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKMW20G-15 DC-DC Converter - 20W - 18~75V in 15V out	20W	15V	1.33A	Indoor	View
Mean Well SKMW20G-12 DC-DC Converter - 20W - 18~75V in 12V out	20W	12V	1.67A	Indoor	View
Mean Well SKMW20G-05 DC-DC Converter - 20W - 18~75V in 5V out	20W	5V	4A	Indoor	View
Mean Well SKMW20G-03 DC-DC Converter - 20W - 18~75V in 3.3V out	20W	3.3V	4.5A	Indoor	View
Mean Well SKMW20F-15 DC-DC Converter - 20W - 9~36V in 15V out	20W	15V	1.33A	Indoor	View
Mean Well SKMW20F-12 DC-DC Converter - 20W - 9~36V in 12V out	20W	12V	1.67A	Indoor	View
Mean Well SKMW20F-03 DC-DC Converter - 20W - 9~36V in 3.3V out	20W	3.3V	4.5A	Indoor	View
