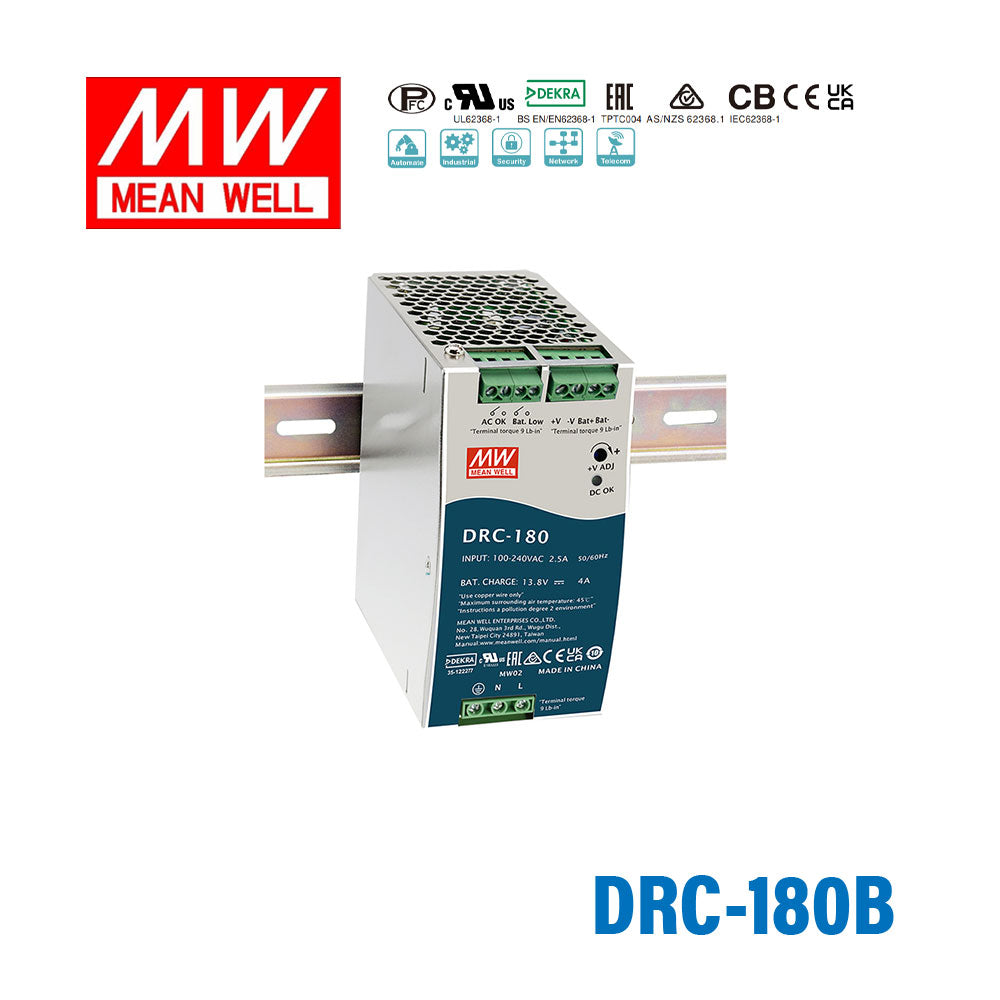

Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS 4.5A

with UPS functionbuilt-in active PFC functionDC output voltage adjustable(+20%)

SKU DRC-180B

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

DRC-180B

DRC-100B 100W 27.6V In stock

DRC-180B 180W 27.6V Low stock

DRC-40B 40W 27.6V Low stock

DRC-60B 60W 27.6V In stock

Product variants

In stock

Overview

DRC-180B is the CH1: 27.6V; CH2: 27.6V output model of this series: rated current CH1: 4.5A; CH2: 2A (Battery charger), rated power 179.4W, typical efficiency 90%.

DRC-180 is a 180W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-180 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 90%, it can operate with air convection cooling under -20℃ through 70℃. In addition to the key protection features such as overload protection,over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.

Features

Universal AC input / Full range
Built-in active PFC function
Alarm signal for AC OK and Battery Low(Via Relay)
Protections: Short circuit / Overload / Over voltage / Over temperature
Battery low protection / Battery reverse polarity protection by fuse
Cooling by free air convection
-20 ~ +70℃ wide operating temperature
Can be installed on DIN rail TS-35/7.5 or 15
DC output voltage adjustable (+20%)
LED indication for Power on
Operating altitude up to 5000 meters (Note.6)
3 years warranty

Specifications

DRC-180BSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

OUTPUT NUMBER: CH1 / CH2
DC VOLTAGE: CH1: 27.6V; CH2: 27.6V
RATED CURRENT: CH1: 4.5A; CH2: 2A (Battery charger)
CURRENT RANGE: CH1: 0 ~ 6.5A; CH2: --------
RATED POWER: 179.4W
RIPPLE & NOISE (max.)^Note.2: CH1: 240mVp-p; CH2: --------
VOLTAGE ADJ. RANGE: CH1: 24 ~ 29V
VOLTAGE TOLERANCE^Note.3: CH1: ±1.0%; CH2: --------
LINE REGULATION: CH1: ±0.5%; CH2: --------
LOAD REGULATION: CH1: ±0.5%; CH2: --------
SETUP, RISE TIME^Note.4: 2000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1:30.5 ~ 37.7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF: 20±1V

ALARM FUNCTION

AC OK^Note.5: Relay contact output, Closed : AC OK ; Open : AC Fail ; Max. rating : 30V / 1A
BATTERY LOW: Relay contact output, Open : Battery OK ; Closed : Battery Low ; Max. rating : 30V / 1A; Battery low voltage : < 22V

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0~40℃) on CH1 output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 5000 meters / OVCⅡ
OVER VOLTAGE CATEGORY: Ⅱ; According to Dekra BS EN/EN62368-1; altitude up to 5000 meters

SAFETY & EMC (Note 7)

SAFETY STANDARDS: UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Radiated BS EN/EN55032(CISPR32) Class B
Conducted BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: BS EN/EN55024

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 2, 3V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth; criteria A
Conducted BS EN/EN61000-4-6 Level 2, 3V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m; criteria A
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	BS EN/EN55032(CISPR32)	Class B
Conducted	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth; criteria A
Conducted	BS EN/EN61000-4-6	Level 2, 3V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m; criteria A
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 1536.3K hrs min. Telcordia SR-332 (Bellcore); 245.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 63*125.2*115mm (W*H*D)
PACKING: 0.71Kg; 12pcs/10.5Kg/1.02CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. Please refer to suggested Application 2.(2)、(3) in page 4.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
8.The battery voltage is lower than the CUTOFF voltage and cannot perform AC reset charging.

Technical drawings

DRC-180B Suggested Application — Suggested Application

DRC-180B Mechanical Specification — Mechanical Specification

DRC-180B Installation Instruction — Installation Instruction

Typical applications

Downloads

Certificates6

Mean Well DRC-180-DEKRA MarK Certificate PDF Download

Mean Well DRC-180-CB(UL)-2nd Certificate PDF Download

Mean Well DRC-180-CB(UL)-3nd Certificate PDF Download

Mean Well DRC-180-EMC Certificate PDF Download

Mean Well DRC-180-CE-dec Certificate PDF Download

Mean Well DRC-180-UK-dec Certificate PDF Download

Test reports1

Mean Well DRC-180B Test Report PDF Download

FAQ

What is the Mean Well DRC-180B designed for?

The DRC-180B is a DIN rail AC/DC power supply with built-in UPS functionality for systems that need regulated 27.6V DC output and battery backup support. It is commonly suited to security and control applications where continuity during AC power loss is important.

What are the main output ratings of the DRC-180B?

This model is rated for 179.4W total output power with a nominal 27.6V DC output and 4.5A rated current. The CH1 output voltage is also adjustable, with the product data listing an adjustment range of 24V to 29V.

Does the DRC-180B include UPS and alarm functions?

Yes. This model includes built-in UPS capability and provides alarm signals for AC OK and battery low via relay. It also includes a battery cut-off at 20V ±1V to protect the battery from deep discharge.

What input range does the Mean Well DRC-180B support?

The DRC-180B accepts a universal input range of 90 to 264VAC and also supports 127 to 370VDC input. That wide range makes it suitable for industrial and commercial environments where input conditions may vary across regions or systems.

Is the DRC-180B suitable for demanding industrial environments?

It is designed for demanding conditions, with an operating temperature range of -20°C to +70°C (derating per the derating curve). The unit also supports operation at altitudes up to 5000 meters and includes protection for overload, over-voltage, and over-temperature events.

How does the DRC-180B compare with a standard DIN rail power supply?

The main difference is that the DRC-180B combines a DIN rail power supply with UPS-related battery backup features in one unit. It also adds relay alarm signaling for AC status and battery-low status, which can be important in security and critical-power applications.

What certifications and compliance standards does the DRC-180B meet?

This model is approved to UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 62368.1 safety standards. Its EMC compliance includes EN55032 Class B and EN61000 series standards listed in the product data.
