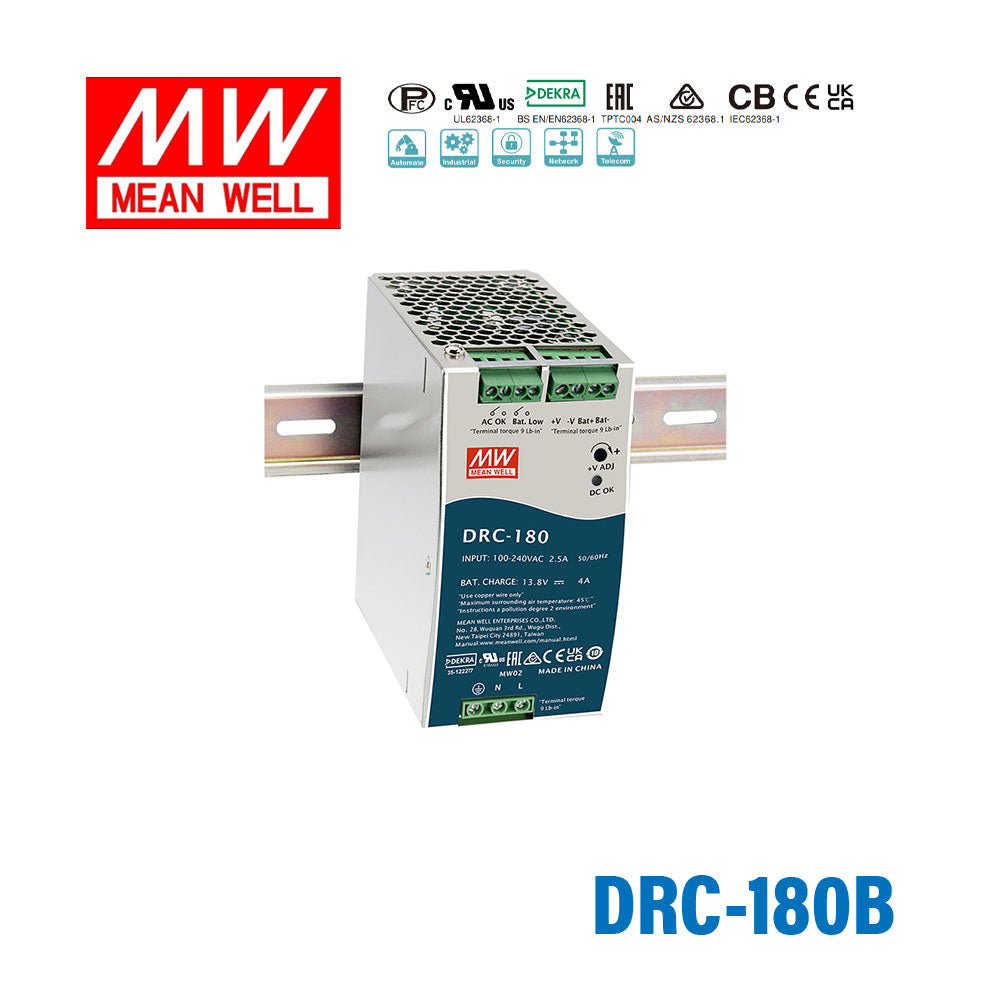

Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS

with UPS function, built-in active PFC function, DC output voltage adjustable(+20%)
SKU:
DRC-180B

Model
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Alarm signal for AC OK and Battery low(via relay)
Protections: Short circuit / Overload / Over voltage / Over Temperature
Battery low protection/ Battery reverse polarity protection by fuse
Cooling by free air convection
-20 ~ + 70℃ wide operating temperature
Can be installed on DIN rail TS-35/7.5 or 15
DC output voltage adjustable (+20%)

LED indicator for power on

Operating altitude up to 5000 meters (Note.6)

3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 35A at 115VAC, 70A at 230VAC
DC adjustment range ±8.6% rated output voltage
Overload protection 105%~150% constant current limiting, auto-recovery
Over-voltage protection 115%~140% rated output voltage
Setup, rise, hold up time 2000ms, 30ms, 20ms
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20~+70°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, Dekra BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 3 poles, O/P: 8 poles screw DIN terminal
Dimension (LxWxH) 63x125.2x115
Packing 12pcs / 10.5kg

Specifications

  • Brand
    Mean Well
  • Series
    DRC Series
  • Power Rating
    179.4 Watt
  • Output Voltage
    27.6 Volt
  • Rated Current
    4.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    6.3 cm
  • Width
    12.52 cm
  • Height
    11.5 cm
  • Weight
    0.71 kg
