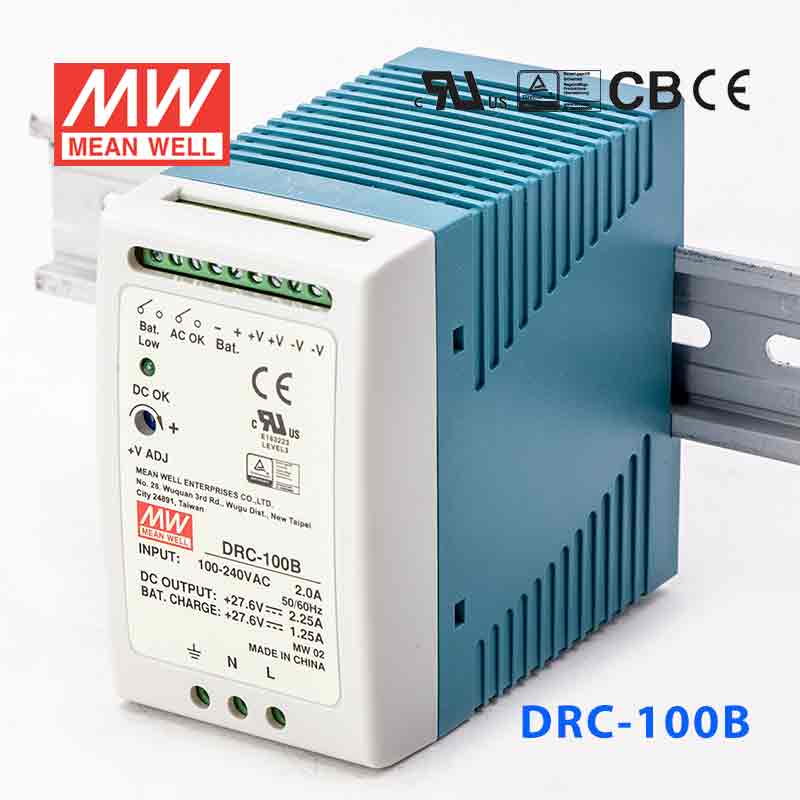

Mean Well DRC-100B Power Supply 96.6W 27.6V
Please Login for Pricing
Description
Description
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
100% full load burn-in test
Key Features
- ✓✓Universal AC input / Full rangeProtections: Short circuit / Overload / Over voltage
- ✓✓Battery low protection/ Battery reverse polarity protection by fuse
- ✓✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓✓Alarm signal for AC OK and Battery low(via relay)
- ✓✓Cooling by free air convection
- ✓✓LED indicator for power on100% full load burn-in test
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDRC Series
-
Power Rating96.6 Watt
-
Output Voltage27.6 Volt
-
Rated Current2.25 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10 cm
-
Width9 cm
-
Height5.5 cm
-
Weight0.37 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DRC-100B for a 27.6V industrial control load up to 2.25A?
Yes. The DRC-100B provides constant voltage output at 27.6V and is rated for 2.25A, with a total output of 96.6W. It is suited to 27.6V panel loads that stay within those ratings.
Is the DRC-100B a fit for 24V-class automation equipment that operates at 27.6V DC?
It is intended for equipment that specifically accepts 27.6V constant voltage input. The available output is 2.25A and 96.6W, so the connected load must remain within that range. This makes it relevant for control and automation devices designed around a 27.6V nominal bus.
Can the DRC-100B be used in DIN rail battery-backed control systems?
It is designed as a DIN rail power supply with UPS function, which makes it relevant for control systems where backup behavior is required. Electrically, the load must be compatible with 27.6V constant voltage and stay within 2.25A or 96.6W. That is the key fit check for embedded or industrial use.
Is the DRC-100B suitable for outdoor or washdown environments?
The unit has an operating temperature range of -30°C to +70°C, so temperature capability is broad. However, no IP rating is provided in the listed specs. Based on the provided data, outdoor exposed or washdown suitability is not established.
What are the main differences between the DRC-100B and the other DRC models?
The DRC-100B is rated at 96.6W, 27.6V, and 2.25A. The related models are DRC-40A at 40.02W, 13.8V, 1.9A; DRC-40B at 40.02W, 27.6V, 0.95A; DRC-60A at 59.34W, 13.8V, 2.8A; DRC-60B at 59.34W, 27.6V, 1.4A; DRC-100A at 96.6W, 13.8V, 4.5A; DRC-180A at 179.4W, 13.8V, 9A; and DRC-180B at 179.4W, 27.6V, 4.5A.
Other DRC Series Models
7 other models| Model | Power | Voltage | Current | Battery Voltage | |
|---|---|---|---|---|---|
| Mean Well DRC-100A Power Supply 96.6W 13.8V | 96.6W | 13.8V | 4.5A | 13.8V | View |
| Mean Well DRC-60B Power Supply 59.34W 27.6V | 59.34W | 27.6V | 1.4A | 27.6V | View |
| Mean Well DRC-60A Power Supply 59.34W 13.8V | 59.34W | 13.8V | 2.8A | 13.8V | View |
| Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS | 179.4W | 27.6V | 4.5A | 27.6V | View |
| Mean Well DRC-40A Power Supply 40.02W 13.8V | 40.02W | 13.8V | 1.9A | 13.8V | View |
| Mean Well DRC-180A 179.4W 13.8V Power Supply With UPS | 179.4W | 13.8V | 9A | 13.8V | View |
| Mean Well DRC-40B Power Supply 40.02W 27.6V | 40.02W | 27.6V | 0.95A | 27.6V | View |
