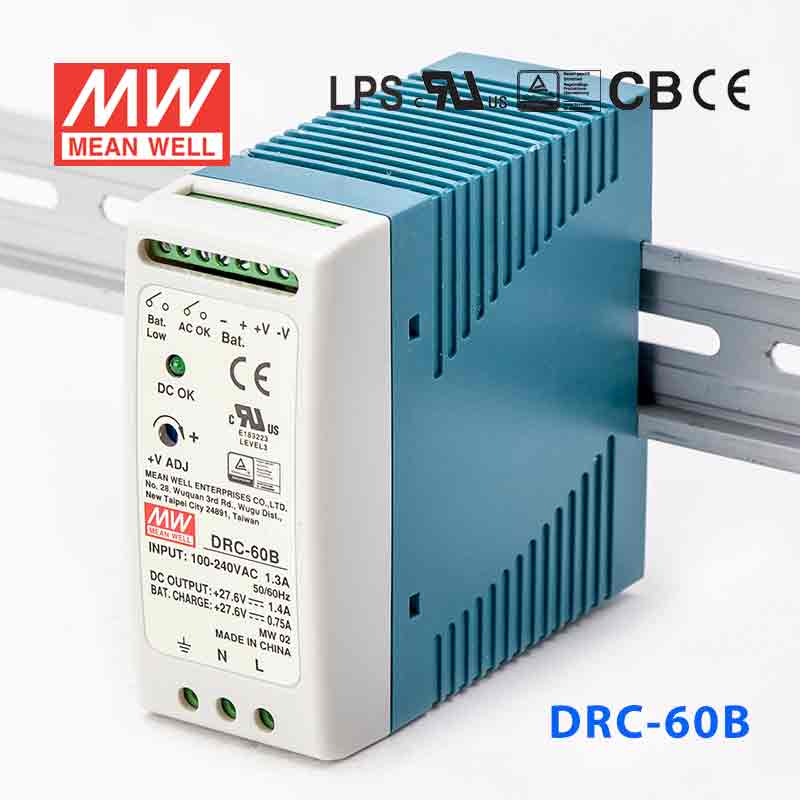

Mean Well DRC-60B Power Supply 59.34W 27.6V

with UPS function, pass LPS
SKU:
DRC-60B

Model
|

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage

Battery low protection/ Battery reverse polarity protection by fuse
Can be installed on DIN rail TS-35/7.5 or 15
Alarm signal for AC OK and Battery low(via TTL open collector, optional via relay)
Cooling by free air convection
Pass LPS

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 30A at 115VAC, 60A at 230VAC
DC adjustment range ±8.6% rated output voltage
Overload protection 105%~150% constant current limiting, auto-recovery
Over-voltage protection 105%~135% rated output voltage
Setup, rise, hold up time 400ms, 50ms, 50ms
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 3 poles, O/P: 8 poles screw DIN terminal
Dimension (LxWxH) 40x90x100
Packing 42pcs / 13.6kg

Specifications

  • Brand
    Mean Well
  • Series
    DRC Series
  • Power Rating
    59.34 Watt
  • Output Voltage
    27.6 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    10 cm
  • Width
    9 cm
  • Height
    4 cm
  • Weight
    0.3 kg

File Downloads
