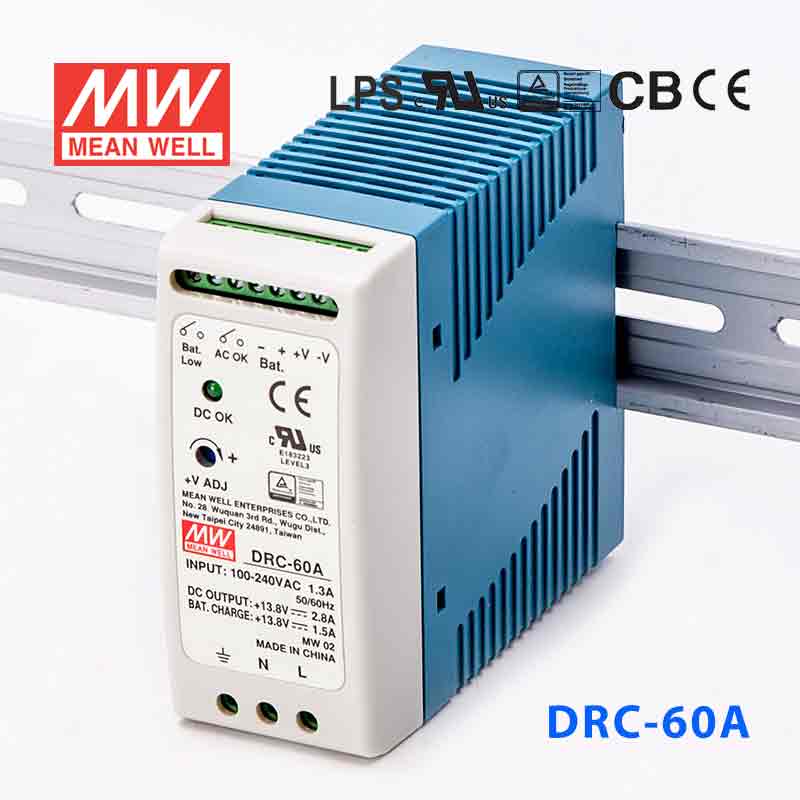

Mean Well DRC-60A Power Supply 59.34W 13.8V
Please Login for Pricing
Description
Description
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
100% full load burn-in test
Key Features
- ✓✓Universal AC input / Full rangeProtections: Short circuit / Overload / Over voltage
- ✓✓Battery low protection/ Battery reverse polarity protection by fuse
- ✓✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓✓Alarm signal for AC OK and Battery low(via TTL open collector, optional via relay)
- ✓✓Cooling by free air convection
- ✓✓Pass LPS
- ✓✓LED indicator for power on100% full load burn-in test
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDRC Series
-
Power Rating59.34 Watt
-
Output Voltage13.8 Volt
-
Rated Current2.8 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10 cm
-
Width9 cm
-
Height4 cm
-
Weight0.3 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DRC-60A for a 13.8V automation controller or HMI load?
Yes, if the equipment needs 13.8V constant voltage and the load stays within 2.8A. The DRC-60A is rated for 59.34W, which places it between smaller 40.02W units and larger 96.6W or 179.4W models. That makes it suitable for mid-range panel power needs.
Is the DRC-60A a good match for 13.8V embedded or industrial electronics in a DIN rail cabinet?
It is a fit when the electronics require 13.8V DC constant voltage and draw no more than 2.8A. The input range is 90-264VAC, and the output capacity is 59.34W. Those ratings suit many enclosed industrial and embedded cabinet applications.
Can the DRC-60A support small battery-backed control systems?
It can be used in systems that need a DIN rail supply with UPS function and a 13.8V output. The available output is 2.8A, with a total power rating of 59.34W. That makes it appropriate for moderate 13.8V control loads rather than high-current equipment.
Will the DRC-60A handle cold or warm indoor operating conditions?
The specified operating temperature is -30°C to +70°C, so it is designed for a broad indoor temperature range. The provided specs do not list an IP rating. Because of that, the data does not confirm use in exposed outdoor or wet locations.
Where does the DRC-60A sit within the DRC family?
The DRC-60A is a 59.34W model with 13.8V output at 2.8A. Other listed models are DRC-40A at 40.02W, 13.8V, 1.9A; DRC-40B at 40.02W, 27.6V, 0.95A; DRC-60B at 59.34W, 27.6V, 1.4A; DRC-100A at 96.6W, 13.8V, 4.5A; DRC-100B at 96.6W, 27.6V, 2.25A; DRC-180A at 179.4W, 13.8V, 9A; and DRC-180B at 179.4W, 27.6V, 4.5A.
Other DRC Series Models
7 other models| Model | Power | Voltage | Current | Battery Voltage | |
|---|---|---|---|---|---|
| Mean Well DRC-100A Power Supply 96.6W 13.8V | 96.6W | 13.8V | 4.5A | 13.8V | View |
| Mean Well DRC-60B Power Supply 59.34W 27.6V | 59.34W | 27.6V | 1.4A | 27.6V | View |
| Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS | 179.4W | 27.6V | 4.5A | 27.6V | View |
| Mean Well DRC-100B Power Supply 96.6W 27.6V | 96.6W | 27.6V | 2.25A | 27.6V | View |
| Mean Well DRC-40A Power Supply 40.02W 13.8V | 40.02W | 13.8V | 1.9A | 13.8V | View |
| Mean Well DRC-180A 179.4W 13.8V Power Supply With UPS | 179.4W | 13.8V | 9A | 13.8V | View |
| Mean Well DRC-40B Power Supply 40.02W 27.6V | 40.02W | 27.6V | 0.95A | 27.6V | View |
