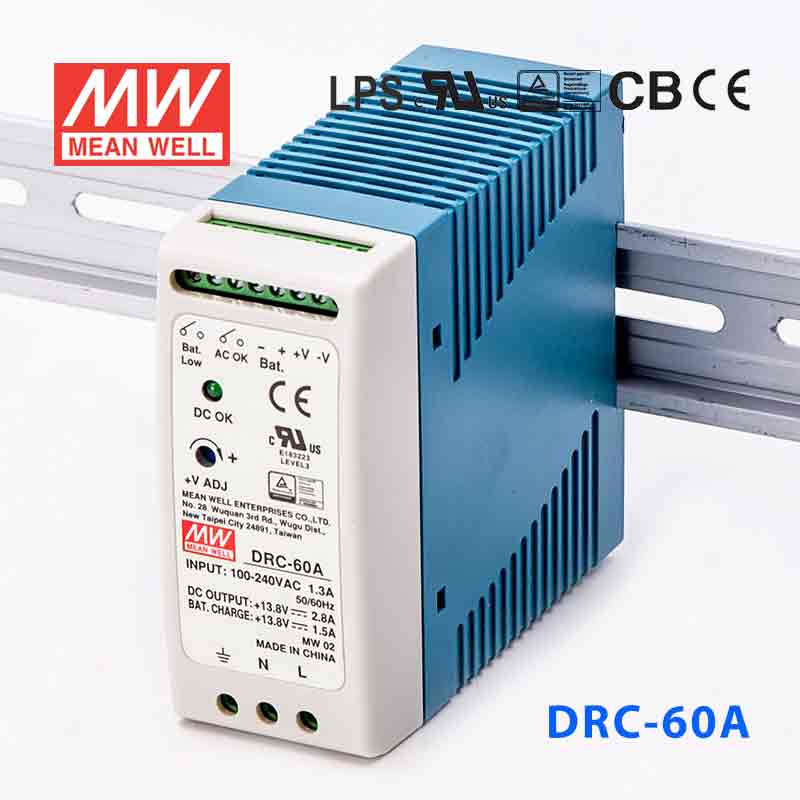

Mean Well DRC-60A Power Supply 59.34W 13.8V 2.8A

with UPS functionpass LPS

SKU DRC-60A

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

DRC-60A

DRC-40A 40W 13.8V Backorder

DRC-60A 60W 13.8V Backorder

DRC-100A 100W 13.8V Low stock

DRC-180A 180W 13.8 In stock

Product variants

Available to order

Overview

DRC-60A is the CH1: 13.8V; CH2: 13.8V output model of this series: rated current CH1: 2.8A; CH2: 1.5A, rated power 59.34W, typical efficiency 86%.

DRC-60 is a 60W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-60 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 88%, it can operate with air convection cooling under -30℃ through 70℃. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signalling is provided, via relay contact output, to facilitate the system design.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protection / Battery reverse polarity protection by fuse
Can be installed on DIN rail TS-35/7.5 or 15
Alarm signal for AC OK and Battery low via relay contact
Cooling by free air convection
Pass LPS
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

DRC-60ASpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

OUTPUT NUMBER: CH1, CH2
DC VOLTAGE: CH1: 13.8V; CH2: 13.8V
RATED CURRENT: CH1: 2.8A; CH2: 1.5A
CURRENT RANGE: CH1: 0 ~ 4.3A; CH2: --------
RATED POWER: 59.34W
RIPPLE & NOISE (max.)^Note.2: CH1: 120mVp-p; CH2: --------
VOLTAGE ADJ. RANGE: CH1:12 ~ 15V
VOLTAGE TOLERANCE^Note.3: CH1: ±1.0%; CH2: --------
LINE REGULATION: CH1: ±0.5%; CH2: --------
LOAD REGULATION: CH1: ±0.5%; CH2: --------
SETUP, RISE TIME^Note.4: 400ms, 50ms/230VAC 800ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1:14.49 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF: 10±0.5V

FUNCTION

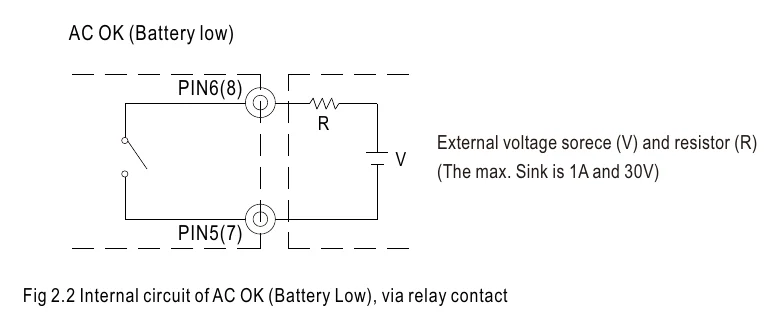

AC OK: Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30V/1A
BATTERY LOW: Relay contact output, OFF : Battery OK ; ON : Battery Low ; max. rating : 30V/1A Battery low voltage : < 11V

ENVIRONMENT

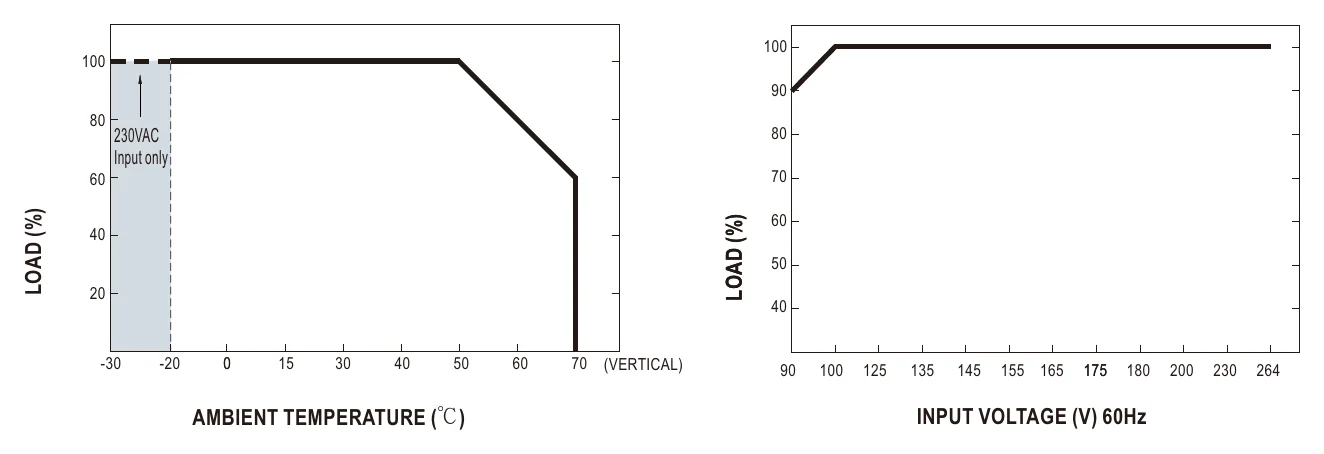

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) on CH1 output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61204-3, light industry level, EAC TP TC 020

OTHERS

MTBF: 1854.1K hrs min. Telcordia SR-332 (Bellcore) ; 504.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 40*90*100mm (W*H*D)
PACKING: 0.3Kg; 42pcs/13.6Kg/0.82CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ& 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8.The battery voltage is lower than the CUTOFF voltage and cannot perform AC reset charging.

Technical drawings

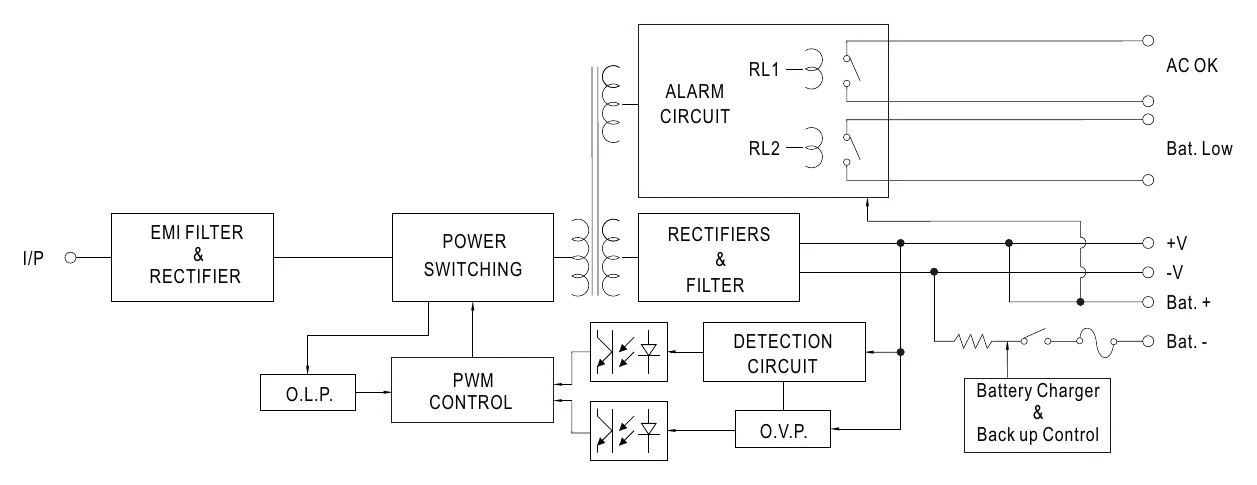

DRC-60A D R C - 6 0 series — D R C - 6 0 series

DRC-60A D R C - 6 0 series (2) — D R C - 6 0 series (2)

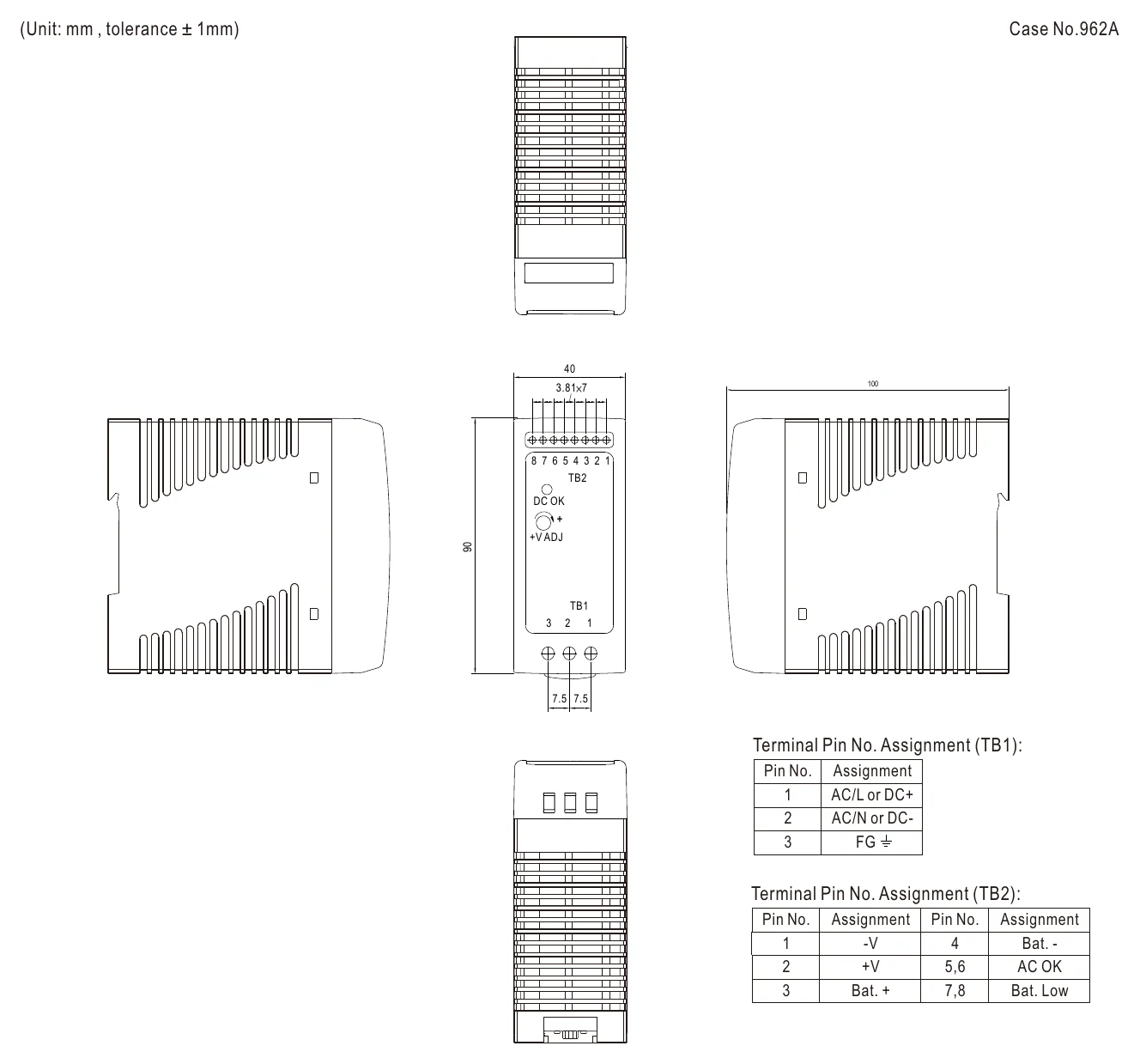

DRC-60A Mechanical Specification — Mechanical Specification

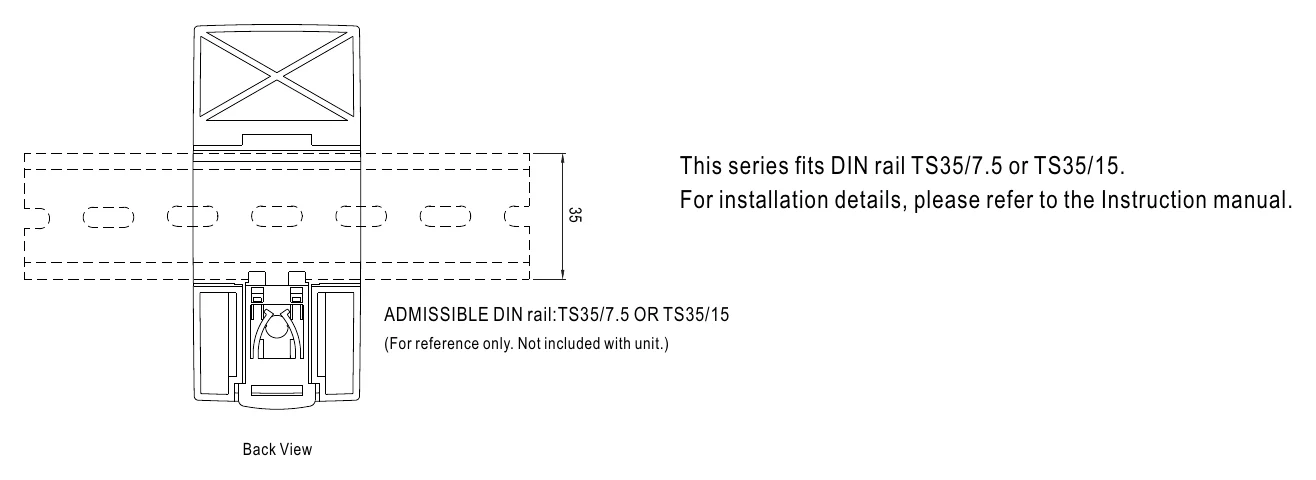

DRC-60A Installation Instruction — Installation Instruction

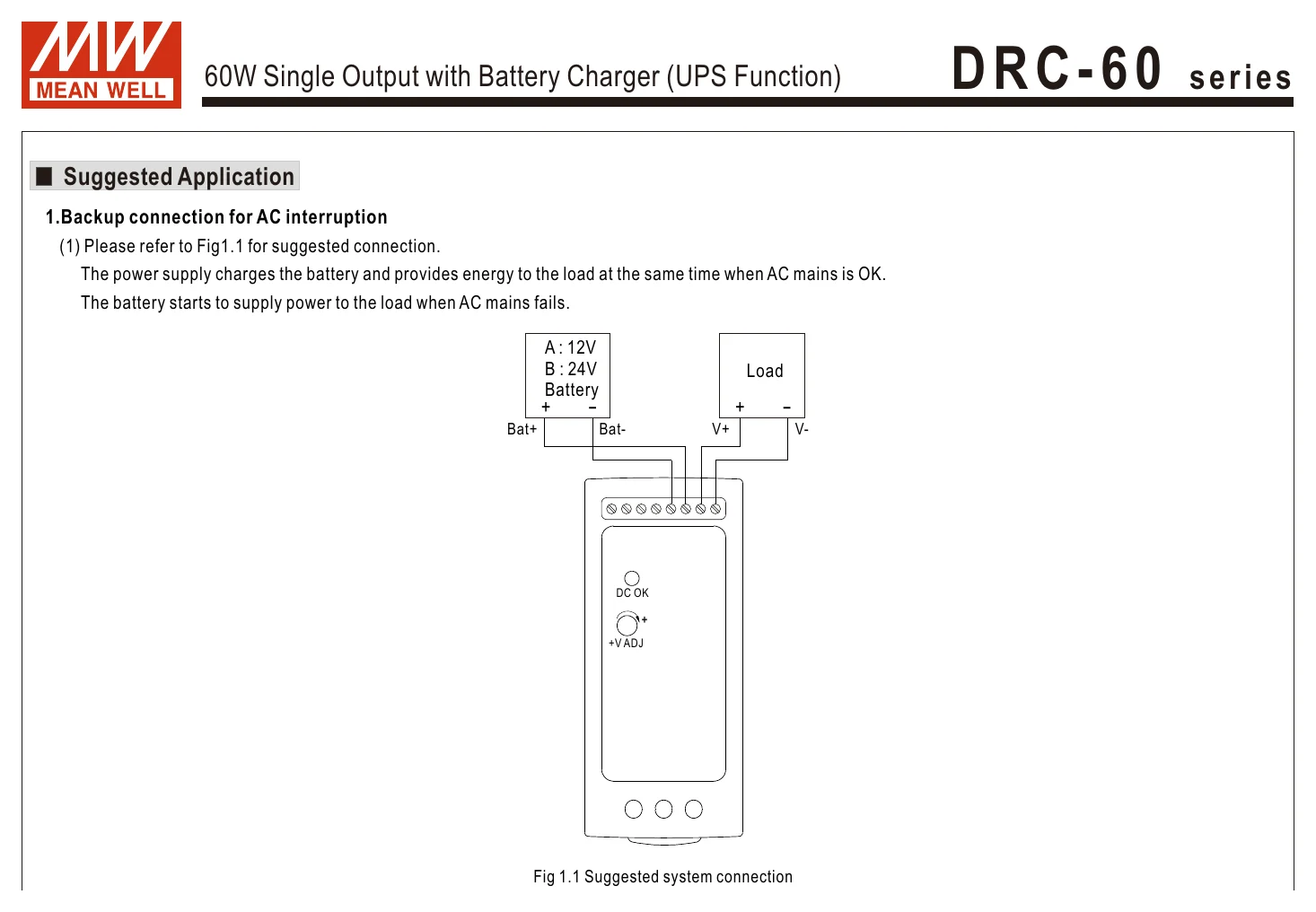

Typical applications

Downloads

Certificates6

Mean Well DRA-DRC-40-60-TUV Certificate PDF Download

Mean Well DRA-DRC-60-40-CB(UL) Certificate PDF Download

Mean Well DRA-DRC-40-60-CB(TUV) Certificate PDF Download

Mean Well DRA-DRC-40-60-EMC Certificate PDF Download

Mean Well DRA-DRC-40-60-CE-dec Certificate PDF Download

Mean Well DRA-DRC-40-60-UK-dec Certificate PDF Download

Test reports1

Mean Well DRC-60-A Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DRC-60A for a 13.8V automation controller or HMI load?

Yes, if the equipment needs 13.8V constant voltage and the load stays within 2.8A. The DRC-60A is rated for 59.34W total, shared between the 2.8A load output and the 1.5A battery charging output. That makes it suitable for mid-range panel power needs.

Is the DRC-60A a good match for 13.8V embedded or industrial electronics in a DIN rail cabinet?

It is a fit when the electronics require 13.8V DC constant voltage and draw no more than 2.8A. The input range is 90-264VAC, and the output capacity is 59.34W. Those ratings suit many enclosed industrial and embedded cabinet applications.

Can the DRC-60A support small battery-backed control systems?

It can be used in systems that need a DIN rail supply with UPS function and a 13.8V output. The available output is 2.8A, with a total power rating of 59.34W. That makes it appropriate for moderate 13.8V control loads rather than high-current equipment.

Will the DRC-60A handle cold or warm indoor operating conditions?

The specified operating temperature is -30°C to +70°C, so it is designed for a broad indoor temperature range. The provided specs do not list an IP rating. Because of that, the data does not confirm use in exposed outdoor or wet locations.

Where does the DRC-60A sit within the DRC family?

The DRC-60 series sheet lists two 59.34W models. The DRC-60A is the 13.8V version (CH1 2.8A, CH2 1.5A, adjustable 12-15V) for 12V batteries, with 86% typical efficiency. The DRC-60B is the 27.6V version (CH1 1.4A, CH2 0.75A, adjustable 24-30V) for 24V batteries, with 88% typical efficiency.
