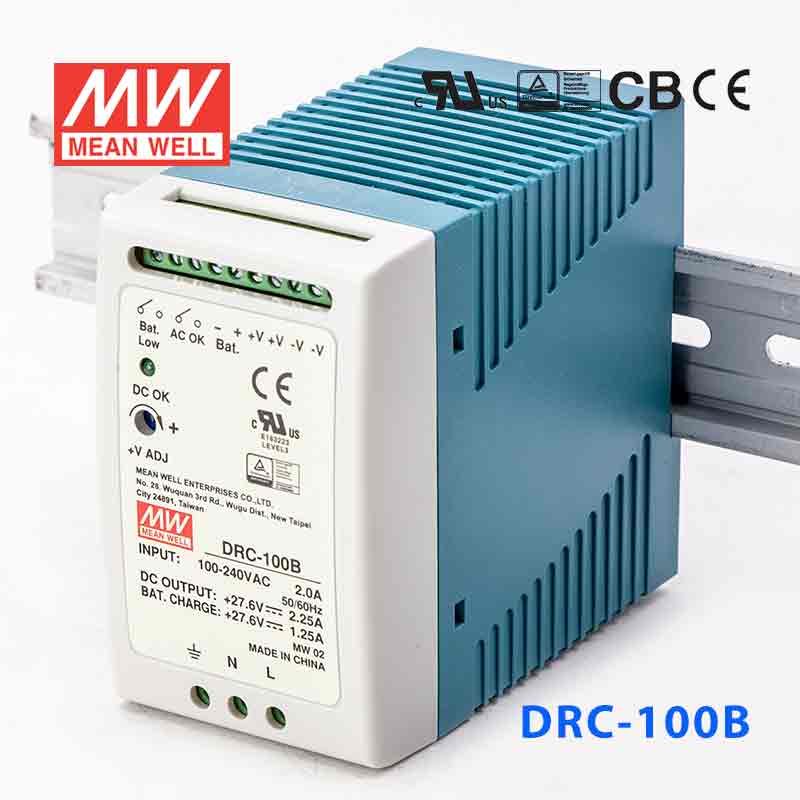

Mean Well DRC-100B Power Supply 96.6W 27.6V 2.25A

with UPS function

SKU DRC-100B

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

DRC-100B

DRC-100B 100W 27.6V In stock

DRC-180B 180W 27.6V Low stock

DRC-40B 40W 27.6V Low stock

DRC-60B 60W 27.6V In stock

Product variants

In stock

Overview

DRC-100B is the CH1: 27.6V / CH2: 27.6V output model of this series: rated current CH1: 2.25A / CH2: 1.25A, rated power 96.6W, typical efficiency 89%.

DRC-100 is a 96W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-100 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 89%, it can operate with air convection cooling under -30℃ through 70℃. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signalling is provided, via relay contact output, to facilitate the system design.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protection / Battery reverse polarity protection by fuse
Can be installed on DIN rail TS-35/7.5 or 15
Alarm signal for AC OK and Battery low (via relay)
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

DRC-100BSpecifications from the official datasheet (2026-03-31 edition)

OUTPUT

OUTPUT NUMBER: CH1 / CH2
DC VOLTAGE: CH1: 27.6V / CH2: 27.6V
RATED CURRENT: CH1: 2.25A / CH2: 1.25A
CURRENT RANGE: CH1: 0 ~ 3.5A / CH2: --------
RATED POWER: 96.6W
RIPPLE & NOISE (max.)^Note.2: CH1: 240mVp-p / CH2: --------
VOLTAGE ADJ. RANGE: CH1:24 ~ 30V
VOLTAGE TOLERANCE^Note.3: CH1: ±1.0% / CH2: --------
LINE REGULATION: CH1: ±0.5% / CH2: --------
LOAD REGULATION: CH1: ±0.5% / CH2: --------
SETUP, RISE TIME^Note.4: 2400ms, 50ms/230VAC 2400ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.8A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1:28.98 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF: 20±1V

FUNCTION

AC OK: Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30V/1A
BATTERY LOW: Relay contact output, OFF : Battery OK ; ON : Battery Low ; max. rating : 30V/1A ; Battery low voltage : < 22V

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃) on CH1 output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55035,BS EN/EN61204-3, light industry level, EAC TP TC 020 ; meet BS EN/EN54-4 for fire detection and fire alarm systems

OTHERS

MTBF: 1820.4K hrs min. Telcordia SR-332 (Bellcore) ; 410.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 55*90*100mm (W*H*D)
PACKING: 0.37Kg; 30pcs/12.1Kg/0.82CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. The battery voltage is lower than the CUTOFF voltage and cannot perform AC reset charging.

Technical drawings

DRC-100B Derating Curve — Derating Curve

DRC-100B D R C - 1 0 0 series — D R C - 1 0 0 series

DRC-100B AC OK (Battery low) — AC OK (Battery low)

DRC-100B Mechanical Specification — Mechanical Specification

DRC-100B Installation Instruction — Installation Instruction

Typical applications

Downloads

Certificates6

Mean Well DRC-100-TUV Certificate PDF Download

Mean Well DRC-100-CB(UL) Certificate PDF Download

Mean Well DRC-100-CB(TUV) Certificate PDF Download

Mean Well DRC-100-EMC Certificate PDF Download

Mean Well DRC-100-CE-dec Certificate PDF Download

Mean Well DRC-100-UK-dec Certificate PDF Download

Test reports1

Mean Well DRC-100B Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DRC-100B for a 27.6V industrial control load up to 2.25A?

Yes. The DRC-100B provides constant voltage output at 27.6V and is rated for 2.25A, with a total output of 96.6W. It is suited to 27.6V panel loads that stay within those ratings.

Is the DRC-100B a fit for 24V-class automation equipment that operates at 27.6V DC?

It is intended for equipment that specifically accepts 27.6V constant voltage input. The available output is 2.25A and 96.6W, so the connected load must remain within that range. This makes it relevant for control and automation devices designed around a 27.6V nominal bus.

Can the DRC-100B be used in DIN rail battery-backed control systems?

It is designed as a DIN rail power supply with UPS function, which makes it relevant for control systems where backup behavior is required. Electrically, the load must be compatible with 27.6V constant voltage and stay within 2.25A or 96.6W. That is the key fit check for embedded or industrial use.

Is the DRC-100B suitable for outdoor or washdown environments?

The unit has an operating temperature range of -30°C to +70°C, with load derating at higher temperatures per the derating curve, so temperature capability is broad. However, no IP rating is provided in the listed specs. Based on the provided data, outdoor exposed or washdown suitability is not established.

What are the main differences between the DRC-100B and the other DRC models?

The DRC-100B is rated at 96.6W and 27.6V, with 2.25A for the load (CH1) and 1.25A for battery charging (CH2), for 24V battery systems. Its sibling on the same datasheet, the DRC-100A, is also 96.6W but at 13.8V, with 4.5A for the load and 2.5A for charging, for 12V battery systems. Both share the 90-264VAC input, DIN rail mounting and AC OK / Battery Low relay alarms.
