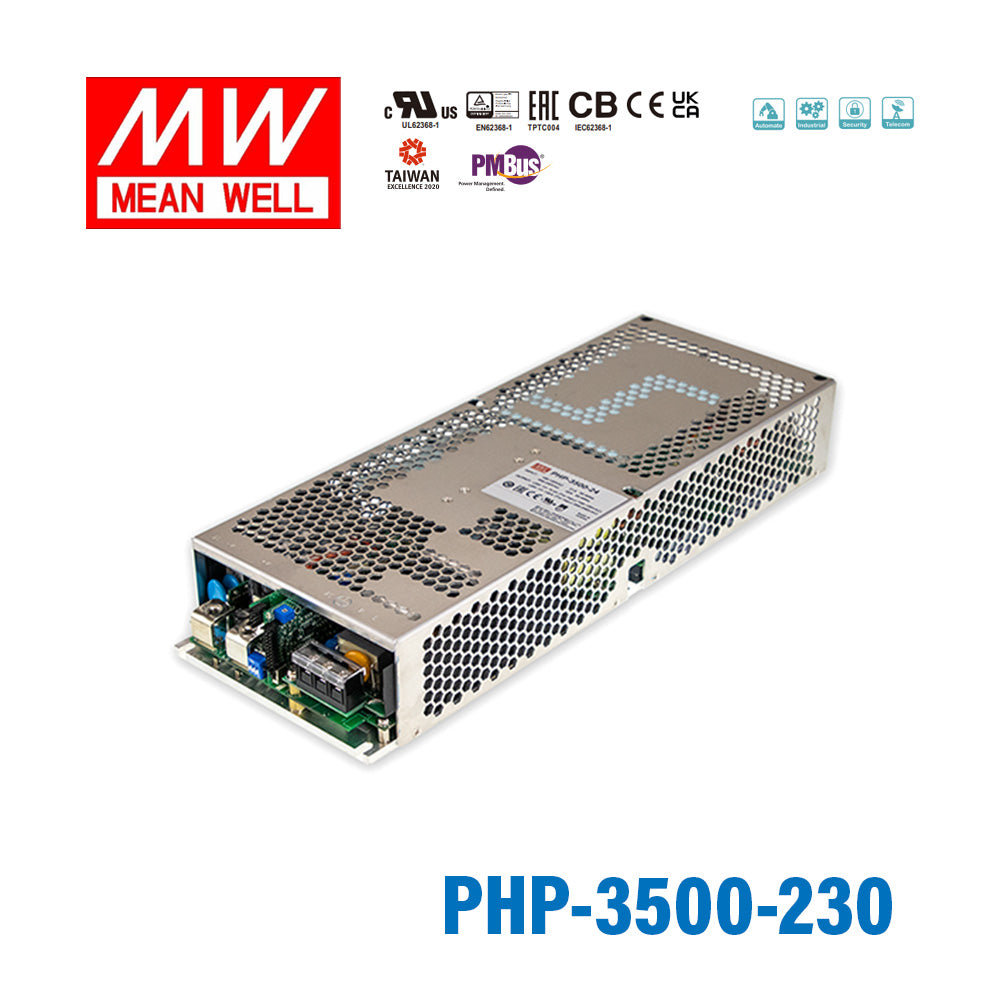

Mean Well PHP-3500-230 Power Supply 3500W 230V 16.1A

slim and low profile(60mm)fanlesscooling by water conductionoutput voltage and constant current level programmablehigh efficiency up to 96%active current sharing up to 14000W(3+1)

SKU PHP-3500-230

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PHP-3500-230 is the model of this series: typical efficiency 95.5%.

PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 115, 230 and 380Vdc. In addition to the high efficiency up to 96%, that the whole series operates from -30℃ ~ +70℃ under water cooling. PHP-3500-HV has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. PHP-3500-HV series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

Features

High voltage output(115/230/380Vdc)
Slim and Low profile (60mm)
Fanless design with water or conduction cooling
Active PFC design and efficiency up to 96%
Built-in PMBus or CANbus protocol
Output voltage 50~120% and constant current 20~100% programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON/OFF control and DC-OK active signal
Optional water-cooling plate for quick installation
OVC Ⅲ operating altitude up to 2000 meter
LED indicator for power on
5 years warranty

Specifications

PHP-3500-230Specifications from the official datasheet (2025-12-15 edition)

OUTPUT

DC VOLTAGE (Factory default): 230V
CURRENT (Factory default): 15.2A
RATED CURRENT(Max.): 16.1A
POWER (Factory default): 3500W
RATED POWER(Max.)^Note.12: 3500W
RIPPLE & NOISE (Max.)^Note.2: 2.3Vp-p
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 170~260V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2000ms, 60ms/230VAC at full load 2500ms, 60ms/115VAC at 60% load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load 10ms/115VAC at 60% load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.95/230VAC at full load PF≥0.95/115VAC at 60% load
EFFICIENCY (Peak)^{Note 11}: 95.5%
AC CURRENT (Typ.): 20A/230VAC 21A/115VAC
INRUSH CURRENT (Typ.): Cold start 80A/230VAC 40A/115VAC
LEAKAGE CURRENT: 2mA / 240VAC

PROTECTION

OVER LOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recover
SHORT CIRCUIT: Protection type : Constant current limiting, unit will shut down after 5 sec, re-power on to recover
OVER VOLTAGE: 273 ~ 320V
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5,6}: Adjustment of output voltage is allowable to 50~120% of nominal output voltage. Please refer to the function manual

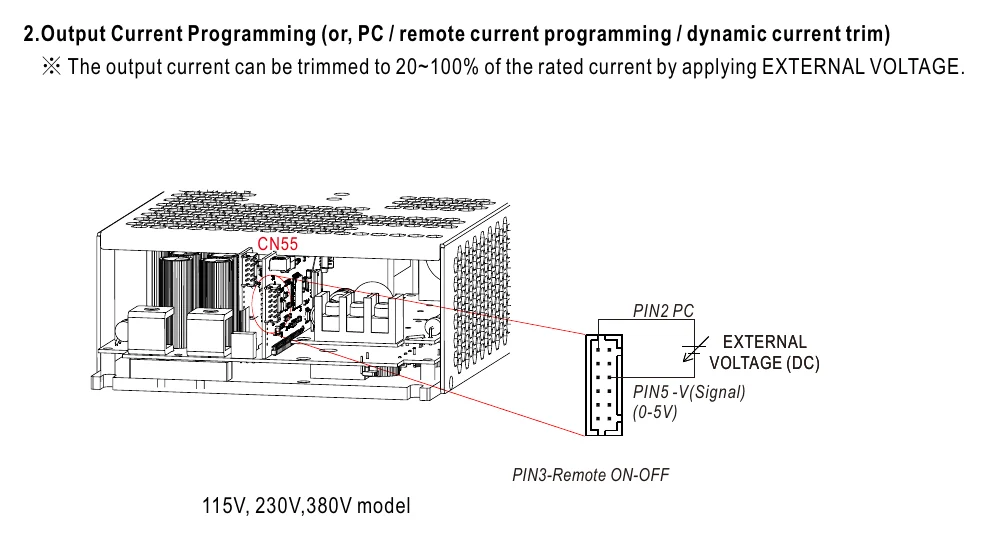

OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 6}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.

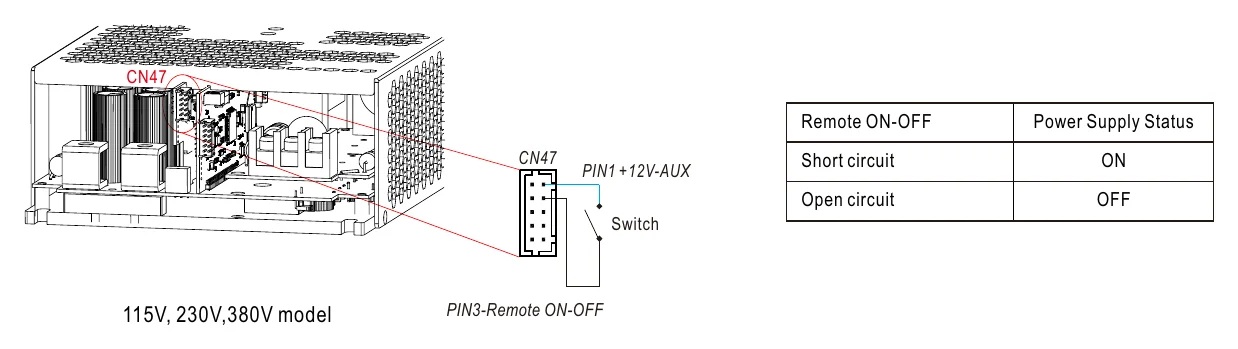

REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V@0.5A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN61558 ; altitude up to 2000 meters.

SAFETY & EMC (Note.7,8)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-12
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class A
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-12
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 576.5K hrs min. Telcordia SR-332 (Bellcore) ; 63.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 380*141.4*60mm (L*W*H)
PACKING: 4.07Kg;4pcs/16.28Kg/2.46CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Without water or fan cooling to provide adequate heat dissipation, OTP might be triggered if trimming output voltage by PV signal toward upper or lower limits of nominal voltage. Under such condition, enhanced cooling on PSU is highly recommended.
6. In the control priority on Vout and Iout trimming, Please refer to the table on page 9.
7. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
8. Need additional EMI filter to meet regulations of EMC conducted and radiated emission. Characteristics of EMI filter please refer to the table, Minimum Insertion Loss.
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. The efficiency level is measured at output voltage: 133V (115V model)/ 217V (230V model)/ 333V (380V model).
12. Refer to derating curve.

Technical drawings

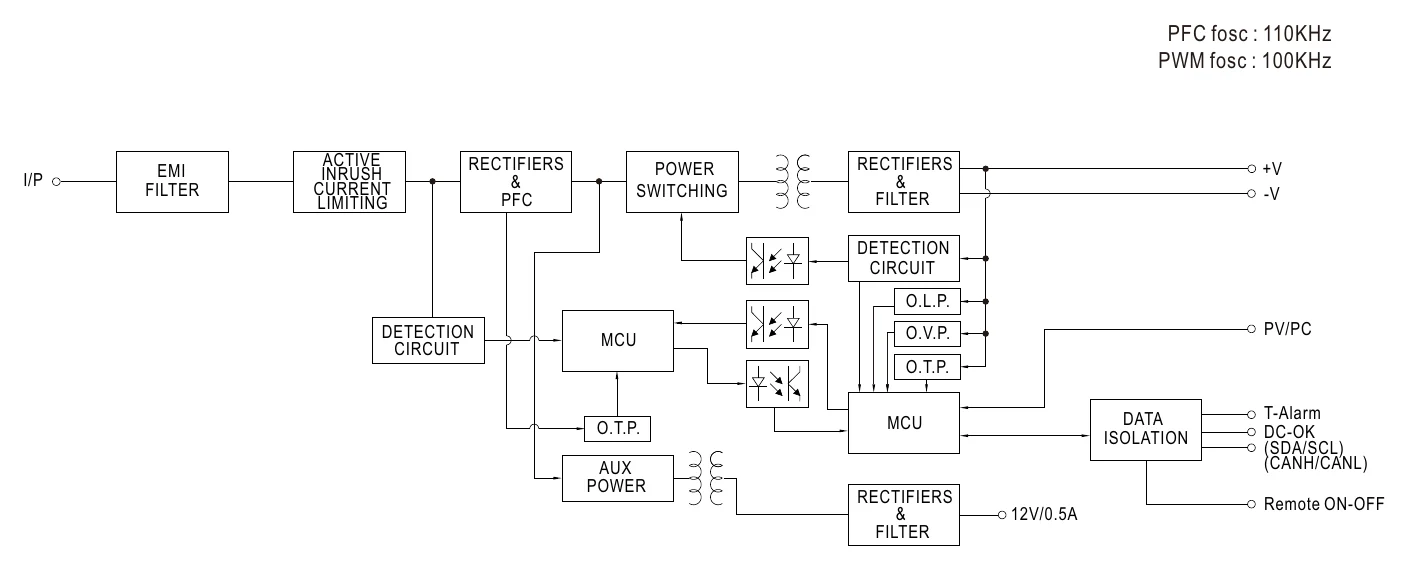

PHP-3500-230 BLOCK DIAGRAM — BLOCK DIAGRAM

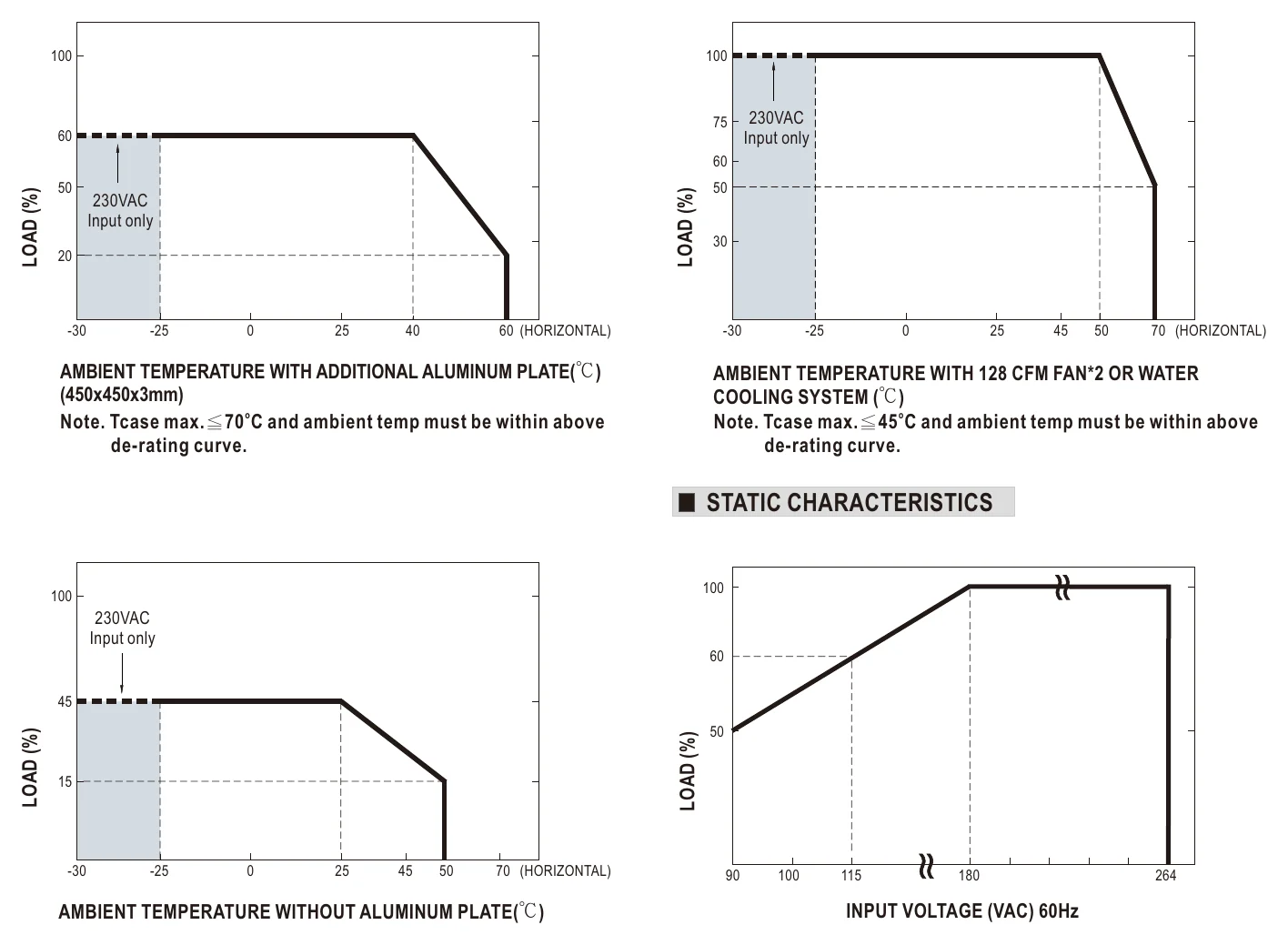

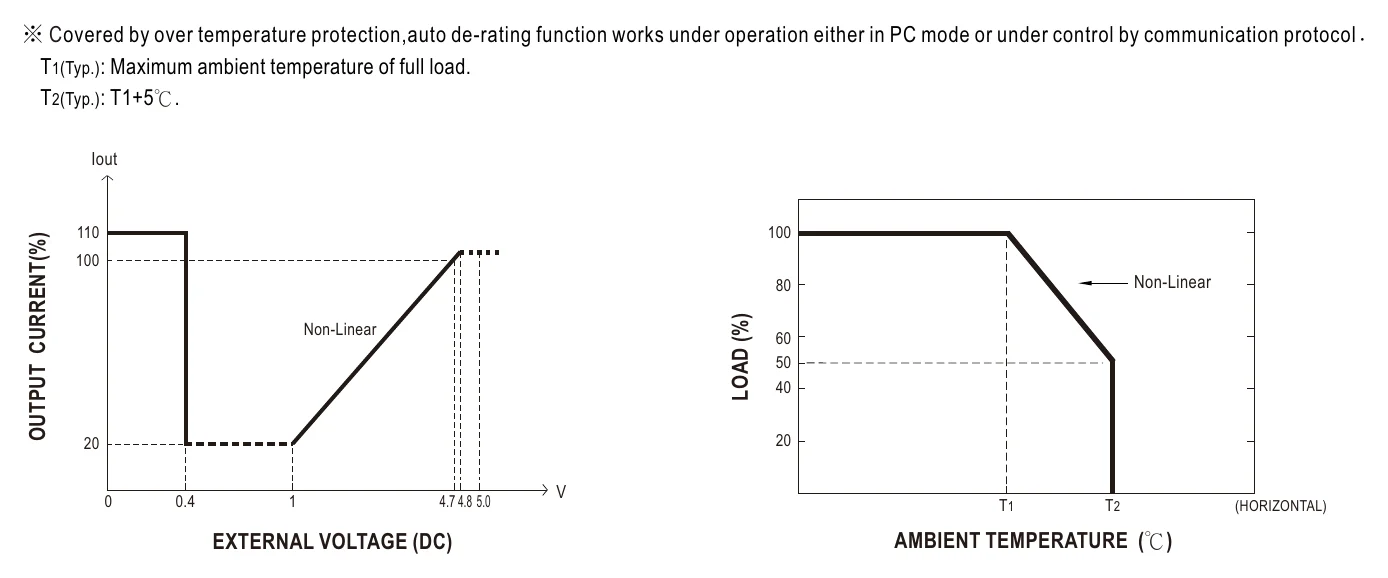

PHP-3500-230 DERATING CURVE — DERATING CURVE

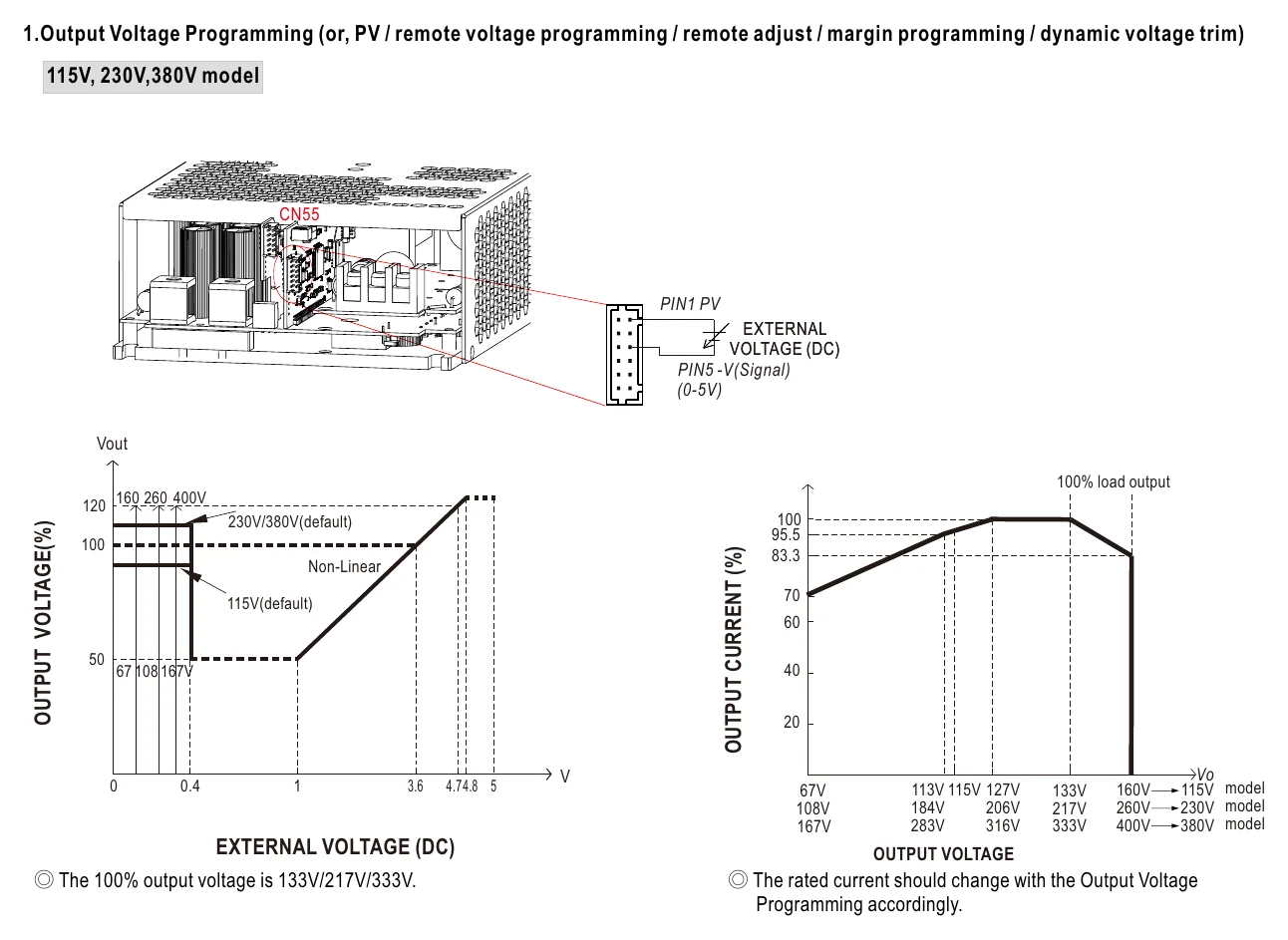

PHP-3500-230 FUNCTION MANUAL — FUNCTION MANUAL

PHP-3500-230 115V, 230V,380V model — 115V, 230V,380V model

PHP-3500-230 T1(Typ.): Maximum ambient temperature of full load. — T1(Typ.): Maximum ambient temperature of full load.

PHP-3500-230 Illustration (page 6) — Illustration (page 6)

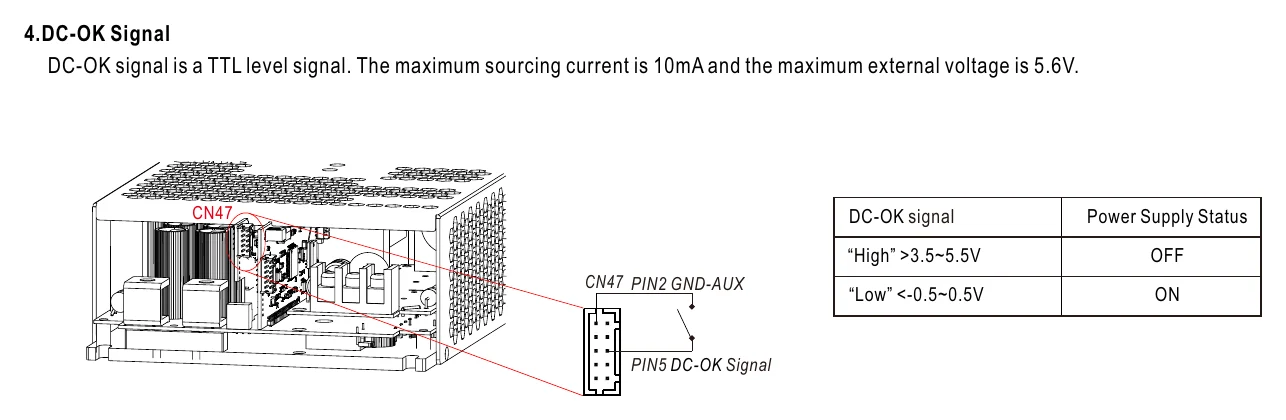

PHP-3500-230 4.DC-OK Signal — 4.DC-OK Signal

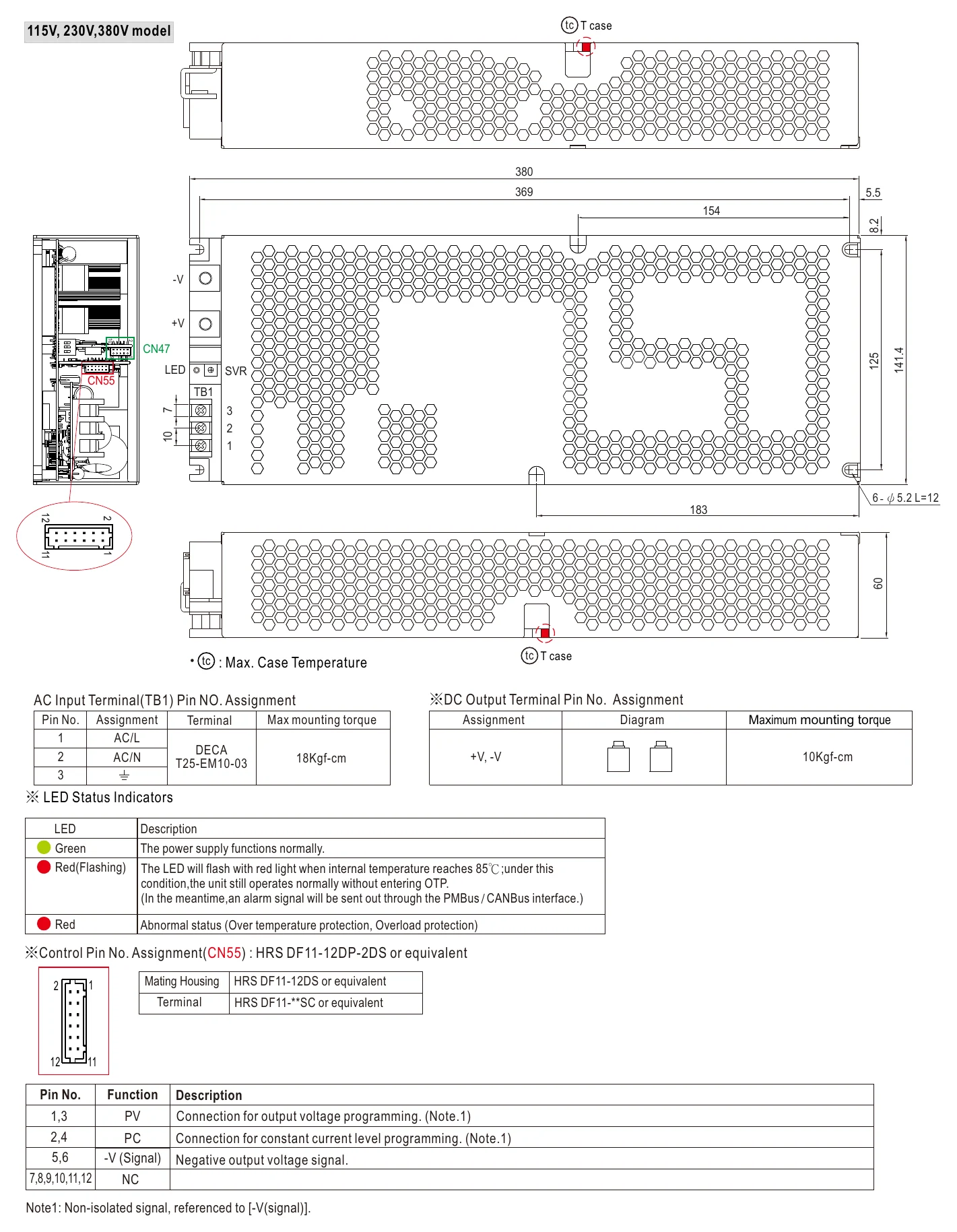

PHP-3500-230 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

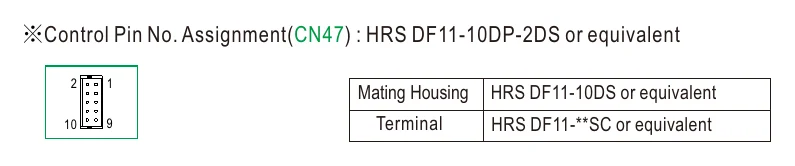

PHP-3500-230 ※Control Pin No. Assignment(CN47) : HRS DF11-10DP-2DS or… — ※Control Pin No. Assignment(CN47) : HRS DF11-10DP-2DS or…

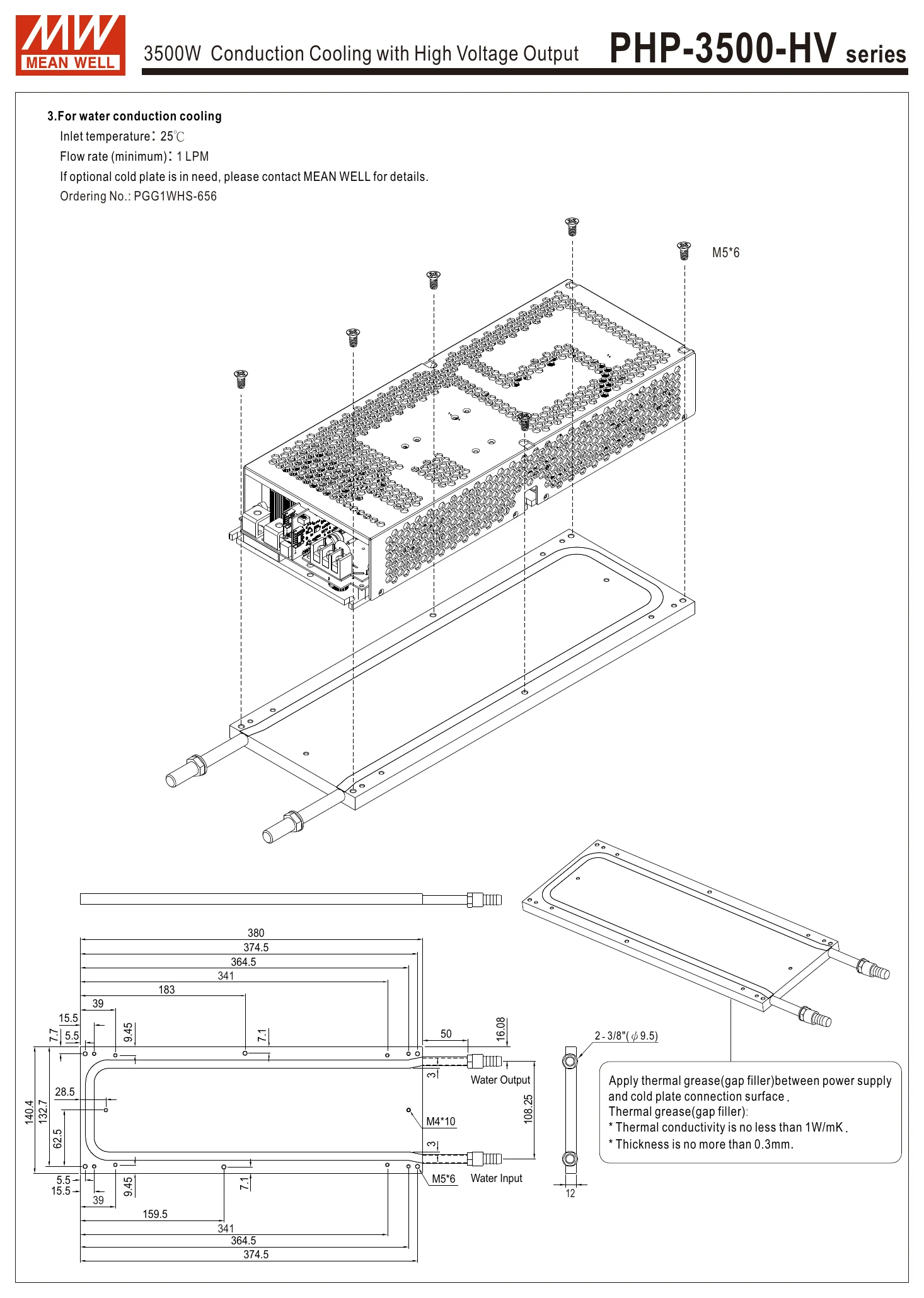

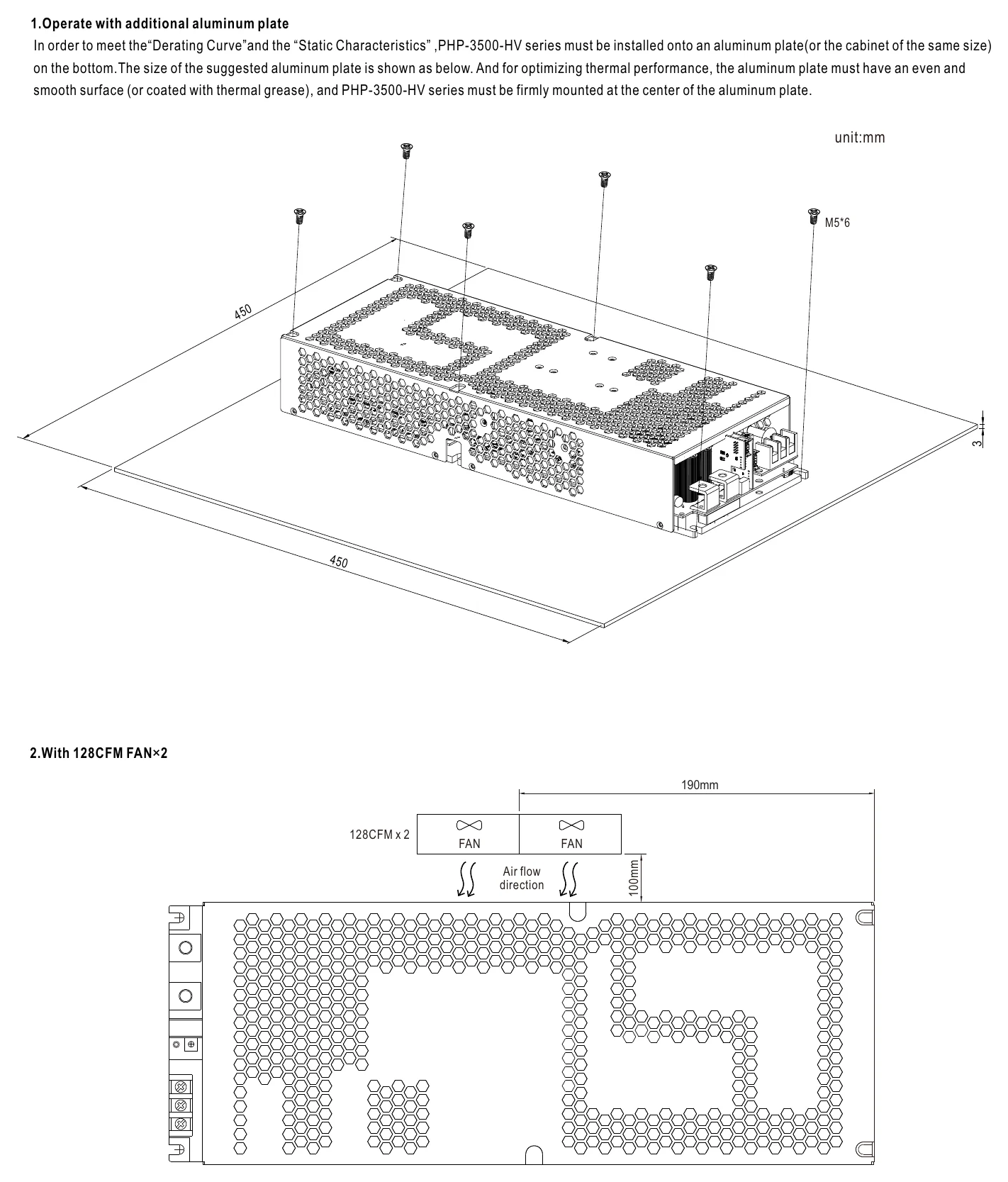

PHP-3500-230 INSTALLATION — INSTALLATION

PHP-3500-230 PHP-3500-HV series — PHP-3500-HV series

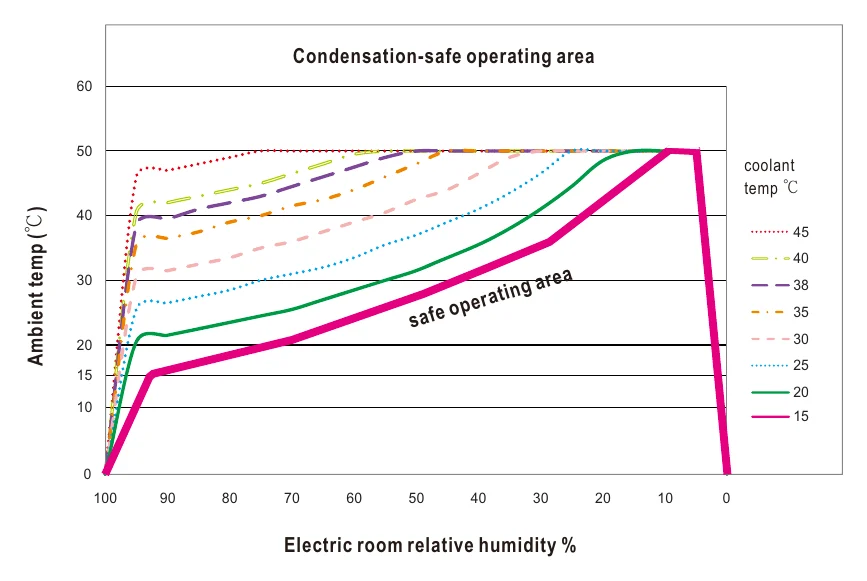

PHP-3500-230 Condensation-safe operating area — Condensation-safe operating area
