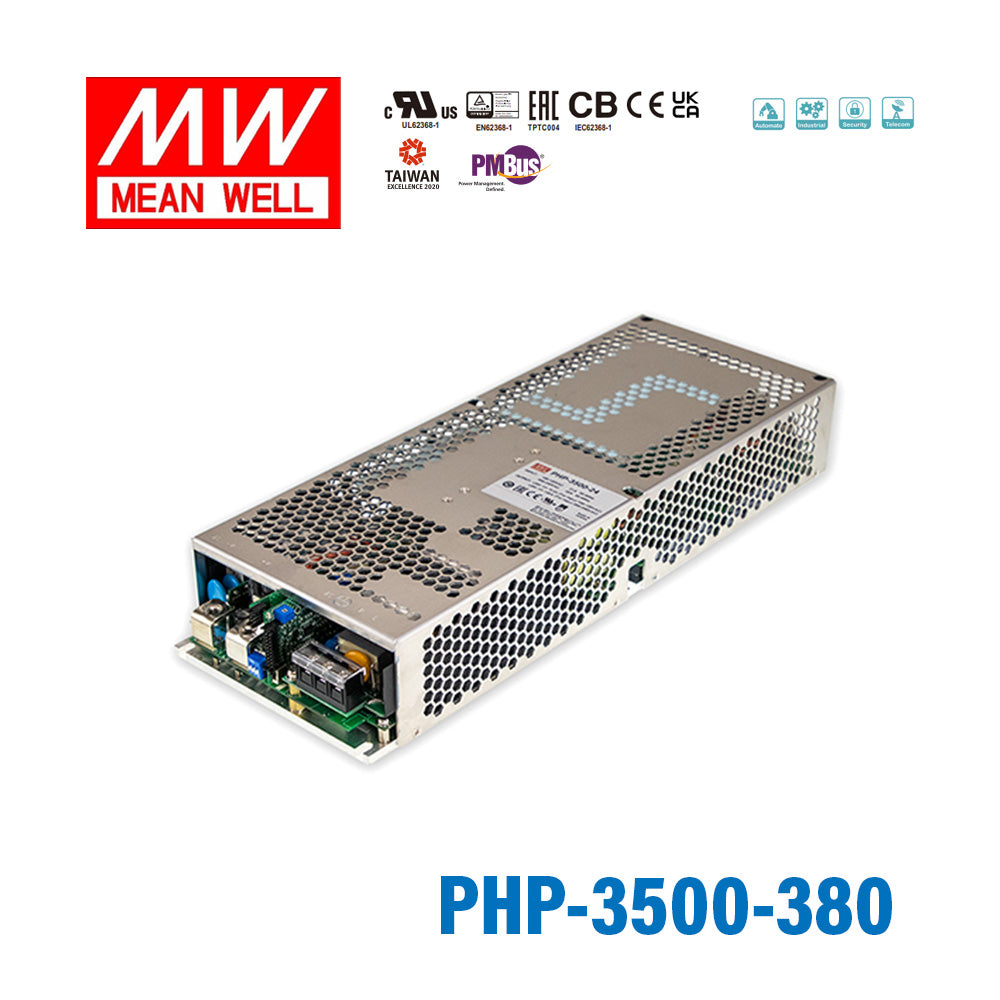

Mean Well PHP-3500-380 Power Supply 3500W 380V 10.5A

The PHP-3500-380 is a 3500W enclosed AC-DC power supply with a nominal 380V DC output. Its rated output current is 10.5A, making it suitable for high-power DC applications that require a high-voltage output.

This model is intended for high-power industrial and commercial systems that need a regulated 380V DC supply from an enclosed power source. Buyers typically consider it when they need substantial output power, a slim low-profile form factor, and support for advanced control and monitoring features.

The main difference is the output voltage: this version is the 380V DC model. If your system requires a lower DC output such as 115V or 230V, you would need the corresponding variant rather than the PHP-3500-380.

Yes. Mean Well specifies that the output voltage and constant current level are programmable on this model. That makes it a better fit for systems that need controlled output behavior rather than a strictly fixed configuration.

This power supply is rated for operation from -30°C to 70°C. That wide temperature range makes it appropriate for environments that are too hot or too cold for many standard power supplies, provided the overall system design stays within the product's operating limits.

The PHP-3500-380 includes protection for short circuit, overload, over voltage, and over temperature conditions. It also provides remote ON/OFF control, a DC-OK active signal, and built-in PMBus communication protocol support, with CANbus available as an option.

No. The PHP-3500-380 uses a fanless design and is intended for water or conduction cooling. This can be valuable in applications where reduced moving parts, lower maintenance, or a slimmer power supply profile are important.
