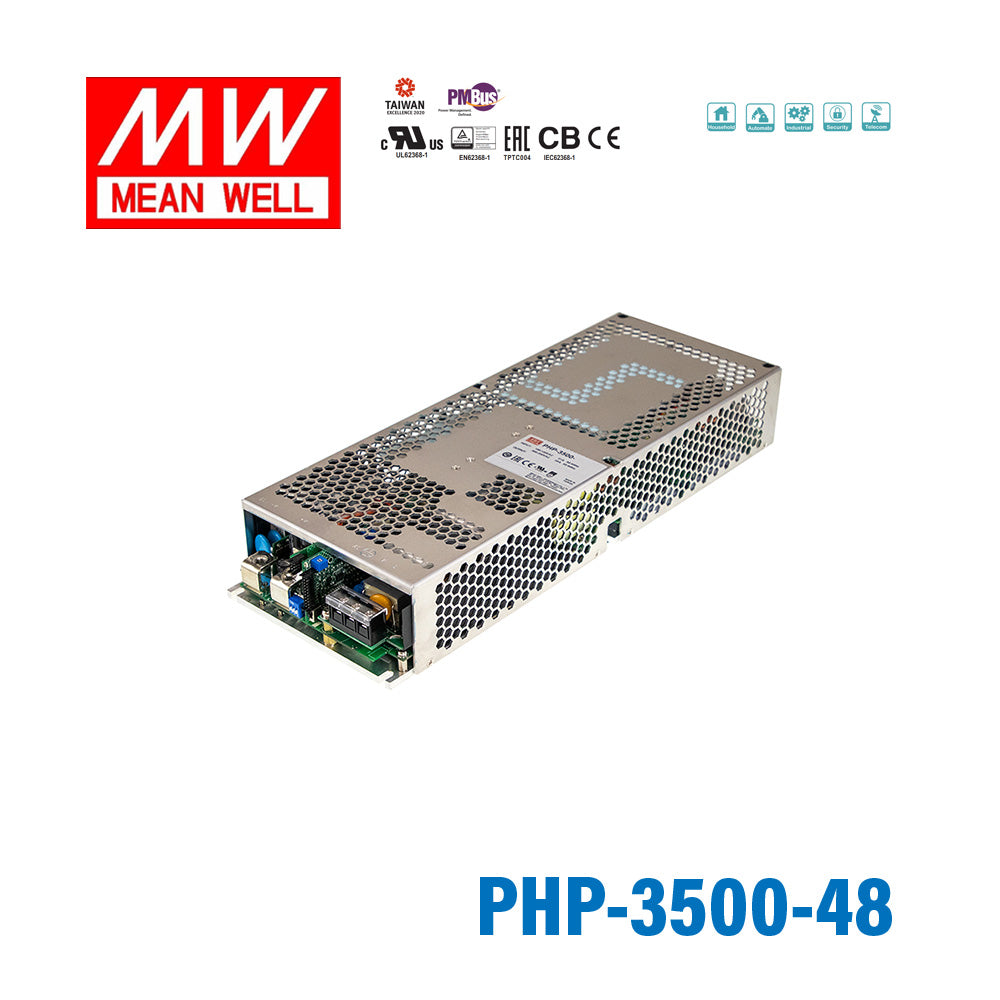

Mean Well PHP-3500-48 power supply 3500W 48V 73A

slim and low profile(60mm), fanless, cooling by water conduction, output voltage and constant current level programmable, high efficiency up to 96%, active current sharing up to 14000W(3+1)

|

Description

Features

Slim and Low profile (60mm)
Fanless design, cooling by water conduction
Built-in PMBus communication protocol, CANBus optional
Built-in active PFC function
-30~+70℃working temperature
Output voltage and constant current level programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON-OFF control
DC OK active signal
Operating altitude up to 3000 meter
High efficiency up to 96%
Active current sharing up to 14000W(3+1)
LED indicator for power on

5 years warranty



General Specification

AC input voltage range 90~264VAC 250~370VDC
AC inrush current Cold start :30A/115VAC 80A/230VAC
Overload protection 105~115% rated output power Protection type : Constant current limiting with delay shutdown after 5 seconds,re-power on to recover
Over voltage protection 24V:30~36V, 48V:60~72V Protection type :Shut down O/P voltage,re-power on to recover
Over temperature protection Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC,230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -30~+70℃
Safety standards UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1
EMC standards EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11
Dimension (LxWxH) 380×141.4×60mm
Packing 4.5Kg;4pcs/19Kg

Specifications

  • Brand
    Mean Well
  • Series
    PHP Series
  • Power Rating
    3504 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    73 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    38 cm
  • Width
    14.14 cm
  • Height
    6 cm
  • Weight
    4.5 kg
