Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

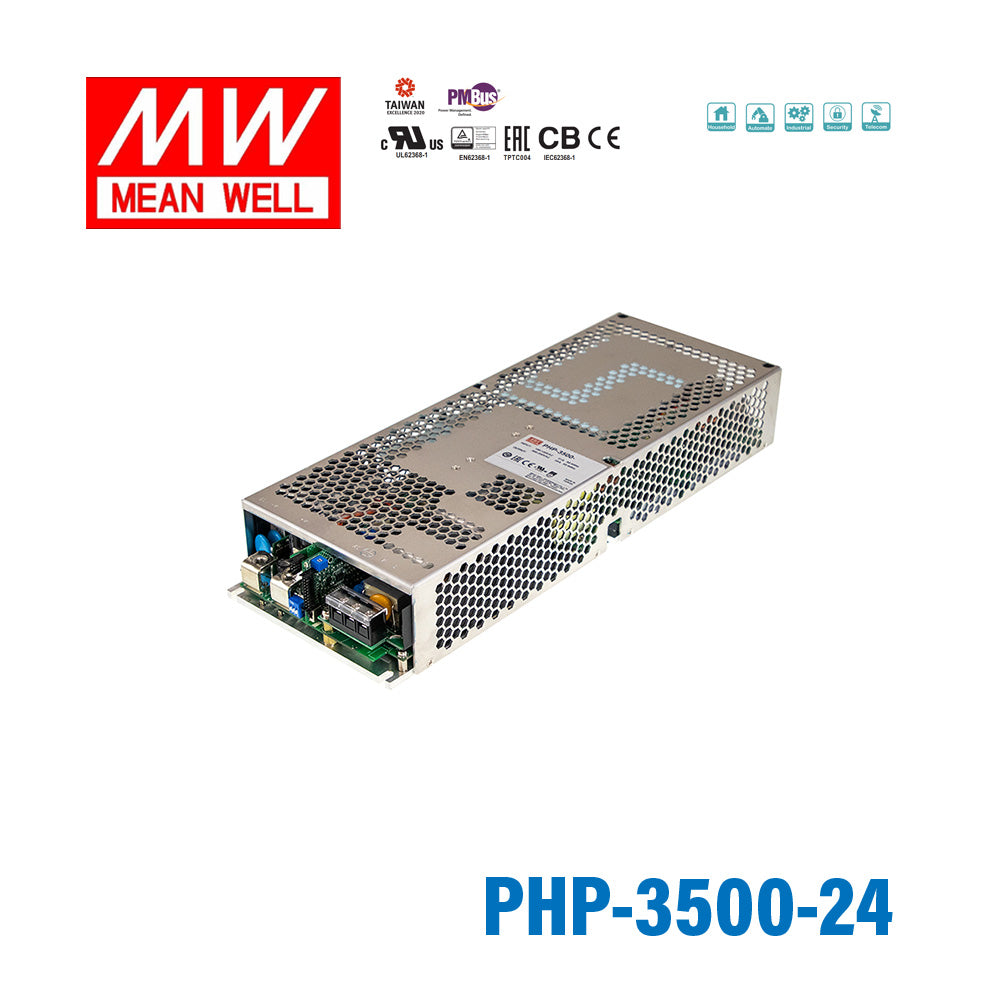

Mean Well PHP-3500-24 power supply 3500W 24V 145A

slim and low profile(60mm)fanlesscooling by water conductionoutput voltage and constant current level programmablehigh efficiency up to 96%active current sharing up to 14000W(3+1)

SKU PHP-3500-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

5 years warranty

Key Features

✓Slim and Low profile (60mm)
✓Fanless design, cooling by water conduction
✓Built-in PMBus communication protocol, CANBus optional
✓Built-in active PFC function
✓-30~+70℃working temperature
✓Output voltage and constant current level programmable
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Built-in remote ON-OFF control
✓DC OK active signal
✓Operating altitude up to 3000 meter
✓High efficiency up to 96%
✓Active current sharing up to 14000W(3+1)
✓LED indicator for power on
✓5 years warranty

Frequently Asked Questions

Can I use the PHP-3500-24 for a high-current 24V industrial DC bus?

Yes, this model is built for very large 24V constant-voltage loads. It is rated at 3480W with 24V output and 145A output current, which fits heavy industrial power distribution, automation, or test systems designed around a 24V bus.

Is the PHP-3500-24 appropriate for factory test racks or burn-in systems that need programmable 24V output?

It can be a strong fit for that use case because the output voltage and constant current level are programmable. With 3480W at 24V and 145A, it is sized for high-load industrial validation or production equipment rather than light-duty control panels.

Can the PHP-3500-24 support large automation systems that need more than one high-power 24V supply?

Yes, the series supports active current sharing up to 14000W in a 3+1 arrangement. That makes this 3480W, 24V, 145A model relevant when a larger 24V power architecture has to be expanded beyond a single supply.

Is the PHP-3500-24 suitable where fan noise or airflow limits are a concern?

Yes, the listed design is fanless and uses water conduction cooling, so it is intended for applications where forced-air cooling is not the chosen approach. The low-profile 60.0 mm height can also help in dense industrial equipment layouts.

Can the PHP-3500-24 be used outdoors or in demanding temperature conditions?

The operating temperature range is -30°C to +70°C, which supports wider environmental conditions than many indoor-only supplies. However, no IP rating is listed in the supplied specs, so outdoor exposure should not be assumed without a protective enclosure.

How does the PHP-3500-24 compare with the other PHP-3500 models?

The listed family includes PHP-3500-115 at 3500W 115V 26.3A, PHP-3500-230 at 3500W 230V 16.1A, PHP-3500-380 at 3500W 380V 10.5A, and PHP-3500-48 at 3504W 48V 73A. It also includes PHP-3500-115+HS-656, PHP-3500-230+HS-656, PHP-3500-24+HS-656, PHP-3500-380+HS-656, and PHP-3500-48+HS-656, each listed at 3480W 50V. PHP-3500-24-冷套 and PHP-3500-48-冷套 are also named in the series data, but no electrical ratings were provided for those entries.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well PHP-3500-380 Power Supply 3500W 380V 10.5A	3500W	380V	10.5A	View
Mean Well PHP-3500-230 Power Supply 3500W 230V 16.1A	3500W	230V	16.1A	View
Mean Well PHP-3500-115 Power Supply 3500W 115V 26.3A	3500W	115V	26.3A	View
Mean Well PHP-3500-48 power supply 3500W 48V 73A	3504W	48V	73A	View
