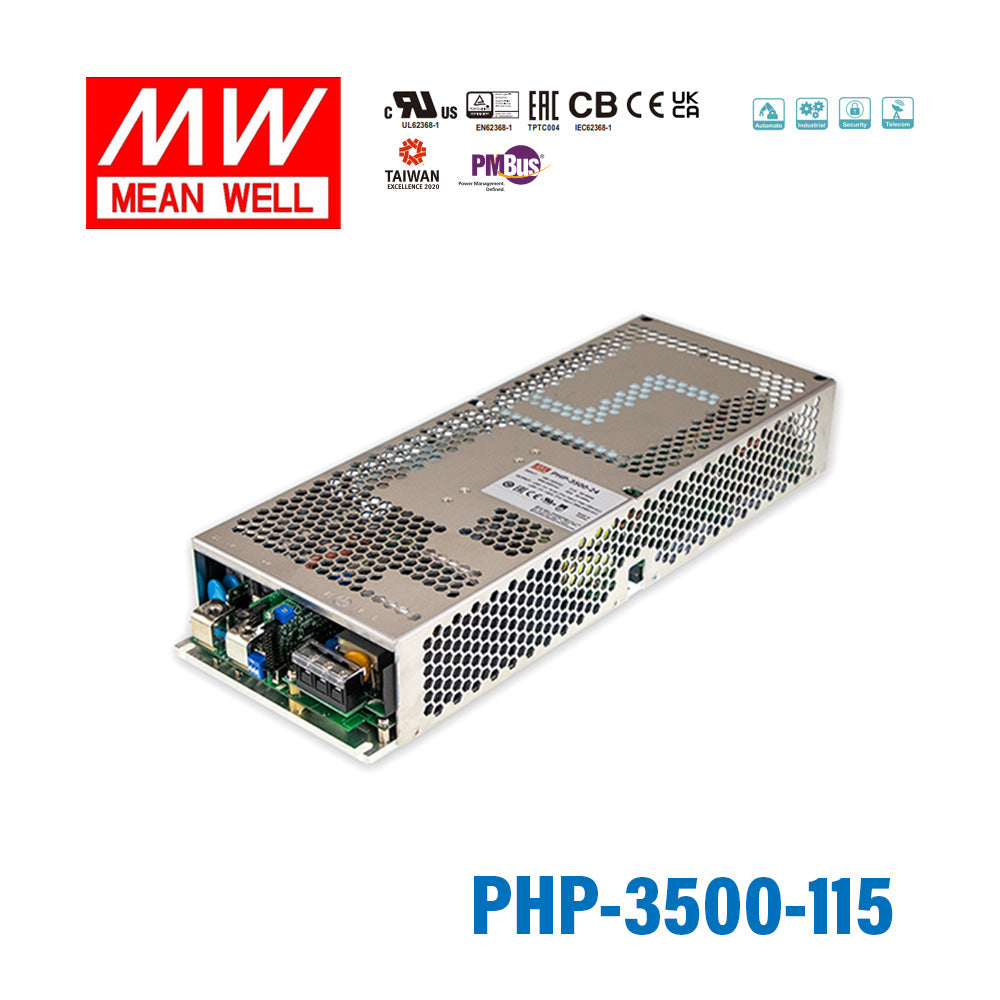

Mean Well PHP-3500-115 Power Supply 3500W 115V 26.3A

slim and low profile(60mm)fanlesscooling by water conductionoutput voltage and constant current level programmablehigh efficiency up to 96%active current sharing up to 14000W(3+1)

SKU PHP-3500-115

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PHP-3500-115 is the model of this series: typical efficiency 95%.

PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 115, 230 and 380Vdc. In addition to the high efficiency up to 96%, that the whole series operates from -30℃ ~ +70℃ under water cooling. PHP-3500-HV has the complete protection functions and 2G anti-vibration capability; it complies with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. PHP-3500-HV series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

Features

High voltage output(115/230/380Vdc)
Slim and Low profile (60mm)
Fanless design with water or conduction cooling
Active PFC design and efficiency up to 96%
Built-in PMBus or CANbus protocol
Output voltage 50~120% and constant current 20~100% programmable
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON/OFF control and DC-OK active signal
Optional water-cooling plate for quick installation
OVC Ⅲ operating altitude up to 2000 meter
LED indicator for power on
5 years warranty

Specifications

PHP-3500-115Specifications from the official datasheet (2025-12-15 edition)

OUTPUT

DC VOLTAGE (Factory default): 115V
CURRENT (Factory default): 25.2A
RATED CURRENT(Max.): 26.3A
POWER (Factory default): 2898W
RATED POWER(Max.)^Note.12: 3500W
RIPPLE & NOISE (Max.)^Note.2: 1.15Vp-p
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR
VOLTAGE ADJ. RANGE: 110~160V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2000ms, 60ms/230VAC at full load 2500ms, 60ms/115VAC at 60% load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load 10ms/115VAC at 60% load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.95/230VAC at full load PF≥0.95/115VAC at 60% load
EFFICIENCY (Peak)^{Note 11}: 95%
AC CURRENT (Typ.): 20A/230VAC 21A/115VAC
INRUSH CURRENT (Typ.): Cold start 80A/230VAC 40A/115VAC
LEAKAGE CURRENT: 2mA / 240VAC

PROTECTION

OVER LOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec.After O/P voltage falls, re-power on to recover
SHORT CIRCUIT: Protection type : Constant current limiting, unit will shut down after 5 sec, re-power on to recover
OVER VOLTAGE: 168 ~ 200V
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5,6}: Adjustment of output voltage is allowable to 50~120% of nominal output voltage. Please refer to the function manual
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 6}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V@0.5A tolerance±10%, ripple 150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = -0.5 ~ 0.5V ; PSU turn off = 3.5 ~ 5.5V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN61558 ; altitude up to 2000 meters.

SAFETY & EMC (Note.7,8)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1
WITHSTAND VOLTAGE: I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-12
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class A
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-12
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 576.5K hrs min. Telcordia SR-332 (Bellcore) ; 63.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 380*141.4*60mm (L*W*H)
PACKING: 4.07Kg;4pcs/16.28Kg/2.46CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Without water or fan cooling to provide adequate heat dissipation, OTP might be triggered if trimming output voltage by PV signal toward upper or lower limits of nominal voltage. Under such condition, enhanced cooling on PSU is highly recommended.
6. In the control priority on Vout and Iout trimming, Please refer to the table on page 9.
7. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
8. Need additional EMI filter to meet regulations of EMC conducted and radiated emission. Characteristics of EMI filter please refer to the table, Minimum Insertion Loss.
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. The efficiency level is measured at output voltage: 133V (115V model)/ 217V (230V model)/ 333V (380V model).
12. Refer to derating curve.

Technical drawings

PHP-3500-115 BLOCK DIAGRAM — BLOCK DIAGRAM

PHP-3500-115 DERATING CURVE — DERATING CURVE

PHP-3500-115 FUNCTION MANUAL — FUNCTION MANUAL

PHP-3500-115 115V, 230V,380V model — 115V, 230V,380V model

PHP-3500-115 T1(Typ.): Maximum ambient temperature of full load. — T1(Typ.): Maximum ambient temperature of full load.

PHP-3500-115 Illustration (page 6) — Illustration (page 6)

PHP-3500-115 4.DC-OK Signal — 4.DC-OK Signal

PHP-3500-115 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

PHP-3500-115 ※Control Pin No. Assignment(CN47) : HRS DF11-10DP-2DS or… — ※Control Pin No. Assignment(CN47) : HRS DF11-10DP-2DS or…

PHP-3500-115 INSTALLATION — INSTALLATION

PHP-3500-115 PHP-3500-HV series — PHP-3500-HV series

PHP-3500-115 Condensation-safe operating area — Condensation-safe operating area

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipments
Electronic instruments, equipments Laser equipments
Charging system
Electrolysis system
DC centralized bus

Downloads

Certificates6

UL Certificate (PHP-3500)(EN) PDF Download

CB Certificate (PHP-3500)(EN) PDF Download

EMC Certificate (PHP-3500)(EN) PDF Download

TUV Certificate (PHP-3500)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

Other files1

Testing Report (PHP-3500-115)(EN) PDF Download

FAQ

What is the Mean Well PHP-3500-115 designed for?

The PHP-3500-115 is a high-power enclosed AC-DC power supply intended for demanding industrial and OEM applications that need a 115V DC output. With a 3500W power rating and programmable output/current features, it fits systems where high output power and control flexibility matter.

What are the main electrical ratings of the PHP-3500-115?

This model is rated for 3500W with a nominal 115V DC output and 26.3A rated current. It is part of the PHP series with high-voltage output capability, and the product description also notes support for 115/230/380V DC variants within the series.

How is the PHP-3500-115 cooled?

The PHP-3500-115 uses a fanless design and is intended for water cooling or conduction cooling rather than internal fan cooling. That makes it a good fit for applications where low-profile thermal management and reduced airborne dust intake are important.

What makes the PHP-3500-115 different from a standard enclosed power supply?

This model stands out for its very high 3500W output, high-voltage 115V DC rating, slim 60mm low-profile housing, and fanless thermal design. It also adds built-in PMBus communication and programmable output settings, which are not typical on basic enclosed power supplies.

Does the PHP-3500-115 support remote monitoring or control?

Yes. The PHP-3500-115 includes built-in PMBus communication, and it also provides remote ON/OFF control plus a DC-OK active signal. Those features make it suitable for systems that need status feedback and centralized power management.

What protection features are built into the PHP-3500-115?

The PHP-3500-115 includes protection for short circuit, overload, over voltage, and over temperature conditions. These built-in protections help support use in high-power equipment where fault handling and system reliability are important.

What operating temperature range is specified for the PHP-3500-115?

This model is specified for operation from -30°C to 70°C. That wide temperature range supports use in demanding industrial environments, provided the overall system design accounts for the unit's cooling method and operating conditions.

Is the PHP-3500-115 suitable when low-profile packaging is important?

Yes. The PHP-3500-115 is described as slim and low profile, with a 60mm height, which helps when space is constrained in larger power systems. Its 4.07 kg weight and enclosed form factor also indicate it is built for substantial high-power installations rather than compact consumer devices.
