Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

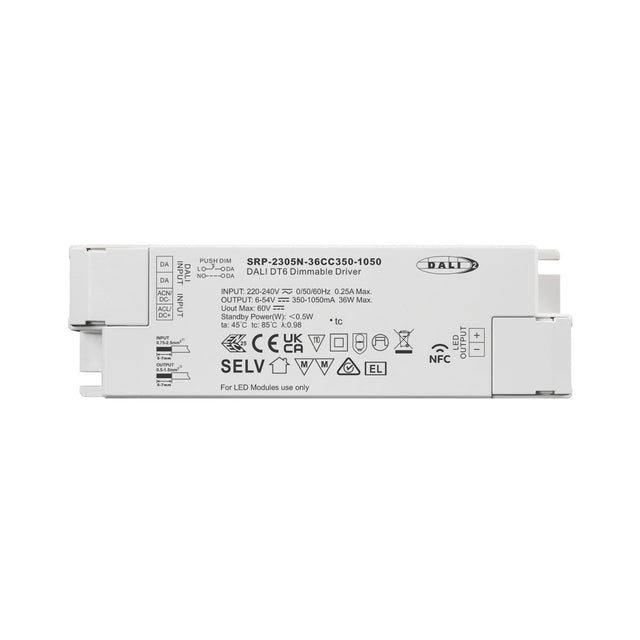

ENVO SRP-2305N-36CC350-1050 DT6 CC Driver, 36W, 350-1050mA, NFC Control

36W NFC Programmable DALI DT6 LED Driver (Constant Current)

SKU SRP-2305N-36CC350-1050

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

SRP-2305N-36CC350-1050

SRP-2305N-10CC100-500 10W 100-500mA In stock

SRP-2305N-15CC100-700 15W 100-700mA In stock

SRP-2305N-25CC250-700 25W 250-700mA In stock

SRP-2305N-36CC350-1050 36W 350-1050mA In stock

SRP-2305N-45CC500-1400 45W 500-1400mA Backorder

Product variants

In stock

Overview

SRP-2305N-36CC350-1050 is the 6-54V, Max. 60V output model of this series: rated power Max. 36W.

Features

In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
Built-in DALI-2 interface, DALI DT6 device
Dimmable LED driver. Max. output power 36W
350-1050mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
DALI Address/Group/Scene setting via NFC program tool.
Class Ⅱ power supply, full isolated plastic case
High power factor and efficiency
To switch and dim LED lighting luminaries
Amplitude/CCR dimming, smooth and deep dimming
Compatible with universal DALI masters that support DT6 commands
Error report function
DALI-251/252/253 Enabled,DALI data inside
IP20 rating, suitable for indoor LED lighting applications
5 years warranty

Specifications

SRP-2305N-36CC350-1050Specifications from the official datasheet

Output

LED Channel: 1
DC Voltage: 6-54V, Max. 60V
Current: 350-1050mA via NFC tool; Min.current gear lower to 0.1mA, default 800mA
Current Accuracy: ±3% (±1% @ certain full load) @ full load
Rated Power: Max. 36W

Input

Voltage Range: 220-240VAC/220-240VDC
Absolute Voltage Range: 196-264VAC/196-264VDC
Frequency Range: 0/50/60Hz
Power Factor (Typ.): > 0.95 @ 230VAC full load
Total Harmonic Distortion: THD ≤ 14% (@ full load / 230VAC)
Efficiency (Typ.): ＞86% @ 230VAC full load
AC Current (Typ.): 0.25A Max.
Inrush Current (Typ.): Max. 8.56A at 230VAC; 88μs duration
Leakage Current: < 5mA / 230VAC
Standby Power Consumption: ＜0.5W
Anti Surge: L-N: 2KV

Control

Dimming Interface: DALI Device Type 6 (DALI consumption < 2mA) / AC Push
Dimming Range: 0.01%-100% @ Max current
Dimming Method: Amplitude/CCR dimming
Dimming Curve: Linear/Logarithmic optional

Protection

Short Circuit: Yes, remove the fault conditions and re-power the device.
Over Current: Yes, remove the fault conditions and re-power the device.
Over Temperature: Yes, remove the fault conditions and re-power the device.

Environment

Working Temp.: -25℃ ~ +45℃
Max. Case Temp.: Tc=85℃
Working Humidity: 10% ~ 95% RH non-condensing
Storage Temp. & Humidity: -40℃ ~ +80℃, 10% ~ 95% RH

Safety & EMC

Safety Standards: EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023
Withstand Voltage: I/P-O/P: 3.75KVAC
Isolation Resistance: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission: EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
EMC Immunity: EN61547, EN61000-4-2,3,4,5,6,8,11

Others

MTBF: 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
Dimension: 145x45x28mm (L*W*H)
Warranty: 5 Years
Expected Lifetime: Ta 30°C: > 100,000 h; Ta 40°C: > 100,000 h; Ta 45°C: > 100,000 h; Tc 85°C: > 40,000 h

Technical drawings

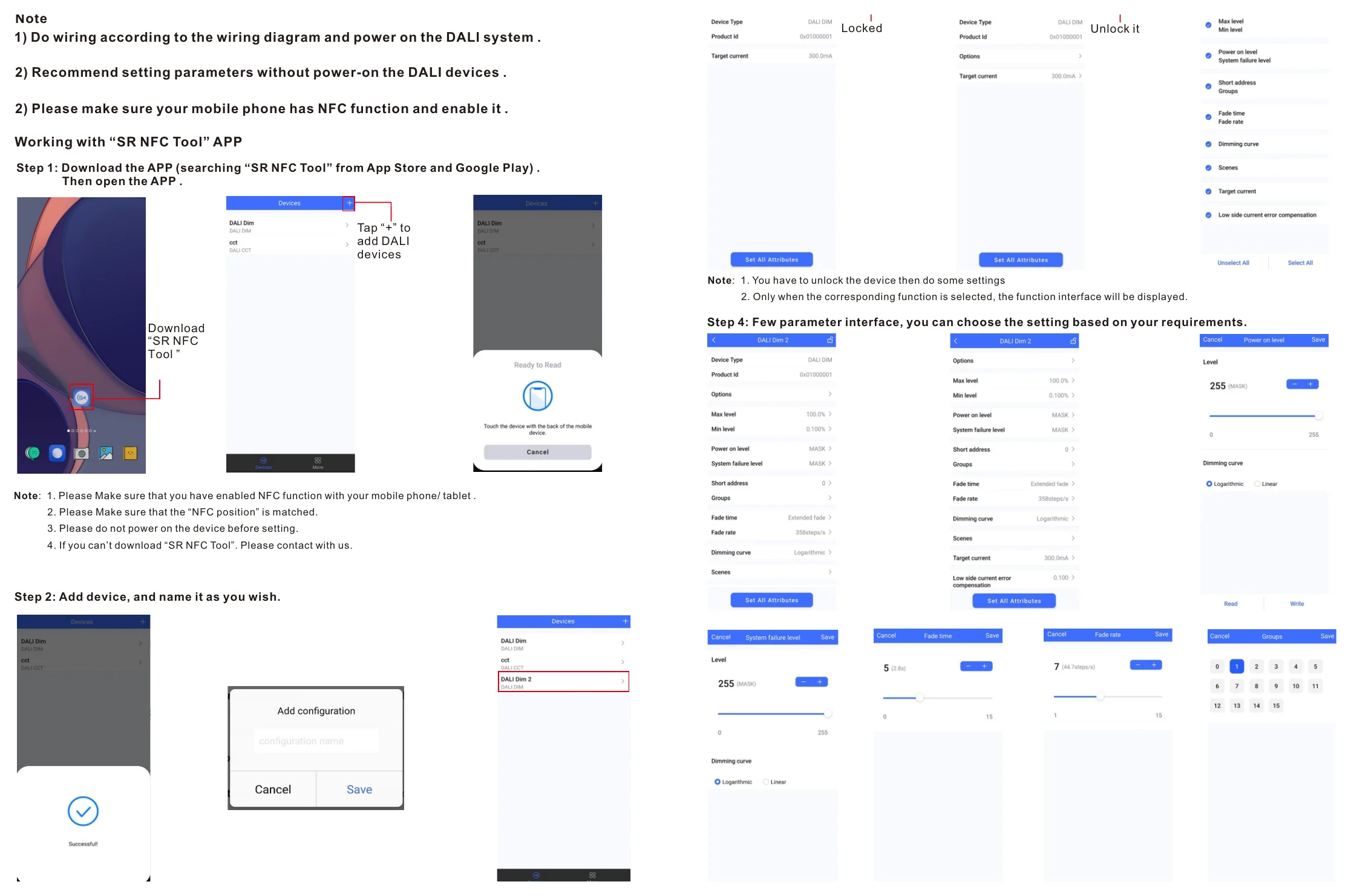

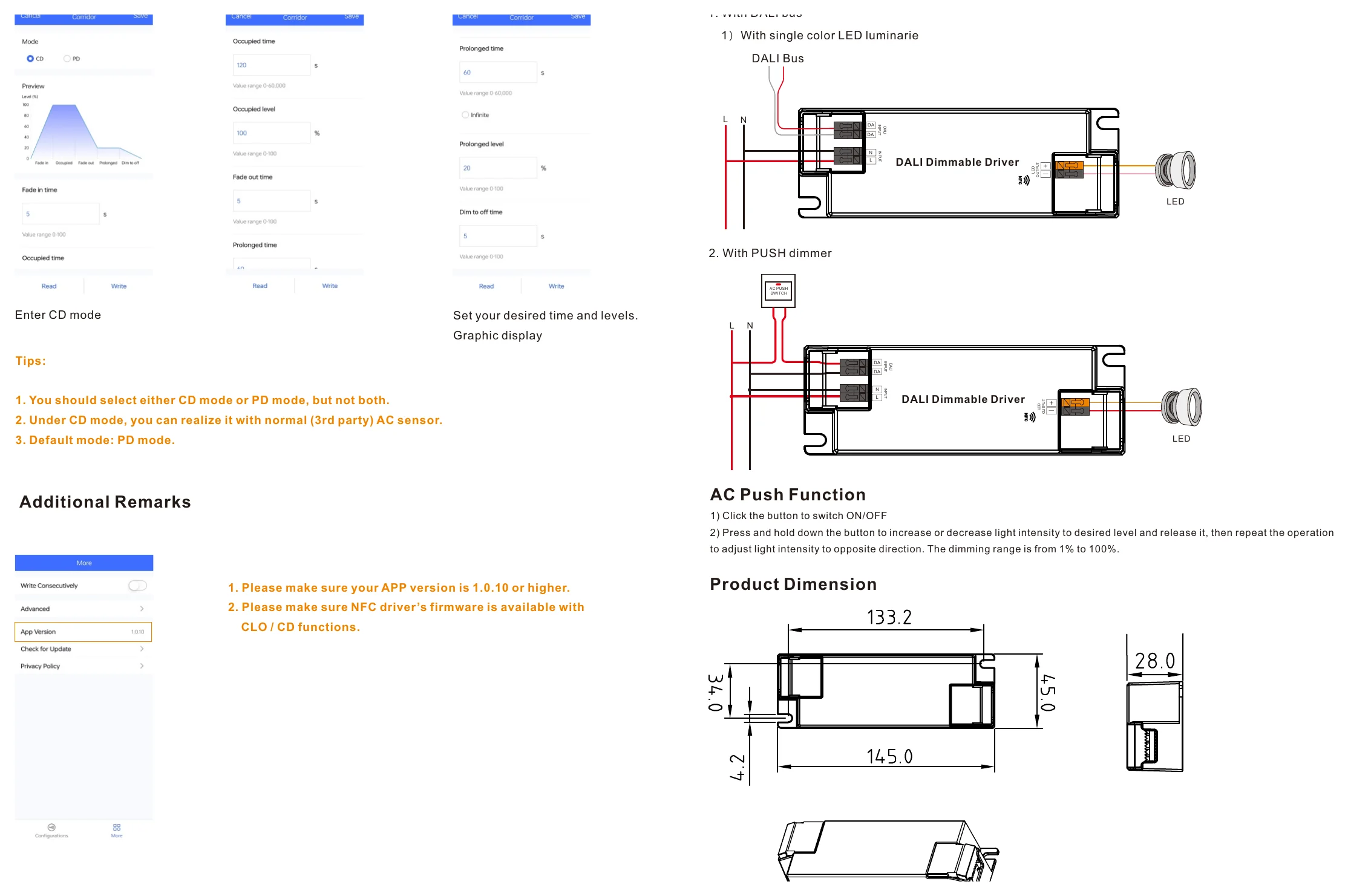

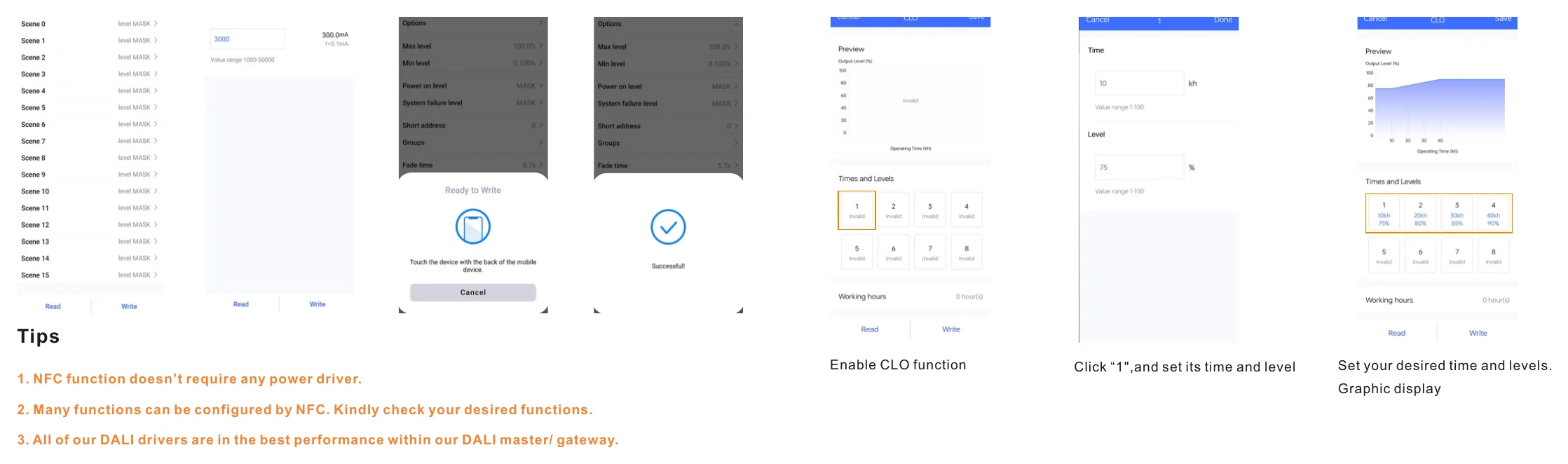

SRP-2305N-36CC350-1050 Diagram — Diagram

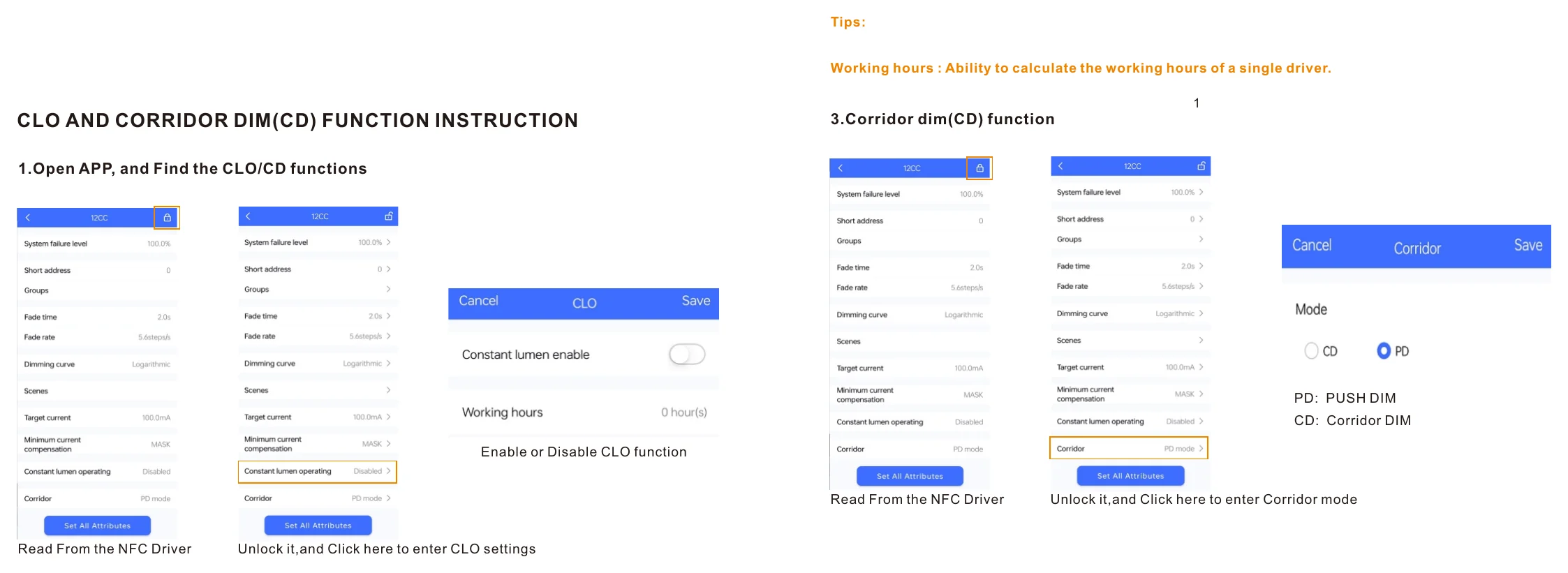

SRP-2305N-36CC350-1050 CLO AND CORRIDOR DIM (CD) FUNCTION INSTRUCTION — CLO AND CORRIDOR DIM (CD) FUNCTION INSTRUCTION

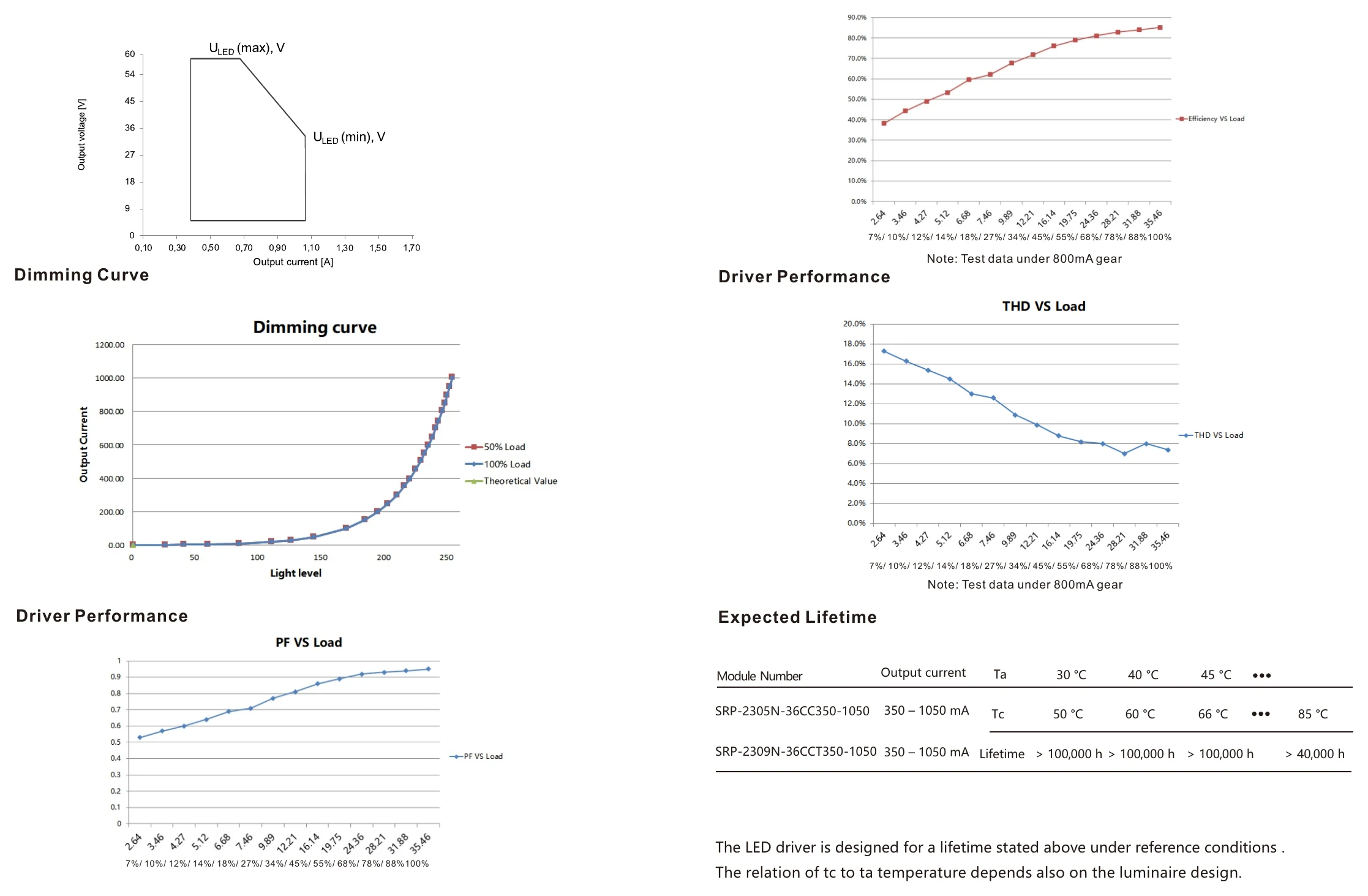

SRP-2305N-36CC350-1050 Dimming Curve — Dimming Curve

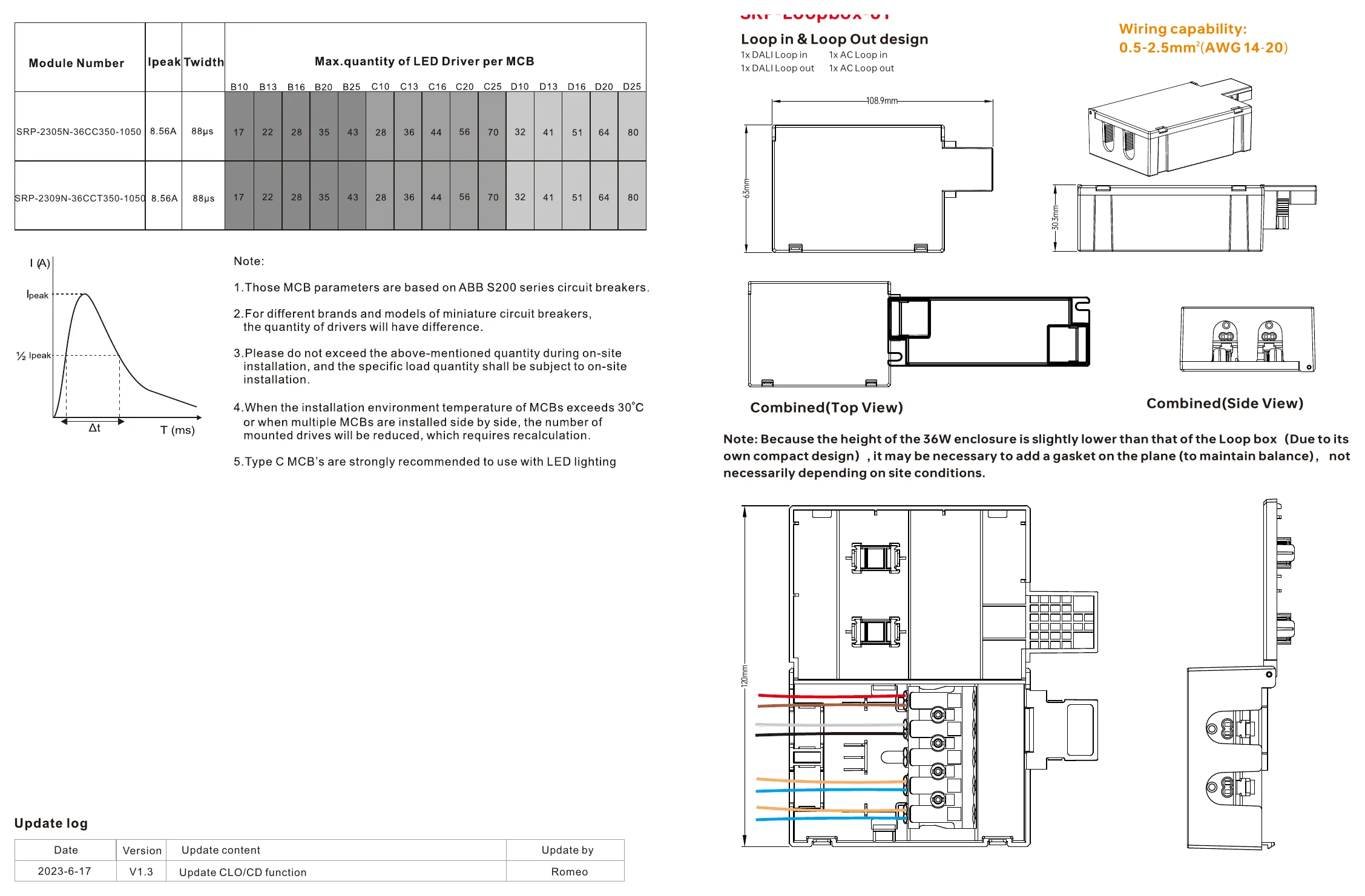

SRP-2305N-36CC350-1050 Wiring capability — Wiring capability

Downloads

::specification::

FAQ

What are the main electrical specifications of the ENVO DALI2 DT6 CC Driver SRP-2305N-36CC350-1050?

This model is a 36 W constant-current LED driver with an adjustable output current range of 350-1050 mA. It has a maximum output voltage of 60 V and is designed for DALI control applications.

Is this driver suitable for DALI lighting control systems?

Yes. The SRP-2305N-36CC350-1050 is a DALI2 DT6 constant-current driver, so it is intended for use in DALI-based lighting control environments. Buyers looking for a DALI-compatible LED driver for tunable output current should consider this model.

What type of lighting application is this driver intended for?

This driver is intended for constant-current LED lighting applications where DALI dimming control is required. Its adjustable 350-1050 mA range makes it relevant for commercial and professional LED fixture designs that need current flexibility within one driver model.

What makes this model different from a fixed-current LED driver?

The key difference is its adjustable output current range of 350-1050 mA rather than a single fixed current value. That gives specifiers and buyers more flexibility when selecting a driver for fixtures that need different constant-current settings, while staying within the 36 W and 60 V limits.

What operating temperature range is specified for this driver?

The specified ambient operating temperature range is -25 °C to 45 °C. This makes it suitable for use in environments that require operation across both low and moderate temperatures, provided the application stays within that stated range.

Does this model include NFC functionality?

Yes. The product name specifies NFC Control, which indicates this model includes NFC-based control capability as part of its feature set. For buyers comparing similar DALI drivers, that is one of the distinguishing features of this exact model.

What warranty and physical weight are listed for this driver?

This model carries a 5-year warranty. The listed product weight is 0.200 kg, which can be useful when reviewing fixture design constraints or shipping considerations.
