ENVO SRP-2305N-25CC250-700 DT6 CC Driver, 25W, 250-700mA, NFC Control
Log in to see priceOverview
SRP-2305N-25CC250-700 is the 6-58V output model of this series: rated power Max. 25W.
Features
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
- Built-in DALI-2 interface, DALI DT6 device
- Dimmable LED driver. Max. output power 25W

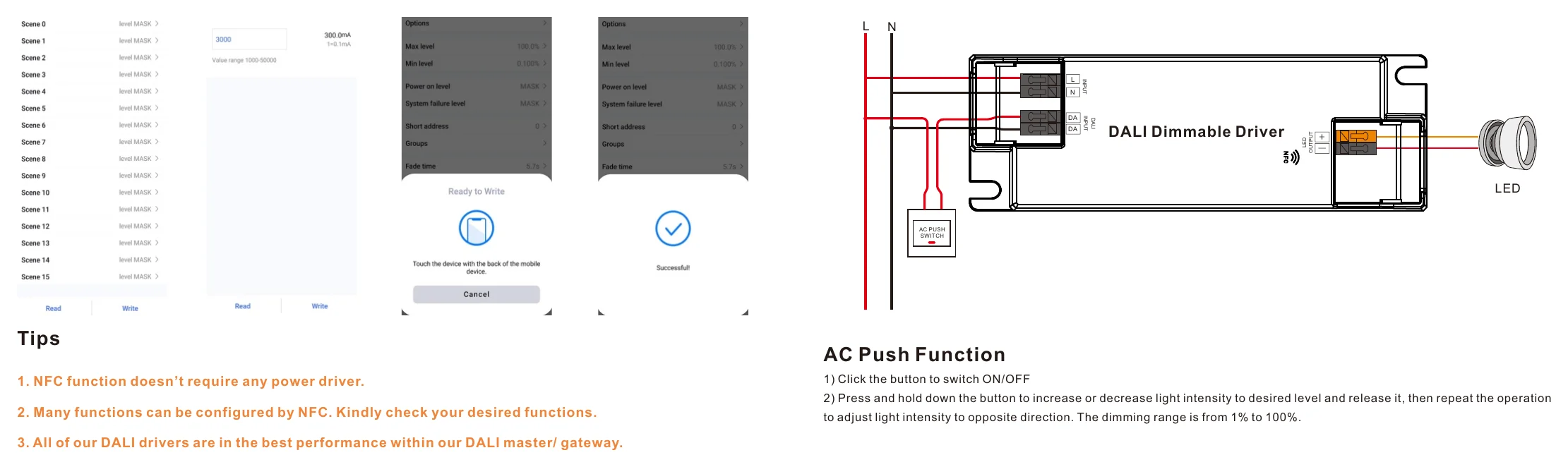

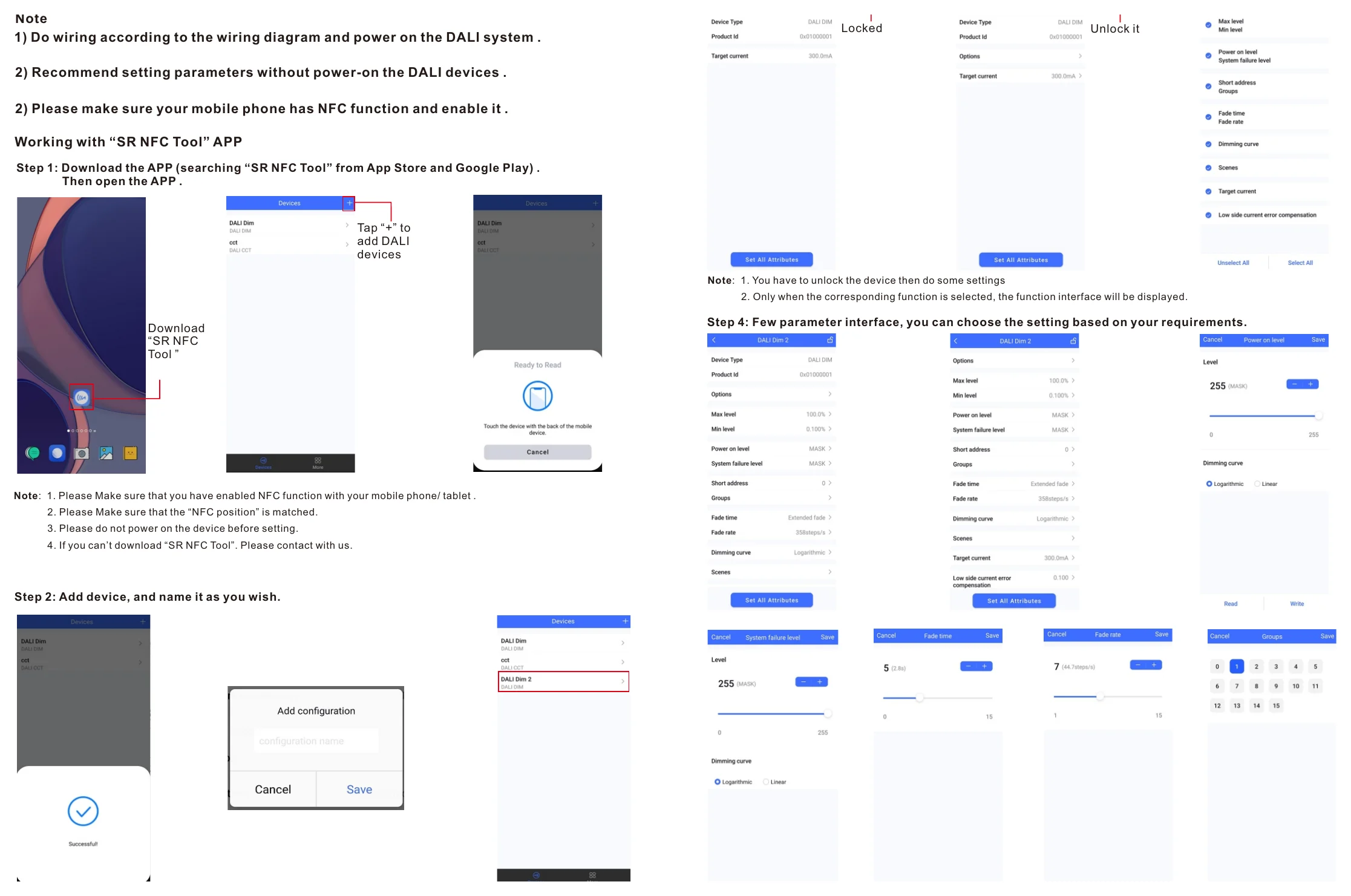

- 250-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
- DALI Address/Group/Scene setting via NFC program tool.
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To switch and dim LED lighting luminaries
- Amplitude/CCR dimming, smooth and deep dimming
- Compatible with universal DALI masters that support DT6 commands
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
Specifications
Output
- LED Channel
- 1
- DC Voltage
- 6-58V
- Current
- 250-700mA via NFC setting; Min.current gear lower to 0.1mA
- Current Accuracy
- ±3% (±1% @ Certain full load) @ full load
- Rated Power
- Max. 25W
Input
- Voltage Range
- 200-240VAC/176-280VDC
- Frequency Range
- 0/50/60Hz
- Power Factor (Typ.)
- > 0.97 @ 230VAC Full load
- Total Harmonic Distortion
- THD ≤ 9% (@ full load / 230VAC)
- Efficiency (Typ.)
- ＞85% @ 230VAC full load
- AC Current (Typ.)
- 0.2A @ 230VAC
- Inrush Current (Typ.)
- Max. 5.64A at 230VAC; 72μs duration
- Leakage Current
- < 5mA /230VAC
- Standby Power Consumption
- ＜0.5W
- Anti Surge
- L-N:2KV
Control
- Dimming Interface
- DALI Device Type 6 (DALI consumption < 2mA)/ AC Push
- Dimming Range
- 0.01%-100%@ Max current
- Dimming Method
- Amplitude/CCR dimming
- Dimming Curve
- Linear/ Logarithmic optional
Protection
- Short Circuit
- Yes, recovers automatically after fault condition is removed
- Over Current
- Yes, recovers automatically after fault condition is removed
- Over Temperature
- Yes, recovers automatically after temperature drop
Environment
- Working Temp.
- -25℃ ~ +45℃
- Max. Case Temp.
- TC=85℃ (Ta="45℃")
- Working Humidity
- 10% ~ 95% RH non-condensing
- Storage Temp. & Humidity
- -40℃ ~ +80℃, 10% ~ 95% RH
Safety & EMC
- Safety Standards
- EN61347-1, EN61347-2-13
- Withstand Voltage
- I/P-O/P: 3.75KVAC
- Isolation Resistance
- I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
- EMC Emission
- En55015, EN61000-3-2, EN61000-3-3
- EMC Immunity
- En61547, EN61000-4-2,3,4,5,6,8,11
Others
- MTBF
- 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
- Dimension
- 120x41x28mm (L*W*H)
- Warranty
- 5 Years

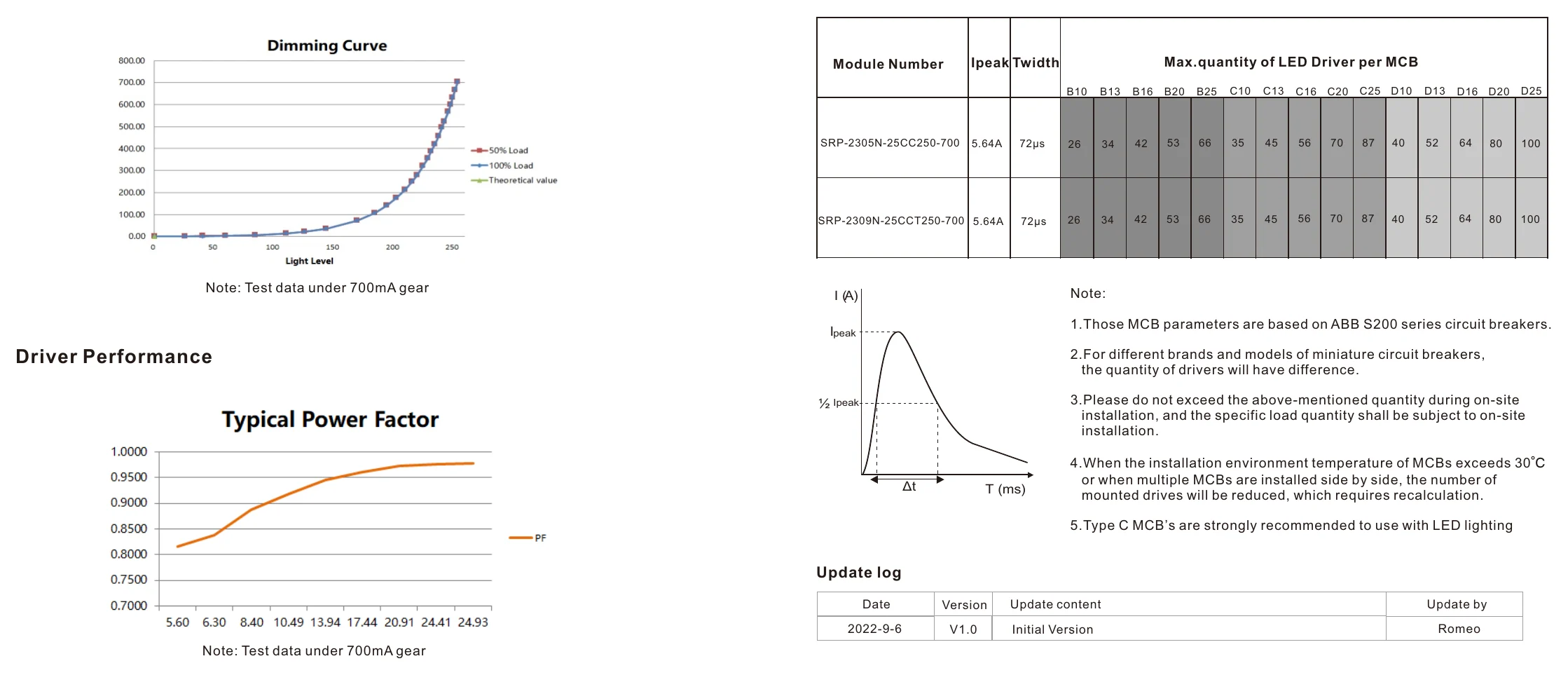

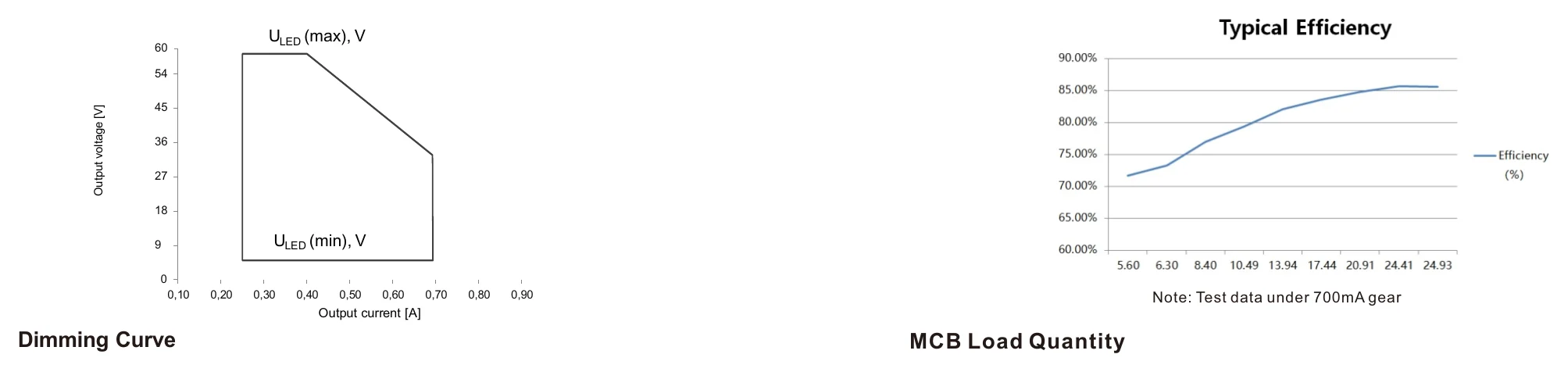

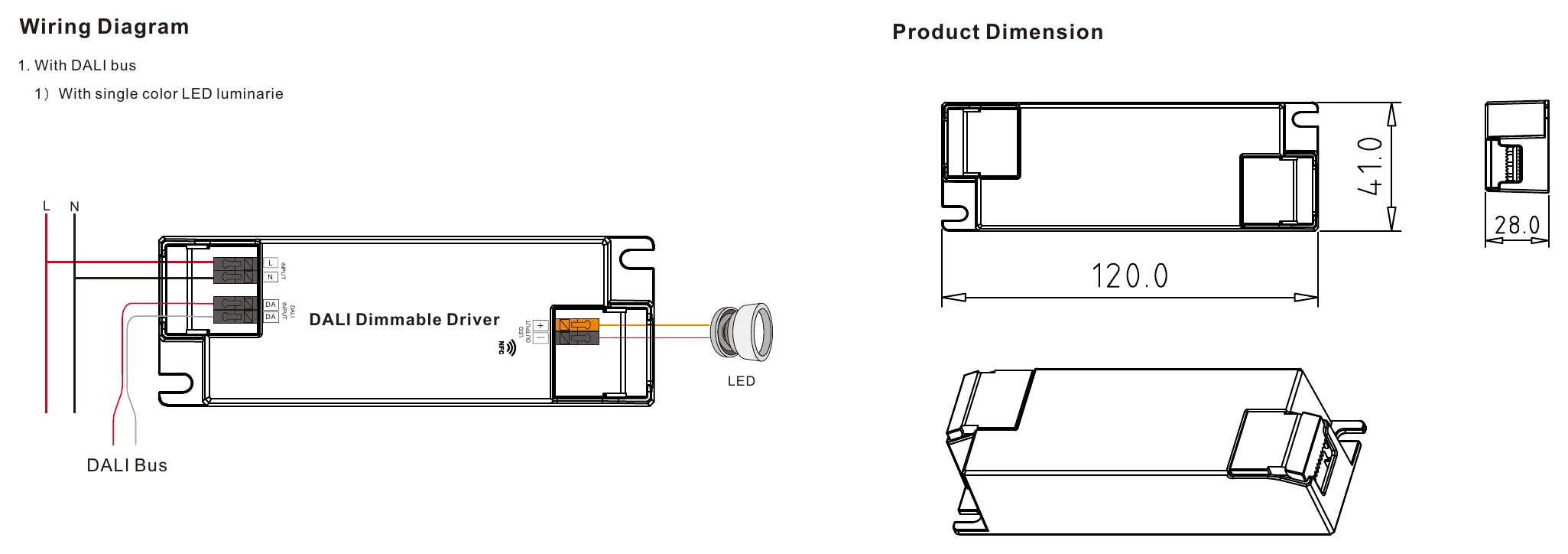

Technical drawings
Downloads
Datasheet1
FAQ
What type of LED driver is the ENVO DALI2 DT6 CC Driver SRP-2305N-25CC250-700?
This model is a constant current LED driver designed for applications that use DALI dimming control. It is rated at 25W and supports an adjustable output current range from 250mA to 700mA. The product name also indicates NFC control for model-specific configuration support.
What output range does this driver support?
The SRP-2305N-25CC250-700 is rated for 25W output and lists a maximum output voltage of 58V. Its adjustable rated current starts at 250mA and goes up to 700mA. That makes it suitable for constant current LED applications that need flexibility within that current range.
Is this driver suitable for DALI lighting control systems?
Yes, this model is specifically identified as a DALI2 DT6 constant current driver. For buyers standardizing on DALI-based dimming control, that is the key differentiator of this unit versus non-DALI drivers. It is intended for projects where DALI compatibility is a purchasing requirement.
What environments is this LED driver rated for?
This driver is specified for operation from -25°C to +45°C. That range helps buyers assess whether it fits the expected ambient conditions of the application. Environmental suitability should be checked against the actual temperature conditions of the finished installation.
How does this model compare with fixed-current LED drivers?
Unlike fixed-current drivers, this ENVO model supports an adjustable constant current range of 250mA to 700mA. That gives more flexibility when selecting a driver for different constant current LED loads within the same general power class. It also stands out by combining DALI2 DT6 dimming with NFC control in a 25W format.
What should commercial buyers know about the size and service life of this driver?
The listed product dimensions are 120x41x28mm (L*W*H). This model also carries a 5-year warranty period. For B2B buyers, those are useful reference points when evaluating lifecycle and maintenance expectations.
