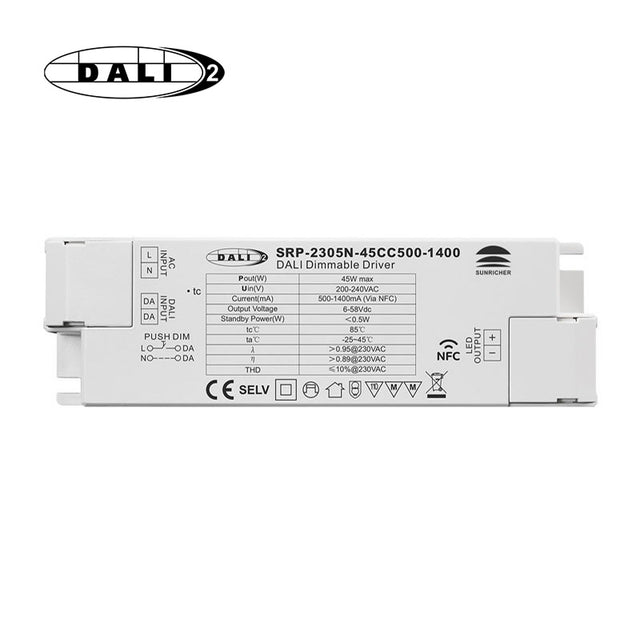

ENVO SRP-2305N-45CC500-1400 DT6 CC Driver, 45W, 500-1400mA, NFC Con...
Log in to see priceOverview
SRP-2305N-45CC500-1400 is the 6-58V output model of this series: rated power Max. 45W.
Features
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
- Built-in DALI-2 interface, DALI DT6 device
- Dimmable LED driver. Max. output power 45W
- 500-1400mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
- DALI Address/Group/Scene setting via NFC program tool.
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To switch and dim LED lighting luminaries
- Amplitude/CCR dimming, smooth and deep dimming
- Compatible with universal DALI masters that support DT6 commands
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
Specifications
Output
- LED Channel
- 1
- DC Voltage
- 6-58V
- Current
- 500-1400mA via NFC setting; Min.current gear lower to 0.1mA
- Current Accuracy
- ±3% (±1% @ certain full load) @ full load
- Rated Power
- Max. 45W
Input
- Voltage Range
- 200-240VAC/176-280VDC
- Frequency Range
- 50/60Hz
- Power Factor (Typ.)
- > 0.95 @ 230VAC Full load
- Total Harmonic Distortion
- THD ≤ 10% (@ full load / 230VAC)
- Efficiency (Typ.)
- ＞89% @ 230VAC full load
- AC Current (Typ.)
- 0.25A @ 230VAC
- Inrush Current (Typ.)
- Max. 8.56A at 230VAC; 88μs duration
- Leakage Current
- < 5mA /230VAC
- Standby Power Consumption
- ＜0.5W
- Anti Surge
- L-N:2KV
Control
- Dimming Interface
- DALI Device Type 6 (DALI consumption < 2mA) / AC Push
- Dimming Range
- 0.01%-100% @ max current
- Dimming Method
- Amplitude/CCR dimming
- Dimming Curve
- Linear/ Logarithmic optional
Protection
- Short Circuit
- Yes, recovers automatically after fault condition is removed
- Over Current
- Yes, recovers automatically after fault condition is removed
- Over Temperature
- Yes, recovers automatically after temperature drop
Environment
- Working Temp.
- -25℃ ~ +45℃
- Max. Case Temp.
- TC=85℃ (Ta=45℃)
- Working Humidity
- 10% ~ 95% RH non-condensing
- Storage Temp. & Humidity
- -40℃ ~ +80℃, 10% ~ 95% RH
Safety & EMC
- Safety Standards
- EN61347-1, EN61347-2-13
- Withstand Voltage
- I/P-O/P: 3.75KVAC
- Isolation Resistance
- I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
- EMC Emission
- En55015, EN61000-3-2, EN61000-3-3
- EMC Immunity
- En61547, EN61000-4-2,3,4,5,6,8,11
Others
- MTBF
- 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
- Dimension
- 145x45x28mm (L*W*H)
- Warranty
- 5 Years
Technical drawings
Downloads
Datasheet1
FAQ
What kind of LED application is the SRP-2305N-45CC500-1400 designed for?
This model is a constant-current LED driver for lighting applications that need regulated output current rather than constant voltage. It is suited to projects that also require DALI2 DT6 dimming control and a compact 45W driver.
What output range does this ENVO driver support?
The SRP-2305N-45CC500-1400 is rated at 45W with a maximum output voltage of 58V. Its listed output current range is 500-1400mA, making it suitable for fixtures matched to that constant-current range.
Does this driver support DALI dimming?
Yes. This model is identified as a DALI2 DT6 constant-current driver, and its dimming control is listed as DALI. That makes it a fit for lighting systems specified around DALI-based dimming control.
How is this model different from a fixed-current LED driver?
This driver stands out by supporting an adjustable 500-1400mA constant-current range instead of only one fixed output current. That added flexibility can help buyers match one driver model to a wider set of compatible LED load requirements within its 45W and 58V limits.
Is this driver suitable for demanding temperature conditions?
This model is specified for operation from -25°C to +45°C. Buyers should confirm their ambient conditions stay within that range when selecting it for commercial or industrial lighting applications.
What should buyers know about size-related handling or product weight?
The driver dimensions are 145x45x28mm (L*W*H). That compact size can be useful when comparing driver options for fixtures or housings where component space matters.
What warranty is provided for this LED driver?
The SRP-2305N-45CC500-1400 has a listed warranty period of 5 years. For procurement teams, that provides a clear baseline for support expectations on this specific model.
