What type of LED applications is the Envo EV-SNL-150-12 designed for?

The Envo EV-SNL-150-12 is a 150W, 12V linear type LED driver intended for constant-voltage LED applications that require a 12V DC output. It is suited to indoor commercial or trade projects where a stable 12V supply and higher wattage capacity are needed.

What are the main electrical specifications of the EV-SNL-150-12?

This model is rated at 150W with a 12V output and 11A rated current. It accepts an AC input range of 198-264VAC and includes active PFC.

Does the Envo EV-SNL-150-12 support dimming?

No, this model does not include a dimming control function. It is intended for applications that need fixed-output 12V DC power rather than integrated dimming capability.

Is the EV-SNL-150-12 suitable for outdoor or wet-area use?

No, the product description states that it is suitable for dry indoor environments. It should be selected for indoor locations where moisture and wet exposure are not part of normal operating conditions.

What protection features are included in the EV-SNL-150-12?

The EV-SNL-150-12 includes protection for short circuit, over voltage, over temperature, and over load conditions. These built-in protections help support reliability in lighting power supply applications.

What operating temperature range does this LED driver support?

This model is specified for operation from -20°C to 45°C. That range makes it appropriate for many indoor commercial environments, provided the installation area stays within those limits.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Envo

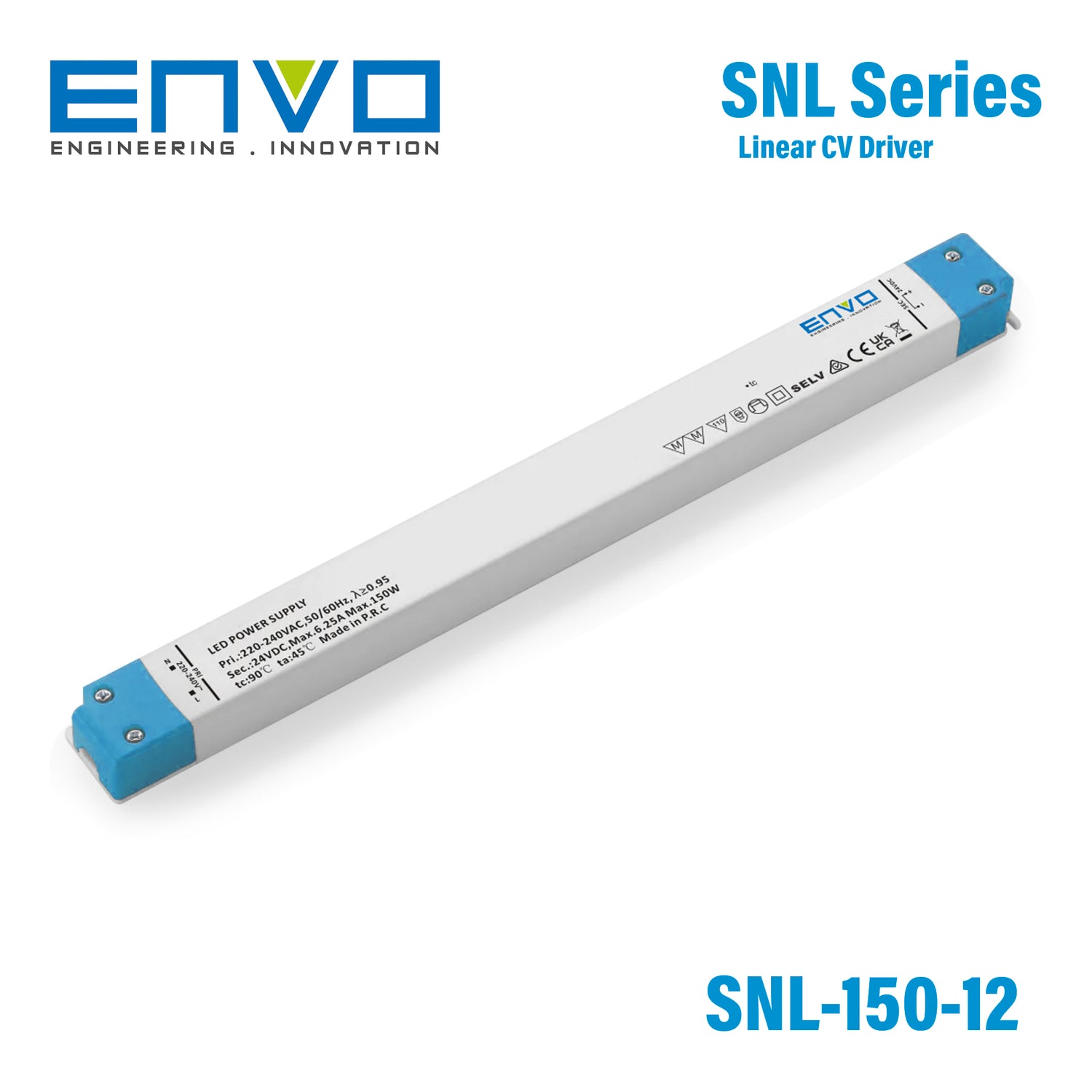

Envo EV-SNL-150-12 Linear Type LED Driver 150W 12V 11A

linear typescrew ternimal30mm width

SKU EV-SNL-150-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

EV-SNL-150-12

EV-SNL-60-12 60W 12V In stock

EV-SNL-100-12 100W 12V In stock

EV-SNL-150-12 150W 12V Backorder

Product variants

Notify me when it's back in stock

The EV-SNL-150-12 is a 150W ENVO AC-DC constant voltage LED driver (input: 198~264VAC, output: 12V, operating temperature: -20~+45°C).

Key Features

✓ Input voltage: 198~264VAC
✓ Output voltage: 12V
✓ Rated output current: 11A
✓ Operating temperature: -20~+45°C
✓ Safety certifications: CE, SAA, TÜV
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo EV-SNL-100-24 Linear Type LED Driver 100W 24V 4.17A	100W	24V	4.17A	Indoor	View
Envo EV-SNL-60-24 Linear Type LED Driver 60W 24V 250mA	60W	24V	0.25A	Indoor	View
Envo EV-SNL-200-24 Linear Type LED Driver 200W 24V 8.33A	200W	24V	8.33A	Indoor	View
Envo EV-SNL-150-24 Linear Type LED Driver 150W 24V 8.33A	150W	24V	8.33A	Indoor	View
Envo EV-SNL-100-12 Linear Type LED Driver 100W 12V 8.33A	100W	12V	8.33A	Indoor	View
