Envo

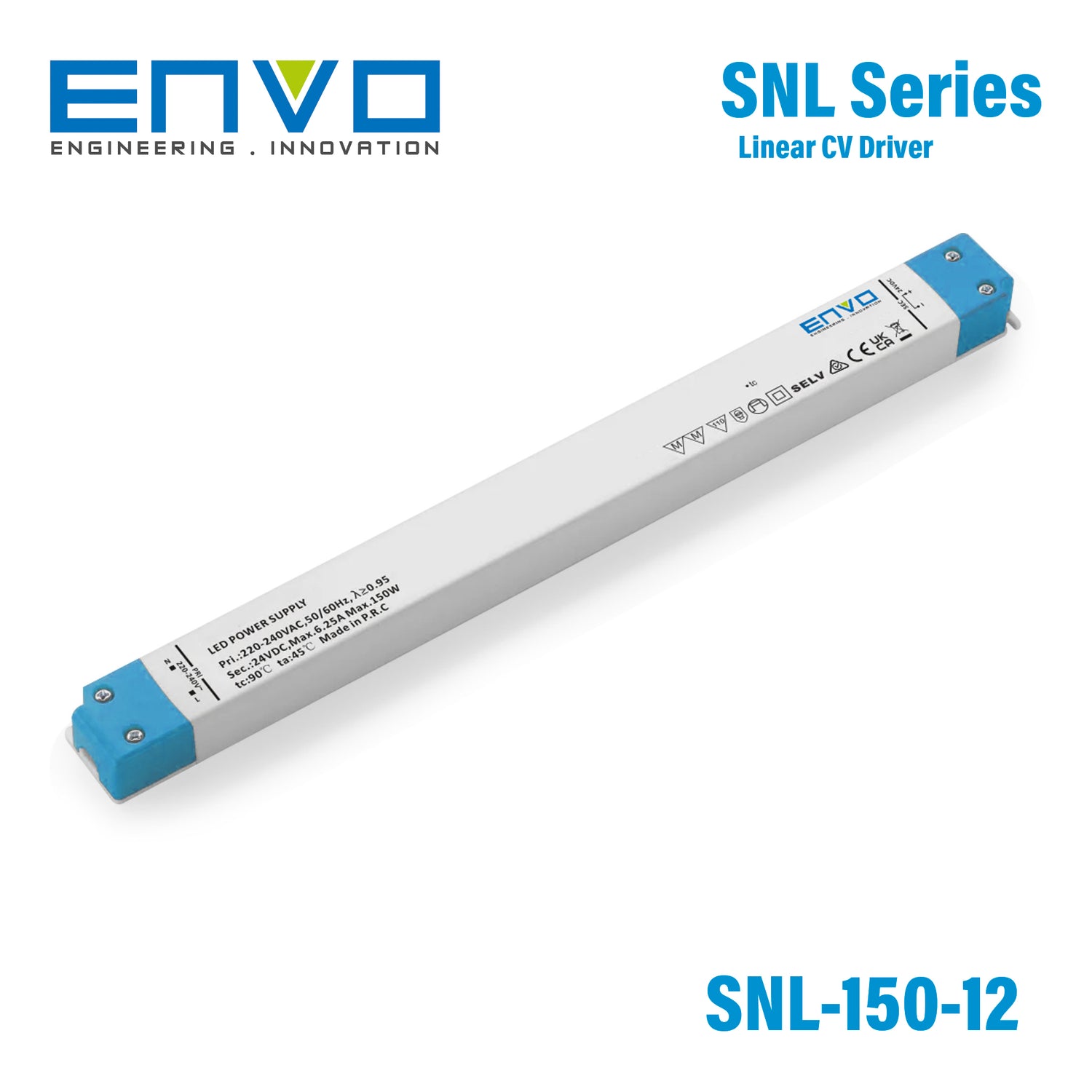

Envo EV-SNL-150-12 Linear Type LED Driver 150W 12V 11A

linear typescrew terminal30mm width
SKU EV-SNL-150-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

EV-SNL-150-12
Available to order
|

Overview

EV-SNL-150-12 is the 12V output model of this series: rated current 0-11A, rated power 132W.

EV SNL150-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumption with all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-150-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-11A
Rated power
132W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.95-0.97@230Vac, full load
Full Load Efficiency (Typ.)
93%
AC Current (Max.)
1A/230V
Leakage current
0.75mA@240Vac 50HZ

Protection

Short Circuit
Short circuit power≤0.5W
Over load
1.1~1.6 times rated load, Overloading restores automatically.
Over Temperature
110°C, hiccup mode, auto-recovery after temperature restore

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C-85°C; 5%RH-95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.29KG
Size
320.6*30*18.2mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Certifications & ratings

Marked features
SELV

Technical drawings

EV-SNL-150-12 Mechanical Specification
Mechanical Specification
EV-SNL-150-12 LED POWER SUPPLY
LED POWER SUPPLY
EV-SNL-150-12 Derating Curve
Derating Curve

Downloads

FAQ

What type of LED applications is the Envo EV-SNL-150-12 designed for?

The Envo EV-SNL-150-12 is a 132W, 12V linear type LED driver intended for constant-voltage LED applications that require a 12V DC output. It is suited to indoor commercial or trade projects where a stable 12V supply and higher wattage capacity are needed.

What are the main electrical specifications of the EV-SNL-150-12?

This model is rated at 132W with a 12V output and 11A rated current. It accepts an AC input range of 198-264VAC and includes active PFC.

Does the Envo EV-SNL-150-12 support dimming?

No, this model does not include a dimming control function. It is intended for applications that need fixed-output 12V DC power rather than integrated dimming capability.

Is the EV-SNL-150-12 suitable for outdoor or wet-area use?

No, the product description states that it is suitable for dry indoor environments. It should be selected for indoor locations where moisture and wet exposure are not part of normal operating conditions.

What protection features are included in the EV-SNL-150-12?

The EV-SNL-150-12 includes protection for short circuit, over voltage, over temperature, and over load conditions. These built-in protections help support reliability in lighting power supply applications.

What operating temperature range does this LED driver support?

This model is specified for operation from -20°C to 45°C. That range makes it appropriate for many indoor commercial environments, provided the installation area stays within those limits.
