Envo

Envo EV-SNR-75-24 LED Driver 75W 24V 3.12A

screw terminalcompact sizeeconomical
SKU EV-SNR-75-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

EV-SNR-75-24
In stock
|

Overview

EV-SNR-75-24 is the 24V output model of this series: rated current 0-3.125A, rated power 75W.

High Cost Performance,Products meet the SELV standard.The circuit design has open circuit, short circuit, overload and over temperature protection.Compliance to ERP directive lifetime 50,000hrs. 5 years warranty.

Features

  • High Cost Performance,SELV.
  • Compliance to worldwide saftey regulations for lighting.
  • Open circuit / Short circuit / overload / over temperature protection.
  • Compliance to ERP directive.
  • Screw terminals for easy installation

Specifications

EV-SNR-75-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-3.125A
Rated power
75W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.9
Full Load Efficiency (Typ.)
90%
AC Current (Max.)
0.39A/230V
Leakage current
0.7mA 240Vac/60HZ

Protection

Short Circuit
Protected (tested at Ta, 0.94-1.06 × rated input voltage)
Over load
Protected above 1.2 × rated power (tested at Ta, 0.94-1.06 × rated input voltage)
Over Temperature
Shuts down above 115°C (tested at Ta, 0.94-1.06 × rated input voltage)

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40° - 85°C, 5%RH - 95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.26KG
Size
170*44.5*28.2mm (L*W*H)
Packing
25PCS

Notes

Warranty
5 years

Technical drawings

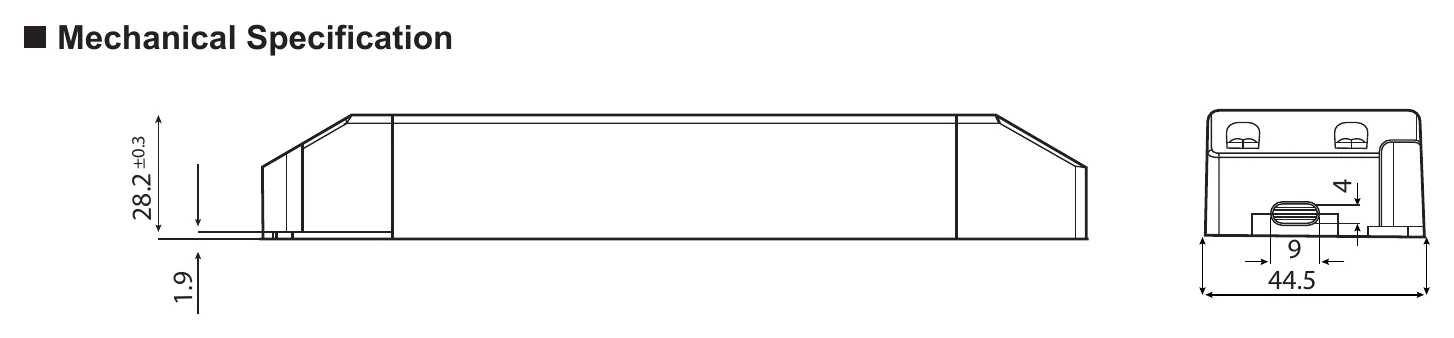

EV-SNR-75-24 Mechanical Specification
Mechanical Specification

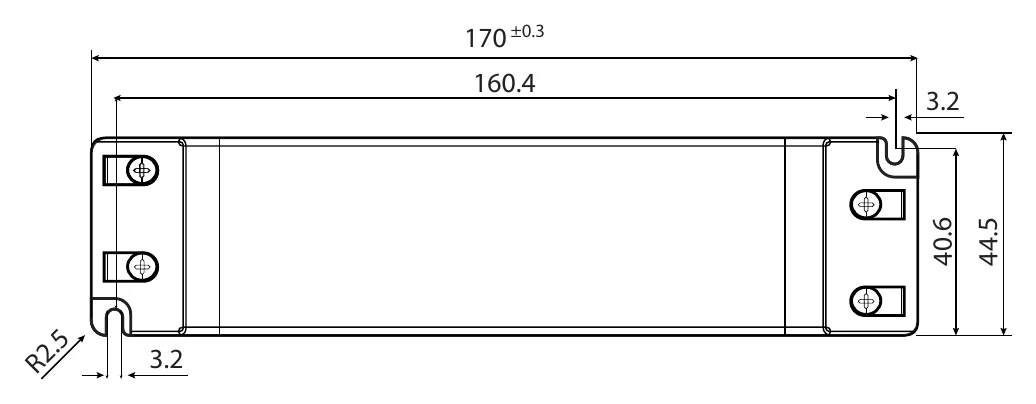

EV-SNR-75-24 Mechanical Specification (2)
Mechanical Specification (2)

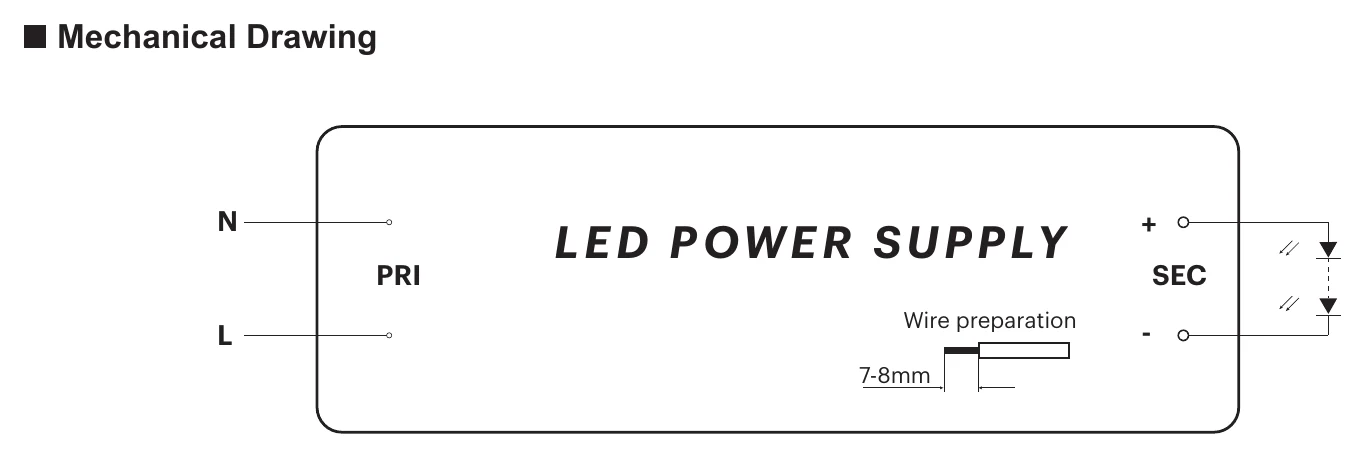

EV-SNR-75-24 Mechanical Drawing
Mechanical Drawing

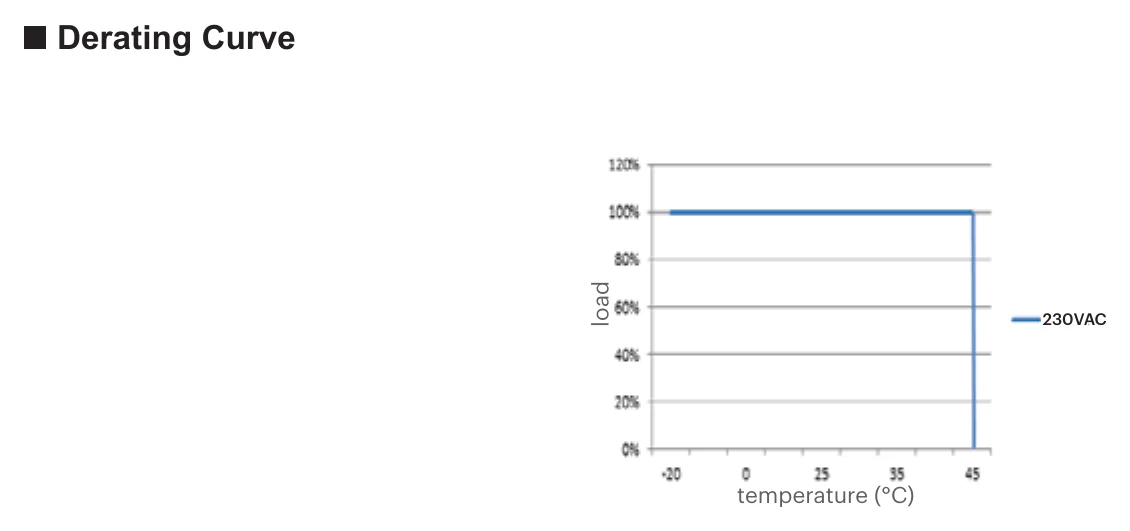

EV-SNR-75-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the output specification of the Envo EV-SNR-75-24 LED Driver?

The Envo EV-SNR-75-24 is a constant voltage LED driver rated at 75W with a 24V output. Its rated current is 3.125A, making it suitable for 24V LED lighting products that match those electrical requirements.

What types of applications is the EV-SNR-75-24 best suited for?

This model is intended for 24V LED lighting applications where a constant voltage driver is required. It is a practical option for commercial and trade buyers looking for a 75W driver for general LED power supply use.

Does the Envo EV-SNR-75-24 support dimming?

No, this model does not include dimming control. If your project requires adjustable light output, you would need a different driver model designed with dimming capability.

What protection features are included in the EV-SNR-75-24?

The EV-SNR-75-24 includes protection for open circuit, short circuit, overload, and overtemperature conditions. These built-in protections help support safer operation in lighting applications.

What operating temperature range is specified for this LED driver?

This model is rated for operation from -20°C to 45°C. That range makes it suitable for environments that stay within those ambient temperature limits.

What warranty is offered for the Envo EV-SNR-75-24?

The listed warranty period for this model is 5 years. This can be useful for buyers comparing long-term support across LED driver options in similar power classes.
