Envo

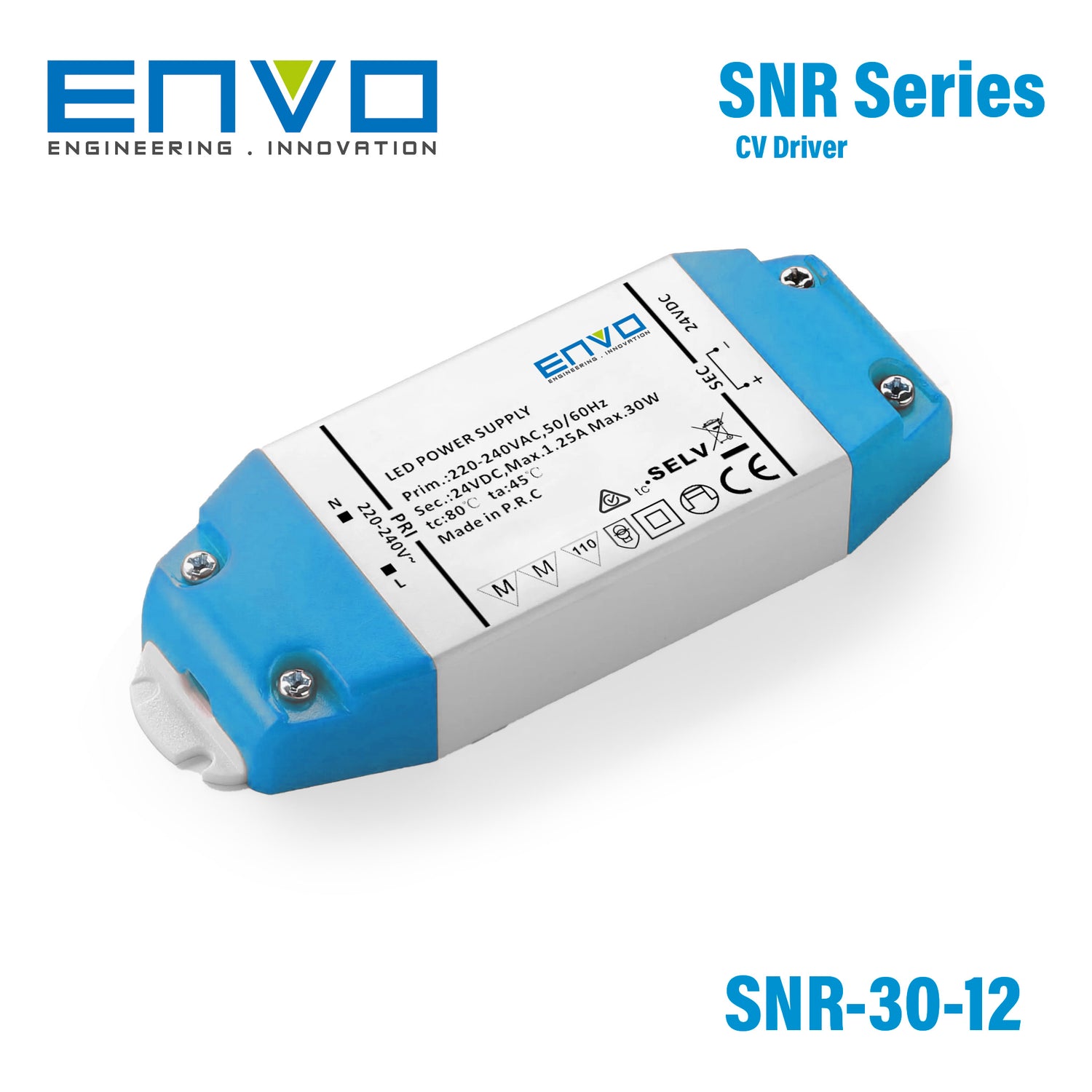

Envo EV-SNR-30-12 LED Driver 30W 12V 2.5A

screw terminalcompact sizeeconomical
SKU EV-SNR-30-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

EV-SNR-30-12
In stock
|

Overview

EV-SNR-30-12 is the 12V output model of this series: rated current 0-2.5A, rated power 30W.

Features

  • Output constant voltage
  • Range AC input: 200-240VAC
  • Bulli-in active PFC function
  • Efficiency :up to 89%
  • Protections: short circuit/over loading/ over temperature
  • Screw terminals for easy installation
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications

Specifications

EV-SNR-30-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-2.5A
Rated power
30W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
≥0.9/230V50HZ
Full Load Efficiency (Typ.)
85%
AC Current (Max.)
0.17A/230V
Leakage current
0.7mA 230Vac/50Hz

Protection

Short Circuit
Protected (tested at Ta, 0.94-1.06 × rated input voltage)
Over load
Protected above 1.3 × rated power (tested at Ta, 0.94-1.06 × rated input voltage)
Over Temperature
Shuts down above 115°C (tested at Ta, 0.94-1.06 × rated input voltage)

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C-80°C; 5%RH-85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.11KG
Size
123*44.6*19.2mm (L*W*H)
Packing
100PCS

Notes

Warranty
5 years

Technical drawings

EV-SNR-30-12 Mechanical Specification
Mechanical Specification
EV-SNR-30-12 Mechanical Drawing
Mechanical Drawing
EV-SNR-30-12 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNR-30-12 designed for?

The Envo EV-SNR-30-12 is a 30W constant-voltage LED driver intended for 12V LED lighting and moving sign applications. It is a practical choice for buyers who need a compact power supply matched to 12V DC loads.

What output does this LED driver provide?

This model provides a 12V DC constant-voltage output and is rated for 30W total power. Its rated output current is 2.5A, which helps define the maximum supported load for the driver.

Is the EV-SNR-30-12 dimmable?

No, this model does not include a dimming control function. If your project requires dimming, you would need to compare it against a driver range that specifically lists dimming support.

Is this model suitable for 200-240VAC supply?

Yes, the EV-SNR-30-12 is specified for an AC input range of 220-240VAC. That makes it suitable for applications where that mains input range is standard.

What operating conditions is this driver rated for?

This LED driver is rated for ambient temperatures from -20°C to 45°C. It is cooled by free air convection, so it is intended for use within that stated operating temperature range.

What protection features and warranty does the EV-SNR-30-12 include?

The EV-SNR-30-12 includes protection against short circuit, overloading, and over temperature. It also carries a 5-year warranty, which is useful for commercial buyers looking for longer-term product support.
