Envo

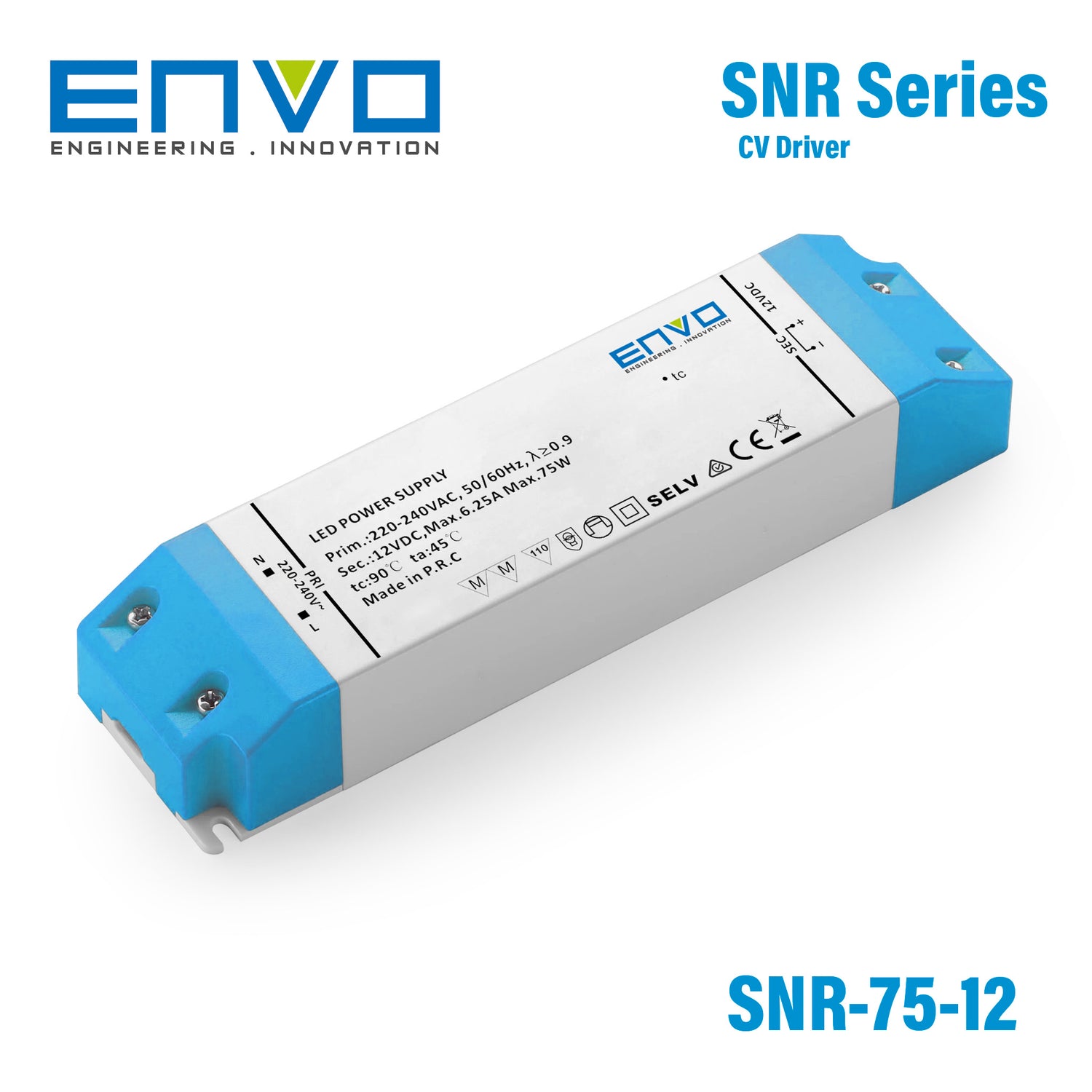

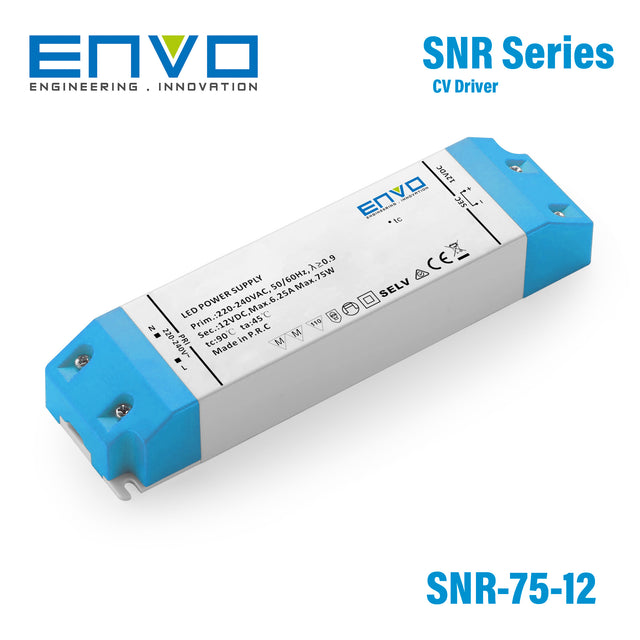

Envo EV-SNR-75-12 LED Driver 75W 12V 6.25A

screw terminalcompact sizeeconomical
SKU EV-SNR-75-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

EV-SNR-75-12
In stock
|

Overview

EV-SNR-75-12 is the 12V output model of this series: rated current 0-6.25A, rated power 75W.

High Cost Performance,Products meet the SELV standard.The circuit design has open circuit, short circuit, overload and over temperature protection.Compliance to ERP directive lifetime 50,000hrs. 5 years warranty.

Features

  • High Cost Performance,SELV.
  • Compliance to worldwide saftey regulations for lighting.
  • Open circuit / Short circuit / overload / over temperature protection.
  • Compliance to ERP directive.
  • Screw terminals for easy installation

Specifications

EV-SNR-75-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-6.25A
Rated power
75W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.9
Full Load Efficiency (Typ.)
89%
AC Current (Max.)
0.4A/230V
Leakage current
0.7mA (240Vac/60HZ)

Protection

Short Circuit
Protected (tested at Ta, 0.94-1.06 × rated input voltage)
Over load
Protected above 1.2 × rated power (tested at Ta, 0.94-1.06 × rated input voltage)
Over Temperature
Shuts down above 115°C (tested at Ta, 0.94-1.06 × rated input voltage)

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40° - 85°C, 5%RH - 95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.26KG
Size
170*44.5*28.2mm (L*W*H)
Packing
25PCS

Notes

Warranty
5 years

Technical drawings

EV-SNR-75-12 Mechanical Specification
Mechanical Specification
EV-SNR-75-12 Mechanical Specification (2)
Mechanical Specification (2)
EV-SNR-75-12 Mechanical Drawing
Mechanical Drawing
EV-SNR-75-12 Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Envo EV-SNR-75-12 LED Driver?

The Envo EV-SNR-75-12 is a 75W constant voltage LED driver with a 12V output. Its rated current is 6.25A, making it suitable for 12V LED systems that need stable DC power within that output range.

Is the EV-SNR-75-12 a dimmable LED driver?

No. This model does not include a dimming control function, so it is intended for applications that require a fixed 12V output rather than adjustable light levels through the driver itself.

What types of applications is the EV-SNR-75-12 best suited for?

This model is designed for 12V constant voltage LED applications in commercial and trade supply environments. It is a practical choice when you need a compact 75W driver for compatible 12V lighting products and want a straightforward non-dimming power solution.

What protection features are included in the Envo EV-SNR-75-12?

The EV-SNR-75-12 includes open circuit, short circuit, overload, and overtemperature protection. These built-in safeguards help protect the driver during abnormal operating conditions and support reliable use in lighting applications.

What operating temperature range is specified for this LED driver?

This model is rated for ambient temperatures from -20°C to 45°C. That range makes it suitable for many indoor and controlled-environment lighting applications, provided the operating conditions stay within the stated limits.

Does the EV-SNR-75-12 meet safety and efficiency-related compliance requirements?

This driver complies with worldwide safety regulations for lighting and the ERP directive. It is also identified as SELV, which is relevant for low-voltage lighting applications.

What warranty is offered for the Envo EV-SNR-75-12?

The listed warranty period for the EV-SNR-75-12 is 5 years. That gives buyers a clear coverage term for this specific model when evaluating long-term value and replacement planning.
