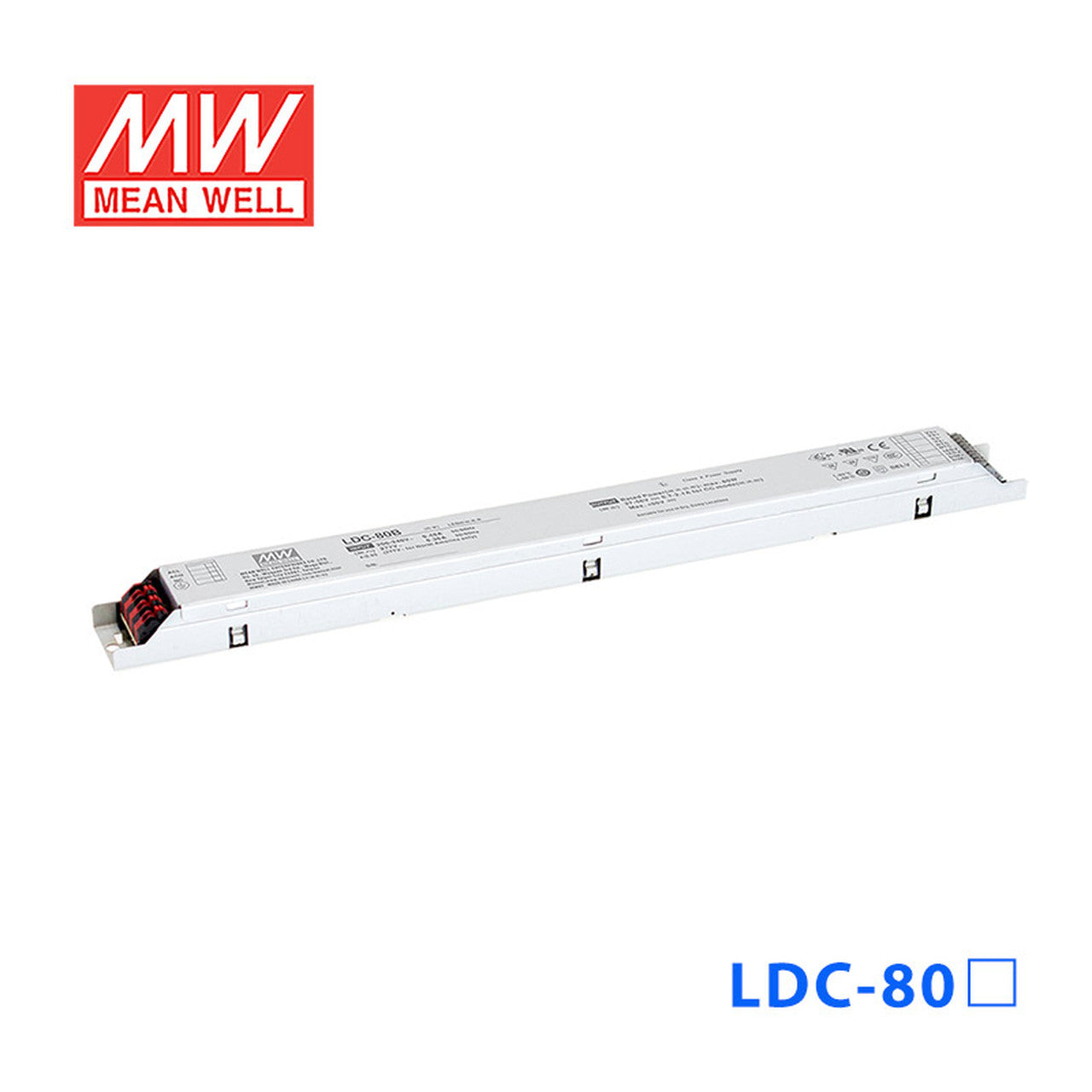

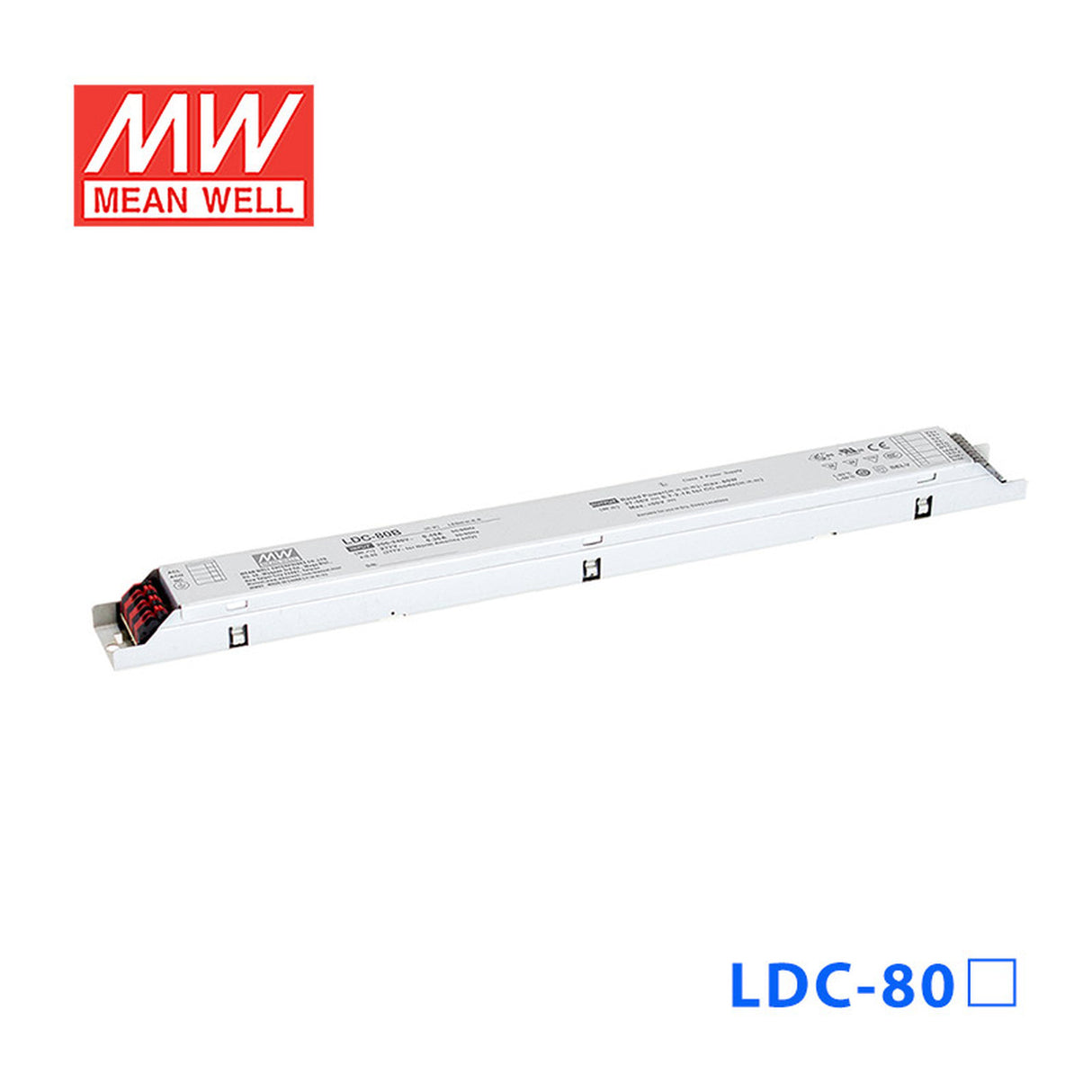

Mean Well LDC-80DA2 Linear LED Driver 80W 700~2100mA Adjustable Output - DALI2

constant powerflicker freeultra slim design30mm width

SKU LDC-80DA2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LDC-80DA2 is the model of this series: rated power 80W, typical efficiency 90%(230VAC@Full load).

LDC-80 series is a 80W AC/DC LED driver featuring the constant power mode output. LDC-80 operates from 180~295VAC and output current can be adjust between 700mA to 2100mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25℃~+85℃ case temperature under free air convection.LDC-80 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load / Standby power consumption <0.5W
Output current level pre-settable
Function options: 3 in 1 dimming (dim-to-off); DALI interface, push dimming
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty

Specifications

LDC-80DA2Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

OUTPUT CURRENT REGION: 700 ~ 2100mA(1400mA default)
RATED POWER^Note.2: 80W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 1400 ~ 2100mA
OPEN CIRCUIT VOLTAGE(max.): 60V
LOW FREQUENCY CURRENT RIPPLE: 3.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC@load≧50%; PF≧0.92/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%(230VAC@Full load)
AC CURRENT (Typ.): 0.48A / 230VAC 0.36A/277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 6 units (circuit breaker of type B) / 11 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, with auto-recovery

FUNCTION

DIMMING: Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION: By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
DALI STANDARDS: Compliance to IEC62386-101.102.207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.5: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020

OTHERS

MTBF: 2321.4K hrs min. Telcordia SR-332 (Bellcore) 259.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 360*30*21mm (L*W*H)
PACKING: 0.295Kg; 40pcs/12.8Kg/0.81CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to " OUTPUT CURRENT SETTING ".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

LDC-80DA2 OUTPUT CURRENT SETTING — OUTPUT CURRENT SETTING

LDC-80DA2 DIMMING OPERATION — DIMMING OPERATION

LDC-80DA2 Illustration (page 5) — Illustration (page 5)

LDC-80DA2 TEMPERATURE COMPENSATION OPERATION (2) — TEMPERATURE COMPENSATION OPERATION (2)

LDC-80DA2 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LDC-80DA2 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LDC-80DA2 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
Indoor LED lighting
Linear LED lighting

Downloads

Datasheet1

LDC-80DA2 datasheetLDC-80-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates10

Mean Well LDC-35 UL Certificate PDF Download

Mean Well LDC-35 BIS Certificate PDF Download

Mean Well LDC-80 EAC Certificate PDF Download

Mean Well LDC-80 CB Certificate PDF Download

Mean Well LDC-80 CCC Certificate PDF Download

Mean Well LDC-80 CE Certificate PDF Download

Mean Well LDC-80 EMC Certificate PDF Download

Mean Well LDC-80 ENEC Certificate PDF Download

Mean Well LDC-80 SAA Certificate PDF Download

Mean Well LDC-80 UK Certificate PDF Download

Test reports1

Mean Well LDC-80 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LDC-80DA2 for LED downlights that need a constant current driver?

Yes, if the downlight is designed for constant current operation within the 700-2100mA adjustable range (1400mA default) and its LED load stays within the 27-56V constant current range. This is an 80W driver, so it is suited to higher-power downlight assemblies within that voltage window. It is not the right choice for fixtures that require a constant voltage driver.

Is the LDC-80DA2 suitable for powering signage LED modules?

It can be suitable for signage modules only when the module assembly is a constant current load within the 700-2100mA output range (1400mA default) and falls within the 27-56V CC output range. Many signage products use constant voltage power instead, so this driver should only be used with modules specified for constant current operation. Its 80W rating supports larger constant current signage assemblies.

Can this driver run a small LED array for architectural or display lighting?

Yes, if the LED array is a constant current design within the 700-2100mA range (1400mA default) and the total forward-voltage requirement lands between 27V and 56V. The exact number of LEDs depends on the forward voltage of each LED, not on the driver alone. Its constant power mode design and 3.0% max. low-frequency current ripple are useful where stable light output is important.

How do I know if my LED load is compatible with the LDC-80DA2?

The load must be a constant current LED assembly whose current is within the 700-2100mA adjustable range (1400mA default, set by resistor on IADJ), with a total forward-voltage requirement inside the 27-56V CC range and power of no more than 80W. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by the full LED string voltage rather than a fixed LED count. This model is not intended for constant voltage LED strips or other constant voltage loads.

How does the LDC-80DA2 compare with other LDC series models?

The LDC-80 series datasheet gives every model the same 80W output: 700-2100mA adjustable (1400mA default), a 27-56V constant current region and full power from 1400-2100mA. All versions offer current setting by resistor on IADJ and NTC temperature compensation. The LDC-80B adds 3 in 1 dimming (0-10VDC, 10V PWM or resistance) on DIM+/DIM-, while DA-type models such as this one add a DALI interface (IEC62386-101/102/207) and primary-side push dimming.

Is the LDC-80DA2 appropriate for high-temperature or enclosed lighting equipment?

It is rated for a case temperature (Tcase) of -25°C to +85°C, with output derating at higher temperatures per the output load vs temperature curve, and a typical life of >50000 hours when Tcase is about 75°C or less. No IP rating is listed in the provided specs, so environmental sealing should come from the finished luminaire or enclosure rather than the driver itself. Its slim 360 × 30 × 21 mm form factor can help where space is limited.
