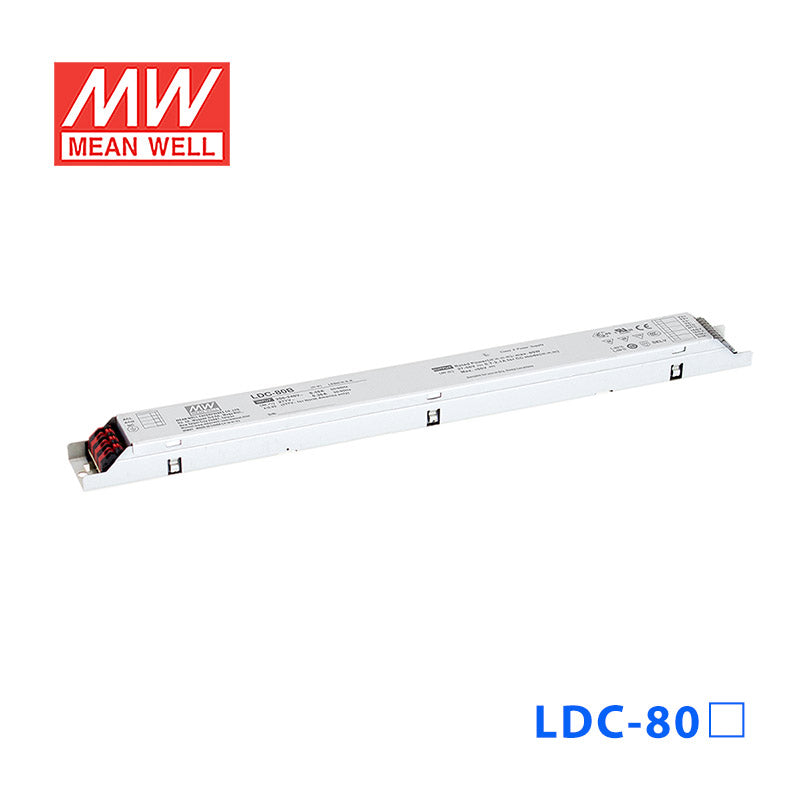

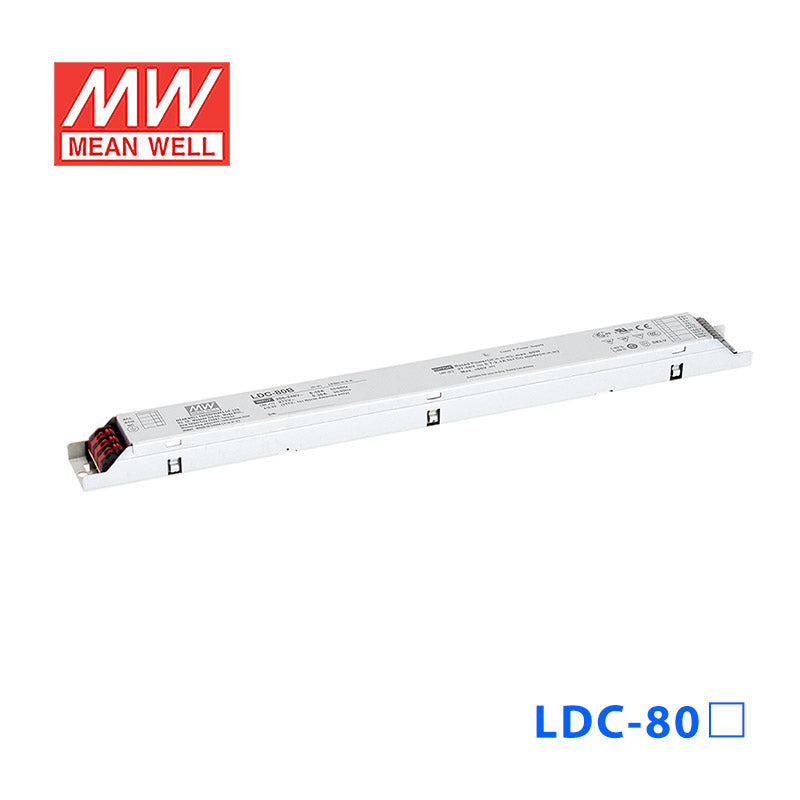

Mean Well LDC-80 Linear LED Driver 80W 700~2100mA Adjustable Output

constant powerflicker freeultra slim design30mm width

SKU LDC-80

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LDC-80 is the model of this series: rated power 80W, typical efficiency 90%(230VAC@Full load). Type Blank: Non dimming.

LDC-80 series is a 80W AC/DC LED driver featuring the constant power mode output. LDC-80 operates from 180~295VAC and output current can be adjust between 700mA to 2100mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25℃~+85℃ case temperature under free air convection.LDC-80 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load / Standby power consumption <0.5W
Output current level pre-settable
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty

Specifications

LDC-80Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

OUTPUT CURRENT REGION: 700 ~ 2100mA(1400mA default)
RATED POWER^Note.2: 80W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 1400 ~ 2100mA
OPEN CIRCUIT VOLTAGE(max.): 60V
LOW FREQUENCY CURRENT RIPPLE: 3.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC@load≧50%; PF≧0.92/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%(230VAC@Full load)
AC CURRENT (Typ.): 0.48A / 230VAC 0.36A/277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 6 units (circuit breaker of type B) / 11 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, with auto-recovery

FUNCTION

DIMMING: Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION: By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.5: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020

OTHERS

MTBF: 2321.4K hrs min. Telcordia SR-332 (Bellcore) 259.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 360*30*21mm (L*W*H)
PACKING: 0.295Kg; 40pcs/12.8Kg/0.81CUFT

MODEL ENCODING

Blank (this model): Non dimming
B: 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance )
DA: DALI,push dimming

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to " OUTPUT CURRENT SETTING ".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

LDC-80 OUTPUT CURRENT SETTING — OUTPUT CURRENT SETTING

LDC-80 Illustration (page 5) — Illustration (page 5)

LDC-80 TEMPERATURE COMPENSATION OPERATION (2) — TEMPERATURE COMPENSATION OPERATION (2)

LDC-80 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LDC-80 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LDC-80 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
Indoor LED lighting
Linear LED lighting

Downloads

Datasheet1

LDC-80 datasheetLDC-80-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates10

Mean Well LDC-35 UL Certificate PDF Download

Mean Well LDC-35 BIS Certificate PDF Download

Mean Well LDC-80 EAC Certificate PDF Download

Mean Well LDC-80 CB Certificate PDF Download

Mean Well LDC-80 CCC Certificate PDF Download

Mean Well LDC-80 CE Certificate PDF Download

Mean Well LDC-80 EMC Certificate PDF Download

Mean Well LDC-80 ENEC Certificate PDF Download

Mean Well LDC-80 SAA Certificate PDF Download

Mean Well LDC-80 UK Certificate PDF Download

Test reports1

Mean Well LDC-80 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the LDC-80 be used for larger LED downlights or COB arrays?

Yes, if the LED load is designed for constant current operation and falls within the 27-56V CC range. With 80W capacity and a 700-2100mA adjustable output (1400mA default), it suits higher-power constant current LED engines.

Is the LDC-80 suitable for small linear LED arrays in architectural fixtures?

It can be used for small linear LED arrays when the array is a constant current load that operates from 27-56V. Its slim 360.0 × 30.0 × 21.0 mm housing is intended for linear fixture formats where a narrow 30mm driver is useful.

Can I use the LDC-80 for signage modules that need more power?

It can support signage modules only if they are constant current LED assemblies within the 27-56V range and up to 80W. It is not a constant voltage driver, so it is not the right choice for standard 12V or 24V constant voltage signage modules.

What kind of LED load is compatible with the LDC-80?

The compatible load is a constant current LED module or array that matches the 27-56V output range and a current within 700-2100mA (1400mA default, set by resistor on IADJ). The number of LEDs depends on the forward voltage of each LED, so the load must be sized by total forward voltage instead of by a fixed LED count.

How does the LDC-80 compare with the rest of the LDC linear driver range?

The LDC-80 series datasheet gives every model the same 80W output: 700-2100mA adjustable (1400mA default), a 27-56V constant current region and full power from 1400-2100mA, with resistor current setting on IADJ and NTC temperature compensation. The LDC-80 is the base version; the LDC-80B adds 3 in 1 dimming (0-10VDC, 10V PWM or resistance) and DA-type models add a DALI interface and push dimming.
