Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

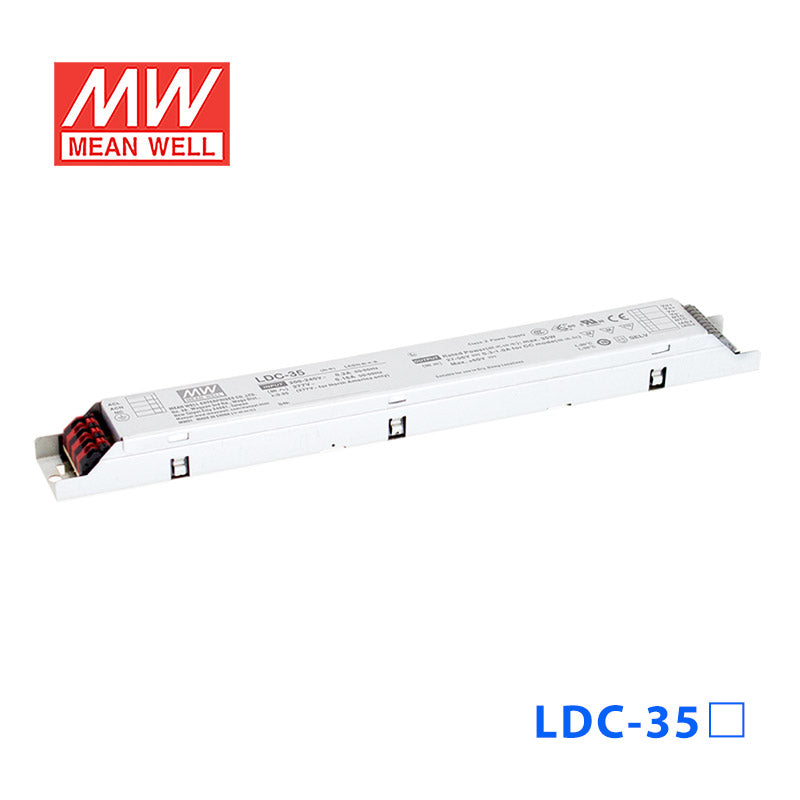

Mean Well LDC-35 Linear LED Driver 35W 300~1000mA Adjustable Output

constant powerflicker freeultra slim design30mm width

SKU:

LDC-35

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Key Features

✓Constant Power mode output
✓Metal housing design
✓Full power at 70~100% max current
✓Built-in active PFC function
✓Flicker-free design
✓No load/standby power consumption<0.5W
✓Output current level pre-settable
✓Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming
✓Typical lifetime>50000 hours
✓SELV and isolated
✓Class 2 power supply
✓5 years warranty

Frequently Asked Questions

Can I use the LDC-35 to run LED downlights?

Yes, if the downlight uses a constant current driver and the LED load operates within the 27-56V constant current range. This model is a 35W constant current driver with a 300mA output, so it fits downlights designed around that drive current rather than constant voltage input.

Is the LDC-35 suitable for signage modules that need constant current power?

It can be a fit for signage modules built as a constant current LED load in the 27-56V range. It is not a constant voltage supply, so it is intended for modules specified for 300mA constant current operation rather than 12V or 24V constant voltage systems.

Can this driver power a small LED array for a custom light assembly?

Yes, for a small LED array designed as a constant current load at 300mA and operating within 27-56V. The usable number of LEDs depends on the forward voltage of each LED, so compatibility is based on the array's total forward voltage rather than a fixed LED count.

How do I know if an LED load is compatible with the LDC-35?

The LED load must be designed for constant current operation at 300mA, and its total forward voltage must fall inside the 27-56V constant current output range. The number of LEDs depends on the forward voltage of each LED, so this driver should be matched by current and voltage range, not by a stated LED quantity.

How does the LDC-35 compare with other LDC linear drivers in the same family?

Within the listed family, LDC-35, LDC-35B, and LDC-35DA are 35W, 300mA models with a 27-56V CC range, while LDC-35DA2 is 35W at 700mA with the same 27-56V range. LDC-55, LDC-55B, and LDC-55DA are 55W at 500mA, LDC-55DA2 is 55W at 1050mA, LDC-80, LDC-80B, and LDC-80DA are 80W at 700mA, and LDC-80DA2 is 80W at 1400mA, all with a 27-56V CC range; the family list also includes LDC-55B-33K OHM and LDC-80B 68K Ohm variants.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LDC-55B Linear LED Driver 55W 500~1600mA Adjustable Output - Dimmable	55W	60V	0.5A	Indoor	View
Mean Well LDC-80DA2 Linear LED Driver 80W 700~2100mA Adjustable Output - DALI2	80W	60V	1.4A	Indoor	View
Mean Well LDC-80DA Linear LED Driver 80W 700~2100mA Adjustable Output - DALI	80W	60V	0.7A	Indoor	View
Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Output - Dimmable	80W	60V	0.7A	Indoor	View
Mean Well LDC-80 Linear LED Driver 80W 700~2100mA Adjustable Output	80W	60V	0.7A	Indoor	View
Mean Well LDC-55DA2 Linear LED Driver 55W 500~1600mA Adjustable Output - DALI2	55W	60V	1.05A	Indoor	View
Mean Well LDC-55DA Linear LED Driver 55W 500~1600mA Adjustable Output - DALI	55W	60V	0.5A	Indoor	View
Mean Well LDC-55 Linear LED Driver 55W 500~1600mA Adjustable Output	55W	60V	0.5A	Indoor	View
Mean Well LDC-35DA2 Linear LED Driver 35W 300~1000mA Adjustable Output - DALI2	35W	60V	0.7A	—	View
Mean Well LDC-35DA Linear LED Driver 35W 300~1000mA Adjustable Output - DALI	35W	60V	0.3A	Indoor	View
Mean Well LDC-35B Linear LED Driver 35W 300~1000mA Adjustable Output - Dimmable	35W	60V	0.3A	Indoor	View
