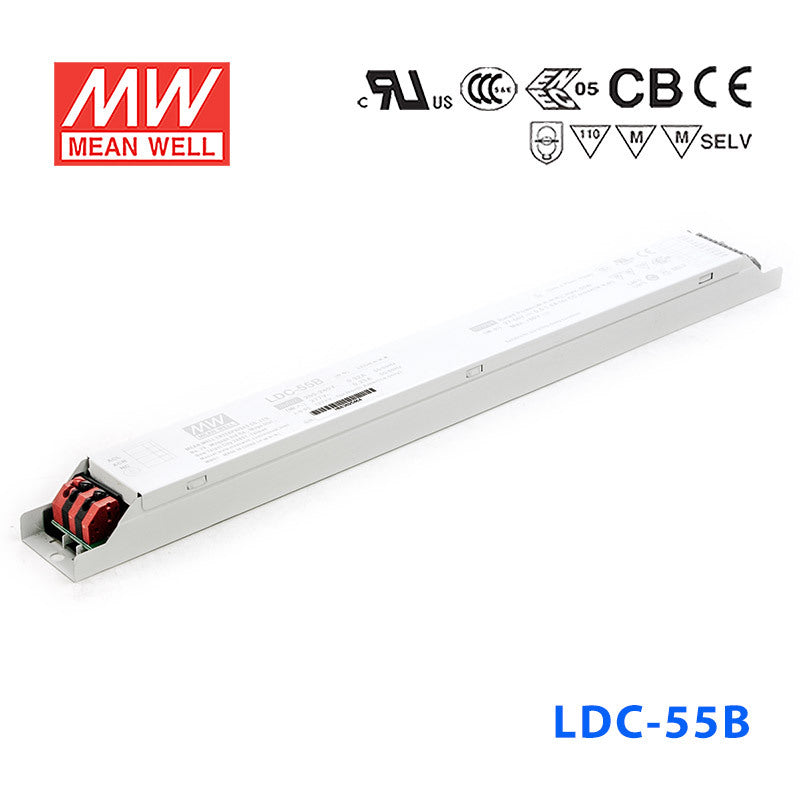

Mean Well LDC-55B Linear LED Driver 55W 500~1600mA Adjustable Outpu...
Please Login for Pricing
Description
Description
Features
| Constant Power mode output |
| Metal housing design |
| Full power at 70~100% max current |
| Built-in active PFC function |
| Flicker-free design |
| No load/standby power consumption<0.5W |
| Output current level pre-settable |
| Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming |
| Typical lifetime>50000 hours |
| SELV and isolated |
| Class 2 power supply |
| 5 years warranty |
General Specification
| AC input voltage range | 180~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Hiccup mode or constant current limiting recovers automatically after the fault condition is removed |
| Over temperature protection | Shut down o/p voltage, with auto-recovery |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC |
| Working temperature | Tcase=-25 ~ +80℃ |
| Safety standards | UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 320x30x21mm |
| Packing | 48pcs/13.24Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDC Series
-
Power Rating55 Watt
-
Output Voltage60 Volt
-
Rated Current0.5 Ampere
-
Input Voltage180V~295V
-
Standards MetBIS,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length32 cm
-
Width3 cm
-
Height2.1 cm
-
Weight0.26 kg
