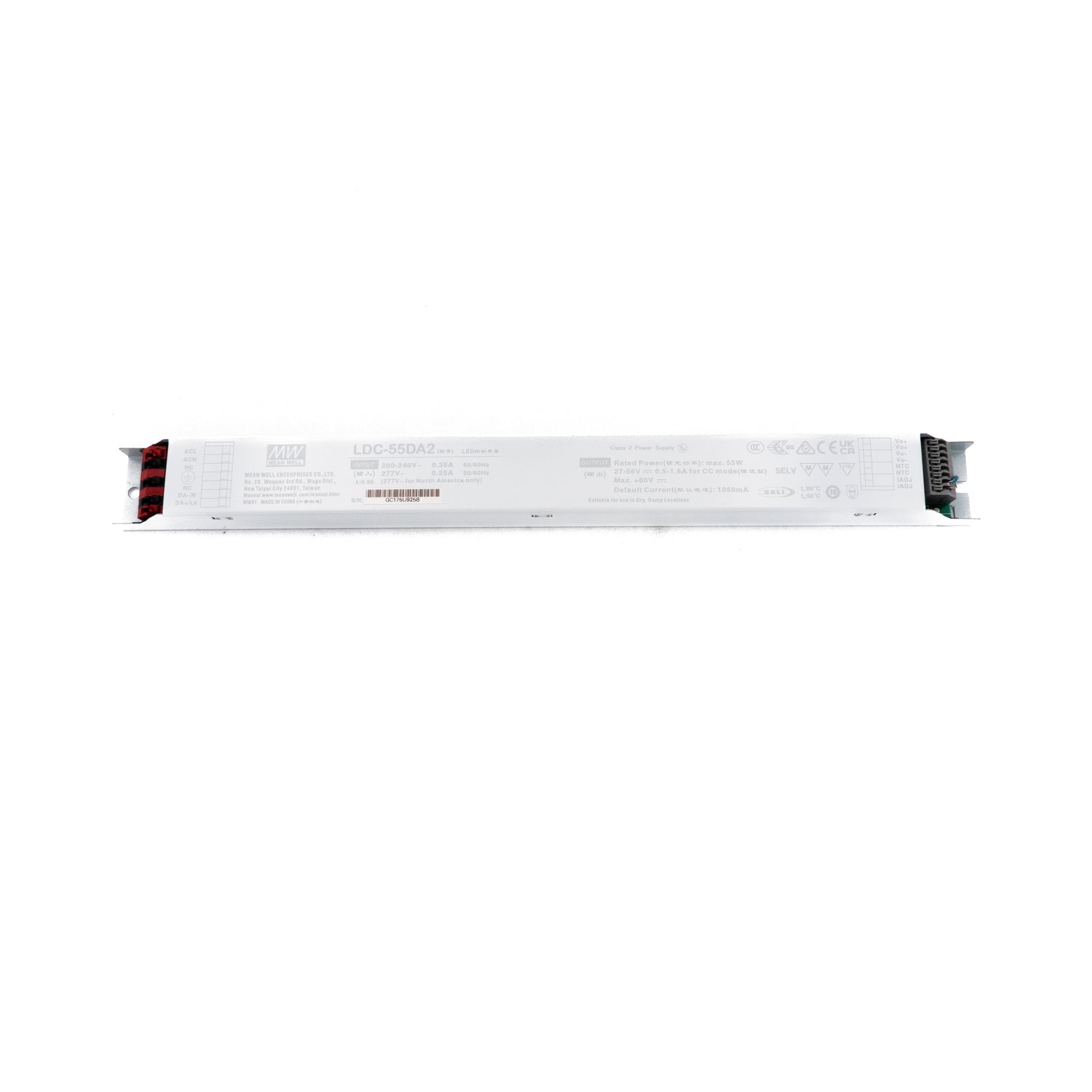

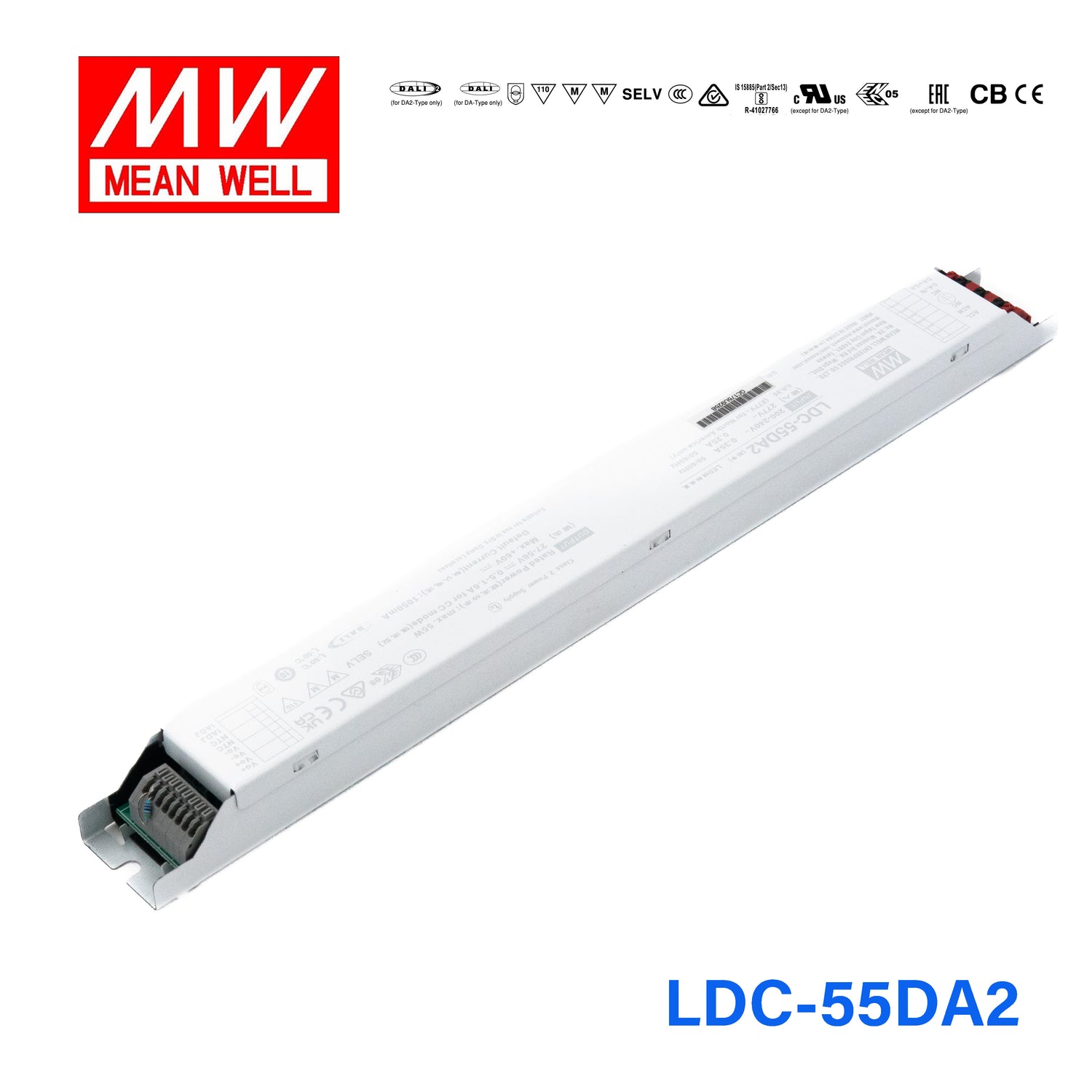

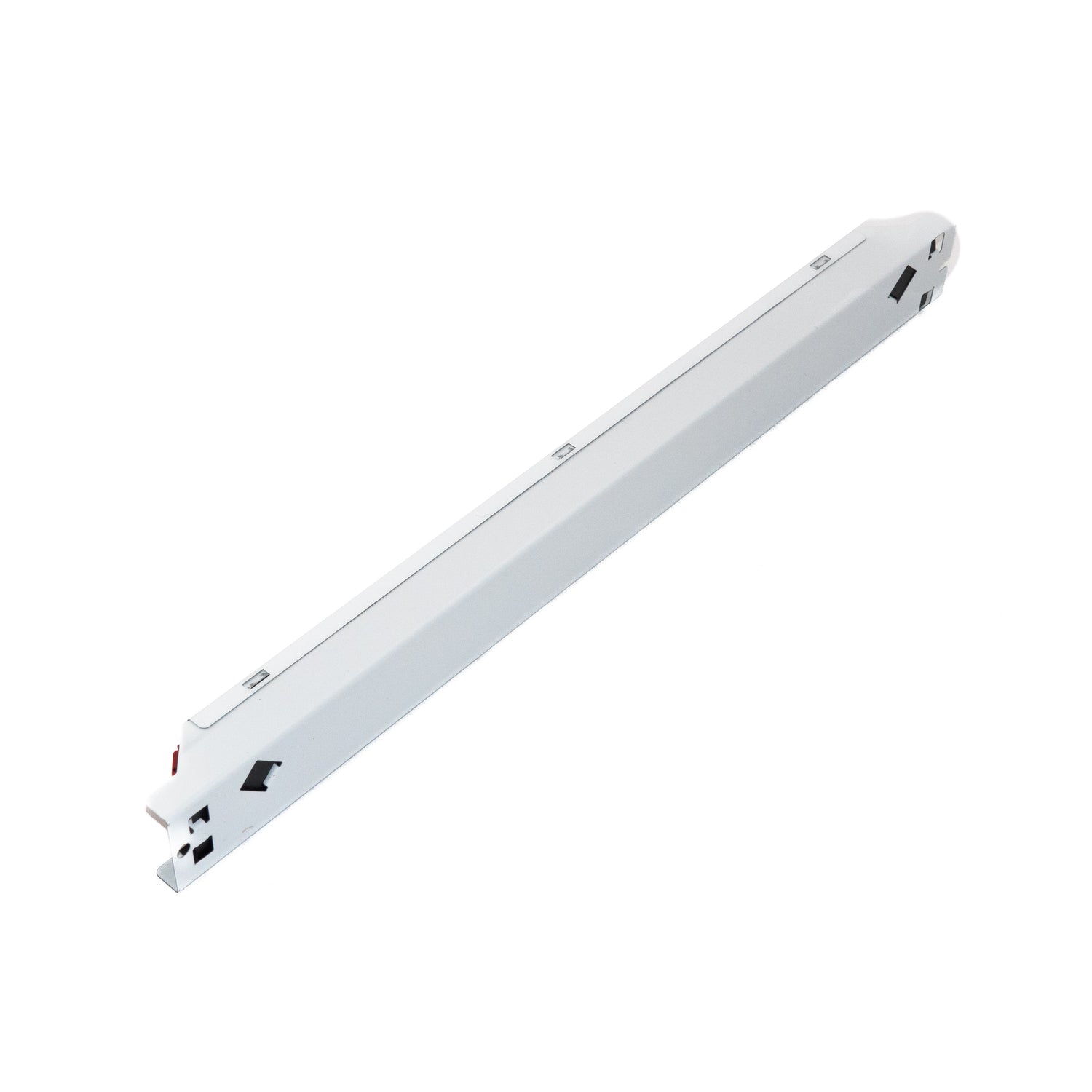

Mean Well LDC-55DA2 Linear LED Driver 55W 500~1600mA Adjustable Output - DALI2

constant powerflicker freeultra slim design30mm width

SKU LDC-55DA2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LDC-55DA2 is the model of this series: rated power 55W, typical efficiency 90%(230VAC@Full load). Type DA2: DALI-2,push dimming.

LDC-55 series is a 55W AC/DC LED driver featuring the Constant Power mode output. LDC-55 operates from 180~295VAC and output current can be adjust between 500mA to 1600mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate -25℃~+80℃ case temperature under free air convection.LDC-55 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
Class 2 power supply
No load / Standby power consumption <0.5W
Output current level pre-settable
Function options: DALI interface, push dimming
Typical lifetime>50000 hours
SELV and Isolated
5 years warranty

Specifications

LDC-55DA2Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

OUTPUT CURRENT REGION: 500 ~ 1600mA(1050mA default)
RATED POWER^Note.2: 55W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 980 ~ 1600mA
OPEN CIRCUIT VOLTAGE(max.): 60V
LOW FREQUENCY CURRENT RIPPLE: 3.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC@load≧50%; PF≧0.9/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.6: 90%(230VAC@Full load)
AC CURRENT (Typ.): 0.35A / 230VAC 0.25A / 277VAC
INRUSH CURRENT(Typ.): COLD START 30A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, with auto-recovery

FUNCTION

DIMMING: Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION: By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
DALI STANDARDS: Compliance to IEC62386-101.102.207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.5: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 2521K hrs min. Telcordia SR-332 (Bellcore) 226.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 320*30*21mm (L*W*H)
PACKING: 0.255Kg;48pcs/13.24Kg/0.92CUFT

MODEL ENCODING

Blank: Non dimming
B: 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance)
DA: DALI,push dimming
DA2 (this model): DALI-2,push dimming

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to " OUTPUT CURRENT SETTING ".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The DA type power supply is less efficient than the typical efficiency in specification by 2%.
7. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

LDC-55DA2 OUTPUT CURRENT SETTING — OUTPUT CURRENT SETTING

LDC-55DA2 ◎ PUSH dimming(primary side) — ◎ PUSH dimming(primary side)

LDC-55DA2 TEMPERATURE COMPENSATION OPERATION (2) — TEMPERATURE COMPENSATION OPERATION (2)

LDC-55DA2 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LDC-55DA2 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LDC-55DA2 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
Indoor LED lighting
Linear LED lighting

Downloads

Datasheet1

LDC-55DA2 datasheetLDC-55-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates10

Mean Well LDC-35 UL Certificate PDF Download

Mean Well LDC-35 BIS Certificate PDF Download

Mean Well LDC-55 EAC Certificate PDF Download

Mean Well LDC-55 CB Certificate PDF Download

Mean Well LDC-55 CCC Certificate PDF Download

Mean Well LDC-55 CE Certificate PDF Download

Mean Well LDC-55 EMC Certificate PDF Download

Mean Well LDC-55 ENEC Certificate PDF Download

Mean Well LDC-55 SAA Certificate PDF Download

Mean Well LDC-55 UK Certificate PDF Download

Test reports1

Mean Well LDC-35 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the LDC-55DA2 for higher-current LED downlight modules?

Yes, when the downlight uses a constant current LED engine that operates within the 27-56V range at a current within this model's 500-1600mA adjustable range (1050mA default). With 55W capacity, it is aimed at constant current loads rather than constant voltage lighting products.

Is the LDC-55DA2 a good choice for small high-brightness LED arrays?

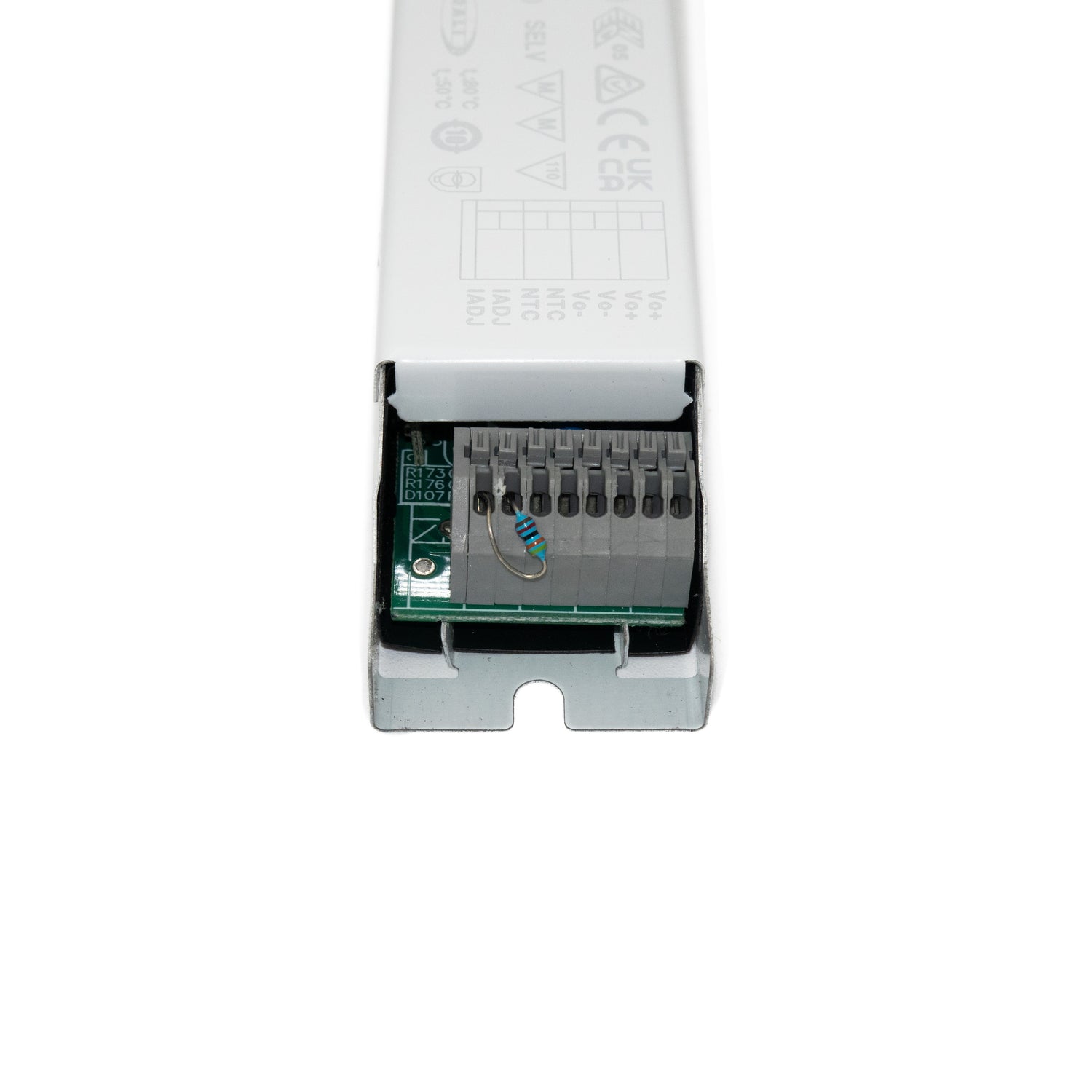

It can be, provided the array is a constant current load and its total forward voltage stays inside the 27-56V CC range. Output current is set from 500 to 1600mA with a resistor on the IADJ terminals, and the full 55W is available from 980 to 1600mA.

Can this model be used in signage lighting that uses constant current LED modules?

Yes, if the signage module is a constant current design within the 27-56V range and up to 55W. It is not intended for constant voltage signage systems, so it should only be used where the LED module is specified for constant current operation.

How should I size an LED load for the LDC-55DA2?

Use LED modules that require a constant current source and whose combined forward voltage falls within 27-56V. The number of LEDs depends on each LED's forward voltage, so the correct check is total LED forward voltage at the required current, not a preset LED quantity.

Is the LDC-55DA2 suitable for cold or hot operating environments?

This driver is rated for a case temperature (Tcase) of -25°C to +80°C, with load derating per the output load vs temperature curve; -40°C to +80°C is the storage range. No IP rating is listed in the provided specs, so environmental suitability still depends on the final enclosure or fixture design.
