Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

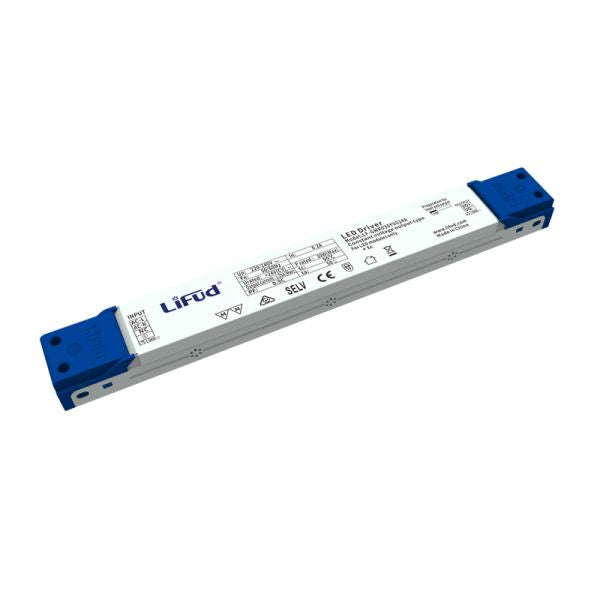

Lifud LF-GMR030YV024A LED Driver 30W 24V - Flicker Free 1.25A

SKU LF-GMR030YV024A

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LF-GMR030YV024A is the 24VDC output model of this series.

Isolated LED Driver for Class I LED Luminaire

Features

Category: AC220-240V, flicker free
Property: flicker coefficient ≤0.5%, high PF, high efficiency, low THD
Warranty: 5 years (Please refer to the warranty condition.)
Certificate: Meet CE standards. No certificate yet.

Specifications

LF-GMR030YV024ASpecifications from the official datasheetDownload datasheet PDF

Output

Output Voltage: 24VDC
Output Current: 0-1250mA
Ripple Voltage: < 1V
Voltage Tolerance: 24±0.5V
Time to Light: <0.5S @230Vac
Temperature Drift: ±10%
Line Regulation: ±5%

Input

Line Regulation: ±5%
Rated Input Voltage: AC: 220-240Vac (Max. Limit: 200-264Vac); DC: 200-373Vdc
Frequency: 47Hz-63Hz
Input Current: 0.3A Max
Power Factor: ≥0.95/200Vac ≥0.97/230Vac ≥0.95/264Vac
THD: ≤20%
Efficiency: ≥87%/200Vac ≥87%/230Vac ≥87%/264Vac
In-Rush Current: I<60A/350uS@230Vac
Stand-by Power: ≤1W@230Vac

Protective Feature

Over-Voltage: ≤35V (Cut off output voltage. Auto-recovery)
Over-Load: 108%-120% (auto-recovery)
Short-Circuit: Hiccup mode (auto-recovery)

Environment Condition

Working Temperature: -30℃ ~ +50℃
Working Humidity: 20-90%RH (no condensation)
Storage Temperature/Humidity: -40℃ ~ +80℃ (6 months under the class I environment); 10-90%RH (no condensation)
Atmospheric Pressure: 86-106KPa

Safety & Norm

Certificate: Meet CE standards. No certificate yet.
Hi-Pot Test: I/P-O/P: 3.75KVac, <5mA 60S; I/P-FG: 1.6KVac, <5mA 60S; 0/P-FG: 0.5KVac, <5mA 60S
Insulation Resistance: I/P-O/P, I/P-FG, 0/P-FG: 500VDC, >100MΩ
Surge Level: Meet standards of IEC61000-4-5 (L-N:1KV; L/N-PG:2KV)
EMI: Meet standards of EN55015, EN61000-3-2
EMS: Meet standards of EN61000-4-2,3,4,5,6,8,11; EN61547

Others

Packing (Weight): Carton size: 39 x 29 x 21 cm (L*W*H); Net weight: 159g±5%/pc; 8.4KG±5%/ctn; 48pcs/ctn
IP Level: IP20
Warranty Condition: 5 years (Max. case temperature must not exceed 70℃)

Technical drawings

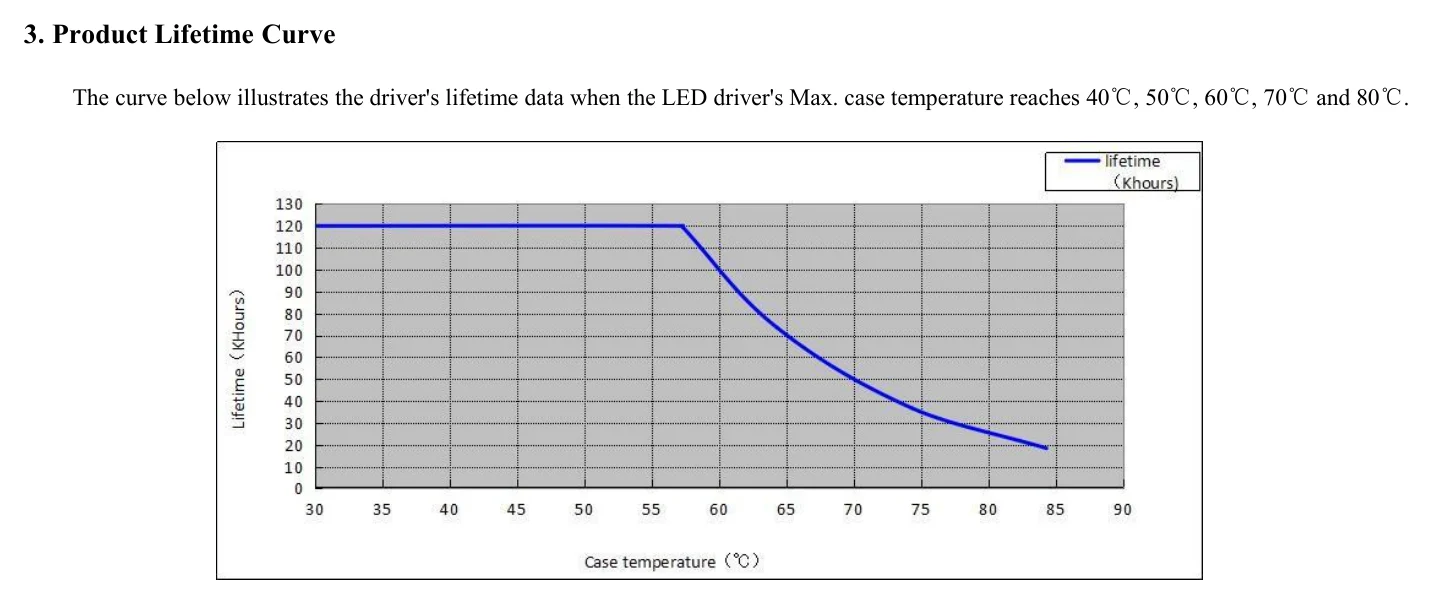

LF-GMR030YV024A 3. Product Lifetime Curve — 3. Product Lifetime Curve

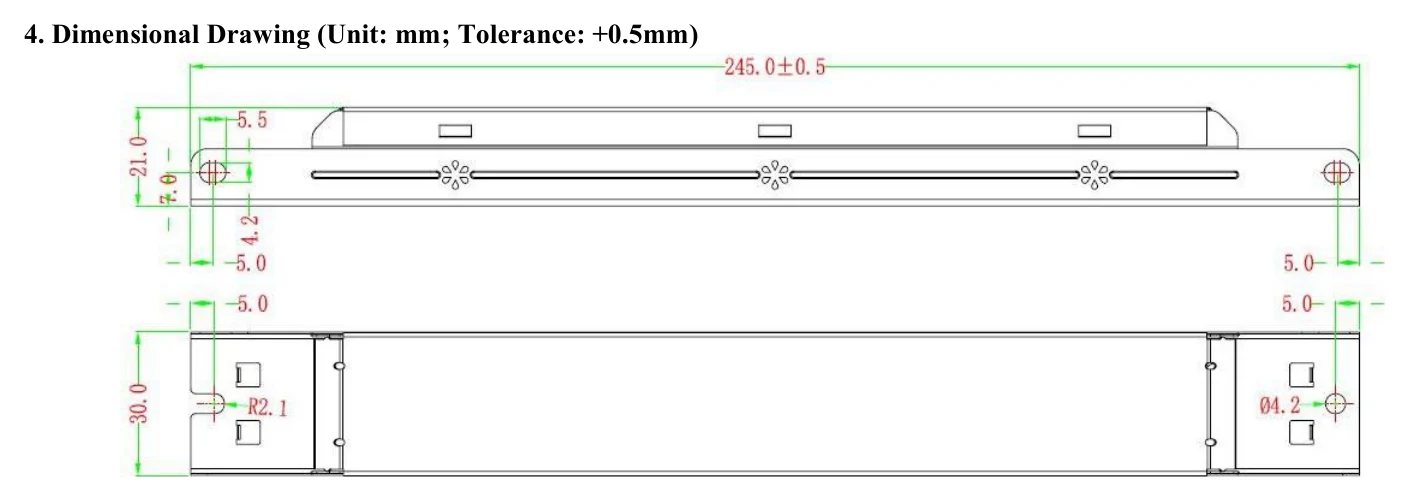

LF-GMR030YV024A 4. Dimensional Drawing (Unit: mm; Tolerance: +0.5mm) — 4. Dimensional Drawing (Unit: mm; Tolerance: +0.5mm)

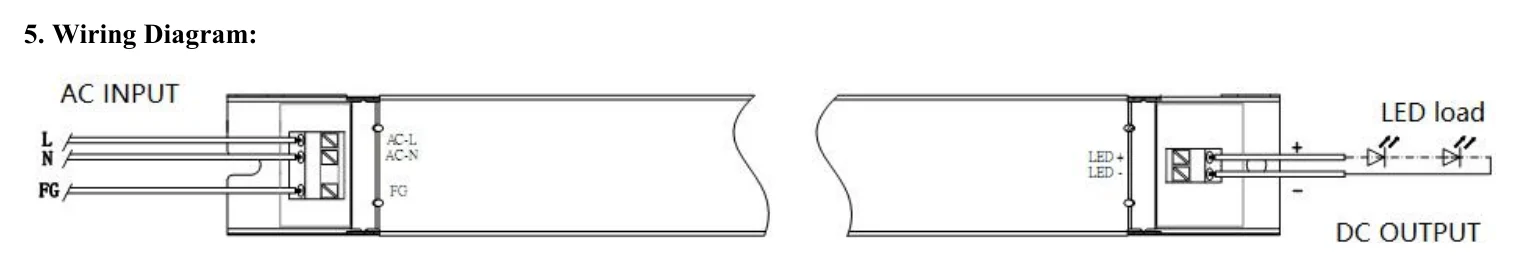

LF-GMR030YV024A 5. Wiring Diagram — 5. Wiring Diagram

Typical applications

indoor office lighting, commercial lighting & decorative lighting

Downloads

Datasheet1

LF-GMR030YV024A datasheetgmr_030_24_spec.pdf PDF Download

Catalogues1

Lifud Catalog PDF Download

FAQ

What kind of applications is the Lifud LF-GMR030YV024A best suited for?

The LF-GMR030YV024A is intended for indoor office lighting, commercial lighting, and decorative lighting applications. It is a 24V, 30W LED driver, so it fits projects that need a constant 24V output within that power range. Its IP20 rating confirms it is designed for indoor use only.

Is the LF-GMR030YV024A a dimmable LED driver?

No. This model is listed with no dimming control, so it is a non-dimmable LED driver. If the project requires brightness adjustment, a different driver with a specified dimming interface would be needed.

What are the main electrical specifications of the LF-GMR030YV024A?

This model is rated at 30W with a 24V output and a rated current of 1.25A. It is described as a high power factor, high efficiency, low THD, isolated LED driver for AC220-240V Class I LED luminaires. Those specs make it suitable for buyers who need a compact fixed-output driver for 24V lighting loads.

Can I use the LF-GMR030YV024A in temperature-variable indoor environments?

This driver is specified for operation from -30°C to 50°C. That range supports many indoor commercial and office environments, including spaces that may experience cooler startup conditions or warmer ceiling void temperatures. The stated application remains indoor lighting rather than outdoor exposure.

How do I know if the LF-GMR030YV024A is compatible with my 24V LED lighting product?

Compatibility depends on the lighting product matching this driver's 24V output and staying within its 30W maximum rating. The rated current is 1.25A, which aligns with the driver's 30W at 24V output class. For procurement, this model is best matched to 24V LED lighting products that are specified for constant-voltage operation in that power range.

What makes the LF-GMR030YV024A suitable for flicker-sensitive lighting projects?

This driver is designed for lighting applications where visual stability is important, such as offices and commercial interiors. Its high power factor and low THD contribute to cleaner power consumption and reduced electrical noise, making it a practical choice for sensitive indoor environments.

What warranty is offered for the LF-GMR030YV024A?

The LF-GMR030YV024A is listed with a 5-year warranty. That is a meaningful consideration for commercial and project buyers who want lower replacement risk over time. Warranty terms still depend on the seller's stated warranty conditions for this model.
