Description
Description
Features
- Isolated LED Driver for Class I LED Light Fixture
- Category: AC220-240V
- flicker free
- Property: high PF
- high efficiency
- low THD
- flicker coefficient ≤1%
- Application: indoor office lighting
- commercial lighting & decorative lighting
- Warranty: 5 years (Please refer to the warranty condition.)
- Certificate: TUV-CE
- CB
- RCM
- SAA
- CCC
Specifications
Specifications
-
BrandLifud
-
SeriesGMR Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
Standards MetCB,CCC,CE,RCM,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length28.5 cm
-
Width3 cm
-
Height2.1 cm
-
Weight0.27 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions

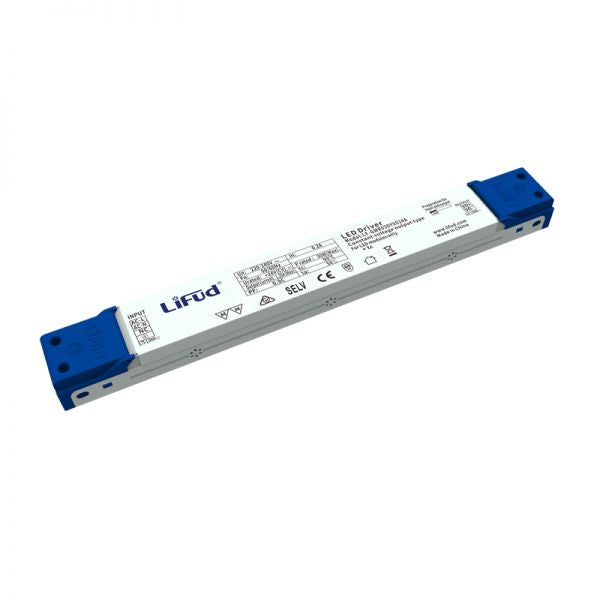

What is the Lifud LF-GMR075YV012A designed for?
The Lifud LF-GMR075YV012A is an isolated LED driver intended for Class I LED light fixtures. It is positioned for indoor office lighting, commercial lighting, and decorative lighting where flicker-free 12V constant voltage output is required.
What are the main electrical ratings of this LED driver?
This model is rated at 75W with a 12V output and a rated current of 6.25A. It is listed for AC220-240V input applications and is a non-dimmable driver.
Is the LF-GMR075YV012A flicker free?
Yes, this model is described as flicker free and specifies a flicker coefficient of 1% or less. That makes it a suitable option for lighting environments where visual comfort and stable light output are important.
Can this model be used for dimming applications?
No, the listed dimming control for the LF-GMR075YV012A is none. It is intended for applications that require fixed-output 12V constant voltage performance rather than integrated dimming control.
What operating temperature range is supported?
The specified ambient temperature range is -30°C to 50°C. This gives it a broad operating window for indoor commercial and decorative lighting applications, provided the installation environment stays within that range.
What certifications does the Lifud LF-GMR075YV012A have?
The product listing includes TUV-CE, CB, RCM, SAA, and CCC certifications. These certifications can be useful for buyers who need documented compliance for commercial or project-based purchasing.
What warranty is offered with this LED driver?
The LF-GMR075YV012A carries a 5-year warranty, with coverage subject to the manufacturer's warranty conditions. For B2B buyers, that can be a relevant factor when evaluating long-term maintenance and replacement planning.
