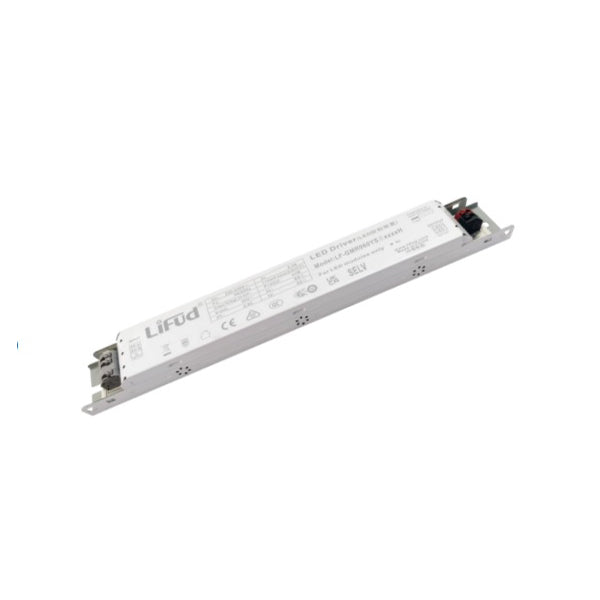

Lifud LF-GMR060YSII1200H Linear CC LED Driver Metal Case 60W 1200mA

suitable for Class I light fixtures, flicker free, high performance

SKU:

LF-GMR060YSII1200H

Please for Pricing

Notify me when it's back in stock

Description

Features:

Suitable for Class I light fixtures
Flicker-free
High performance, high efficiency, low THD
5-year warranty (please refer to the warranty condition)

General Specification

Rated AC Input Voltage

200-264Vac (Rated voltage: 220-240Vac)

Inrush Current

≤58A & 163uS @230Vac

Open Circuit Protection

<55V

Short Circuit Protection

Hiccup mode (auto-recovery)

Withstanding Voltage

I/P-O/P: 3.75kV&5mA&60S; I/P-PG: 1.5kV&5mA&60S

Insulation Resistance

I/P-O/P: >100MΩ@500VDC

Operating Temperature

-30℃ - +45℃

Safety standards

ENEC: EN61347-1:2015，EN 61347-2-13:2014/A1:2017，EN62384：2016/A1:2009

CE-LVD: EN 61347-2-13:2014/A1:2017，EN 61347-1:2015，EN62493:2015CB:IEC 61347-1:2015，IEC61347-2-3:2014，IEC 61347-2-13:2014/AMD1:2016CCC:GB19510.1-2009，GB19510.14-2009

Dimension (LxWxH)

245x21x30 mm

Specifications

Brand

Lifud
Series

GMR Series
Power Rating

60 Watt
Output Voltage

33 Volt
Rated Current

1.2 Ampere
Input Voltage

200V~264V
Standards Met

CB,CCC,CE,ENEC,ROHS,TUV
Operation Mode

Constant Current
Operating Temperature

-30°C~50°C
Warranty

5 Year
Length

24.5 cm
Width

3 cm
Height

2.1 cm
Weight

0.18 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED driver is the Lifud LF-GMR060YSII1200H?

The LF-GMR060YSII1200H is a linear constant-current LED driver with a 60W power rating and a 1200mA rated output current. It is designed for applications that need a non-dimmable constant-current driver in a slim metal case.

Is the LF-GMR060YSII1200H dimmable?

No. This model is a non-dimmable LED driver, so it is intended for lighting applications that require a fixed-output constant-current driver rather than dimming control.

What kinds of lighting applications is this driver suitable for?

This driver is suitable for Class I light fixtures and is intended for constant-current LED lighting applications that match its 1200mA output rating. Its slim 245 x 21 x 30 mm housing also makes it useful where a narrow driver format is needed inside compatible luminaires.

What input voltage does the Lifud LF-GMR060YSII1200H support?

This model supports a rated AC input range of 200-264Vac, with a rated voltage of 220-240Vac. That makes it appropriate for markets and installations using higher-voltage AC mains within that specified range.

What protection features are included in this LED driver?

The LF-GMR060YSII1200H includes open-circuit protection below 55V and short-circuit protection with hiccup mode and auto-recovery. These built-in protections help support reliable operation in compatible LED lighting systems.

Is this driver a good choice for flicker-sensitive lighting applications?

Yes. Lifud lists this model as flicker-free, which can make it a strong option for commercial and professional lighting applications where light quality and visual comfort matter. It is also described as high efficiency with low THD.

What environmental conditions is the LF-GMR060YSII1200H designed for?

This model is specified for low-temperature operation down to -30°C, which supports use in colder environments when the rest of the fixture is also rated appropriately. Buyers should also confirm the upper operating temperature limit in the product documentation used for their market and compliance needs.

What certifications or safety standards are listed for this model?

The product information lists ENEC, CE-LVD, CB, and CCC-related safety standards for this driver. Those references indicate the LF-GMR060YSII1200H is positioned for regulated lighting applications where documented safety compliance matters.
