Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

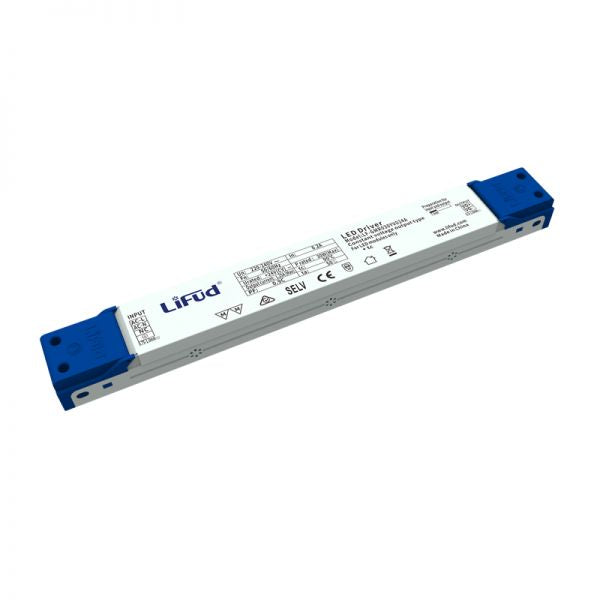

Lifud LF-GMR075YV024A LED Driver 75W 24V - Flicker Free 3.125A

SKU:

LF-GMR075YV024A

Please for Pricing

Notify me when it's back in stock

Description

Features

Isolated LED Driver for Class I LED Luminaire Category: AC220-240V
flicker-free
Property: flicker coefficient ≤0.5%
high PF
high efficiency
low THD
Application: indoor office lighting
commercial lighting & decorative lighting
Warranty: 5 years (Please refer to the warranty condition.)
Certificate: Meet CE standards. No certificate yet.

Specifications

Brand

Lifud
Series

GMR Series
Power Rating

75 Watt
Output Voltage

24 Volt
Rated Current

3.12 Ampere
Input Voltage

220V~240V
Standards Met

CB,CCC,CE,RCM,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

5 Year
Length

28.5 cm
Width

3 cm
Height

2.1 cm
Weight

0.27 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Lifud LF-GMR075YV024A designed for?

The Lifud LF-GMR075YV024A is an isolated LED driver intended for indoor office, commercial, and decorative lighting applications. It is built for Class I LED luminaire use on AC220-240V input.

What output does this LED driver provide?

This model is rated at 75W with a 24V output. Its rated current is 3.125A, which makes it suitable for 24V constant-voltage LED lighting systems that match those electrical requirements.

Is the LF-GMR075YV024A a dimmable LED driver?

No, this model does not include a dimming control. If your project requires dimming, this specific driver is not the right choice.

Is this driver flicker free?

Yes, the LF-GMR075YV024A is described as flicker-free. Its listed flicker coefficient is 0.5% or lower, which supports lighting applications where stable light output is important.

What operating temperature range does this model support?

This LED driver has a stated operating temperature range of -30°C to 50°C. That makes it suitable for indoor environments operating within that temperature window.

What warranty comes with the Lifud LF-GMR075YV024A?

This model includes a 5-year warranty. Warranty coverage is subject to the manufacturer's warranty conditions.

Model	Power	Voltage	Current	IP Rating
Lifud LF-GMR030YV024A LED Driver 30W 24V - Flicker Free 1.25A	30W	24V	1.25A	Indoor	View
Lifud LF-GMR060YSII1200H Linear CC LED Driver Metal Case 60W 1200mA	60W	33V	1.2A	Indoor	View
Lifud LF-GMR020YE-500 LED Driver 13.5-20W 500mA - Flicker Free	20W	40V	0.5A	Indoor	View
Lifud LF-GMR075YV012A LED Driver 75W 12V - Flicker Free 6.25A	75W	12V	6.25A	Indoor	View
