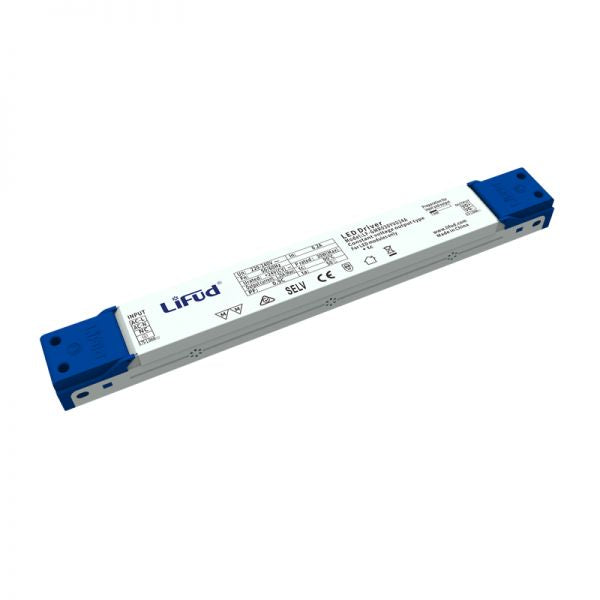

Lifud LF-GMR075YV012A LED Driver 75W 12V - Flicker Free 6.25A

SKU LF-GMR075YV012A

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LF-GMR075YV012A is the 12VDC output model of this series.

Isolated LED Driver for Class I LED Light Fixture

Features

Category: AC220-240V, flicker free
Property: high PF, high efficiency, low THD, flicker coefficient ≤1%
Warranty: 5 years (Please refer to the warranty condition.)
Certificate: TUV-CE, CB, RCM, SAA, CCC

Specifications

LF-GMR075YV012ASpecifications from the official datasheetDownload datasheet PDF

Output

Output Voltage: 12VDC
Output Current: 6250mA max.
Ripple Voltage: < 1V
Voltage Tolerance: 12±0.3V
Time to Light: <0.5S @230Vac
Temperature Drift: ±10%
Line Regulation: ±5%

Input

Line Regulation: ±5%
Rated Input Voltage: AC: 220-240Vac (Limit voltage: 200-264Vac)
Frequency: 47Hz-63Hz
Input Current: 0.60A Max
Power Factor: ≥0.96/200Vac ≥0.97/230Vac ≥0.96/264Vac
THD: ≤20%
Efficiency: ≥88.5%/200Vac ≥88.5%/230Vac ≥88.0%/264Vac
In-Rush Current: <80A/500uS@230Vac
Stand-by Power: ≤1W@230Vac

Protective Feature

Over-Voltage: ≤16V (Cut off output voltage. Auto-recovery.)
Over-Load: 108%-150% (auto-recovery)
Short-Circuit: Hiccup mode (auto-recovery)

Environment Condition

Working Temperature: -30℃ ~ +50℃
Working Humidity: 20-90%RH (no condensation)
Storage Temperature/Humidity: -40℃ ~ +80℃ (6 months under the class I environment); 10-90%RH (no condensation)
Atmospheric Pressure: 86-106KPa

Safety & Norm

Certificate: TUV-CE, CB, RCM, SAA, CCC
Hi-Pot Test: I/P-O/P: 3.75KVac, <5mA 60S; I/P-FG: 1.6KVac, <5mA 60S; 0/P-FG: 0.5KVac, <5mA 60S
Insulation Resistance: I/P-O/P, I/P-FG, 0/P-FG: 500VDC, >100MΩ
Surge Rating: Meet standards of IEC61000-4-5 (L-N:1KV; L/N-PG:2KV)
EMI: Meet standards of EN55015, EN61000-3-2
EMS: Meet standards of EN61000-4-2,3,4,5,6,8,11; EN61547

Others

Packing (Weight): Carton size: 33 x 32 x 21 cm (L*W*H); Net weight: 265g±5%/pc; 15.4KG±5%/ctn; 56pcs/ctn
IP Rating: IP20
Warranty Condition: 5 years (Max. case temperature must not exceed 75℃)

Technical drawings

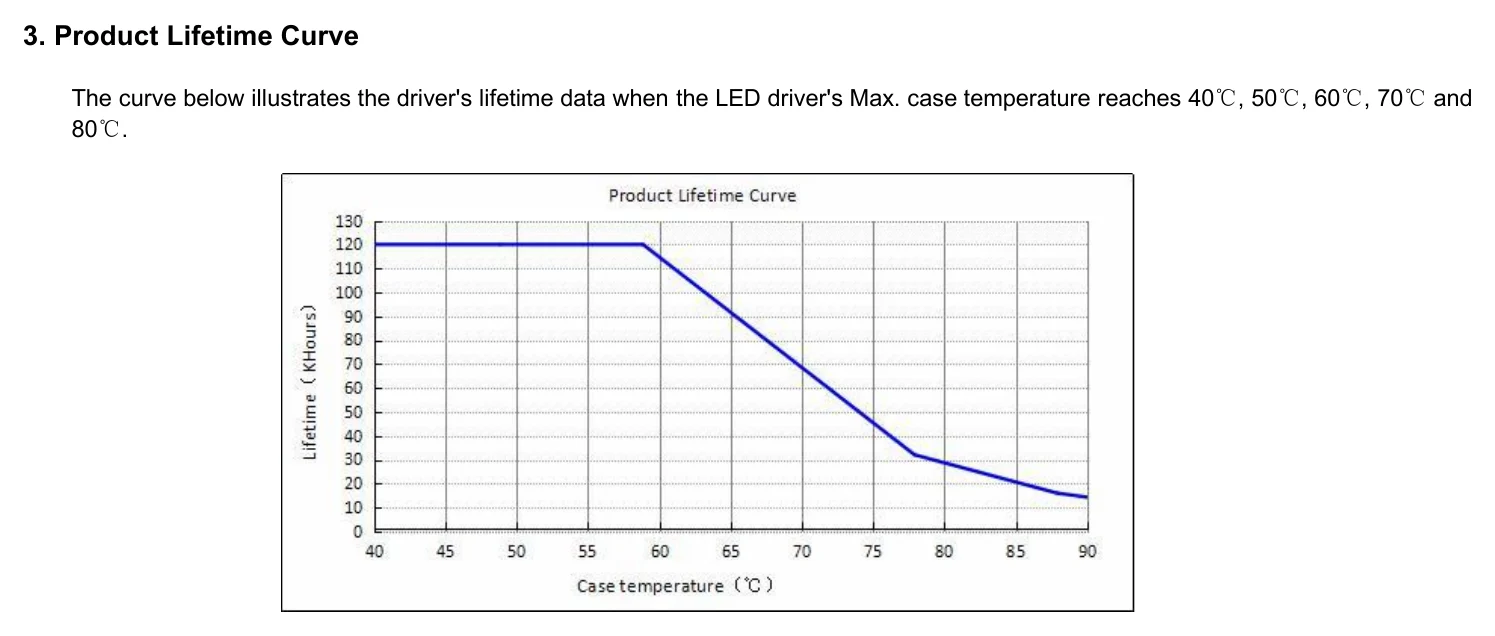

LF-GMR075YV012A 3. Product Lifetime Curve — 3. Product Lifetime Curve

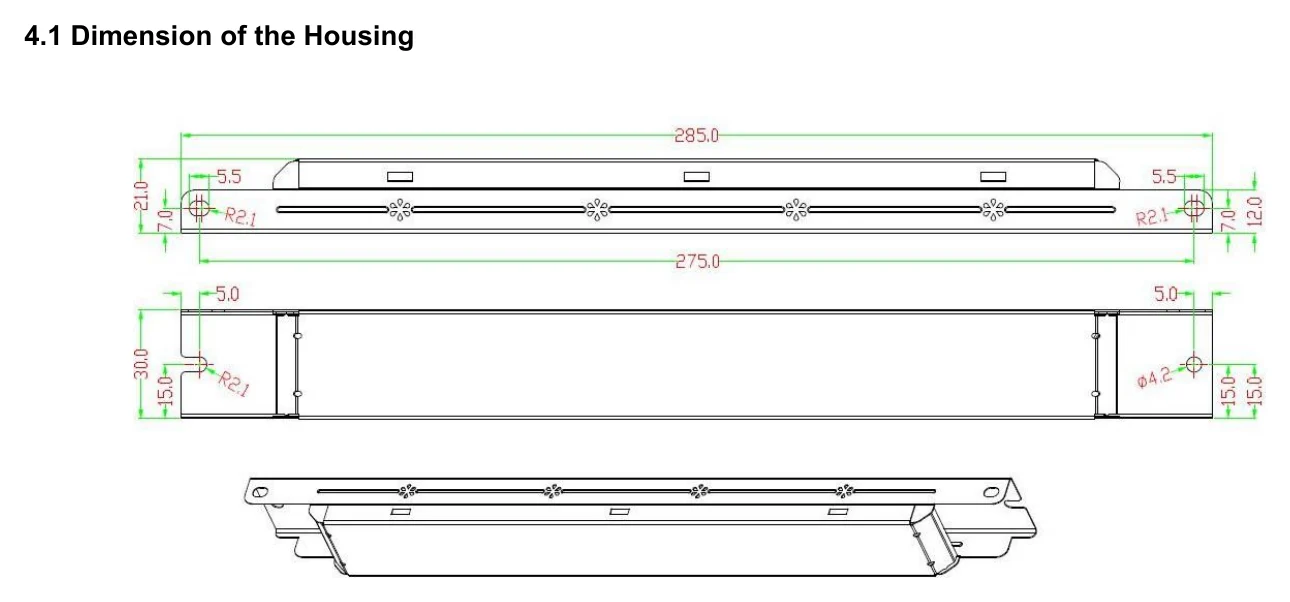

LF-GMR075YV012A 4.1 Dimension of the Housing — 4.1 Dimension of the Housing

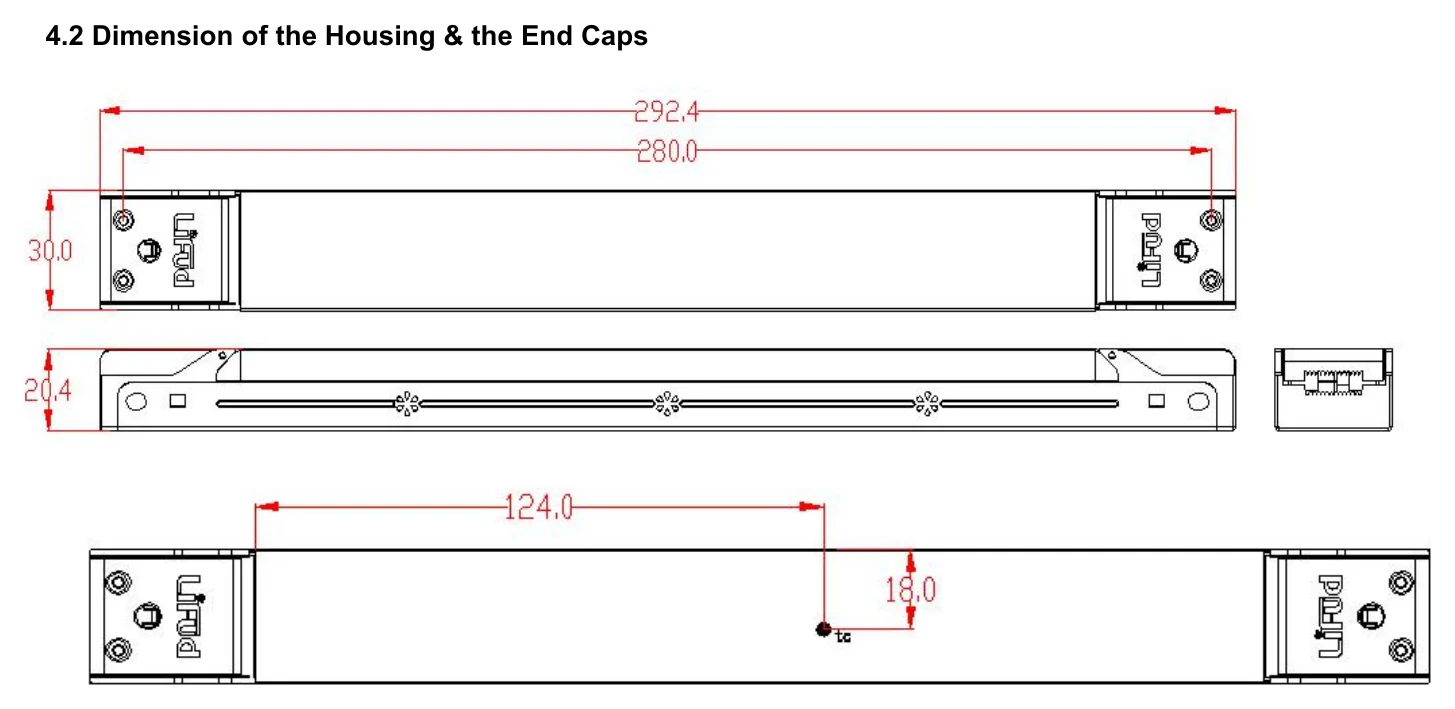

LF-GMR075YV012A 4.2 Dimension of the Housing & the End Caps — 4.2 Dimension of the Housing & the End Caps

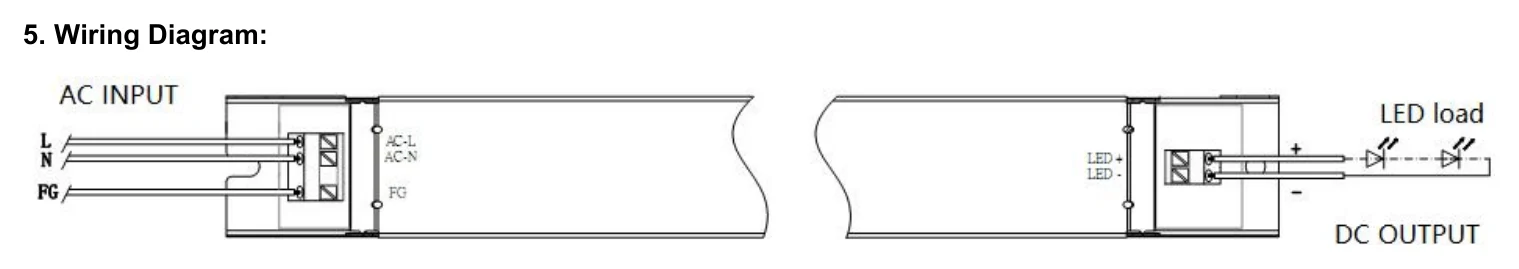

LF-GMR075YV012A 5. Wiring Diagram — 5. Wiring Diagram

Typical applications

indoor office lighting, commercial lighting & decorative lighting

Downloads

Datasheet1

LF-GMR075YV012A datasheetgmr_075YV_spec.pdf PDF Download

Catalogues1

Lifud Catalog PDF Download

FAQ

What is the Lifud LF-GMR075YV012A designed for?

The Lifud LF-GMR075YV012A is an isolated LED driver intended for Class I LED light fixtures. It is positioned for indoor office lighting, commercial lighting, and decorative lighting where flicker-free 12V constant voltage output is required.

What are the main electrical ratings of this LED driver?

This model is rated at 75W with a 12V output and a rated current of 6.25A. It is listed for AC220-240V input applications and is a non-dimmable driver.

Is the LF-GMR075YV012A flicker free?

The LF-GMR075YV012A is designed for stable light output in indoor commercial and decorative lighting applications. It features a ripple voltage of < 1V and meets EN55015 standards, supporting visual comfort in office and commercial environments.

Can this model be used for dimming applications?

No, the listed dimming control for the LF-GMR075YV012A is none. It is intended for applications that require fixed-output 12V constant voltage performance rather than integrated dimming control.

What operating temperature range is supported?

The specified ambient temperature range is -30°C to 50°C. This gives it a broad operating window for indoor commercial and decorative lighting applications, provided the installation environment stays within that range.

What certifications does the Lifud LF-GMR075YV012A have?

The product listing includes TUV-CE, CB, RCM, SAA, and CCC certifications. These certifications can be useful for buyers who need documented compliance for commercial or project-based purchasing.

What warranty is offered with this LED driver?

The LF-GMR075YV012A carries a 5-year warranty, with coverage subject to the manufacturer's warranty conditions. For B2B buyers, that can be a relevant factor when evaluating long-term maintenance and replacement planning.
