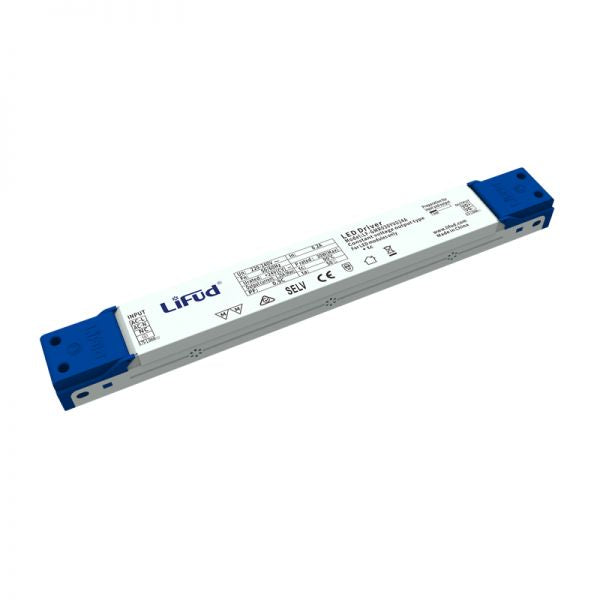

Lifud LF-GMR075YV024A LED Driver 75W 24V - Flicker Free 3.125A

SKU LF-GMR075YV024A

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LF-GMR075YV024A is the 24VDC output model of this series.

Isolated LED Driver for Class I LED Light Fixture

Features

Category: AC220-240V, flicker free
Property: high PF, high efficiency, low THD, flicker coefficient ≤1%
Warranty: 5 years (Please refer to the warranty condition.)
Certificate: TUV-CE, CB, RCM, SAA, CCC

Specifications

LF-GMR075YV024ASpecifications from the official datasheetDownload datasheet PDF

Output

Output Voltage: 24VDC
Output Current: 3125mA max.
Ripple Voltage: < 1V
Voltage Tolerance: 24±0.5V
Time to Light: <0.5S @230Vac
Temperature Drift: ±10%
Line Regulation: ±5%

Input

Line Regulation: ±5%
Rated Input Voltage: AC: 220-240Vac (Limit voltage: 200-264Vac)
Frequency: 47Hz-63Hz
Input Current: 0.60A Max
Power Factor: ≥0.96/200Vac ≥0.97/230Vac ≥0.96/264Vac
THD: ≤20%
Efficiency: ≥88.5%/200Vac ≥88.5%/230Vac ≥88.0%/264Vac
In-Rush Current: <80A/500uS@230Vac
Stand-by Power: ≤1W@230Vac

Protective Feature

Over-Voltage: ≤35V (Cut off output voltage. Auto-recovery.)
Over-Load: 108%-150% (auto-recovery)
Short-Circuit: Hiccup mode (auto-recovery)

Environment Condition

Working Temperature: -30℃ ~ +50℃
Working Humidity: 20-90%RH (no condensation)
Storage Temperature/Humidity: -40℃ ~ +80℃ (6 months under the class I environment); 10-90%RH (no condensation)
Atmospheric Pressure: 86-106KPa

Safety & Norm

Certificate: TUV-CE, CB, RCM, SAA, CCC
Hi-Pot Test: I/P-O/P: 3.75KVac, <5mA 60S; I/P-FG: 1.6KVac, <5mA 60S; 0/P-FG: 0.5KVac, <5mA 60S
Insulation Resistance: I/P-O/P, I/P-FG, 0/P-FG: 500VDC, >100MΩ
Surge Rating: Meet standards of IEC61000-4-5 (L-N:1KV; L/N-PG:2KV)
EMI: Meet standards of EN55015, EN61000-3-2
EMS: Meet standards of EN61000-4-2,3,4,5,6,8,11; EN61547

Others

Packing (Weight): Carton size: 33 x 32 x 21 cm (L*W*H); Net weight: 265g±5%/pc; 15.4KG±5%/ctn; 56pcs/ctn
IP Rating: IP20
Warranty Condition: 5 years (Max. case temperature must not exceed 75℃)

Technical drawings

LF-GMR075YV024A 3. Product Lifetime Curve — 3. Product Lifetime Curve

LF-GMR075YV024A 4.1 Dimension of the Housing — 4.1 Dimension of the Housing

LF-GMR075YV024A 4.2 Dimension of the Housing & the End Caps — 4.2 Dimension of the Housing & the End Caps

LF-GMR075YV024A 5. Wiring Diagram — 5. Wiring Diagram

Typical applications

indoor office lighting, commercial lighting & decorative lighting

Downloads

Datasheet1

LF-GMR075YV024A datasheetgmr_075YV_spec.pdf PDF Download

Catalogues1

Lifud Catalog PDF Download

FAQ

What is the Lifud LF-GMR075YV024A designed for?

The Lifud LF-GMR075YV024A is an isolated LED driver intended for indoor office, commercial, and decorative lighting applications. It is built for Class I LED luminaire use on AC220-240V input.

What output does this LED driver provide?

This model is rated at 75W with a 24V output. Its rated current is 3.125A, which makes it suitable for 24V constant-voltage LED lighting systems that match those electrical requirements.

Is the LF-GMR075YV024A a dimmable LED driver?

No, this model does not include a dimming control. If your project requires dimming, this specific driver is not the right choice.

Is this driver flicker free?

The LF-GMR075YV024A is designed for stable light output suitable for indoor office, commercial, and decorative lighting applications. It features low THD (≤20%) and high power factor (≥0.96), supporting consistent performance in sensitive lighting environments.

What operating temperature range does this model support?

This LED driver has a stated operating temperature range of -30°C to 50°C. That makes it suitable for indoor environments operating within that temperature window.

What warranty comes with the Lifud LF-GMR075YV024A?

This model includes a 5-year warranty. Warranty coverage is subject to the manufacturer's warranty conditions.
