Is the APV-12E-24 compatible with North American 120V power systems?

No. The APV-12E-24 accepts 180–264VAC input and is not designed for 100–120V mains. For North American installations requiring 24V output, the APV-12-24 with its 90–264VAC universal input range and UL certification is the appropriate model.

How does the APV-12E-24 differ from the APV-12-24?

Both models produce 24V at 0.5A (12W) in the same 77.0 × 40.0 × 29.0 mm enclosure. The APV-12-24 accepts 90–264VAC and is certified CB, CCC, CE, EAC, ENEC, and UL. The APV-12E-24 accepts 180–264VAC only and carries CB, CE, EAC, and ENEC certifications, targeting European and similarly regulated markets.

What 24V LED lighting loads can the APV-12E-24 drive?

The APV-12E-24 outputs 24V at 0.5A for a maximum of 12W from 180–264VAC European mains. It is appropriate for short 24V LED strip runs, 24V LED downlight modules, or low-power signage panels where the total load is at or below 12W.

How many meters of 24V LED strip can the APV-12E-24 drive?

The APV-12E-24 provides 12W at 24V. Dividing 12W by your strip's rated power per meter gives the maximum length — at 6 W/m, for example, that is 2 m. Check your strip's rated power per meter and limit the run to 80% of the driver's 12W capacity for reliable long-term operation.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

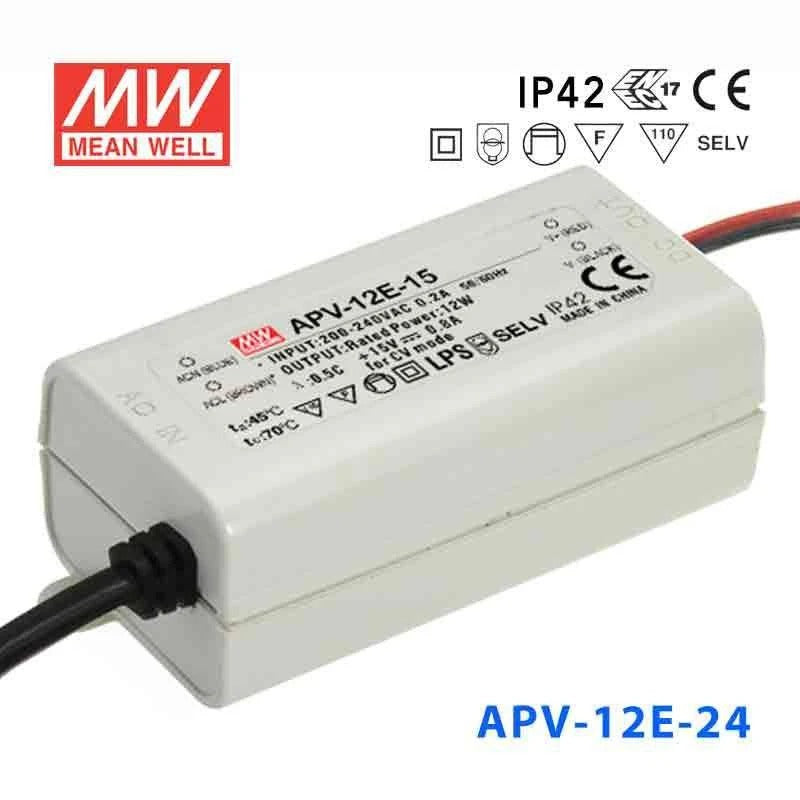

Mean Well APV-12E-24 Power Supply 12W 24V 500mA

4.6 (11 reviews)

Class II designlow costsmall and compactIP42

SKU APV-12E-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by APV-12-24

Notify me when it's back in stock

The APV-12E is a 12W Mean Well. power converter. and an input range of 180~264VAC.

Key Features

✓ Input voltage range: 180~264VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: ENEC EN61347-1, EN61347-2-13, EN62384 IP42
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well APV-12E-5 Power Supply 10W 5V 2A	10W	5V	2A	Indoor	View
Mean Well APV-12E-12 Power Supply 12W 12V 1A	12W	12V	1A	Indoor	View
Mean Well APV-12E-15 Power Supply 12W 15V 800mA	12W	15V	0.8A	Indoor	View
