Can I use the MPM-45-24 to power a 24V PLC, I/O module, or automation controller?

Yes, if the equipment requires constant voltage 24V DC and the total load does not exceed 45.1W or 1.88A. The 80-264VAC input range also suits a wide range of industrial AC inputs.

Is this power supply suitable for 24V embedded systems or industrial communications hardware?

It can be a fit for 24V embedded electronics, communications devices, or control modules that need a regulated 24V output and stay within 1.88A. The compact 87.0 x 52.0 x 29.5 mm size can help in smaller housings or control assemblies.

Can the MPM-45-24 be used for 24V sensor networks or monitoring equipment?

It is intended for constant-voltage 24V loads, so it can support sensor or monitoring equipment when the total draw remains at or below 45.1W and 1.88A. The encapsulated design and extremely low leakage current may also be useful in sensitive industrial or medical-adjacent equipment.

Is the MPM-45-24 rated for outdoor environments or only wide operating temperatures?

The provided temperature rating is -30°C to +80°C, so the unit is specified for broad temperature conditions. No IP rating is listed, so the specs do not establish outdoor, wet, or washdown suitability.

How does the MPM-45-24 compare with other MPM models around the same output class?

The 45W-range siblings are MPM-45-12 and MPM-45-12ST at 45W, 12V, 3.75A; MPM-45-15 and MPM-45-15ST at 45W, 15V, 3A; MPM-45-24 and MPM-45-24ST at 45.1W, 24V, 1.88A; MPM-45-48 and MPM-45-48ST at 45.1W, 48V, 0.94A; and MPM-45-5 and MPM-45-5ST at 40W, 5V, 8A. This model is the 24V, 1.88A option in that group.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

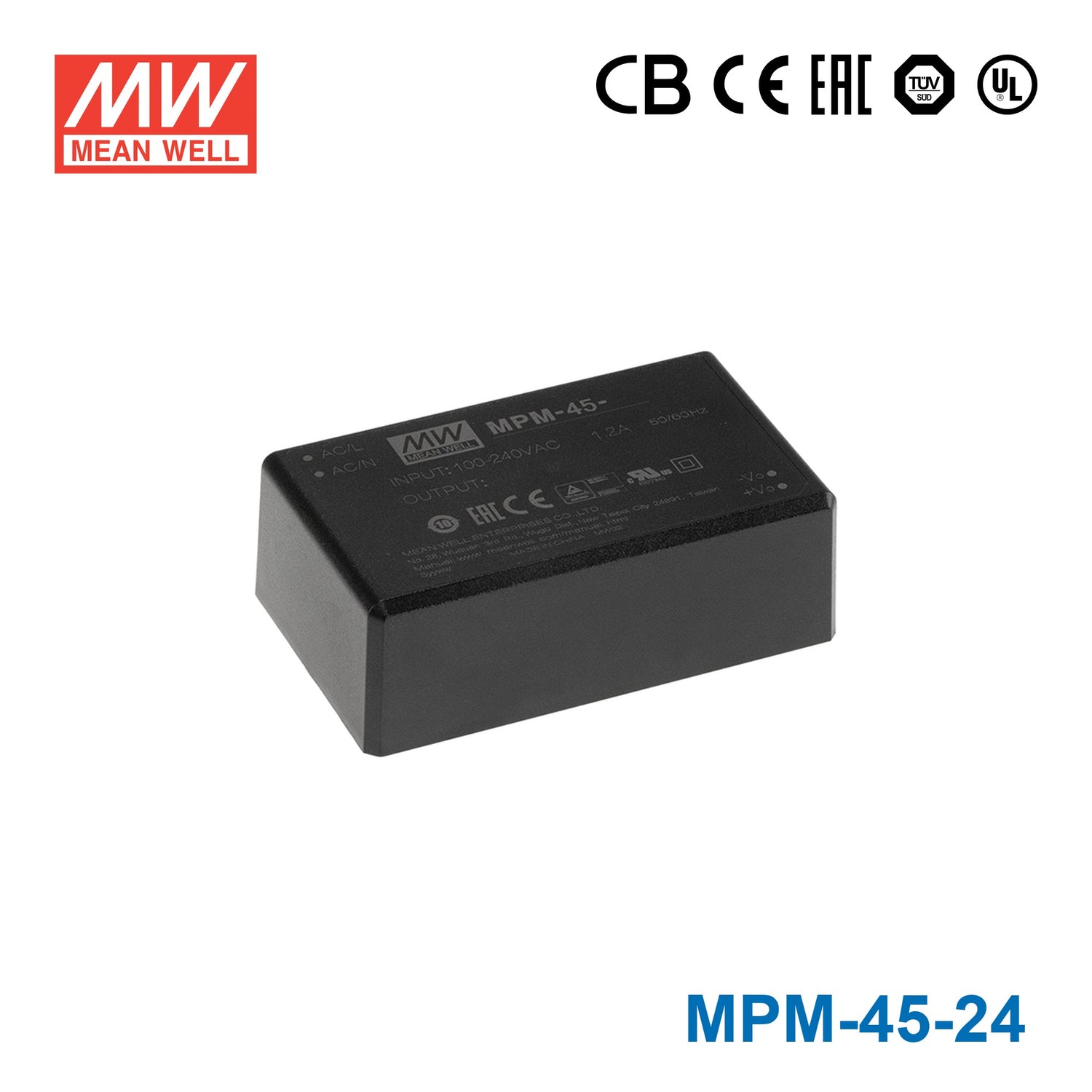

Mean Well MPM-45-24 Power Supply 45W 24V 1.88A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU MPM-45-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MPM-45 is a 45.1W Mean Well open-frame power supply (input: 80~264VAC, operating temperature: -30~+80°C).

Key Features

✓ Input voltage: 80~264VAC
✓ Output voltage (max): 24V
✓ Rated output current: 1.88A
✓ Operating temperature: -30~+80°C
✓ Safety certifications: CB, CE, EAC, TÜV, UL
✓ 3 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPM-45-5ST Power Supply 45W 5V 8A	40W	5V	8A	View
Mean Well MPM-45-5 Power Supply 45W 5V 8A	40W	5V	8A	View
Mean Well MPM-45-48ST Power Supply 45W 48V 940mA	45.1W	48V	0.94A	View
Mean Well MPM-45-48 Power Supply 45W 48V 940mA	45.1W	48V	0.94A	View
Mean Well MPM-45-24ST Power Supply 45W 24V 1.88A	45.1W	24V	1.88A	View
Mean Well MPM-45-15ST Power Supply 45W 15V 3A	45W	15V	3A	View
Mean Well MPM-45-15 Power Supply 45W 15V 3A	45W	15V	3A	View
Mean Well MPM-45-12ST Power Supply 45W 12V 3.75A	45W	12V	3.75A	View
Mean Well MPM-45-12 Power Supply 45W 12V 3.75A	45W	12V	3.75A	View
