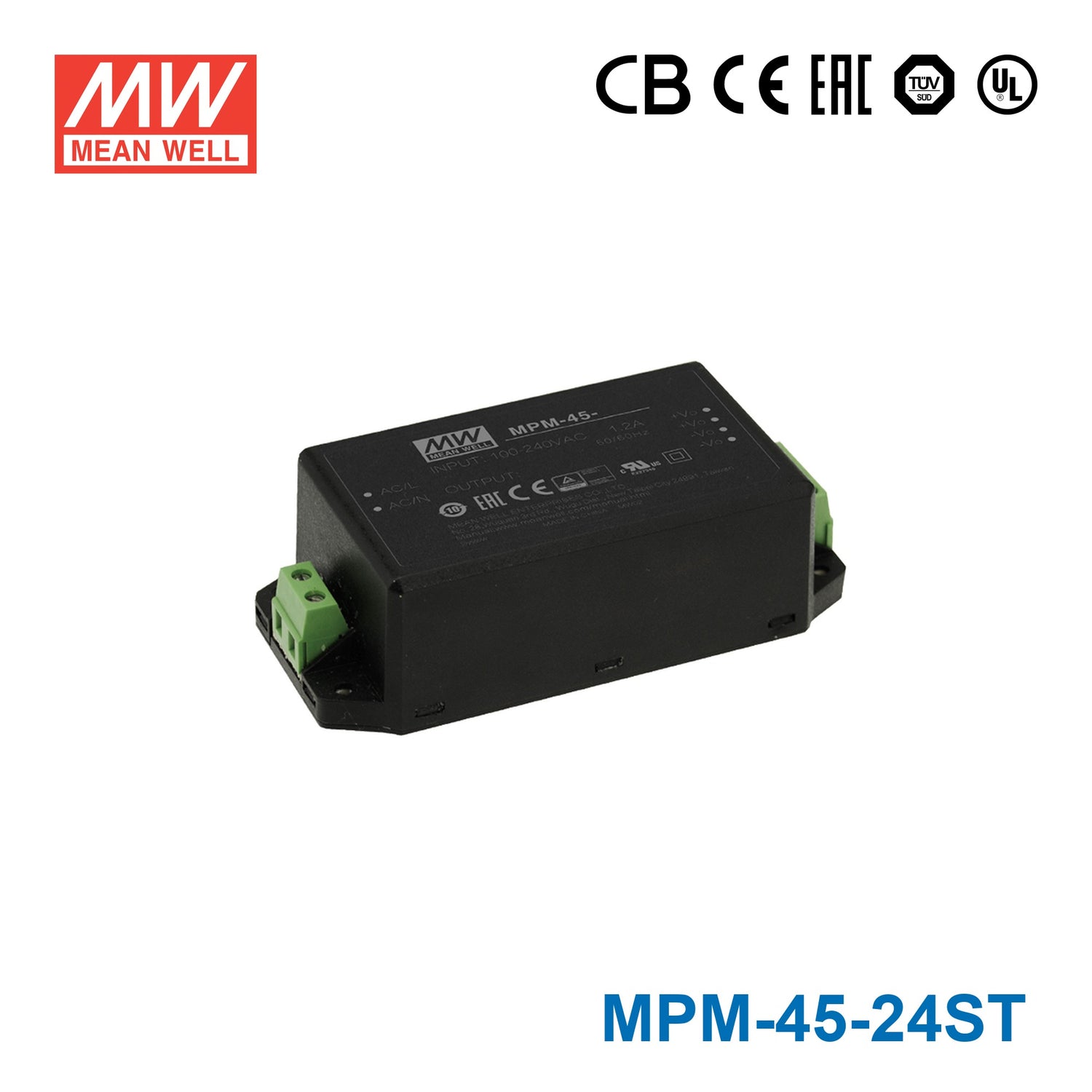

Mean Well MPM-45-24ST Power Supply 45W 24V
Please Login for Pricing
Description
Description
EMI Class B without additional components
Isolation Class II
No minimum load required
50W peak(10 sec)
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required50W peak(10 sec)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating45.1 Watt
-
Output Voltage24 Volt
-
Rated Current1.88 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-45-24ST for a 24V PLC or automation control panel?
Yes, this model is a constant voltage 24V supply rated for 45.1W and 1.88A. That makes it a fit for 24V industrial control loads, PLC-related circuits, or panel devices that stay within 1.88A total demand.
Is the MPM-45-24ST suitable for 24V embedded or industrial electronics?
It can be used where the electronics require a regulated 24V DC output and the total load does not exceed 45.1W or 1.88A. Its compact encapsulated design and 109.0 x 52.0 x 33.5 mm size also make it easier to place in space-constrained equipment.
Can this 24V power supply be used in medical-related equipment power sections?
The unit is described as medical safety approved, so it may be considered for equipment power sections that need a 24V constant voltage source. The electrical limit is still 45.1W at 1.88A, so the connected 24V load must remain within that output range.
Is the MPM-45-24ST appropriate for harsh temperature environments?
The specified operating temperature range is -30°C to +80°C, which is broad for industrial environments. However, no IP rating is listed in the provided specs, so those specs do not establish dust or water protection for outdoor or washdown exposure.
How does the MPM-45-24ST compare with other MPM 45-series outputs?
Within the MPM 45-series, the sibling outputs are 12V at 45W and 3.75A, 15V at 45W and 3A, 24V at 45.1W and 1.88A, 48V at 45.1W and 0.94A, and 5V at 40W and 8A. ST versions also exist for 12V, 15V, 48V, and 5V, while this unit is the ST version of the 24V 45.1W model.
