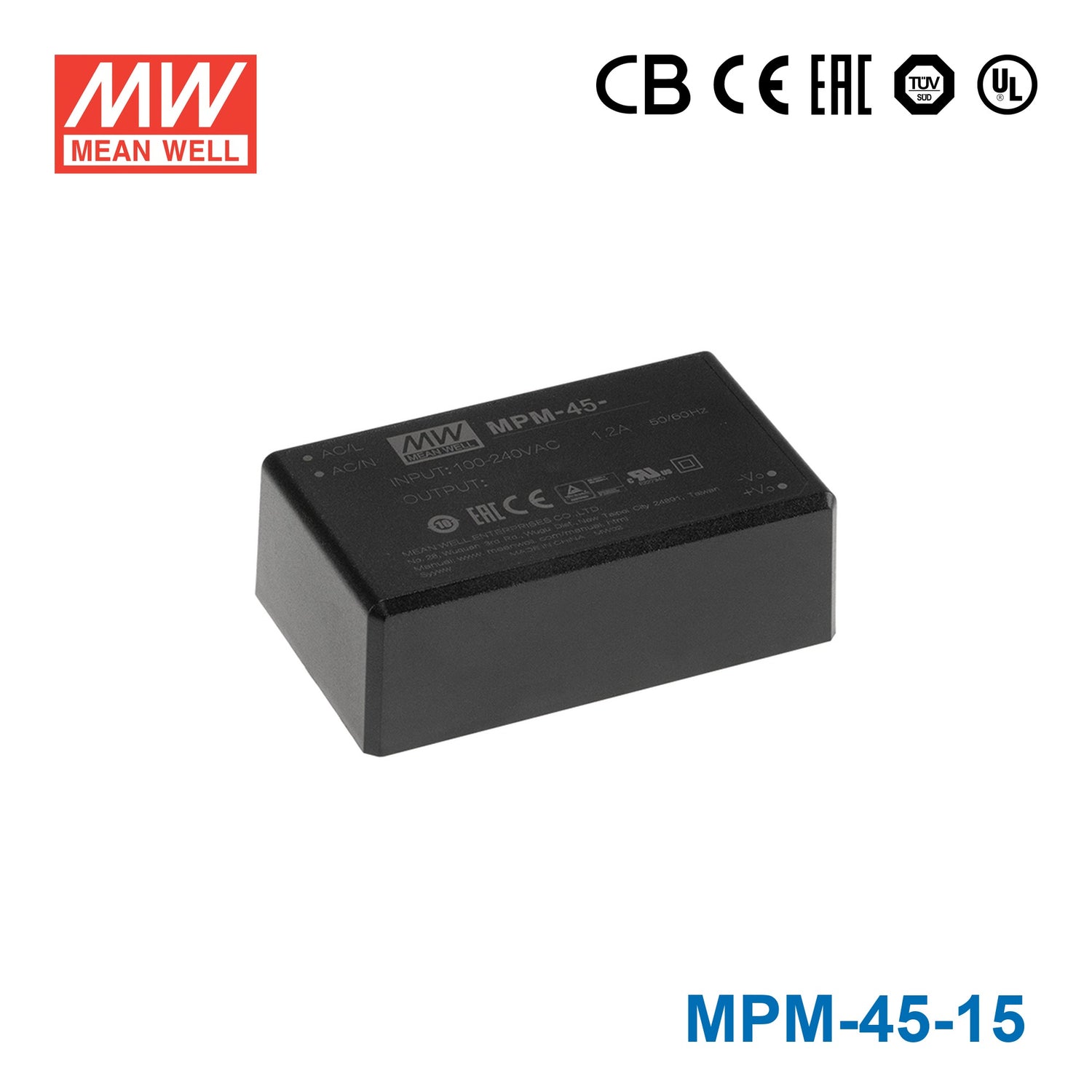

Mean Well MPM-45-15 Power Supply 45W 15V
Please Login for Pricing
Description
Description
EMI Class B without additional components
Isolation Class II
No minimum load required
50W peak(10 sec)
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required50W peak(10 sec)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-45-15 for a 15V industrial controller or test instrument?
Yes, if the equipment is designed for constant voltage 15V input and draws no more than 45W or 3A. The 80-264VAC input range also supports operation from a wide range of AC sources.
Is this a suitable supply for 15V embedded systems or measurement modules?
It can be used with embedded or measurement hardware that specifically requires 15V DC and remains within 3A output current and 45W total power. The compact 87.0 x 52.0 x 29.5 mm package can help where enclosure space is limited.
Can the MPM-45-15 power a 15V sensor interface, industrial communications node, or control accessory?
It is intended for constant-voltage 15V loads, so it can fit sensor interfaces, communications nodes, or control accessories that stay within 45W and 3A. The encapsulated construction and extremely low leakage current may matter in sensitive equipment designs.
Is the MPM-45-15 appropriate for outdoor equipment or only indoor temperature extremes?
The specified operating temperature range is -30°C to +80°C, so it is rated for broad indoor temperature conditions. No IP rating is listed in the provided specs, so outdoor exposure suitability is not established.
How does the MPM-45-15 compare to the other 45W models in the MPM series?
The listed 45W-output family includes MPM-45-12 and MPM-45-12ST at 45W, 12V, 3.75A; MPM-45-15 and MPM-45-15ST at 45W, 15V, 3A; MPM-45-24 and MPM-45-24ST at 45.1W, 24V, 1.88A; MPM-45-48 and MPM-45-48ST at 45.1W, 48V, 0.94A; plus MPM-45-5 and MPM-45-5ST at 40W, 5V, 8A. This unit is the 15V, 3A version in that set.
