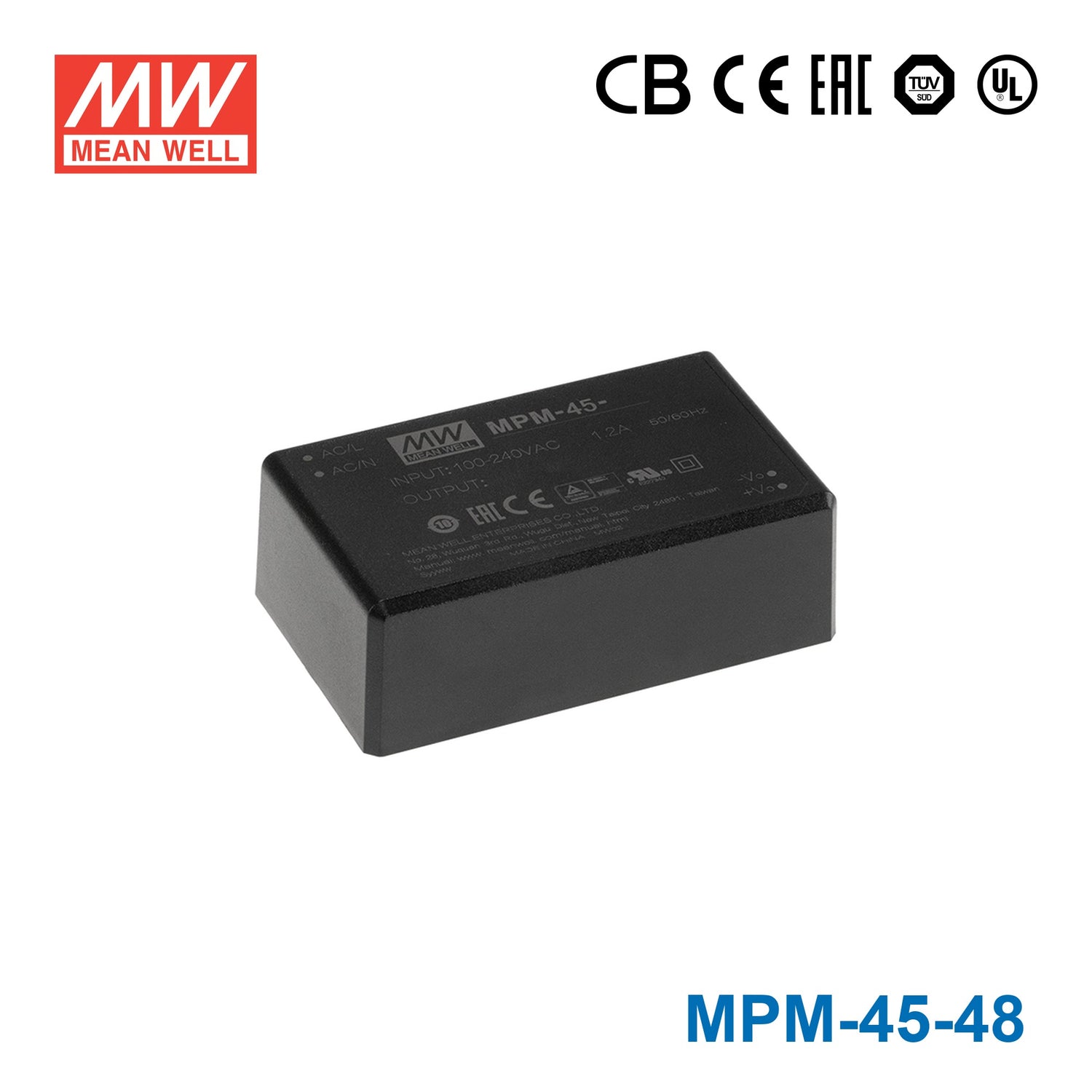

Mean Well MPM-45-48 Power Supply 45W 48V
Please Login for Pricing
Description
Description
EMI Class B without additional components
Isolation Class II
No minimum load required
50W peak(10 sec)
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required50W peak(10 sec)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating45.1 Watt
-
Output Voltage48 Volt
-
Rated Current0.94 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-45-48 for 48V telecom or network equipment?
It can be used for equipment that requires a constant 48V DC source and draws no more than 0.94A or 45.1W. That output profile fits many 48V IT, telecom, and communications power sections when the load stays within the rated current.
Is the MPM-45-48 a good fit for 48V industrial control or monitoring devices?
Yes, if the device expects 48V constant voltage input and its demand remains within 45.1W and 0.94A. The wide 80-264VAC input also supports use across a broad AC input range.
Can this model power 48V embedded systems or interface modules?
It is suitable for embedded or interface hardware that needs a regulated 48V output and does not exceed 0.94A. The compact 87.0 x 52.0 x 29.5 mm size can also help where internal space is limited.
Can the MPM-45-48 be used outdoors or in exposed environments?
The operating temperature range is -30°C to +80°C, so the temperature specification is broad. But the provided specs do not list an IP rating, so they do not claim weather, dust, or water ingress protection for exposed outdoor use.
What are the main differences between the MPM-45-48 and other MPM 45-series versions?
The 45-series outputs include 12V at 45W and 3.75A, 15V at 45W and 3A, 24V at 45.1W and 1.88A, 48V at 45.1W and 0.94A, and 5V at 40W and 8A. This non-ST 48V version measures 87.0 x 52.0 x 29.5 mm, while the ST 48V sibling keeps the same 45.1W, 48V, and 0.94A ratings in a 109.0 x 52.0 x 33.5 mm package.
