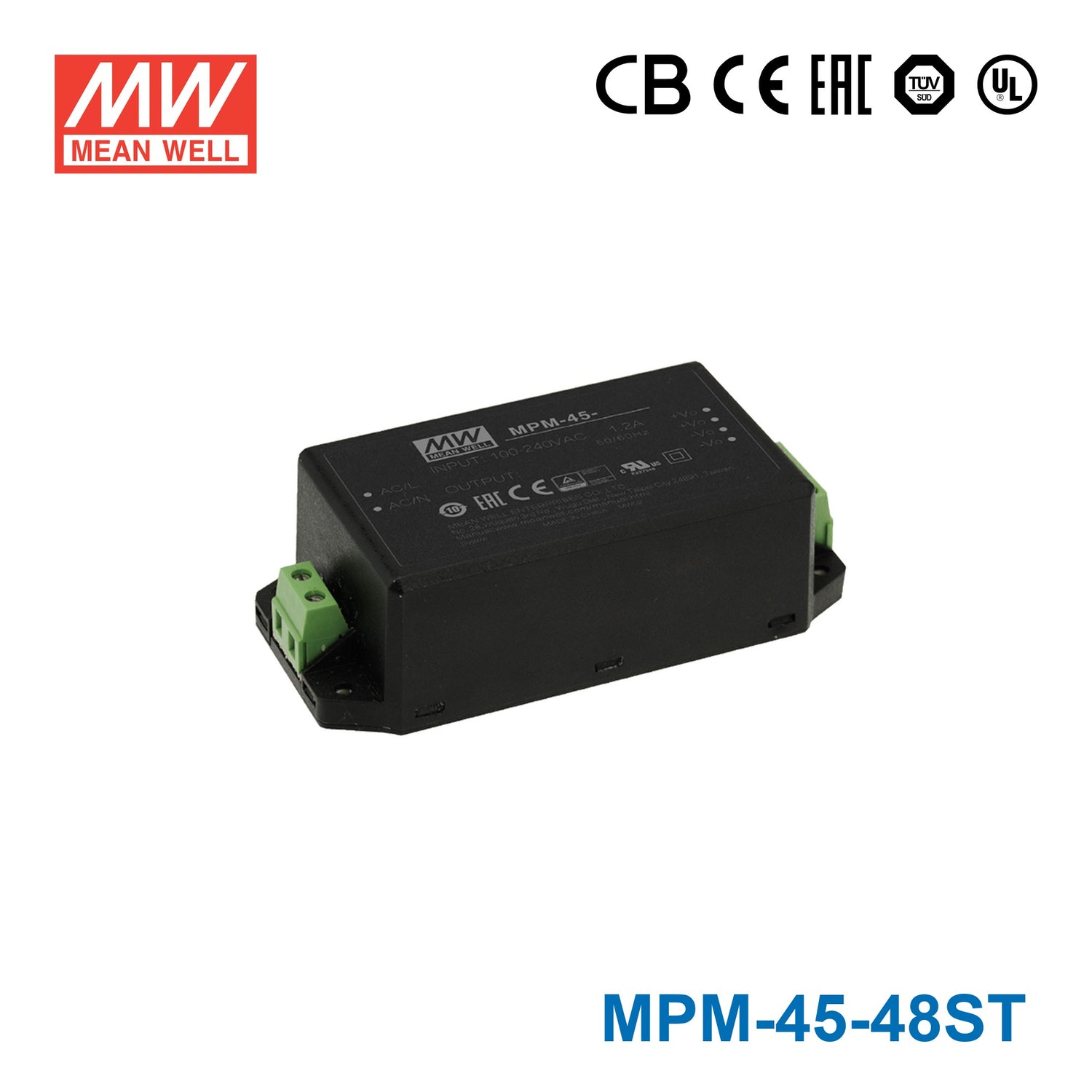

Mean Well MPM-45-48ST Power Supply 45W 48V
Please Login for Pricing
Description
Description
EMI Class B without additional components
Isolation Class II
No minimum load required
50W peak(10 sec)
Touch current<100 μA/264VAC
Key Features
- ✓3.43"x2.05" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B without additional componentsIsolation Class II
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required50W peak(10 sec)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating45.1 Watt
-
Output Voltage48 Volt
-
Rated Current0.94 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~80°C
-
Warranty3 Year
-
Length10.9 cm
-
Width5.2 cm
-
Height3.35 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPM-45-48ST for 48V automation or control equipment?
Yes, if the equipment requires a constant 48V DC output and its load stays within 45.1W and 0.94A. That makes it relevant for 48V industrial control, instrumentation, and automation subsystems that match those limits.
Is the MPM-45-48ST suitable for 48V communications or telecom hardware?
It can support 48V communications hardware that operates from a constant voltage source and draws no more than 0.94A. The unit also accepts 80-264VAC input, which is useful where AC input conditions vary.
Can this power supply be used in compact 48V embedded equipment?
It can be used in embedded equipment that needs 48V DC and remains within the 45.1W output rating. This ST version is larger than the non-ST model at 109.0 x 52.0 x 33.5 mm, so enclosure space should be checked against those dimensions.
Is the MPM-45-48ST suited for cold or hot operating conditions?
Its specified operating temperature range is -30°C to +80°C, which supports use across a wide temperature window. The provided specs do not include an IP rating, so the temperature range alone does not confirm suitability for wet or dusty outdoor exposure.
How does the MPM-45-48ST fit within the MPM 45-series lineup?
The MPM 45-series includes 12V at 45W and 3.75A, 15V at 45W and 3A, 24V at 45.1W and 1.88A, 48V at 45.1W and 0.94A, and 5V at 40W and 8A. This model is the ST version of the 48V option, and its non-ST sibling keeps the same electrical ratings in a smaller 87.0 x 52.0 x 29.5 mm body.
