Mean Well

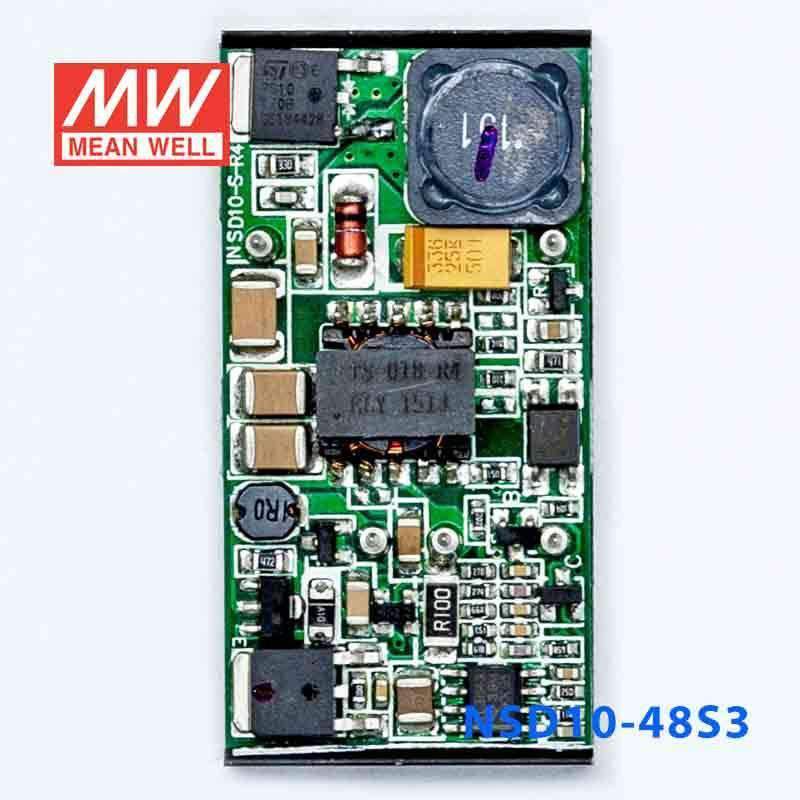

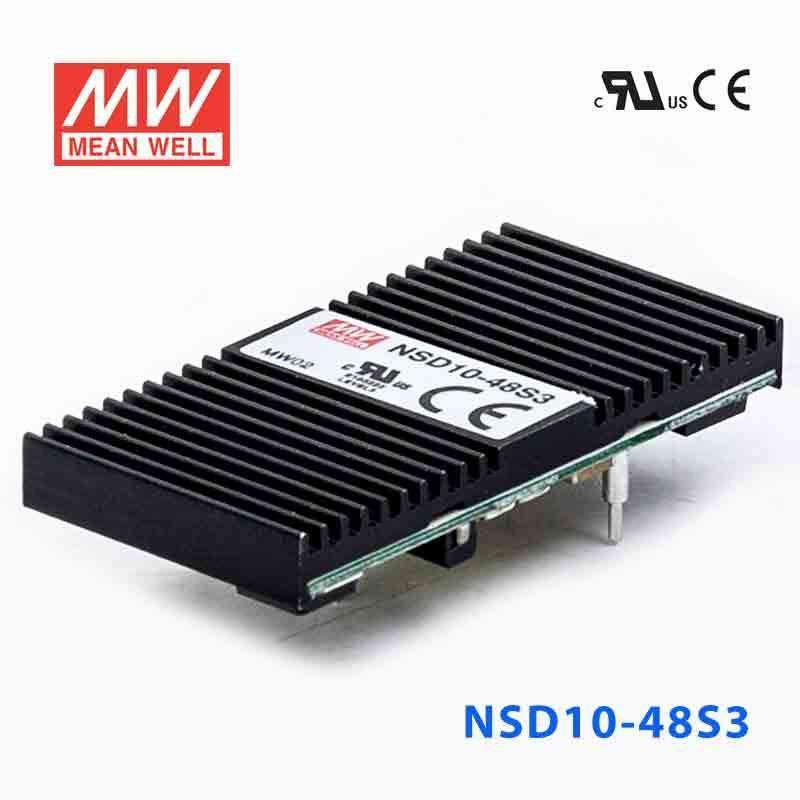

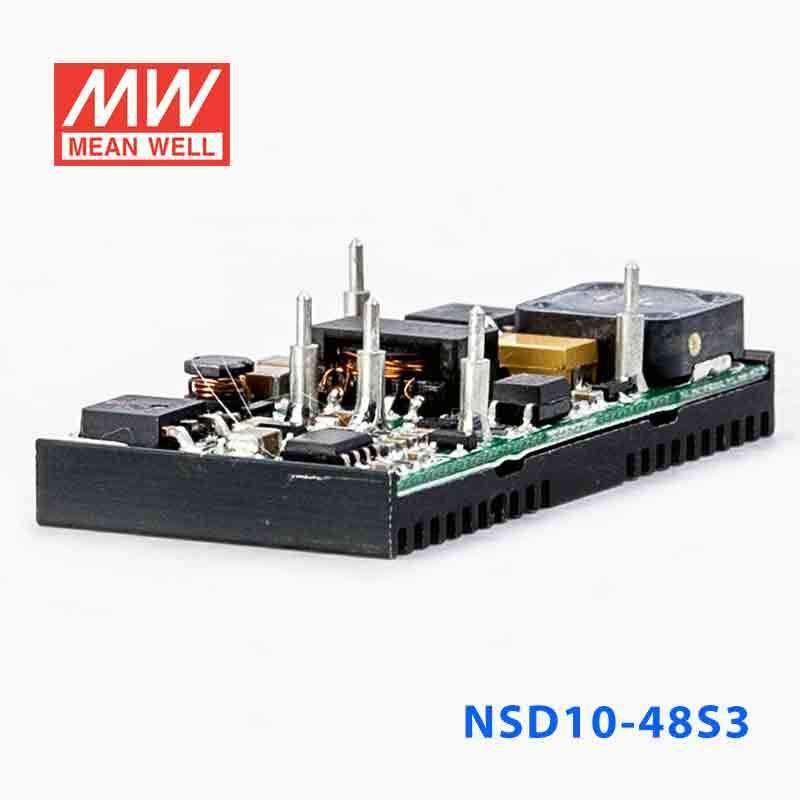

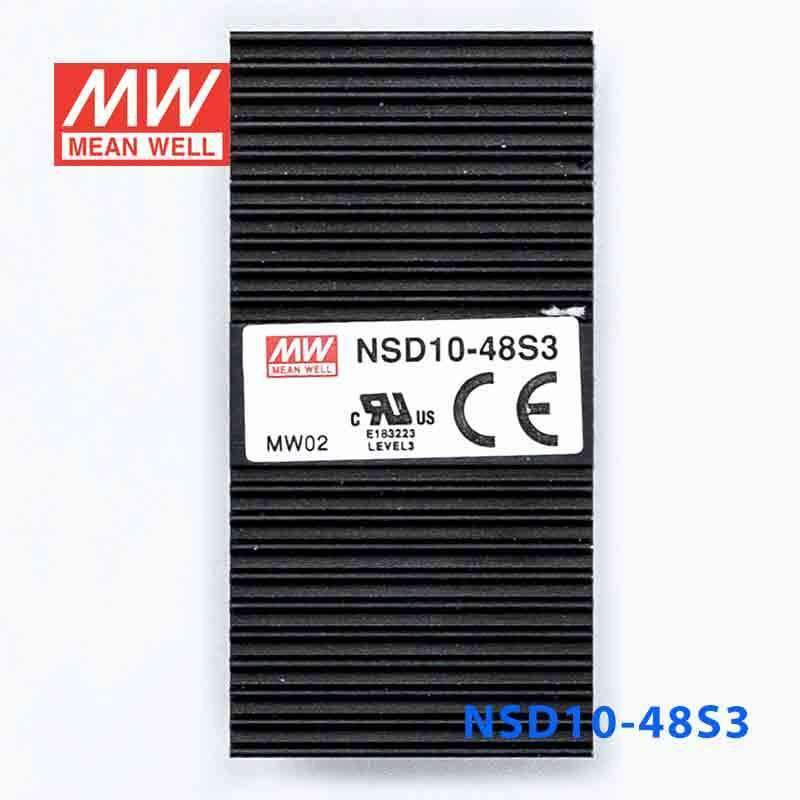

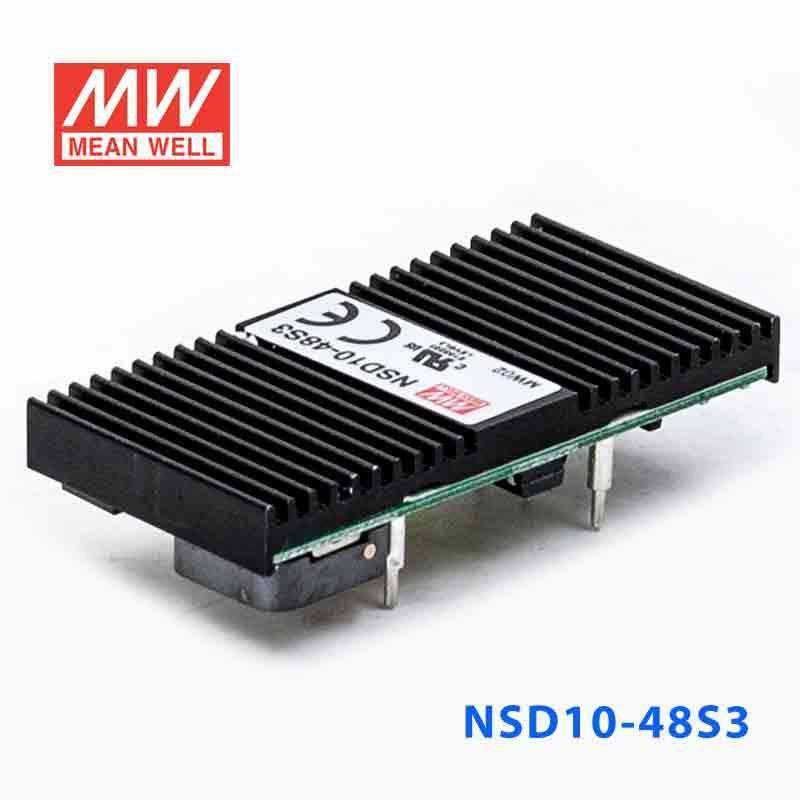

Mean Well NSD10-48S3 DC-DC Converter - 8.25W - 22~72V in 3.3V out 2.5A

SKU NSD10-48S3
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

NSD10-48S3 is the 3.3V output model of this series: rated current 2.5A, rated power 8.25W, typical efficiency 74%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1000VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

NSD10-48S3Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
3.3V
RATED CURRENT
2.5A
CURRENT RANGE
0.12 ~ 2.5A
RATED POWER
8.25W
CAPACITIVE LOAD (max.)
3300uF
RIPPLE & NOISE (max.)Note.2
75mVp-p
VOLTAGE TOLERANCENote.3
±2.0% max.
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
48VDC
VOLTAGE RANGE
22 ~ 72VDC
EFFICIENCY (Typ.)
74%
DC CURRENT
0.4A/48VDC
SHUTDOWN IDLE CURRENT
20mA/12VDC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
3.8 ~ 4.95V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" OPEN: ON logic "0" GND: OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 2138.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
PACKING
0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit not more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSD10-48S3 Mechanical Specification
Mechanical Specification
NSD10-48S3 Block Diagram
Block Diagram
NSD10-48S3 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD10-48S3 for a 3.3V embedded controller or processor board?

Yes, this model is well aligned with embedded controller, processor, or communications boards that need constant 3.3V output. Its 8.25W rating and 2.5A output spec make it a stronger fit for 3.3V logic-centric loads than the higher-voltage versions.

Is the NSD10-48S3 suitable for industrial IoT or edge computing electronics?

It can fit compact industrial IoT or edge electronics that are designed around a regulated 3.3V rail and a 22-72VDC input source. The small 50.8 × 25.4 × 10.0 mm form factor is useful where electronics density matters.

Can this converter power 3.3V communication or automation boards inside control equipment?

It is suitable for low-power 3.3V communication, monitoring, or automation boards when the total load stays within 8.25W. The wide input range and constant-voltage output are consistent with control-system subassemblies rather than larger end loads.

Does the NSD10-48S3 work in harsh temperature conditions?

The specified working temperature range is -25°C to +70°C, with storage rated from -40°C to +85°C and humidity up to 95% RH. No IP rating is listed, so temperature capability should not be read as outdoor sealing or moisture protection.

What other NSD10 output versions are available alongside the NSD10-48S3?

On the NSD10-S spec sheet, the 9.8~36VDC input versions are NSD10-12S3 at 8.25W, 3.3V, 2.5A; NSD10-12S5 at 10W, 5V, 2A; NSD10-12S9 at 9.9W, 9V, 1.1A; NSD10-12S12 at 9.96W, 12V, 0.83A; and NSD10-12S15 at 10.05W, 15V, 0.67A. The other 22~72VDC input versions are NSD10-48S5 at 10W, 5V, 2A; NSD10-48S9 at 9.9W, 9V, 1.1A; NSD10-48S12 at 9.96W, 12V, 0.83A; and NSD10-48S15 at 10.05W, 15V, 0.67A. All share the same 50.8 × 25.4 × 10 mm package and -25°C to +70°C working temperature.
