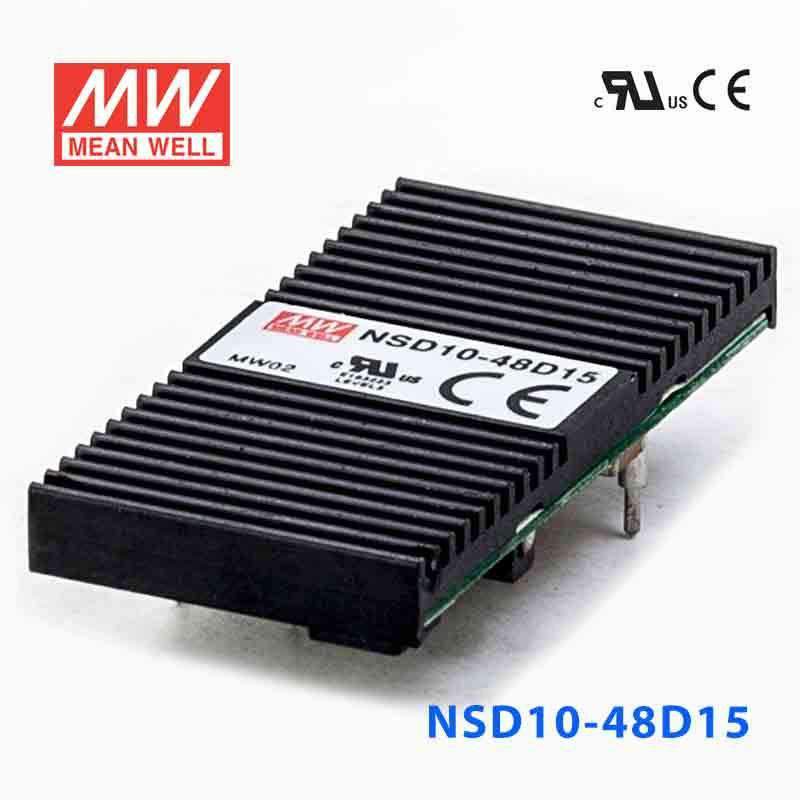

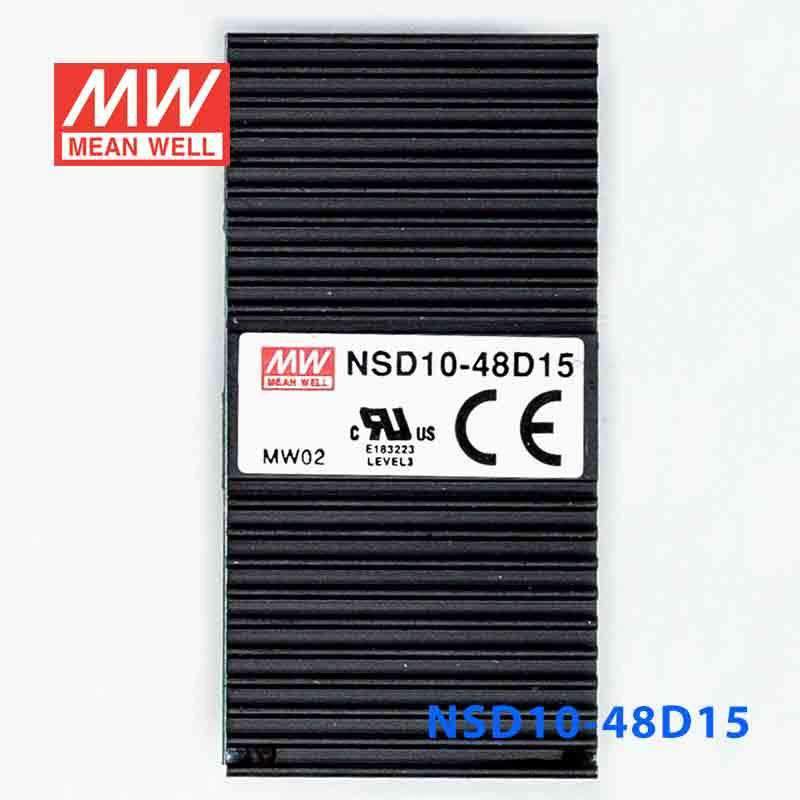

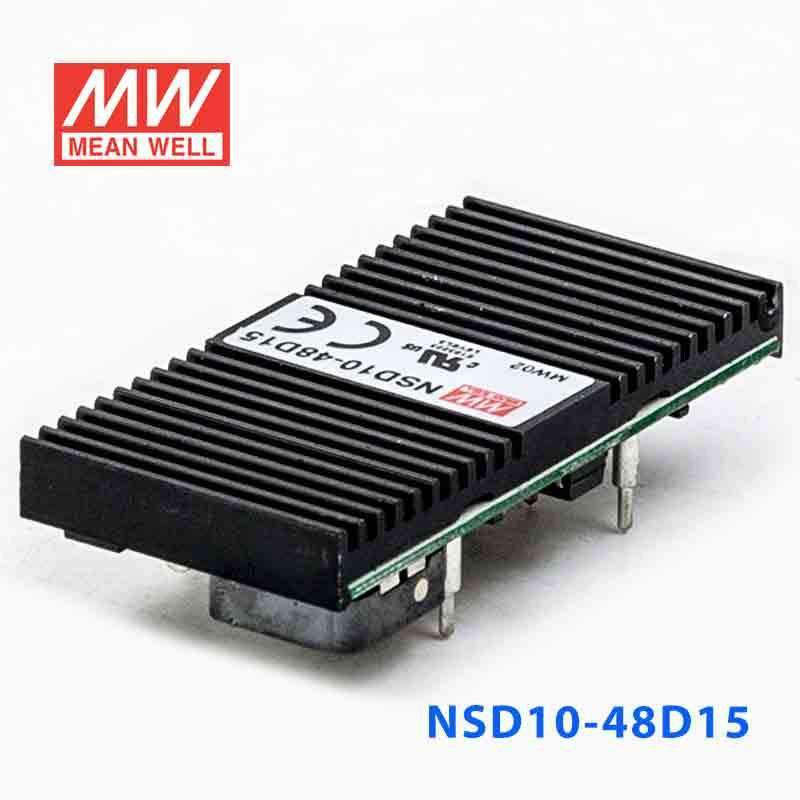

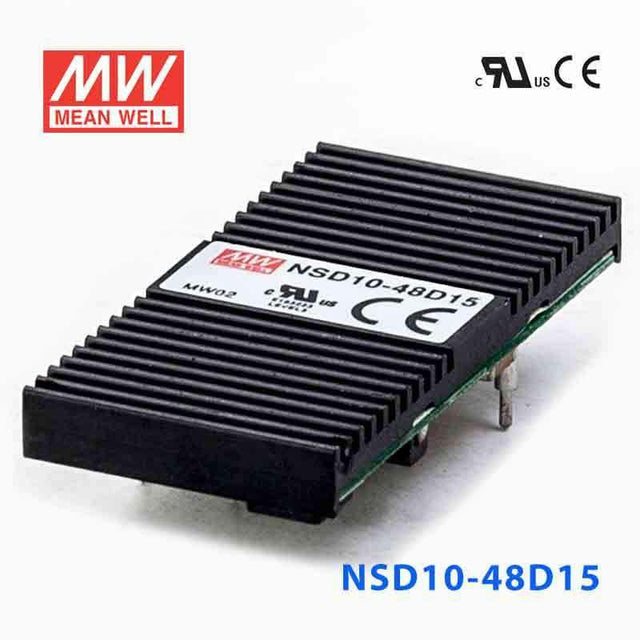

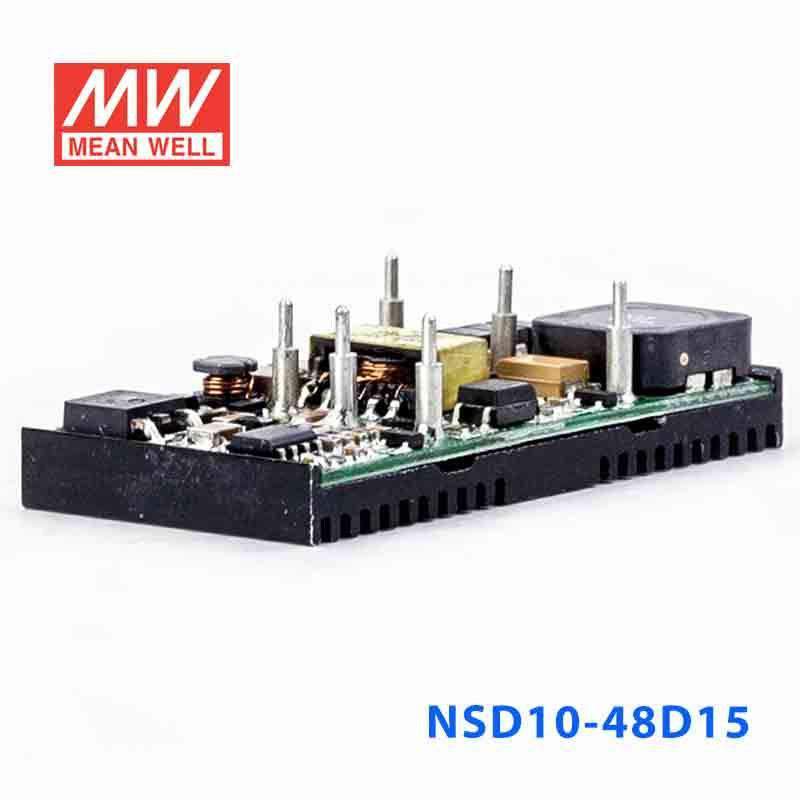

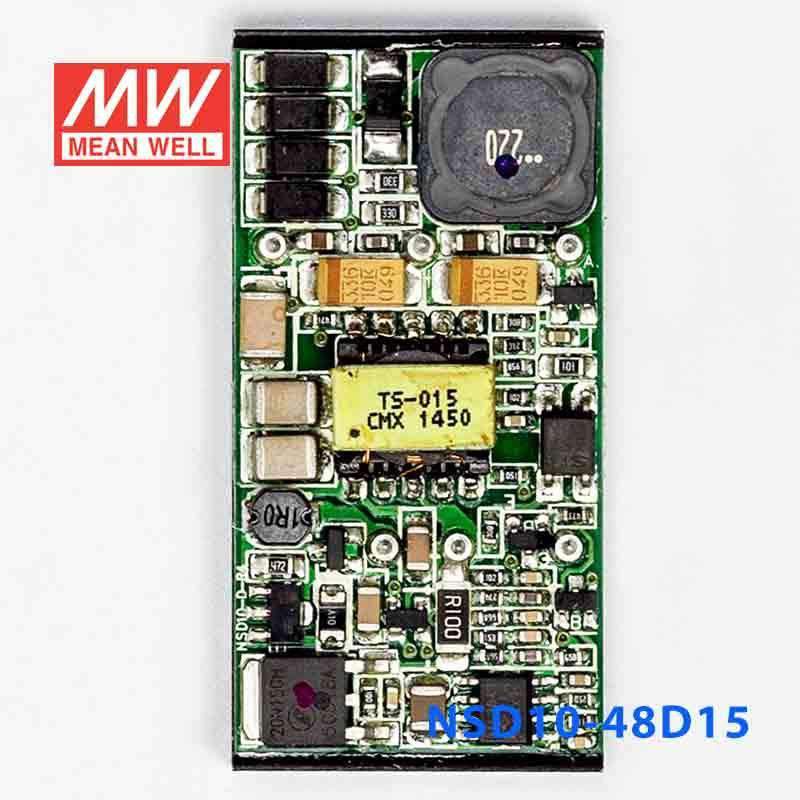

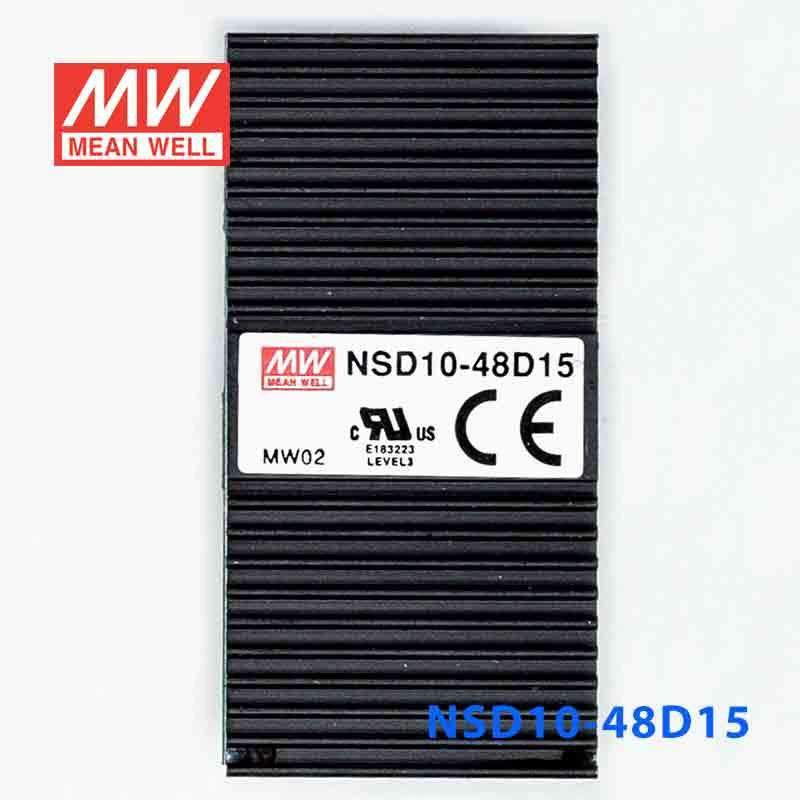

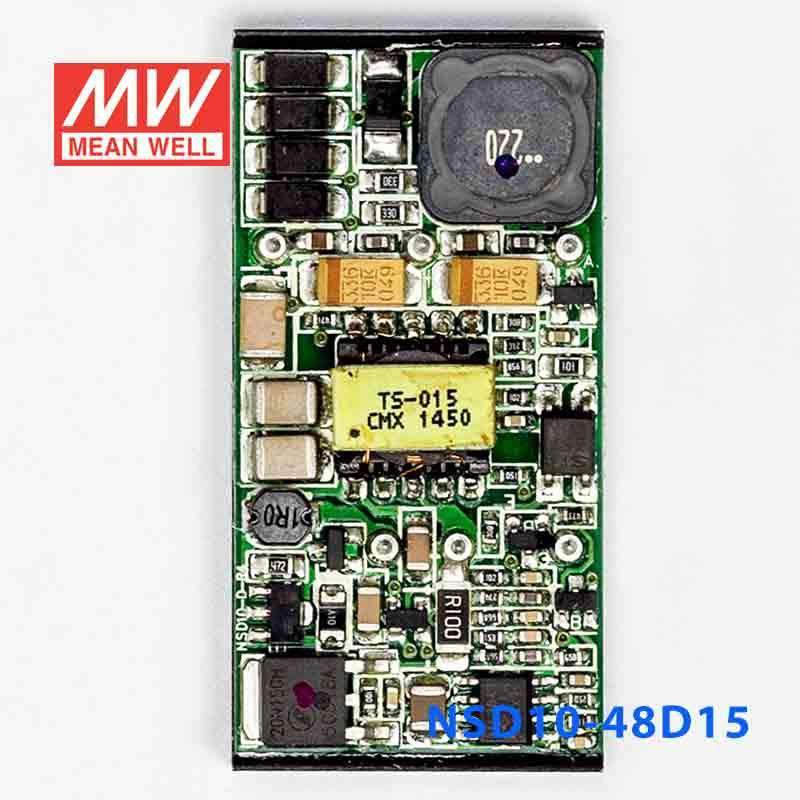

Mean Well NSD10-48D15 DC-DC Converter - 9.9W - 22~72V in ±15V out 333mA

SKU NSD10-48D15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD10-48D15 is the 15V -15V output model of this series: rated current 0.33A 0.33A, rated power 9.9W, typical efficiency 77%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1000VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Lost cost
  • High reliability
  • 2 years warranty

Specifications

NSD10-48D15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V -15V
RATED CURRENT
0.33A 0.33A
CURRENT RANGE
0.016 ~ 0.33A 0.016 ~ 0.33A
RATED POWER
9.9W
CAPACITIVE LOAD (max.)
±1000uF
RIPPLE & NOISE (max.)Note.2
75mVp-p(10% ~ 100% load)
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
48VDC
VOLTAGE RANGE
22 ~ 72VDC
EFFICIENCY (Typ.)
77%
DC CURRENT
0.4A/48VDC
SHUTDOWN IDLE CURRENT
20mA/12VDC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
17.3 ~ 22.5V -17.3 ~ -22.5V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" OPEN: ON logic "0" GND: OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
PACKING
0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit not more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSD10-48D15 Mechanical Specification
Mechanical Specification
NSD10-48D15 Block Diagram
Block Diagram
NSD10-48D15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD10-48D15 for bipolar analog circuits or measurement electronics that need +/-15V?

Yes, it provides constant-voltage +/-15V output and is rated for 9.9W total power. It fits lower-power bipolar analog, measurement, and interface circuits that require +/-15V within that 9.9W rating.

Is the NSD10-48D15 suitable for industrial instrumentation or signal-conditioning boards?

It can be used where industrial instrumentation or signal-conditioning electronics need regulated +/-15V rails. The output is intended for compact loads, with a listed 9.9W power rating and 0.33A per output as provided in the product specs.

Can this model support +/-15V control electronics from a 22~72V input source?

Yes, the converter is specified for a 22~72V input range and constant-voltage +/-15V output. That makes it suitable for systems using a higher-voltage source while feeding lower-power +/-15V electronics.

Is the NSD10-48D15 practical for compact embedded or cabinet-mounted designs?

The unit measures 50.8 x 25.4 x 10.0 mm and weighs 0.02 kg, so it is well suited to compact layouts. It is a small-format option for designs that need a bipolar +/-15V converter with a 9.9W rating.

Can the NSD10-48D15 be used in outdoor equipment or only protected environments?

The listed operating temperature range is -25C to +70C, which supports demanding indoor industrial conditions. No IP rating is shown in the provided specs, so the product data does not present it as an outdoor-rated converter by itself.

What other NSD10 series models are available alongside the NSD10-48D15?

On the NSD10-D datasheet, the 9.8~36VDC input models are NSD10-12D5 (10W, ±5V, 1A per output), NSD10-12D12 (10.08W, ±12V, 0.42A) and NSD10-12D15 (9.9W, ±15V, 0.33A); the 22~72VDC input models are NSD10-48D5 (10W, ±5V, 1A), NSD10-48D12 (10.08W, ±12V, 0.42A) and NSD10-48D15 (9.9W, ±15V, 0.33A). All are dual-output units in the same 50.8 x 25.4 x 10 mm package with 1KVDC I/O isolation.
