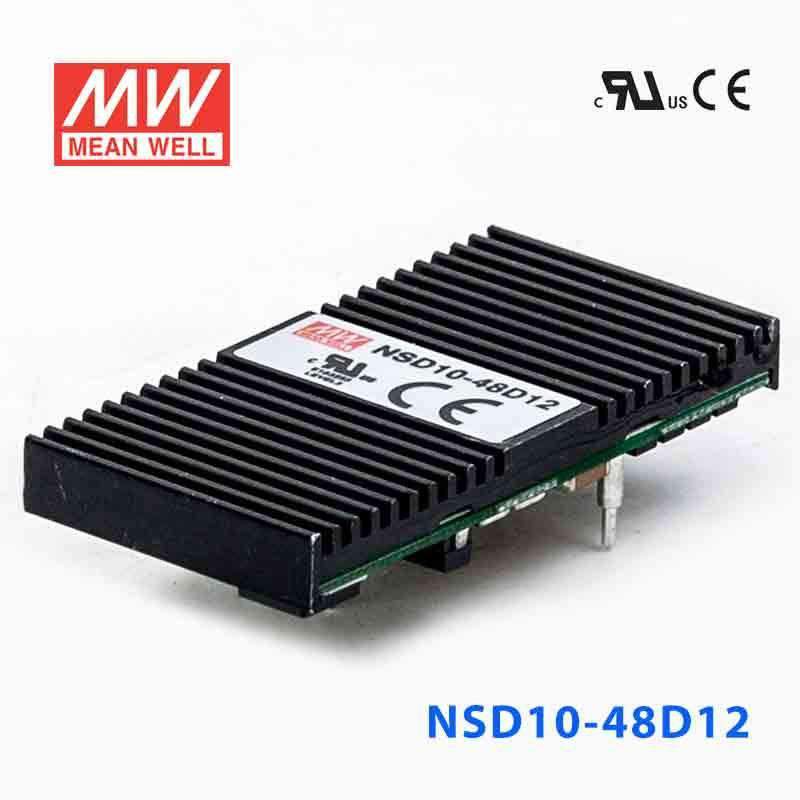

Mean Well NSD10-48D12 DC-DC Converter - 10.8W - 22~72V in ±12V out 420mA

SKU NSD10-48D12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

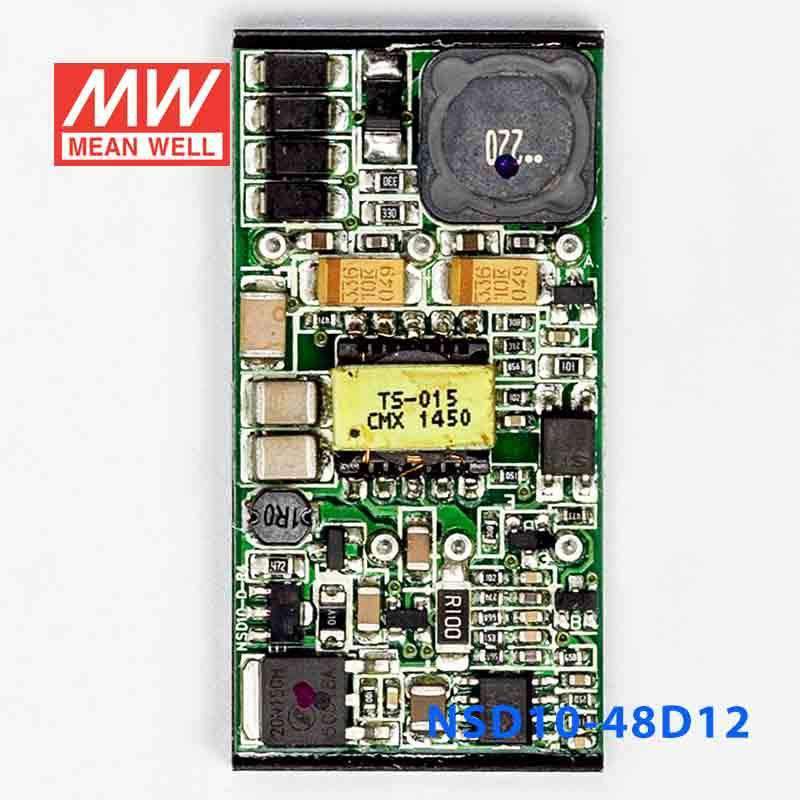

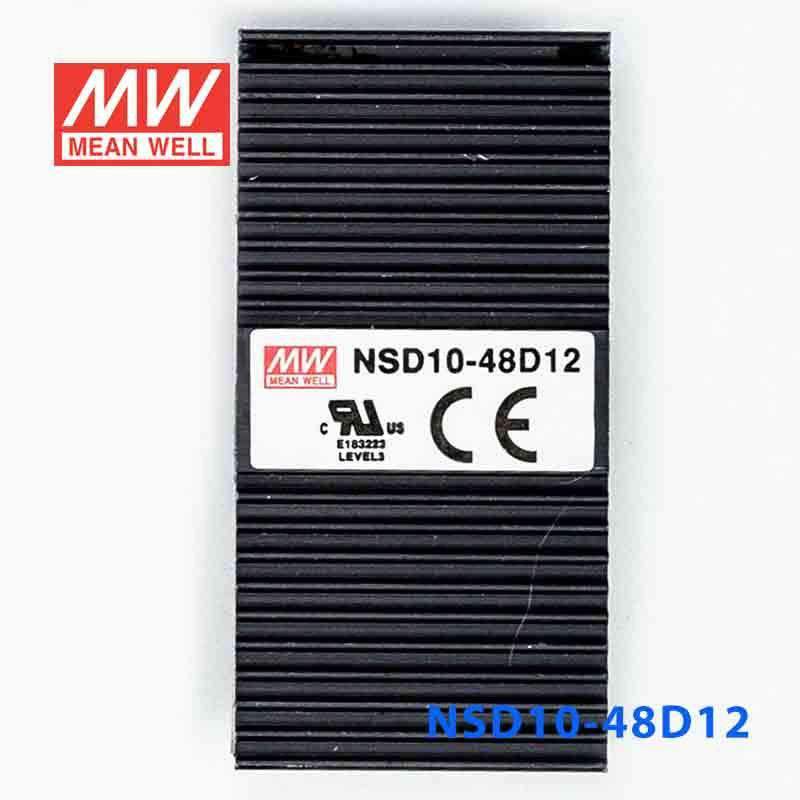

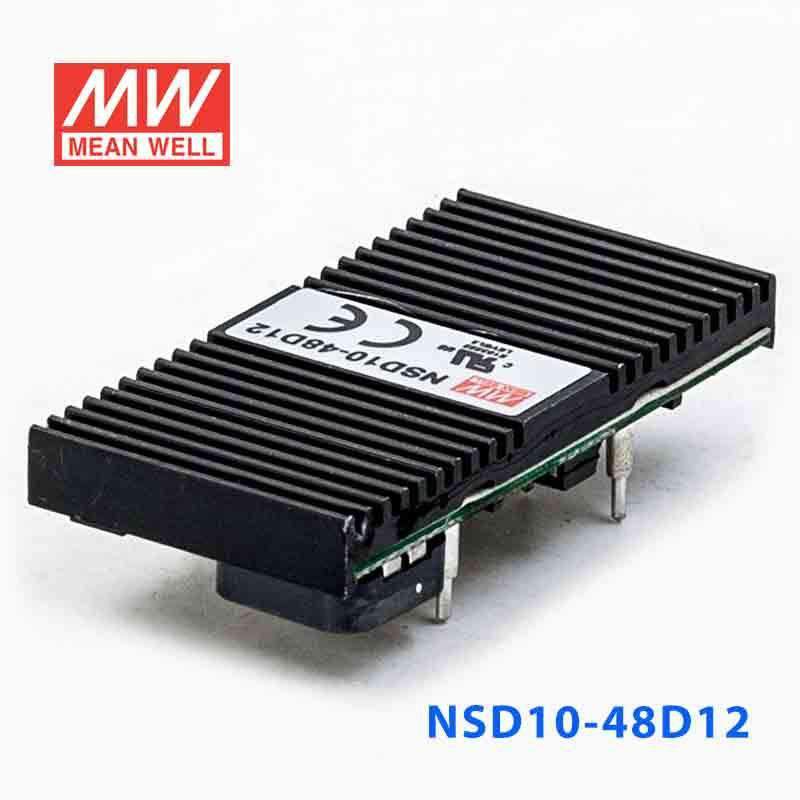

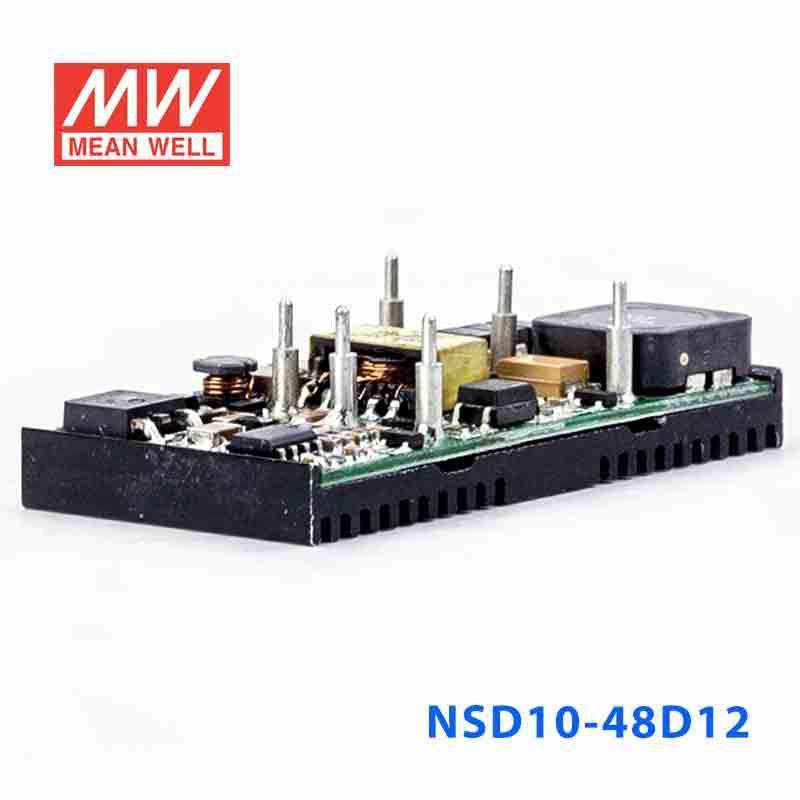

Overview

NSD10-48D12 is the 12V -12V output model of this series: rated current 0.42A 0.42A, rated power 10.08W, typical efficiency 77%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1000VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Lost cost
  • High reliability
  • 2 years warranty

Specifications

NSD10-48D12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
12V -12V
RATED CURRENT
0.42A 0.42A
CURRENT RANGE
0.02 ~ 0.42A 0.02 ~ 0.42A
RATED POWER
10.08W
CAPACITIVE LOAD (max.)
±1000uF
RIPPLE & NOISE (max.)Note.2
75mVp-p(10% ~ 100% load)
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
48VDC
VOLTAGE RANGE
22 ~ 72VDC
EFFICIENCY (Typ.)
77%
DC CURRENT
0.4A/48VDC
SHUTDOWN IDLE CURRENT
20mA/12VDC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
13.8 ~ 18V -13.8 ~ -18V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" OPEN: ON logic "0" GND: OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12288.5K hrs min. Telcordia SR-332 (Bellcore) ; 1878.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
PACKING
0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit not more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

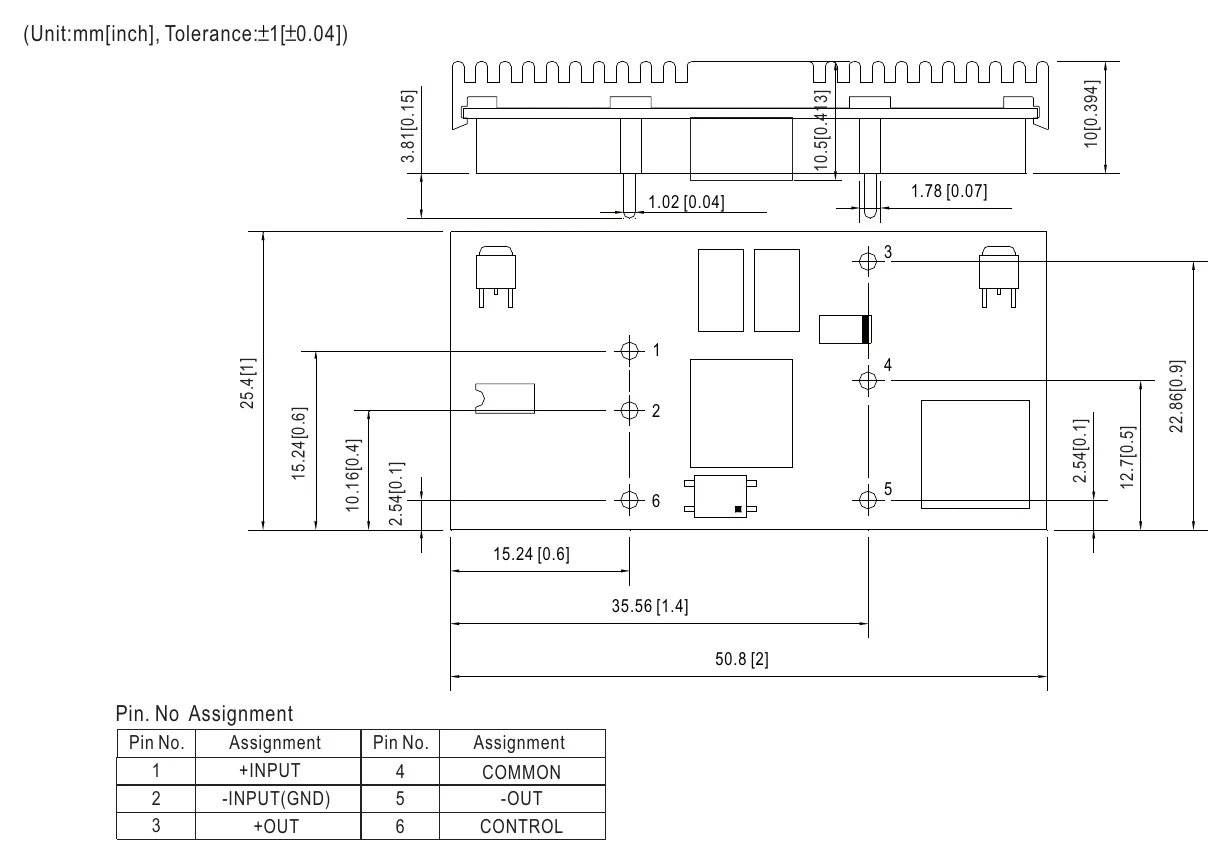

NSD10-48D12 Mechanical Specification
Mechanical Specification

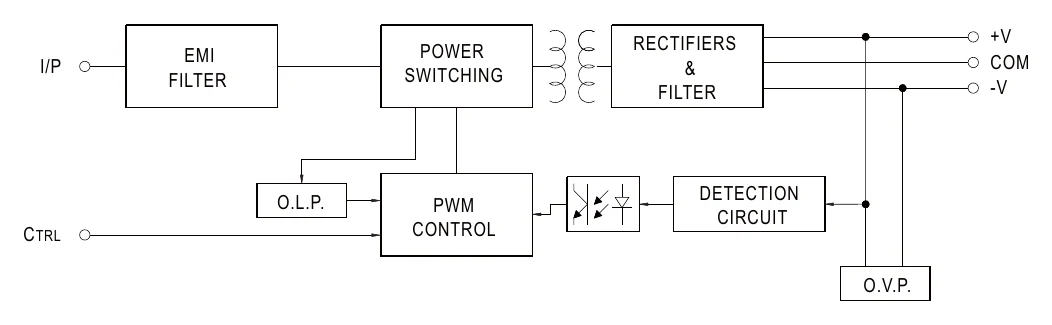

NSD10-48D12 Block Diagram
Block Diagram

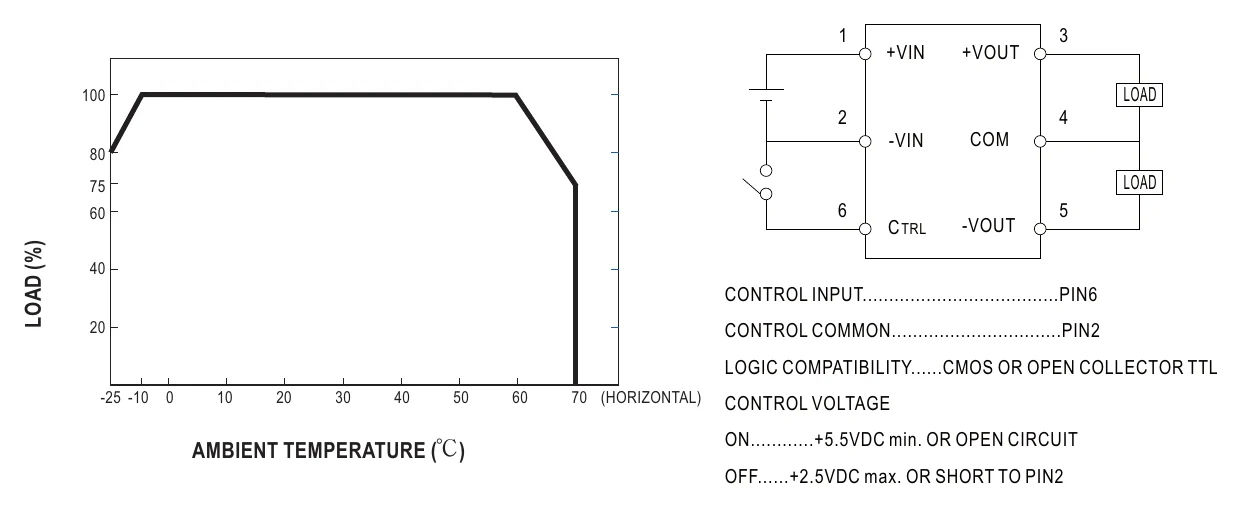

NSD10-48D12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD10-48D12 for bipolar analog or signal-conditioning circuits in industrial equipment?

Yes, this model provides constant-voltage +/-12V output with a 10.08W rating. It is suited to lower-power bipolar analog, signal-conditioning, and interface circuits that need +/-12V and stay within the listed 10.08W output rating.

Is the NSD10-48D12 suitable for control and monitoring boards that need +/-12V rails?

It can be used for control, monitoring, and instrumentation boards that require +/-12V output. The converter is intended for compact loads within its 10.08W capacity rather than higher-power +/-12V subsystems.

Can this converter be used in equipment with a 22~72V input bus and +/-12V electronics?

Yes, the specified input range is 22~72V and the output is constant-voltage +/-12V. That makes it relevant for systems built around a higher-voltage input bus feeding lower-power bipolar electronics.

Does the NSD10-48D12 work well in compact industrial assemblies?

Its dimensions are 50.8 x 25.4 x 10.0 mm and its weight is 0.02 kg, so it is small enough for dense layouts. That is useful when a compact +/-12V converter is needed inside a control enclosure or embedded assembly.

Is the NSD10-48D12 meant for outdoor use or temperature-demanding indoor equipment?

The operating temperature range is -25C to +70C, so it is specified for a broad industrial indoor temperature range. No IP rating is listed, so the provided specs do not define it as outdoor rated or weather-sealed.

How does the NSD10-48D12 compare with other NSD10 converter options?

On the NSD10-D datasheet, the 9.8~36VDC input models are NSD10-12D5 (10W, ±5V, 1A per output), NSD10-12D12 (10.08W, ±12V, 0.42A) and NSD10-12D15 (9.9W, ±15V, 0.33A); the 22~72VDC input models are NSD10-48D5 (10W, ±5V, 1A), NSD10-48D12 (10.08W, ±12V, 0.42A) and NSD10-48D15 (9.9W, ±15V, 0.33A). All are dual-output units in the same 50.8 x 25.4 x 10 mm package with 1KVDC I/O isolation.
