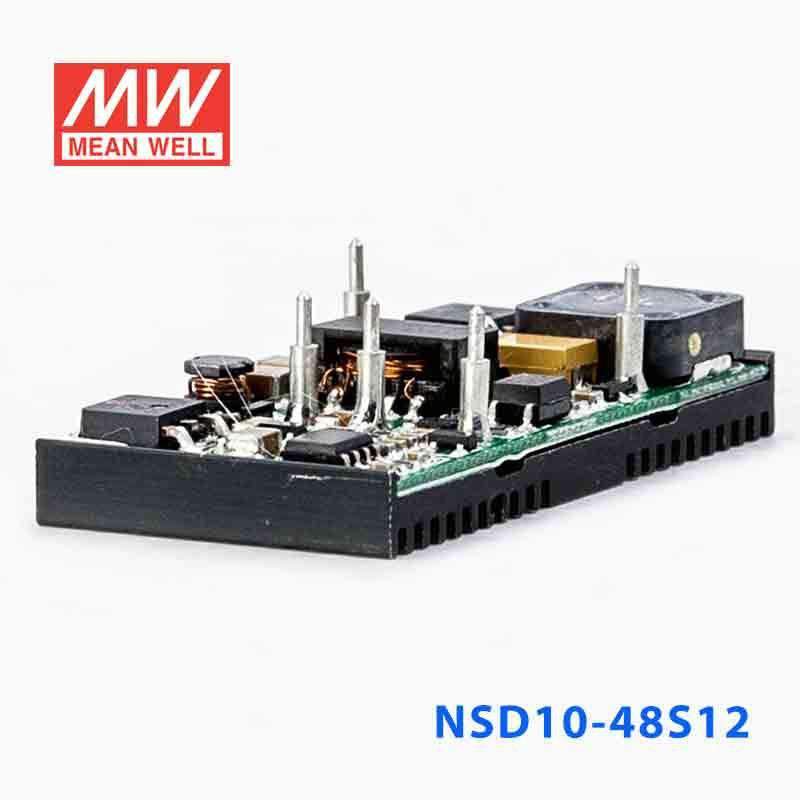

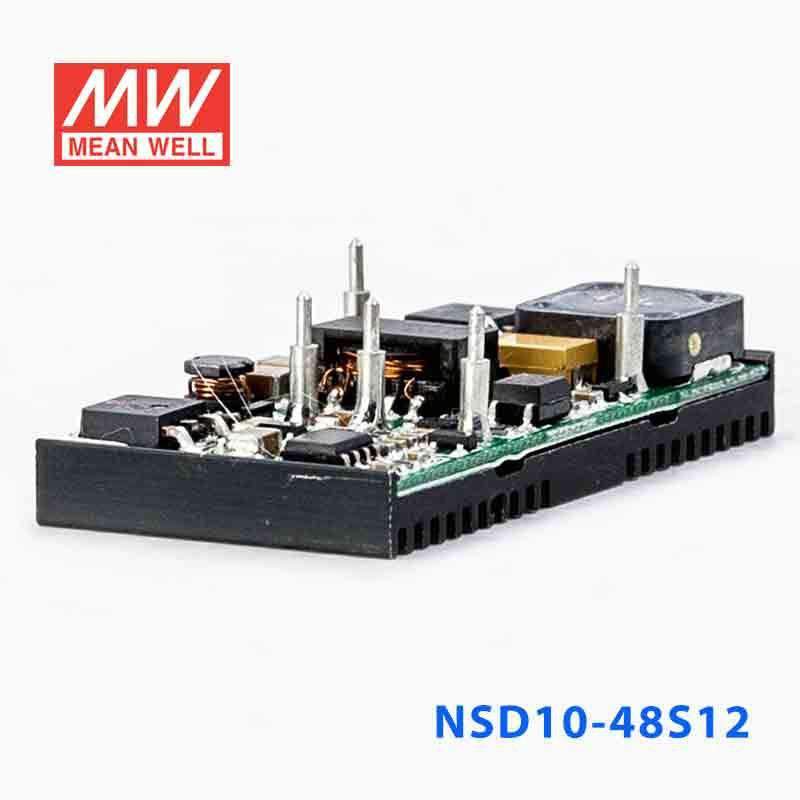

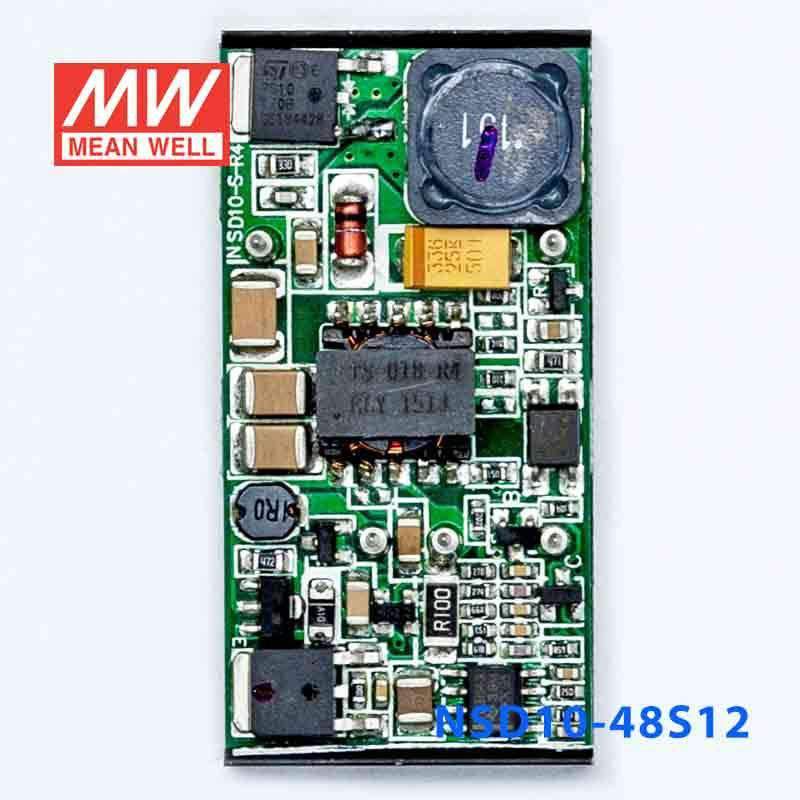

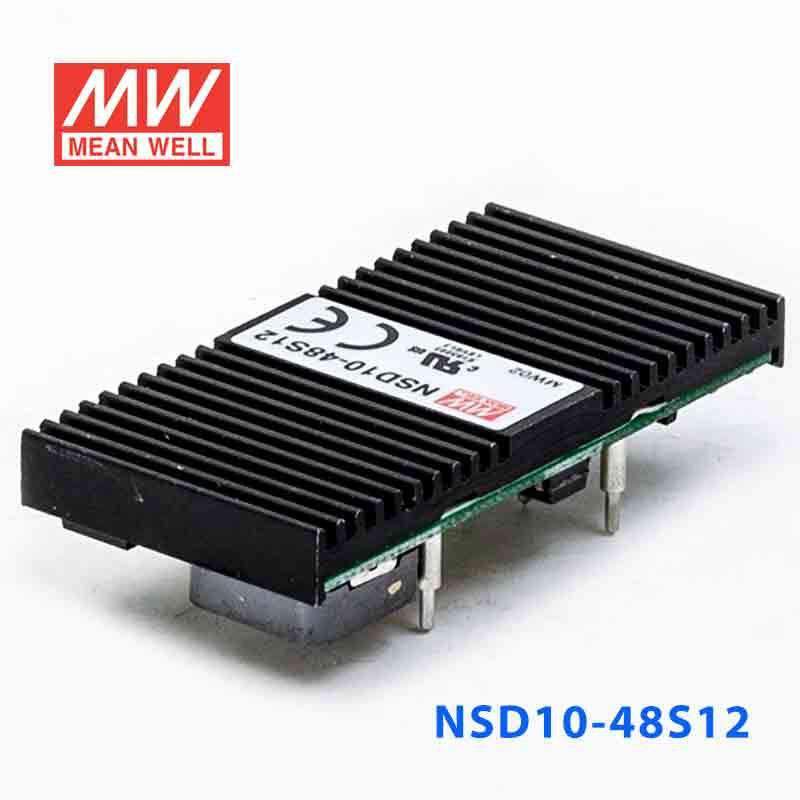

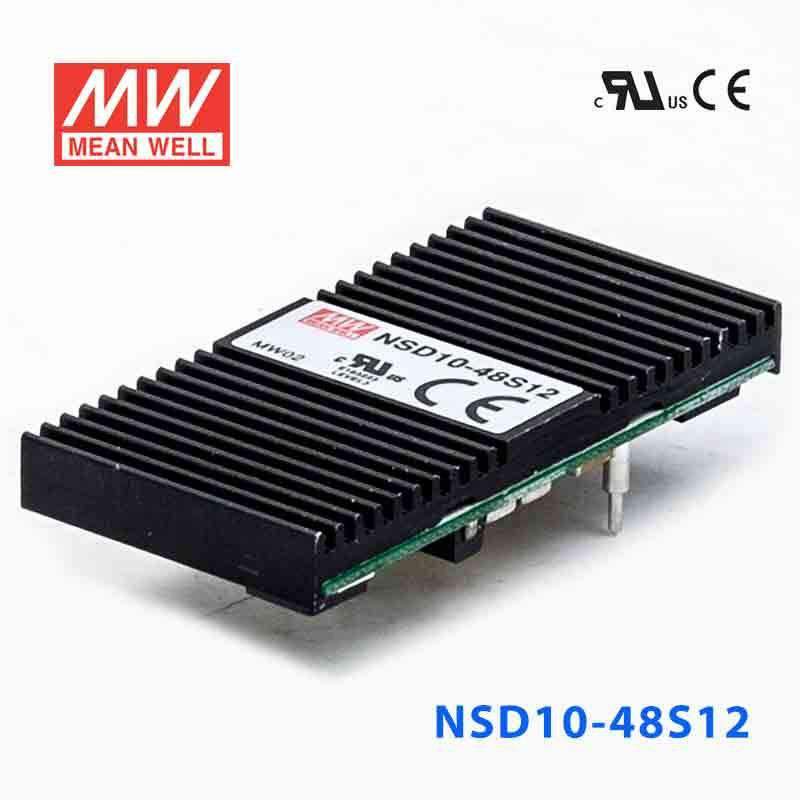

Mean Well NSD10-48S12 DC-DC Converter - 9.96W - 22~72V in 12V out 830mA

SKU NSD10-48S12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD10-48S12 is the 12V output model of this series: rated current 0.83A, rated power 9.96W, typical efficiency 79%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1000VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

NSD10-48S12Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
0.83A
CURRENT RANGE
0.04 ~ 0.83A
RATED POWER
9.96W
CAPACITIVE LOAD (max.)
3300uF
RIPPLE & NOISE (max.)Note.2
75mVp-p
VOLTAGE TOLERANCENote.3
±2.0% max.
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
48VDC
VOLTAGE RANGE
22 ~ 72VDC
EFFICIENCY (Typ.)
79%
DC CURRENT
0.4A/48VDC
SHUTDOWN IDLE CURRENT
20mA/12VDC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
13.8 ~ 18V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" OPEN: ON logic "0" GND: OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 2138.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
PACKING
0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit not more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

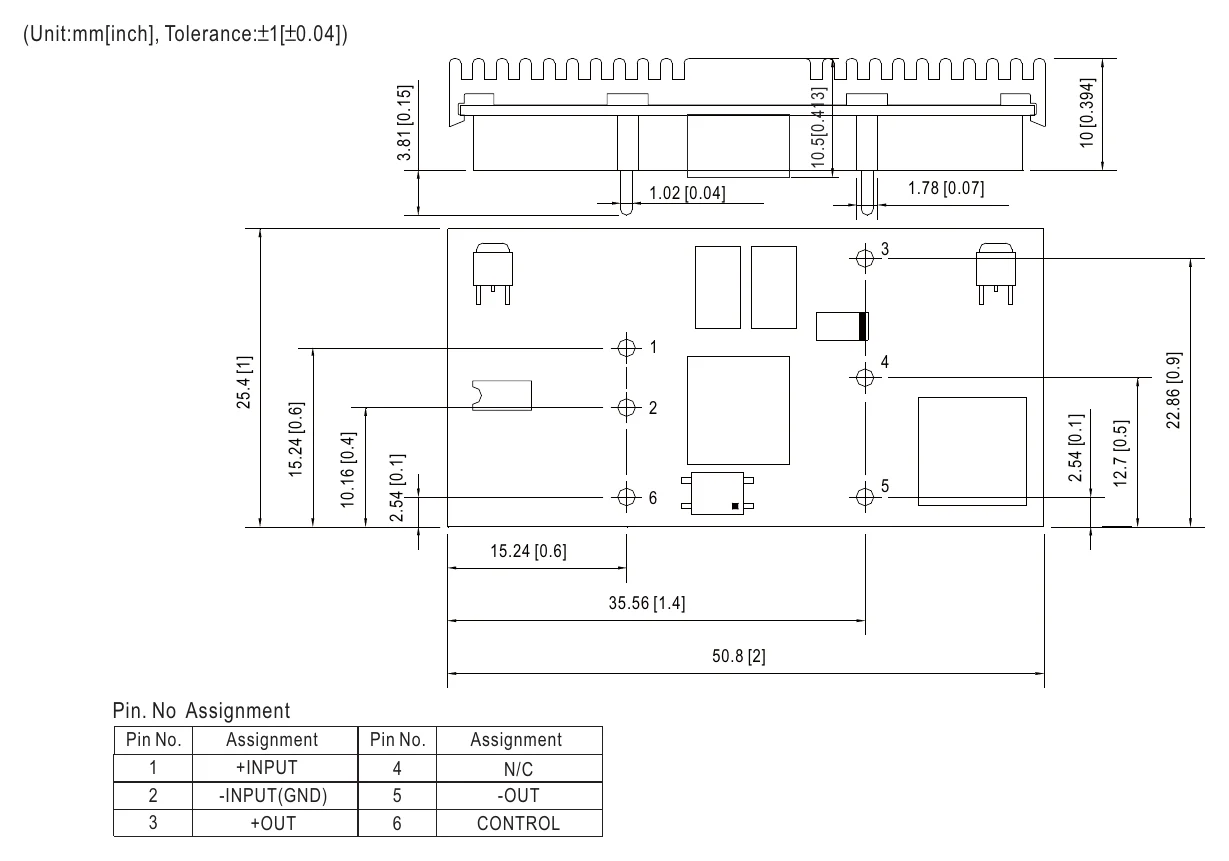

NSD10-48S12 Mechanical Specification
Mechanical Specification

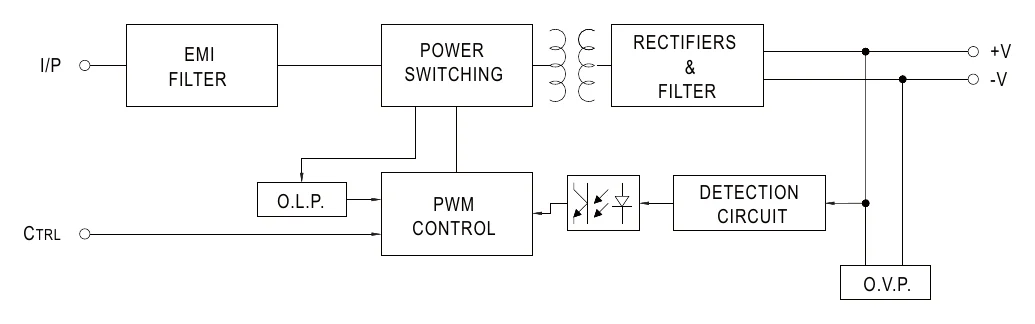

NSD10-48S12 Block Diagram
Block Diagram

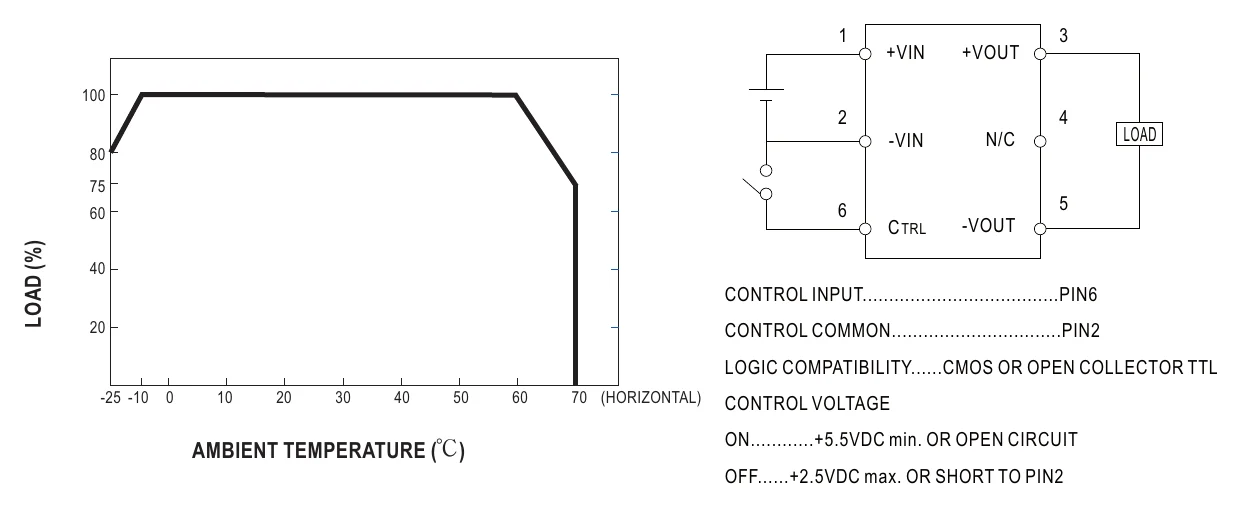

NSD10-48S12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD10-48S12 for a 12V PLC accessory or automation module?

It can suit compact PLC accessories or automation modules that need a constant 12V output from a 22-72VDC input source. The 9.96W rating makes it more appropriate for smaller 12V loads than for higher-power field equipment.

Is this a good fit for powering a 12V industrial communication or monitoring board?

Yes, if the board is designed for a regulated 12V supply and fits within the 9.96W output rating. Its 50.8 × 25.4 × 10.0 mm dimensions and 0.02 kg weight also make it practical for compact embedded or control enclosures.

Can the NSD10-48S12 be used in transportation or mobile equipment with wide input variation?

The wide 22-72VDC input range makes it relevant where the source can vary across a broad span but the load still needs constant 12V output. The working temperature range is -25°C to +70°C, so the installation must stay within it.

Is the NSD10-48S12 suitable for outdoor cabinets or unsealed equipment spaces?

No IP rating is provided in the supplied specs, so outdoor exposure or unsealed wet or dusty locations should not be assumed. What is stated is a -25°C to +70°C working temperature range, which addresses temperature only.

What are the main output options across the related NSD10 models?

The 9.8~36VDC input models on the NSD10-S sheet are NSD10-12S3 at 8.25W, 3.3V, 2.5A; NSD10-12S5 at 10W, 5V, 2A; NSD10-12S9 at 9.9W, 9V, 1.1A; NSD10-12S12 at 9.96W, 12V, 0.83A; and NSD10-12S15 at 10.05W, 15V, 0.67A. The 22~72VDC input variants listed alongside this model are NSD10-48S3 at 8.25W, 3.3V, 2.5A; NSD10-48S5 at 10W, 5V, 2A; NSD10-48S9 at 9.9W, 9V, 1.1A; and NSD10-48S15 at 10.05W, 15V, 0.67A.
