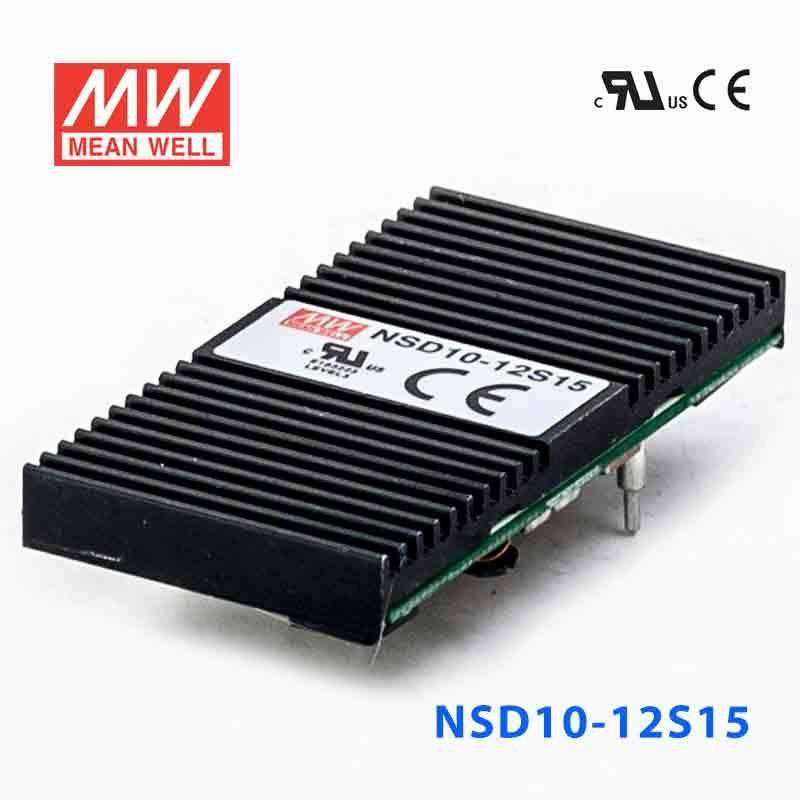

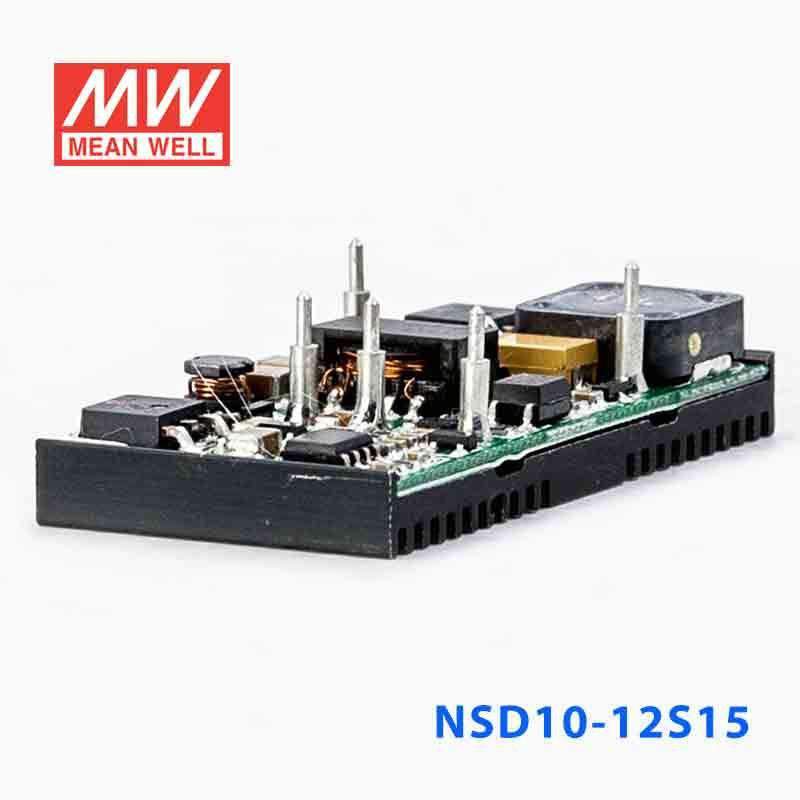

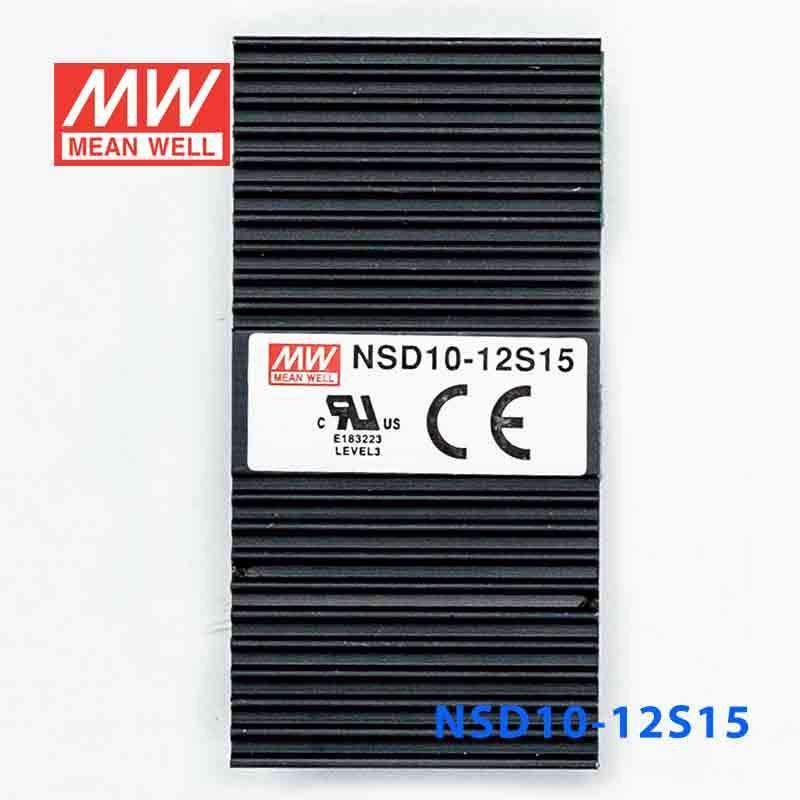

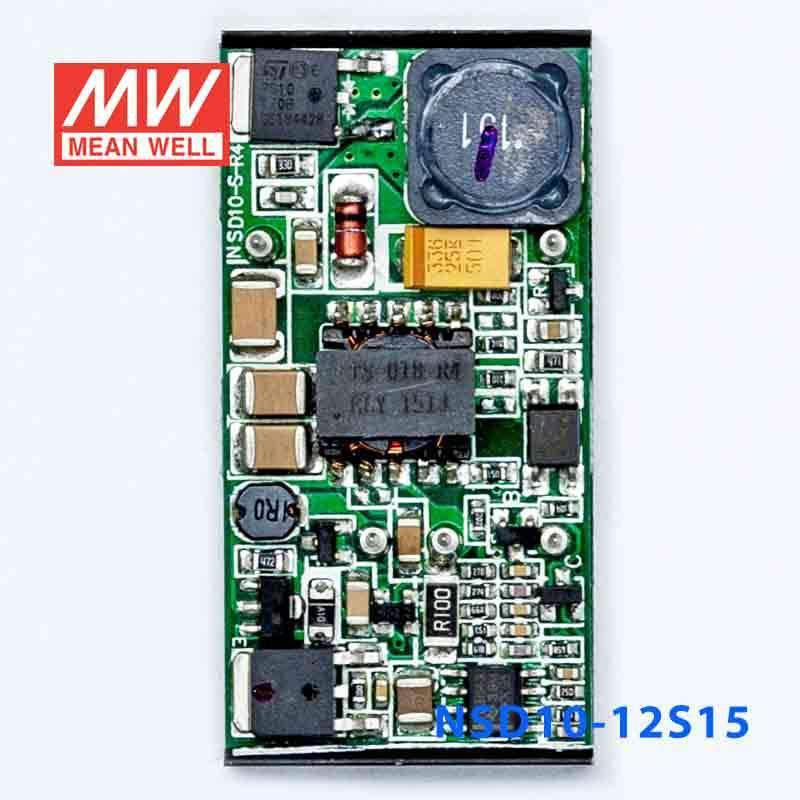

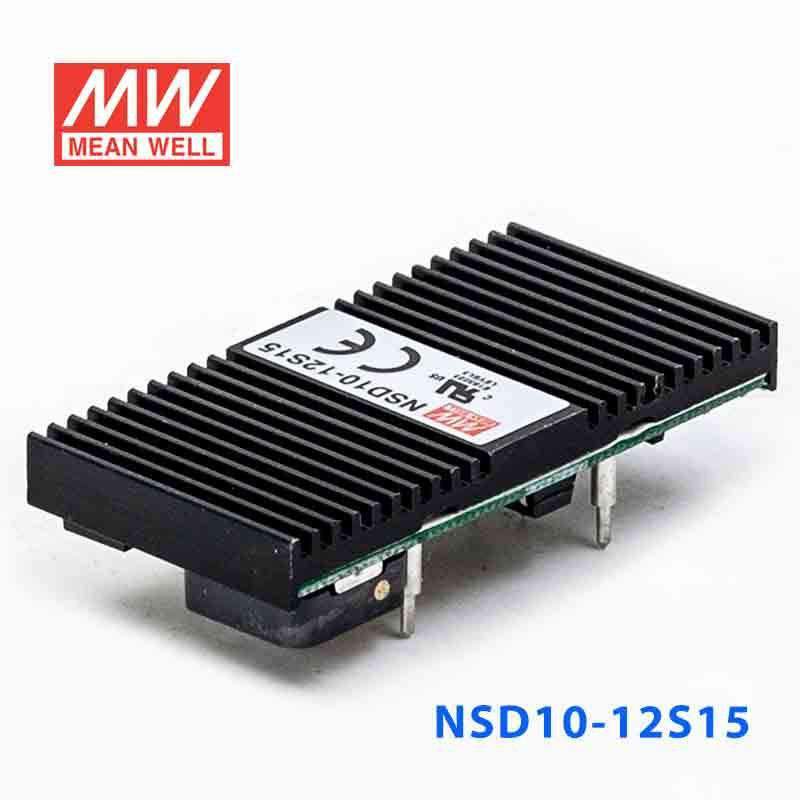

Mean Well NSD10-12S15 DC-DC Converter - 10.05W - 9.8~36V in 15V out 670mA

SKU NSD10-12S15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD10-12S15 is the 15V output model of this series: rated current 0.67A, rated power 10.05W, typical efficiency 80%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1000VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

NSD10-12S15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
0.67A
CURRENT RANGE
0.03 ~ 0.67A
RATED POWER
10.05W
CAPACITIVE LOAD (max.)
3300uF
RIPPLE & NOISE (max.)Note.2
75mVp-p
VOLTAGE TOLERANCENote.3
±2.0% max.
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
12VDC
VOLTAGE RANGE
9.8 ~ 36VDC
EFFICIENCY (Typ.)
80%
DC CURRENT
1.4A/12VDC
SHUTDOWN IDLE CURRENT
20mA/12VDC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
17.3 ~ 22.5V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" OPEN: ON logic "0" GND: OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 2138.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*25.4*10mm (2"*1"*0.394") (L*W*H)
PACKING
0.02Kg; 300pcs/7Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit not more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. To insure proper operation, a 220uF/100V electrolytic capacitor with Esr <1Ω must be added to the input line.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSD10-12S15 Mechanical Specification
Mechanical Specification
NSD10-12S15 Block Diagram
Block Diagram
NSD10-12S15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD10-12S15 for 15V instrumentation or industrial sensing electronics?

Yes, this model is suitable for electronics that need constant-voltage 15V output from a 9.8-36VDC input range and stay within 10.05W. That makes it relevant for lower-power instrumentation and sensing circuits that operate on 15V.

Is the NSD10-12S15 appropriate for embedded 15V control boards or monitoring devices?

It can be used where the device requires regulated 15V output and total demand remains within 10.05W. The small 50.8 × 25.4 × 10.0 mm footprint also helps in compact embedded assemblies.

Can this converter power 15V industrial interface or relay logic sections?

Yes, if the application needs constant-voltage 15V power and the load fits within the 10.05W rating. It is aimed at lower-power 15V control and interface sections rather than larger 15V power loads.

How does the NSD10-12S15 compare with the other NSD10 converters in the 12-input family?

In the 9.8~36VDC input NSD10-S lineup, NSD10-12S3 is 8.25W, 3.3V, 2.5A; NSD10-12S5 is 10W, 5V, 2A; NSD10-12S9 is 9.9W, 9V, 1.1A; NSD10-12S12 is 9.96W, 12V, 0.83A; and NSD10-12S15 is 10.05W, 15V, 0.67A. The same output voltages are also offered as 22~72VDC input NSD10-48S versions. This unit is the single-output 15V version within that group.

Can the NSD10-12S15 handle wider temperature swings than standard indoor electronics?

Its specified working temperature range is -25°C to +70°C, with storage rated from -40°C to +85°C and working humidity up to 95% RH. The provided product specs do not state an IP rating, so outdoor exposure protection is not established here.
