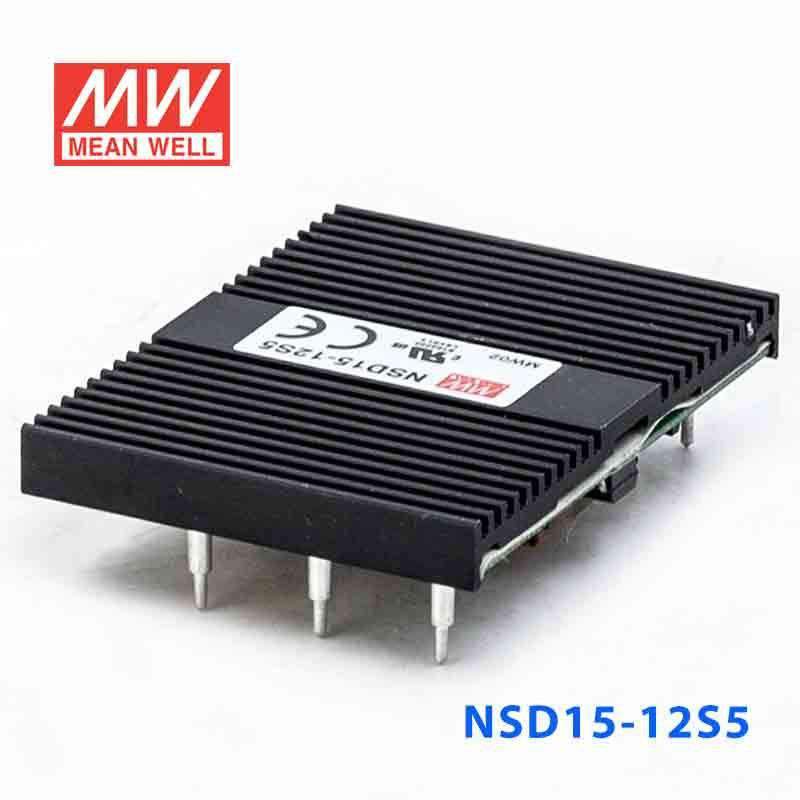

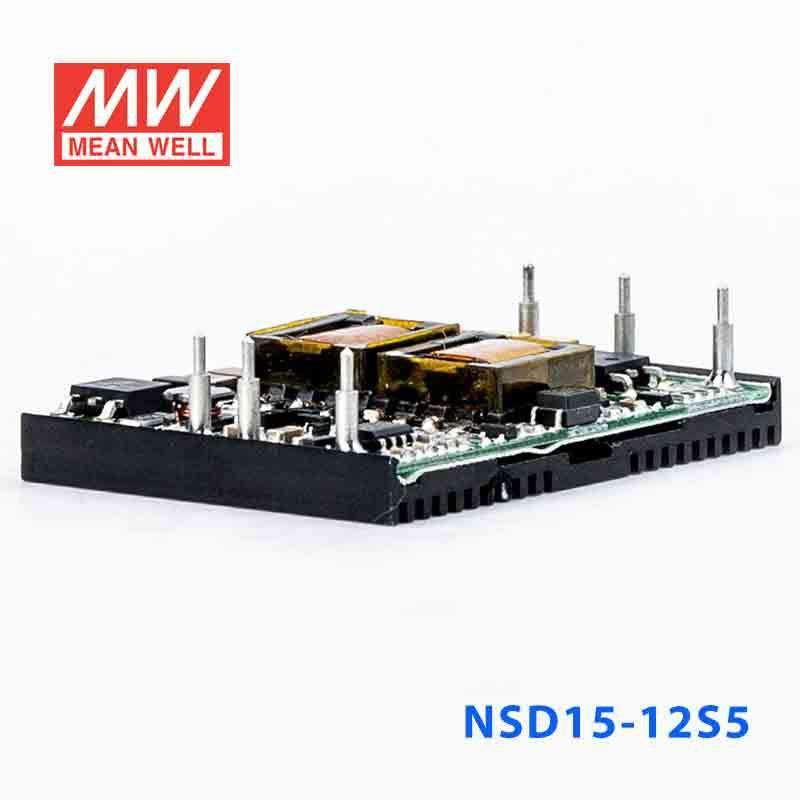

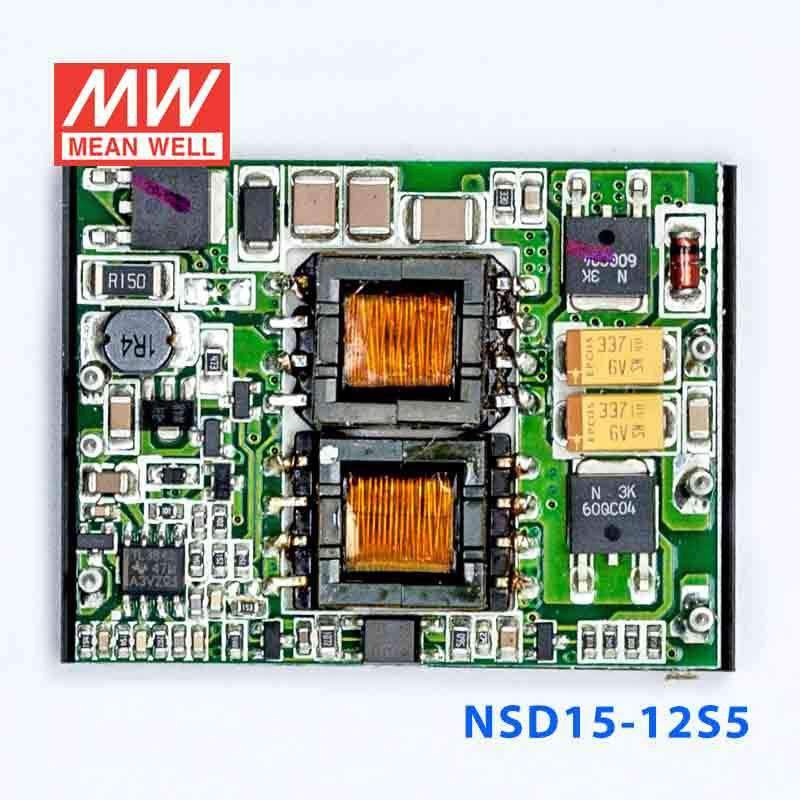

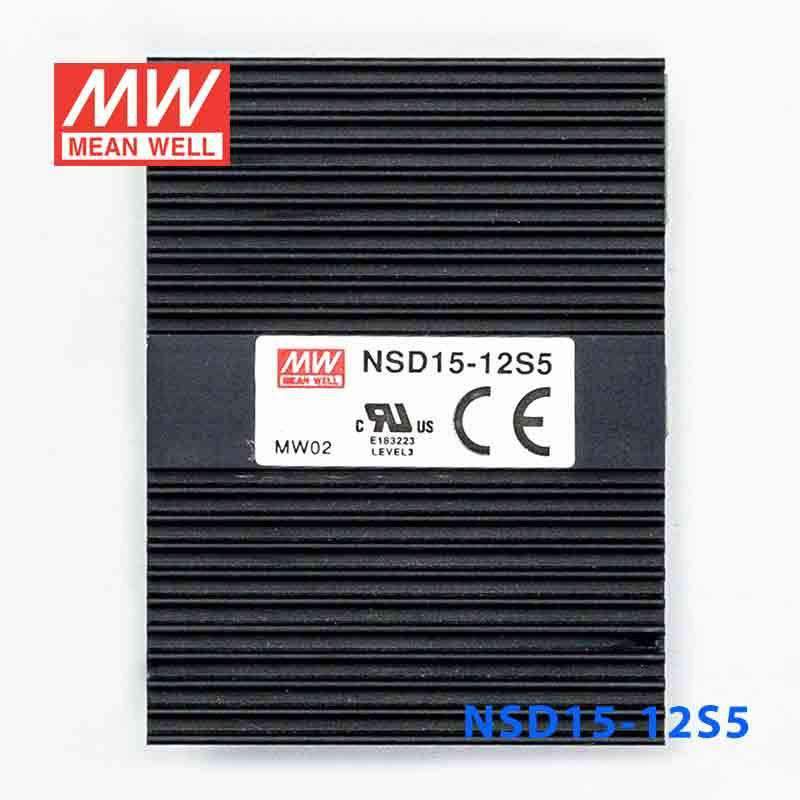

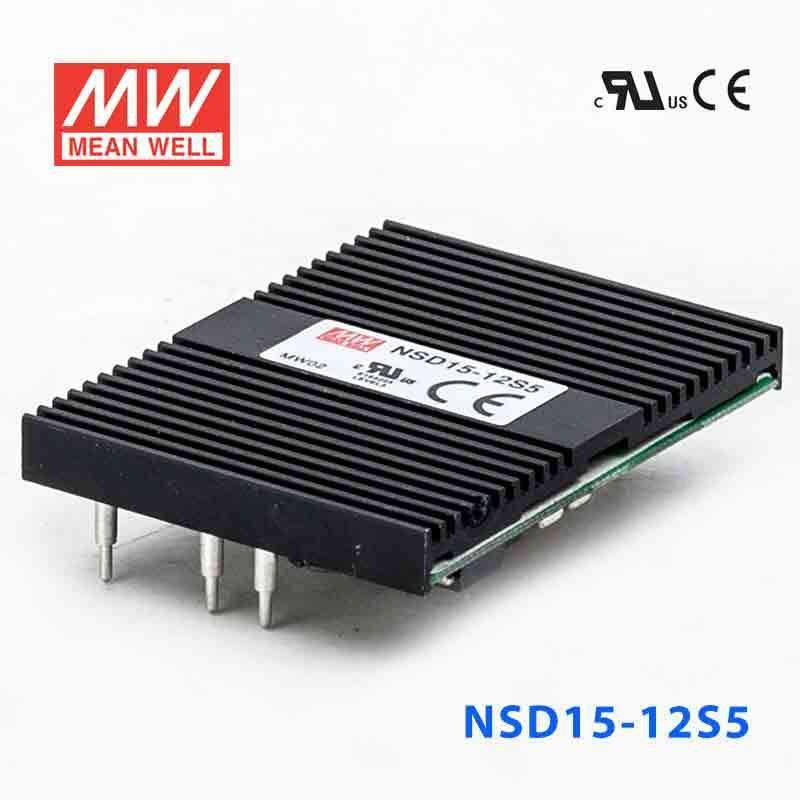

Mean Well NSD15-12S5 DC-DC Converter - 15W - 9.4~36V in 5V out 3A

SKU NSD15-12S5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD15-12S5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 77%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Output voltage trimming function
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

NSD15-12S5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0.15 ~ 3A
RATED POWER
15W
CAPACITIVE LOAD (max.)
3300uF
RIPPLE & NOISE (max.)Note.2
75mVp-p(25% ~ 100% load)
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0% at 10% ~ 100% load
LOAD REGULATION
±1.0% at 10% ~ 100% load
TRIM OUTPUT (Typ.)
±5.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
12VDC
VOLTAGE RANGE
9.4 ~ 36VDC
EFFICIENCY (Typ.)
77%
DC CURRENT
1.8A/12VDC
SHUTDOWN IDLE CURRENT
20mA

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
5.8 ~ 7.5V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~50℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
12058.3K hrs min. Telcordia SR-332 (Bellcore) ; 1734.0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H)
PACKING
0.03Kg; 180pcs/6.4Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit no more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. Derating to 80% load is needed for NSD15-48S series at 18Vdc input voltage. Full output wattage can be acquired when the input voltage is higher than 20Vdc.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSD15-12S5 Mechanical Specification
Mechanical Specification
NSD15-12S5 Block Diagram
Block Diagram
NSD15-12S5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD15-12S5 to power 5V embedded systems from a wide-input source?

Yes, if the embedded system needs constant 5V output and stays within 3A and 15W. This converter accepts 9.4~36V input and is rated for constant-voltage 5V output.

Is this model suitable for 5V industrial control or monitoring electronics?

It is suitable for 5V control or monitoring electronics that require a regulated 5V rail and draw no more than 3A. The 15W rating sets the total output limit for the connected 5V load.

Can the NSD15-12S5 be used for 5V automation interfaces or low-power IT hardware?

Yes, when the interface or hardware is designed for constant 5V input and remains within 15W. Its 9.4~36V input range also supports use in systems where the available source voltage falls anywhere inside that range.

Does this converter support outdoor environments?

The working temperature range is -25°C to +70°C (storage -40°C to +85°C), with load derating at higher ambient temperatures per the derating curve. However, no IP rating is listed, so the published specifications do not confirm suitability for exposed outdoor environments.

How does the NSD15-12S5 differ from the other NSD15 variants?

The NSD15-S series offers 3.3V at 3.75A and 12.375W, 5V at 3A and 15W, 12V at 1.25A and 15W, and 15V at 1A and 15W. Each output comes in a 9.4~36VDC input version (NSD15-12S) and an 18~72VDC input version (NSD15-48S). The NSD15-12S5 is the 9.4~36VDC input, 5V, 3A, 15W single-output model.
