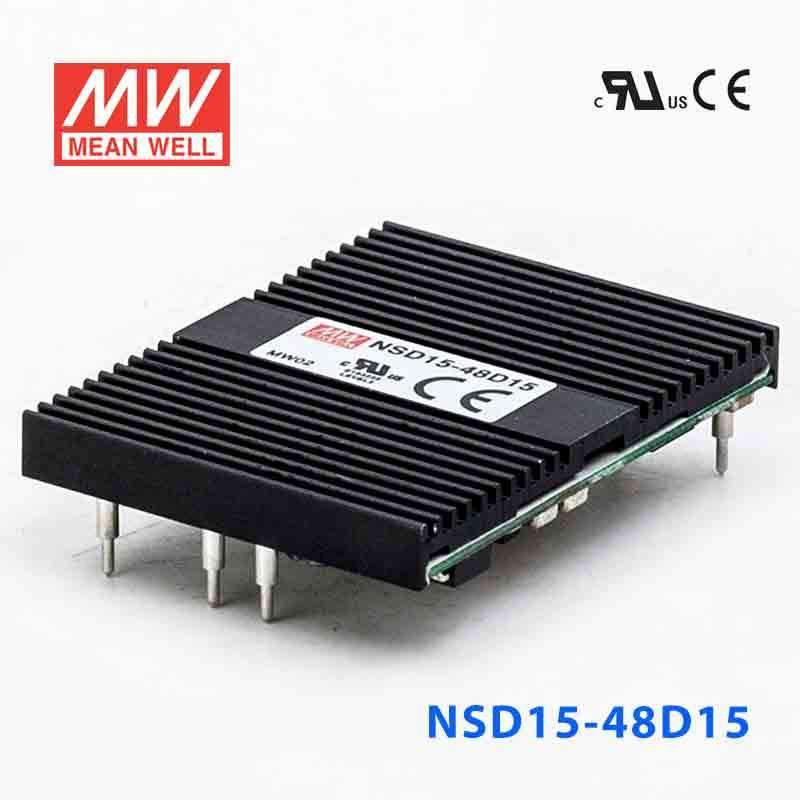

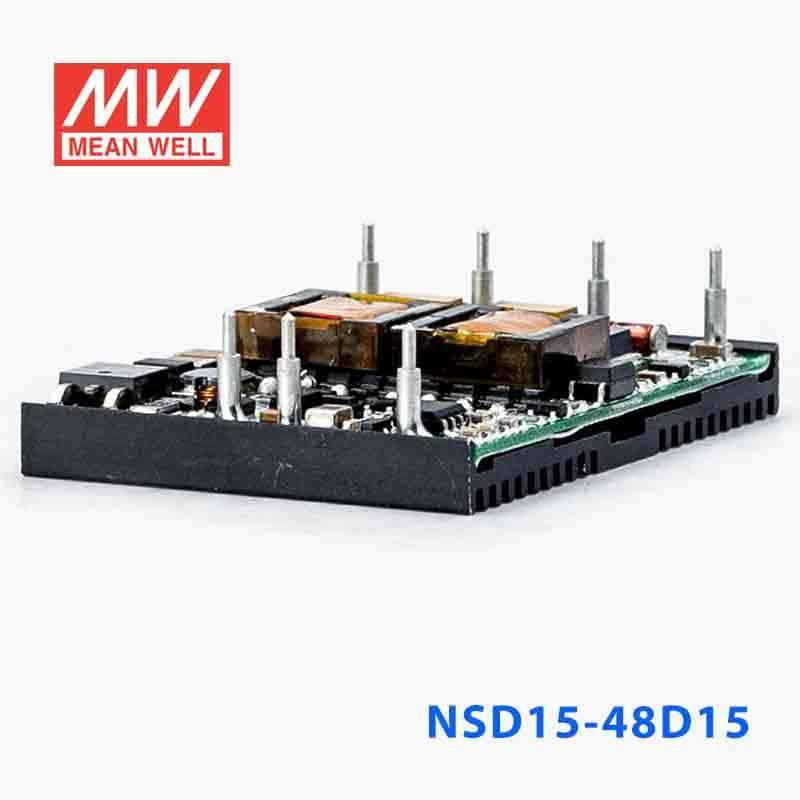

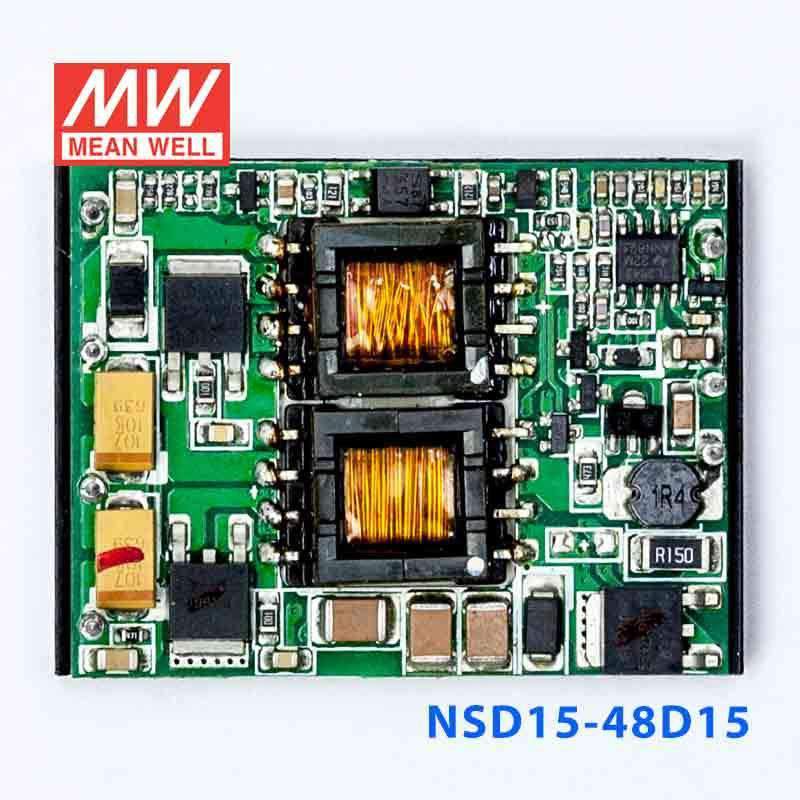

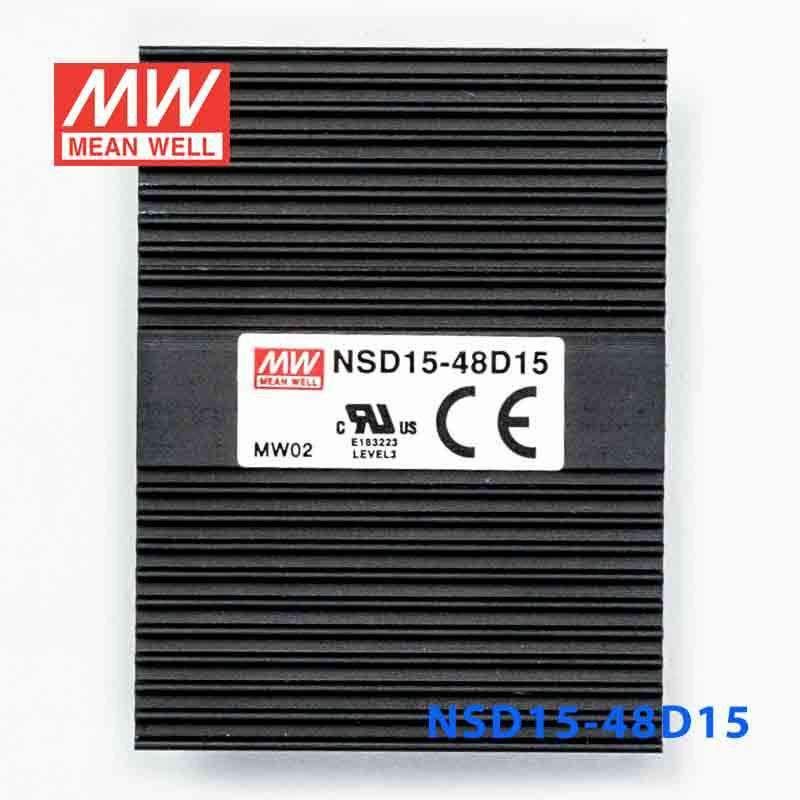

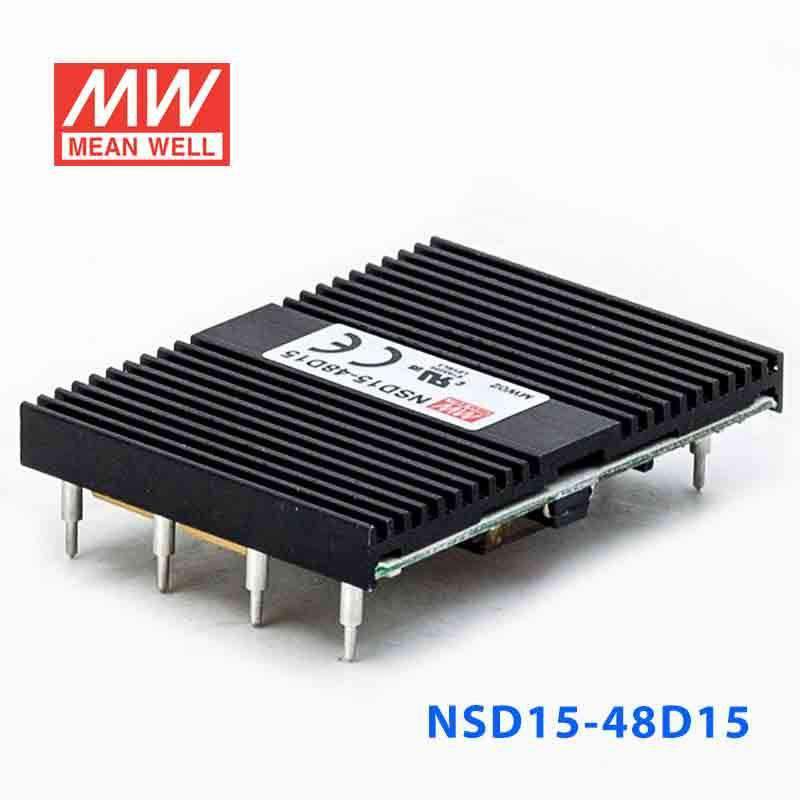

Mean Well NSD15-48D15 DC-DC Converter - 15W - 18~72V in ±15V out 500mA

SKU NSD15-48D15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD15-48D15 is the 15V -15V output model of this series: rated current 0.5A 0.5A, rated power 15W, typical efficiency 84%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Output voltage trimming function
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Lost cost
  • High reliability
  • 2 years warranty

Specifications

NSD15-48D15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V -15V
RATED CURRENT
0.5A 0.5A
CURRENT RANGE
0.02 ~ 0.5A 0.02 ~ 0.5A
RATED POWER
15W
CAPACITIVE LOAD (max.)
±1000uF
RIPPLE & NOISE (max.)Note.2
100mVp-p(25% ~ 100% load)
VOLTAGE TOLERANCENote.3
±2.5%
LINE REGULATION
±1.0% at 10% ~ 100% load
LOAD REGULATION
±1.0%
TRIM OUTPUT (Typ.)
±3.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
48VDC
VOLTAGE RANGENote.6
18 ~ 72VDC
EFFICIENCY (Typ.)
84%
DC CURRENT
0.4A/48VDC
SHUTDOWN IDLE CURRENT
20mA

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
17.3 ~ 22.5V -17.3 ~ -22.5V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~50℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
9469.6K hrs min. Telcordia SR-332 (Bellcore) ; 1673.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H)
PACKING
0.03Kg; 180pcs/6.4Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit no more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. Derating to 80% load is needed for NSD15-48D series at 18Vdc input voltage. Full output wattage can be acquired when the input voltage is higher than 20Vdc.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSD15-48D15 Mechanical Specification
Mechanical Specification
NSD15-48D15 Block Diagram
Block Diagram
NSD15-48D15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD15-48D15 for equipment that requires a ±15V output from a high-input-voltage source?

Yes, if the equipment requires constant-voltage ±15V output and the load stays within 15W. This converter is specified for 18~72V input, so it is suited to systems already operating in that higher input range.

Is this converter suitable for industrial analog electronics that need ±15V power?

It can fit industrial analog electronics that are designed for constant ±15V supply and remain within the 15W power rating. The 18~72V input range also distinguishes it from lower-input models in the same series.

Can the NSD15-48D15 be used in automation or embedded systems with an 18~72V source?

Yes, when the downstream electronics require a constant ±15V output and do not exceed the 15W limit. Full output is available above 20V input; at 18V input the load must be derated to 80%.

Will the NSD15-48D15 handle harsh temperature conditions or outdoor placement?

Its operating temperature range is -25°C to +70°C, with storage rated at -40°C to +85°C. No IP rating is published, so the specifications do not verify outdoor-exposed use.

What are the sibling options in the NSD15 series compared with the NSD15-48D15?

The NSD15-D sheet offers ±5V at 1.5A and 15W, ±12V at 0.62A and 14.88W, and ±15V at 0.5A and 15W, each in a 9.4~36V input and an 18~72V input version. The NSD15-48D15 is the 18~72V input, ±15V, 15W model. That makes it the higher-input counterpart to the 9.4~36V NSD15-12D15 (±15V, 0.5A).
