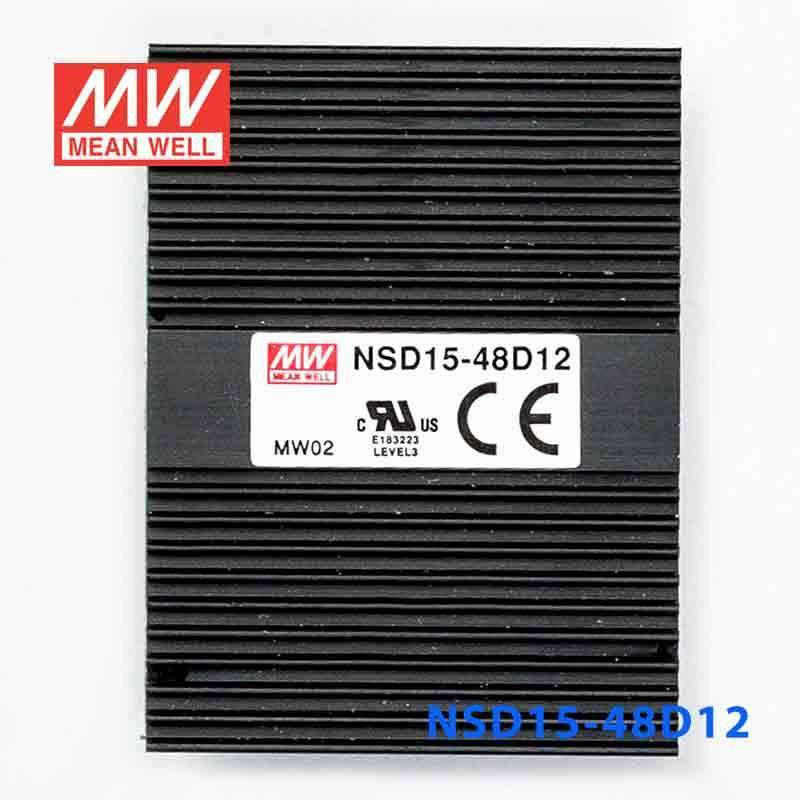

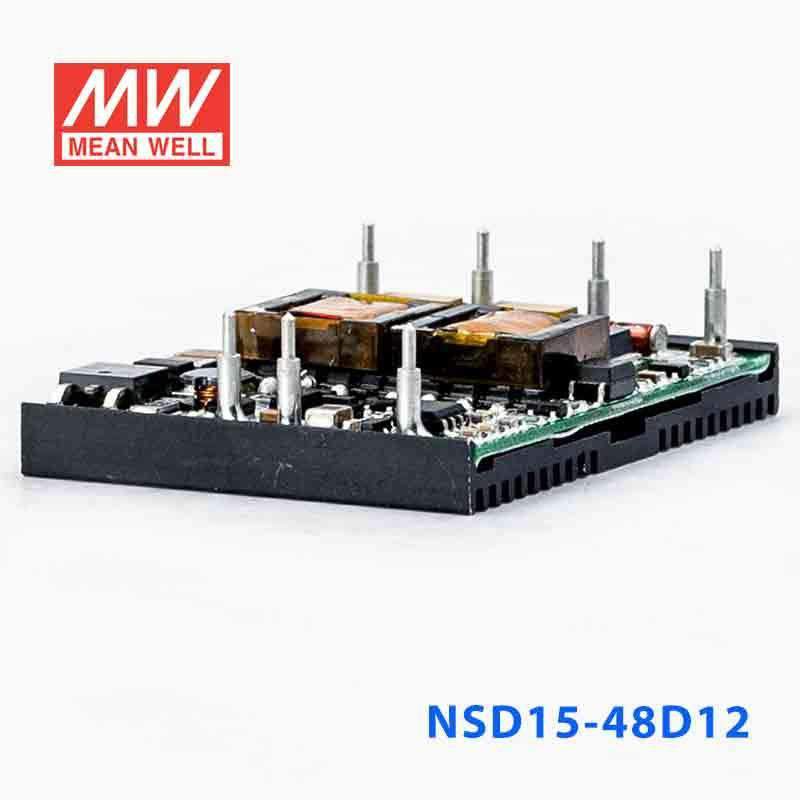

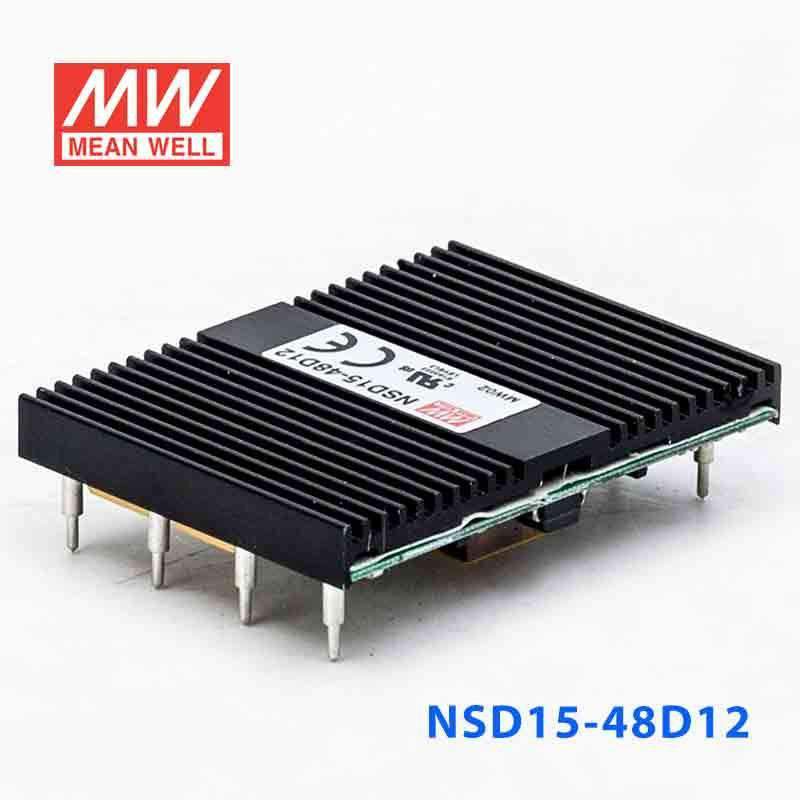

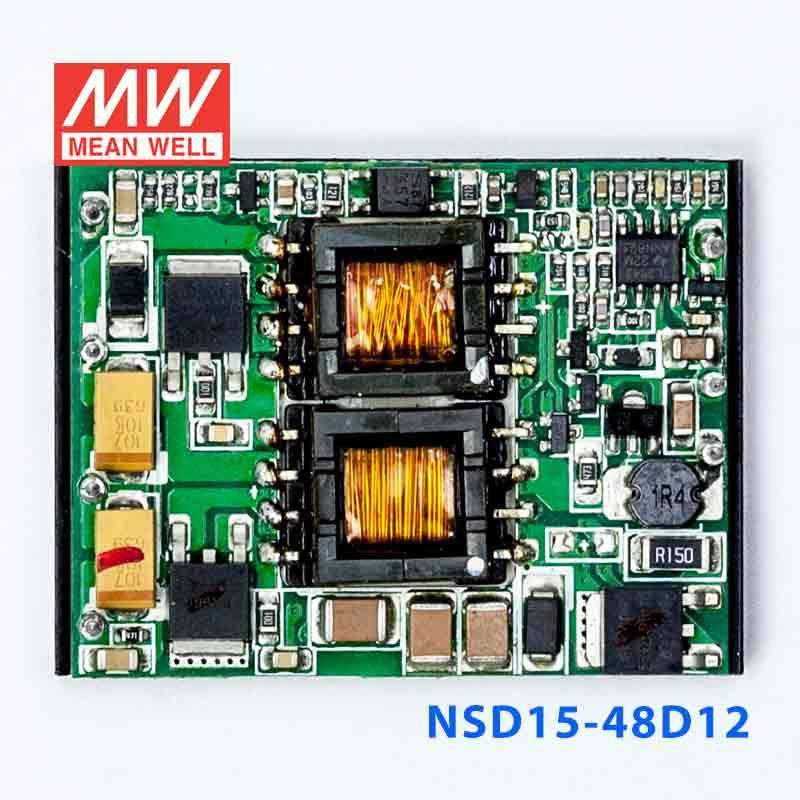

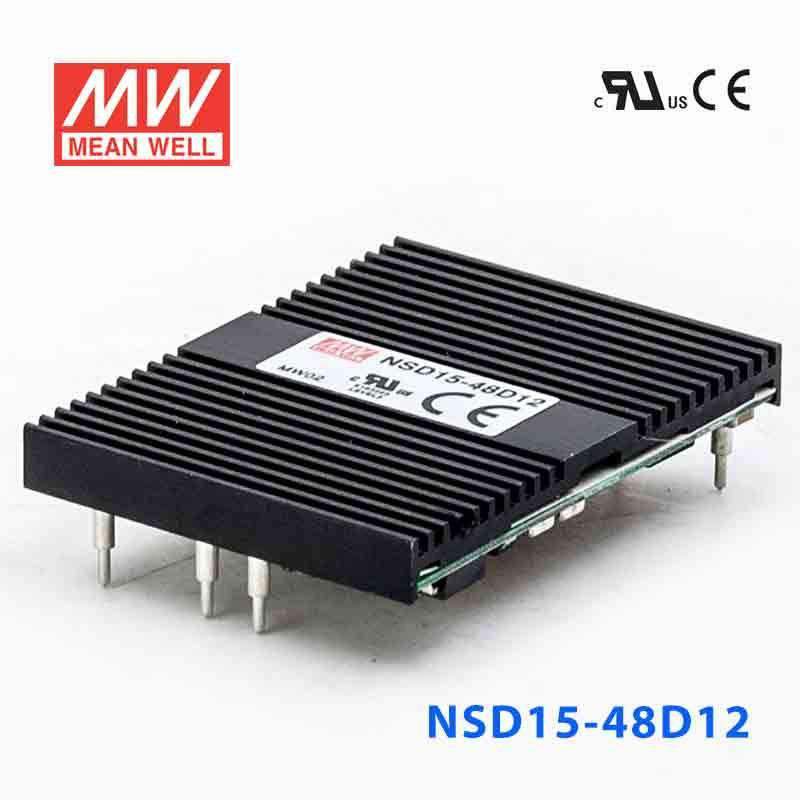

Mean Well NSD15-48D12 DC-DC Converter - 14.88W - 18~72V in ±12V out
Please Login for Pricing
Description
Description
The NSD15 is a 15W Mean Well power converter.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating14.88 Watt
-
Output Voltage12 Volt
-
Rated Current0.62 Ampere
-
Input Voltage18V~72V
-
Standards MetCE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length5.08 cm
-
Width3.81 cm
-
Height0.98 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NSD15-48D12 for equipment that needs a ±12V rail from a higher-voltage input source?
Yes, if the equipment is designed for constant-voltage ±12V output and the load stays within 14.88W. This model accepts 18~72V input, so it is intended for higher-input systems than the 9.4~36V versions.
Is this DC-DC converter suitable for industrial analog or signal-conditioning circuits that require ±12V?
It can fit industrial analog or signal-conditioning electronics that require a constant ±12V output and stay within the 14.88W rating. The 18~72V input range is relevant where the available source voltage is already in that higher band.
Can the NSD15-48D12 be used in automation systems with an 18~72V input bus?
Yes, if the automation system needs a constant ±12V output and the connected load remains within 14.88W. Its specified input range is 18~72V, which separates it from the 9.4~36V input models in the same series.
Is the NSD15-48D12 rated for outdoor use or only controlled environments?
The specified operating temperature is -25°C to +70°C. No IP rating is listed, so the specifications do not confirm suitability for direct outdoor exposure or wet locations.
How does the NSD15-48D12 compare with other NSD15 models?
The NSD15 family includes 9.4~36V input and 18~72V input models, with outputs of 3.3V at 3.75A and 12.375W, 5V at 3A and 15W, 5V at 1.5A and 15W, 12V at 1.25A and 15W, 12V at 620A and 14.88W, 15V at 1A and 15W, and 15V at 500A and 15W. The NSD15-48D12 is the 18~72V input, ±12V, 14.88W version. Compared with the 9.4~36V models, its main difference is the higher specified input range.
