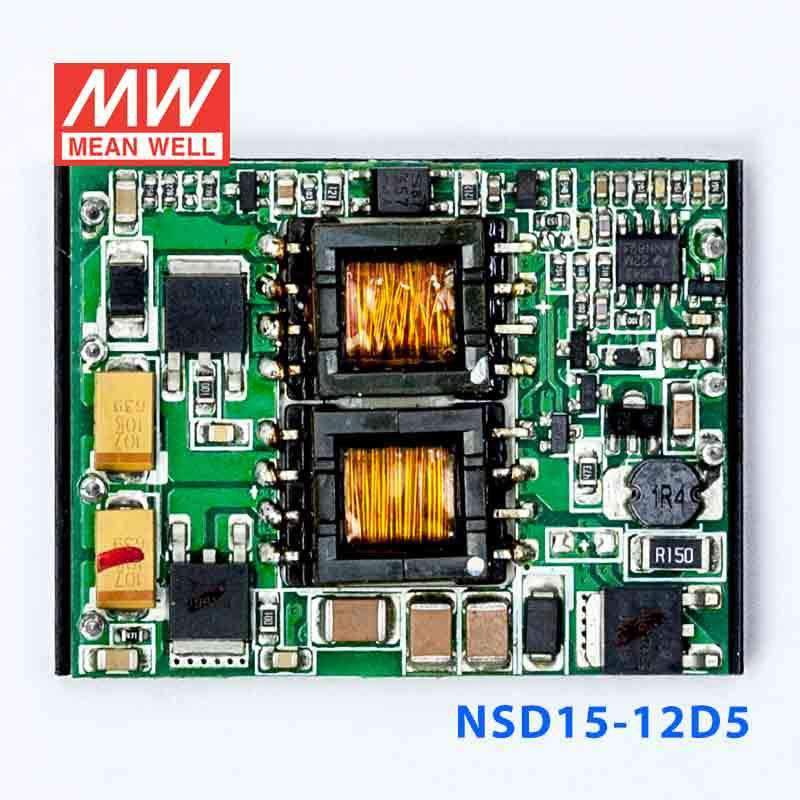

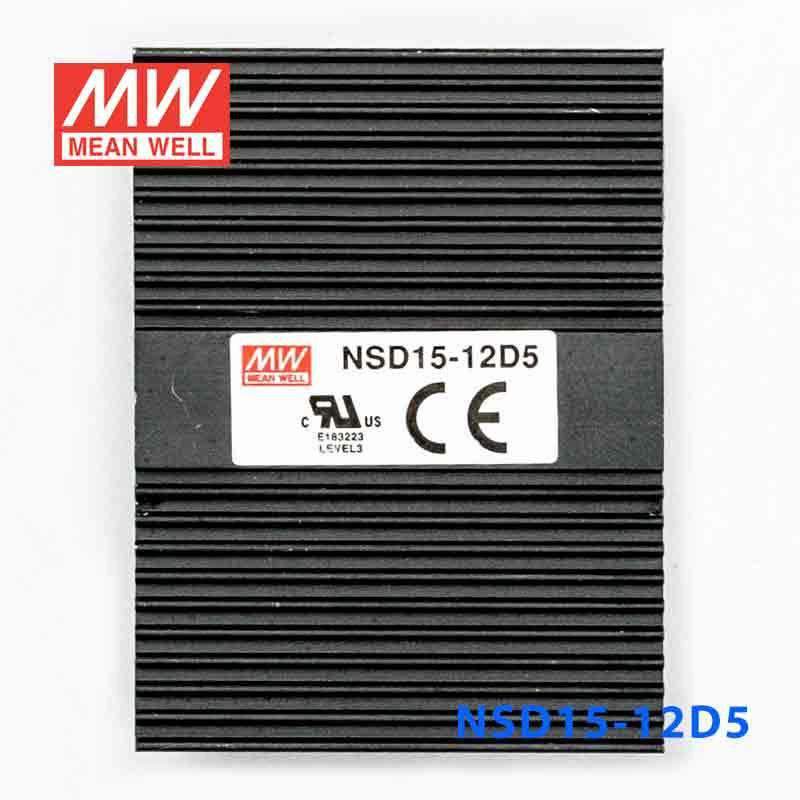

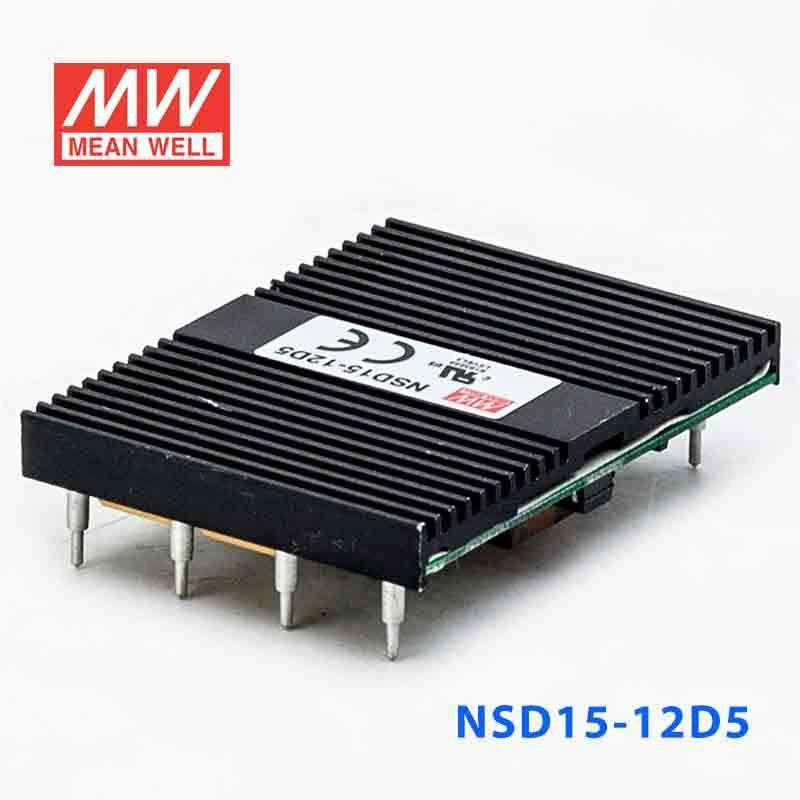

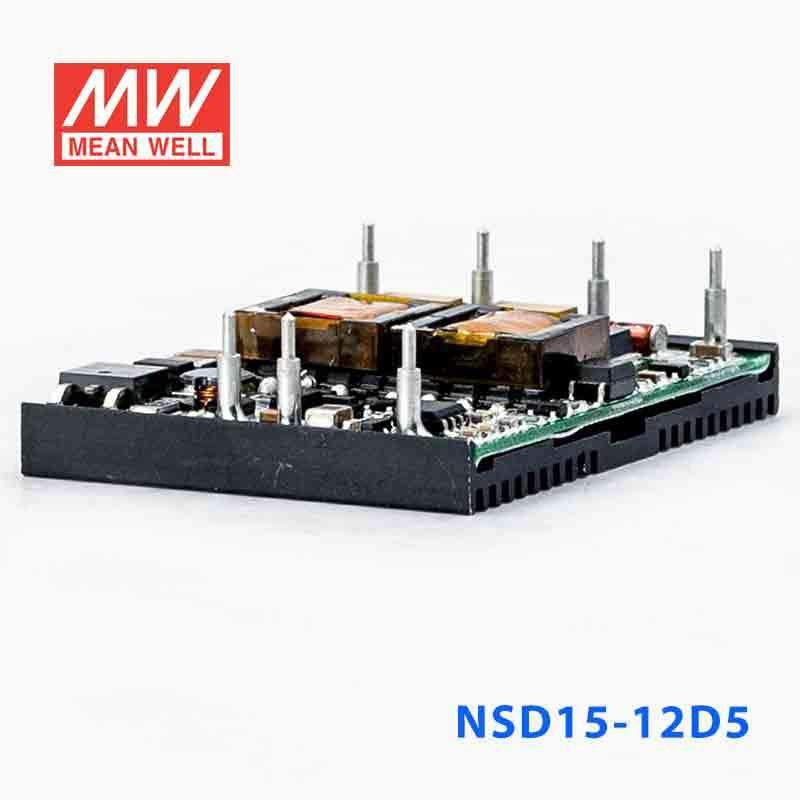

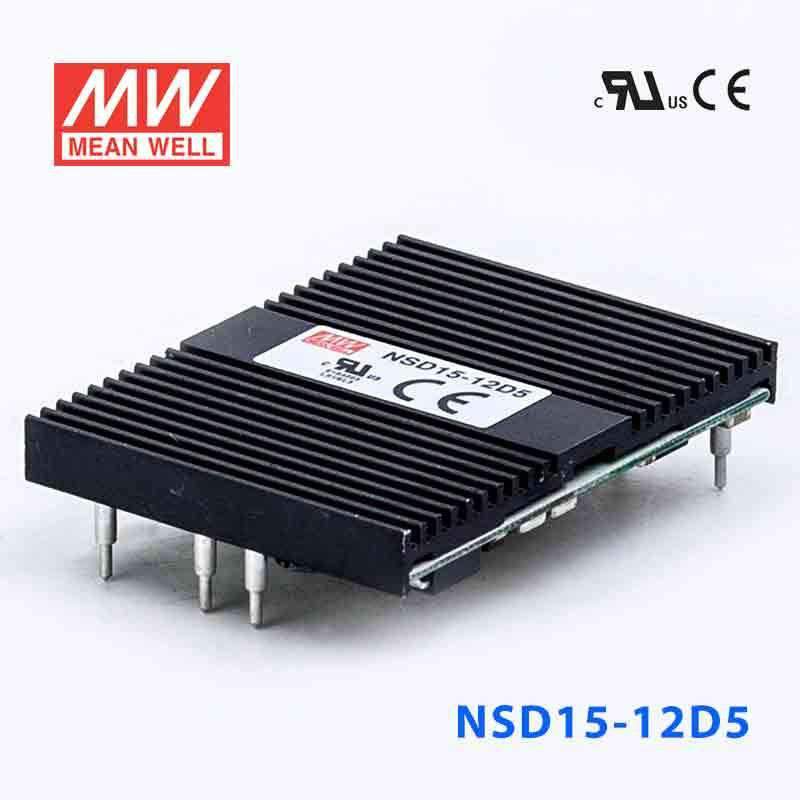

Mean Well NSD15-12D5 DC-DC Converter - 15W - 9.4~36V in ±5V out 1.5A

SKU NSD15-12D5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

NSD15-12D5 is the 5V -5V output model of this series: rated current 1.5A 1.5A, rated power 15W, typical efficiency 76%.

Features

  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Output voltage trimming function
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Lost cost
  • High reliability
  • 2 years warranty

Specifications

NSD15-12D5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
5V -5V
RATED CURRENT
1.5A 1.5A
CURRENT RANGE
0.07 ~ 1.5A 0.07 ~ 1.5A
RATED POWER
15W
CAPACITIVE LOAD (max.)
±1000uF
RIPPLE & NOISE (max.)Note.2
100mVp-p(25% ~ 100% load)
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATION
±1.0% at 10% ~ 100% load
LOAD REGULATION
±2.0%
TRIM OUTPUT (Typ.)
±5.0%
SETUP TIME
100ms/RATED DC INPUT at full Load

INPUT

RATED DC INPUT
12VDC
VOLTAGE RANGENote.6
9.4 ~ 36VDC
EFFICIENCY (Typ.)
76%
DC CURRENT
1.8A/12VDC
SHUTDOWN IDLE CURRENT
20mA

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Over power limiting, recovers automatically after fault condition is removed
OVER VOLTAGE(CLAMP)
7.25 ~ 9V -7.25 ~ -9V
SHORT CIRCUITNote.4
Recovers automatically after fault condition is removed

FUNCTION

ON/OFF CONTROL
Logic "1" or open circuit : ON Logic "0" or short to PIN2 : OFF

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~50℃)

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
ISOLATION VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
9469.6K hrs min. Telcordia SR-332 (Bellcore) ; 1673.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
50.8*38.1*9.82mm (2"*1.5"*0.387") (L*W*H)
PACKING
0.03Kg; 180pcs/6.4Kg/0.94CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 12, 48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Short circuit no more than 60 seconds.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. Derating to 80% load is needed for NSD15-48D series at 18Vdc input voltage. Full output wattage can be acquired when the input voltage is higher than 20Vdc.
  7. 7. EMC filter suggestion:
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

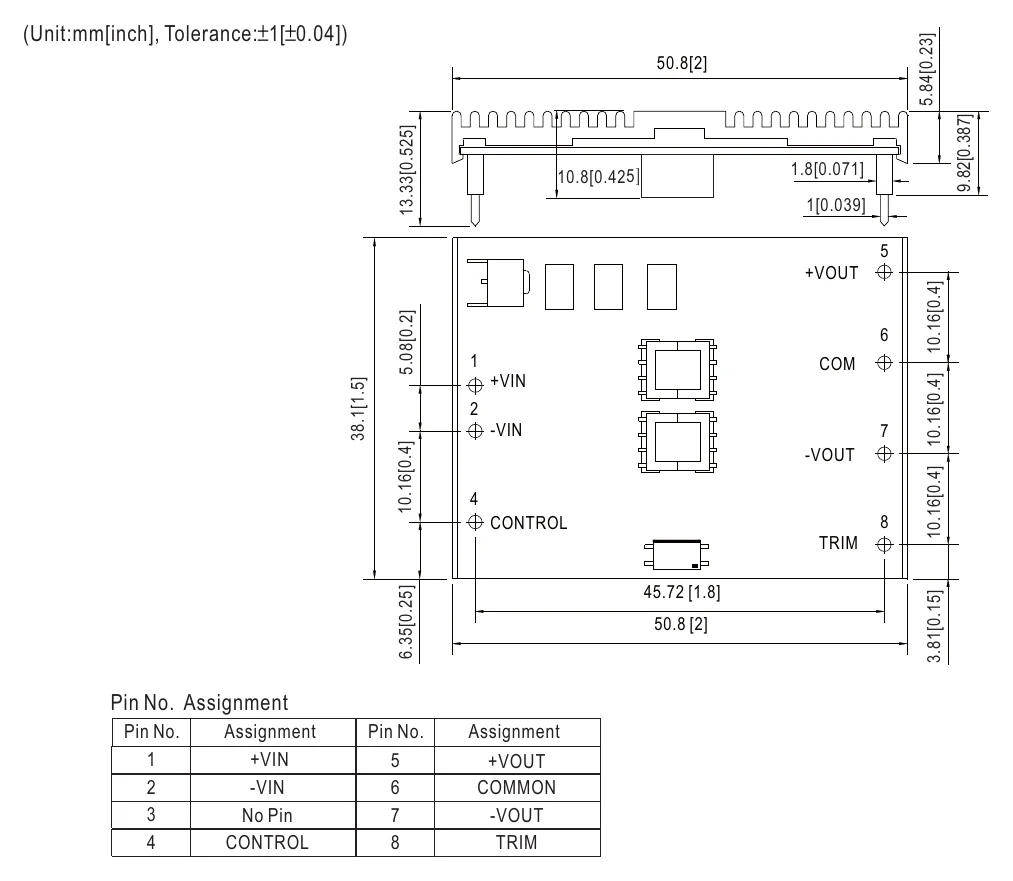

NSD15-12D5 Mechanical Specification
Mechanical Specification

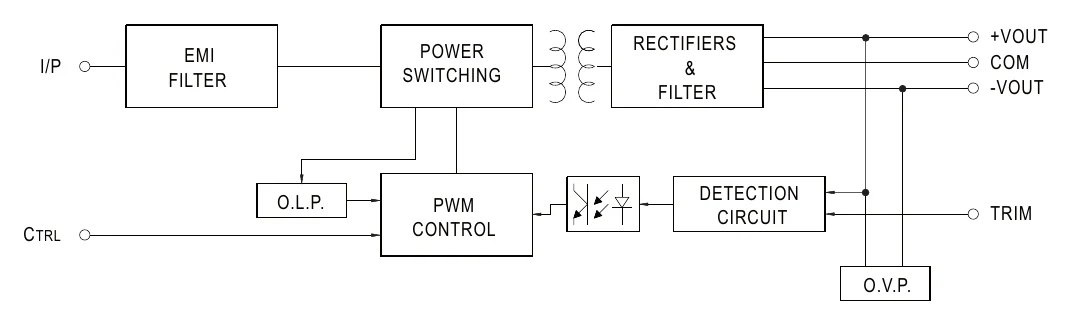

NSD15-12D5 Block Diagram
Block Diagram

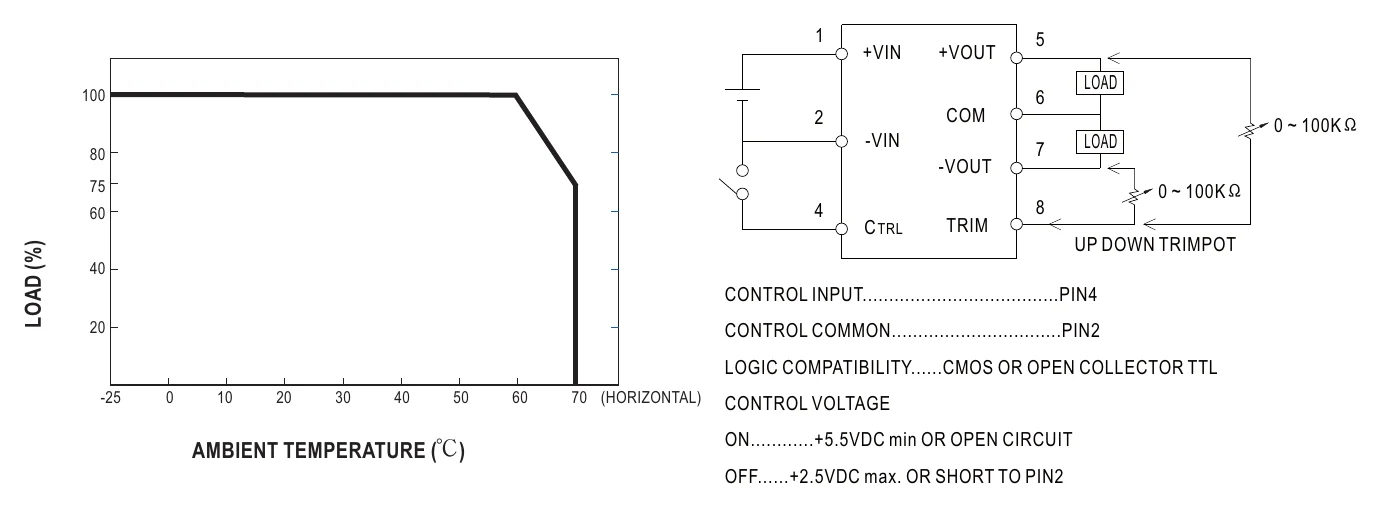

NSD15-12D5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NSD15-12D5 for logic and analog circuits that need ±5V rails?

Yes, this converter fits low-power electronics that need a dual ±5V constant-voltage supply from a 9.4-36V input range. Its 15W rating and 1.5A output current suit compact embedded, control, and interface circuits rather than larger loads.

Is the NSD15-12D5 a good fit for industrial data and communication boards using split 5V rails?

It can be used where a board or subsystem needs both positive and negative 5V rails and the available source is within 9.4-36V. That makes it relevant for low-power industrial communication, interface, and processing electronics built around ±5V operation.

Can this converter power a bipolar 5V rail for embedded test equipment?

Yes, the ±5V output is suited to embedded test or measurement electronics that need a split low-voltage supply. With 15W available, it is sized for auxiliary electronics and signal sections, not for high-draw devices.

Is the NSD15-12D5 intended for outdoor use?

The specified operating range is -25°C to +70°C, which supports many protected industrial environments. No IP rating is listed, so the provided specs do not establish suitability for direct outdoor exposure or wet locations.

How does the NSD15-12D5 compare with the other NSD15 converters?

The NSD15-D sheet lists six dual-output models. With 9.4~36VDC input: NSD15-12D5 at 15W, ±5V, 1.5A; NSD15-12D12 at 14.88W, ±12V, 0.62A; and NSD15-12D15 at 15W, ±15V, 0.5A. With 18~72VDC input: NSD15-48D5, NSD15-48D12 and NSD15-48D15 with the same outputs. The NSD15-12D5 is the dual 5V model with 15W output and 1.5A per rail.
