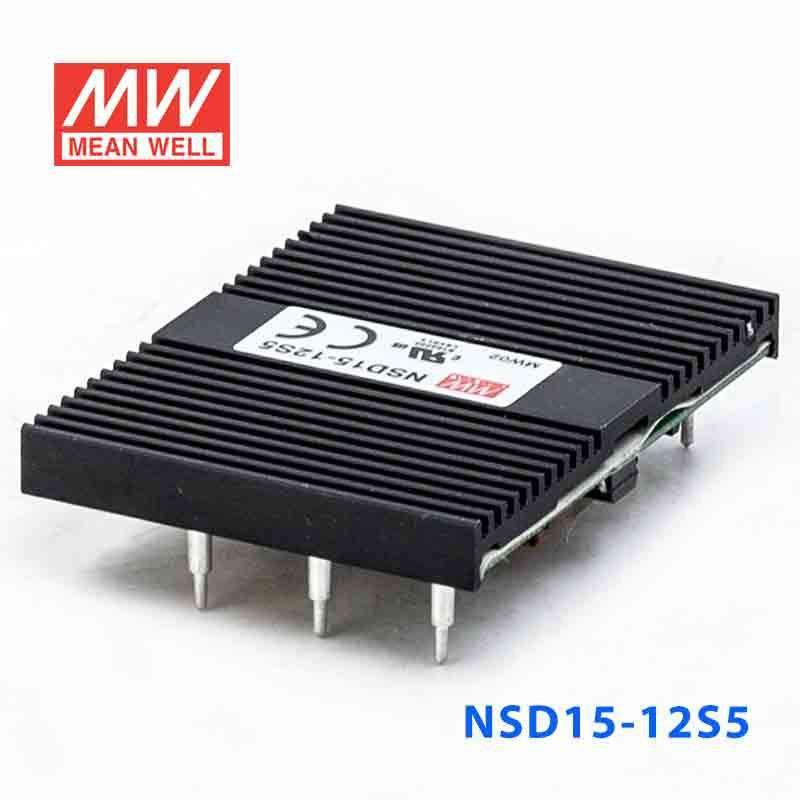

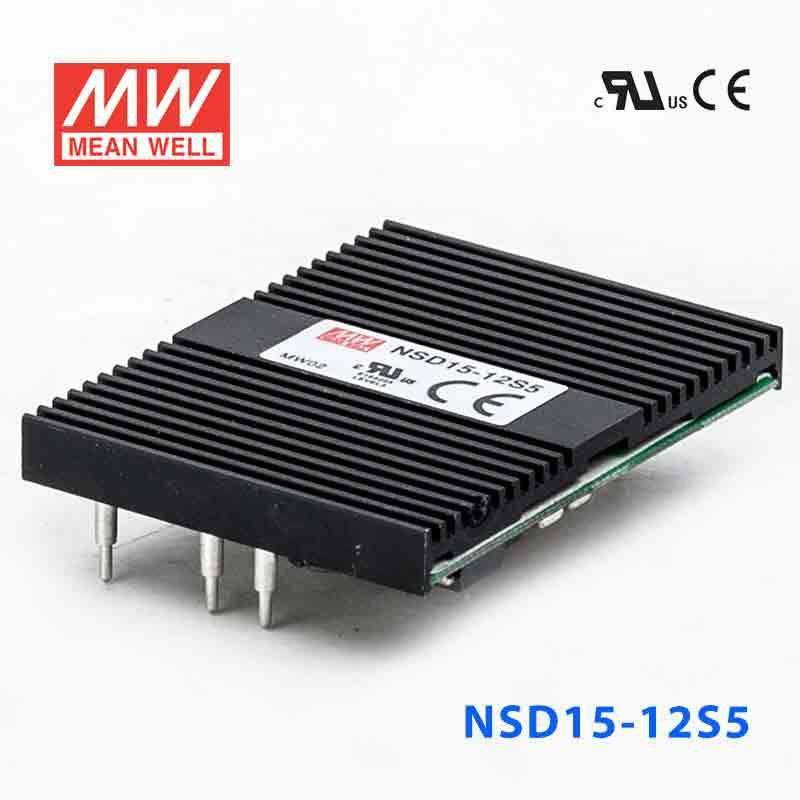

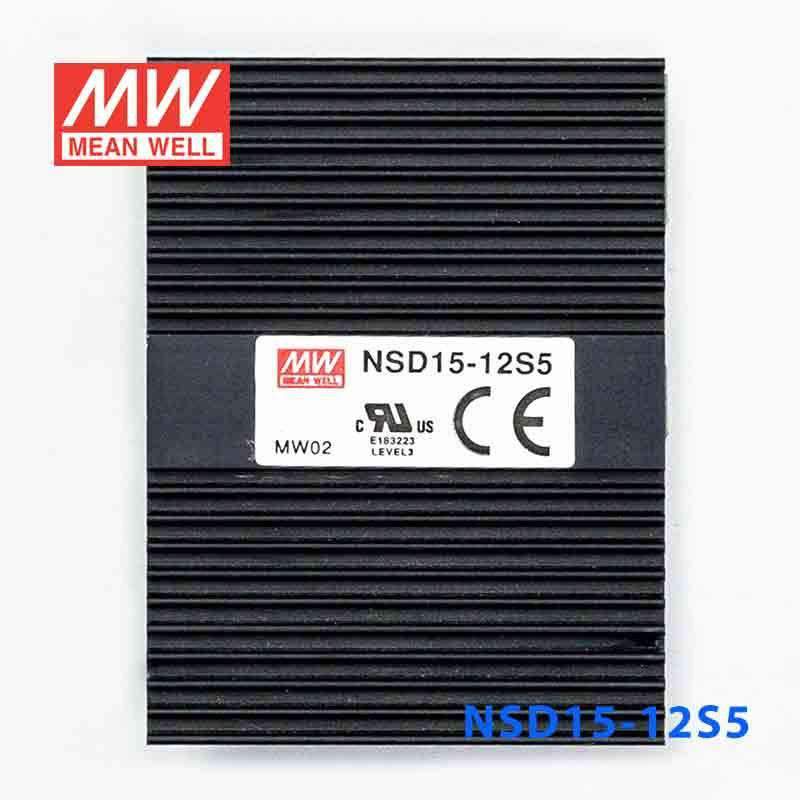

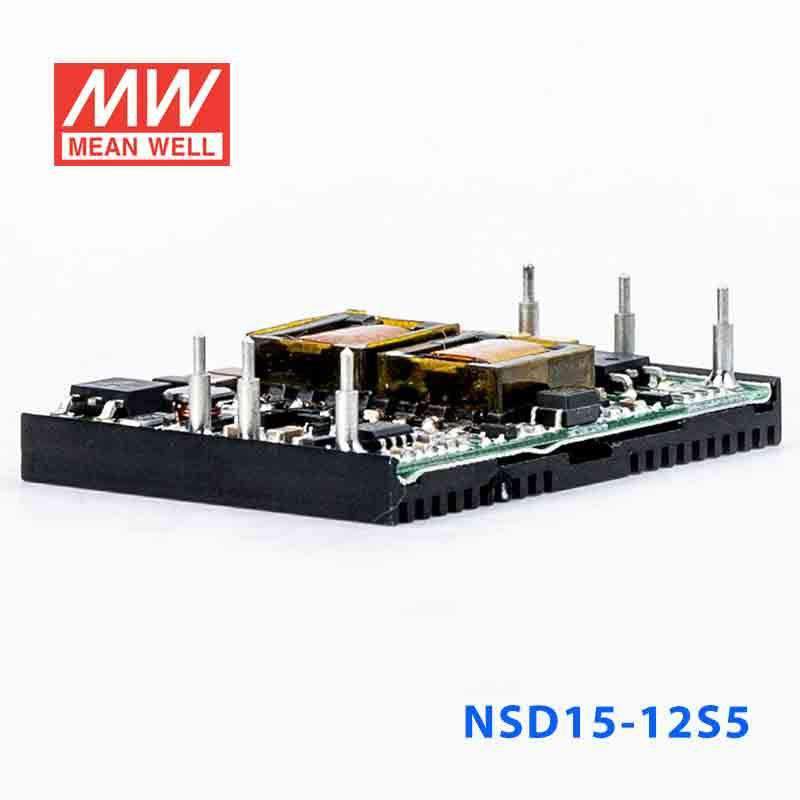

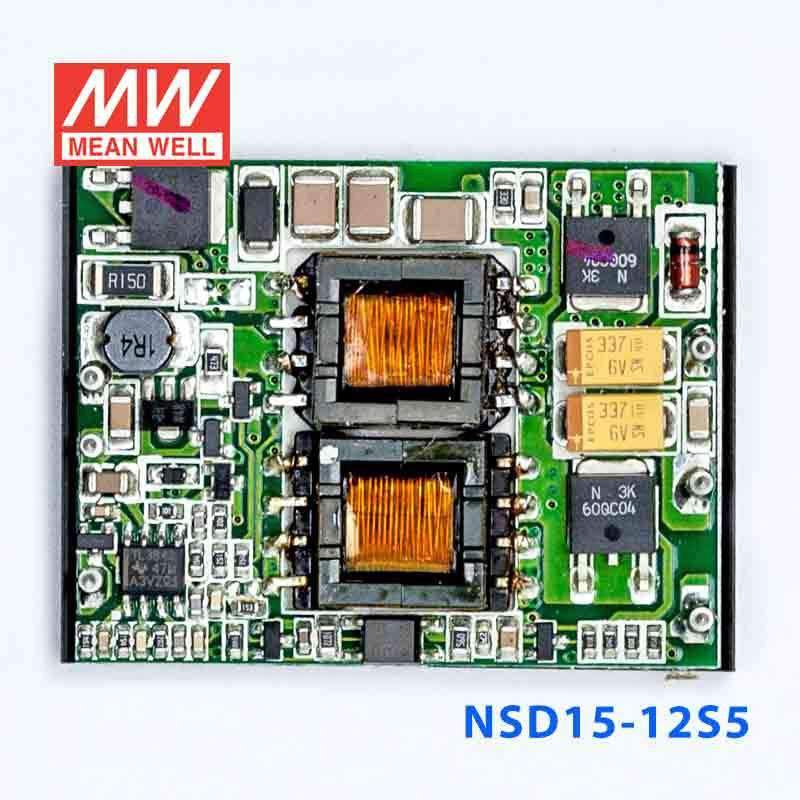

Mean Well NSD15-12S5 DC-DC Converter - 15W - 9.4~36V in 5V out

SKU:

NSD15-12S5

Please for Pricing

Notify me when it's back in stock

Description

Features

4:1 wide input range

1500VDC I/O isolation

Built-in EMI filter

Protection: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

Cooling by free air convection

100% full load burn-in test

Low cost, high reliability

2 years warranty

Output voltage trimming function

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±1% @10~100% load
Load regulation	±1~±3% @10~100% load
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
Over voltage protection	Clamp@115~150%
Shutdown idle current	20mA
I/O isolation voltage	1000VDC
I/O isolation resistance	100MQ(min.) @500VDC
Working temperature	-25~+70°C
Storage temperature	-40~+85°C
Short circuit protection	Continuous, auto-recovery
Temp. Coefficient	±0.03% / °C
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8
Safety standards	UL60950-1 approved
Dimension (LxWxH) (mm)	2" x 1" x 0.394"
Packing	0.03kg ; 180pcs / 6.4kg / 0.97CUFT

Specifications

Brand

Mean Well
Series

NSD Series
Power Rating

15 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

9.4V~36V
Standards Met

CE,EMC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

5.08 cm
Width

3.81 cm
Height

0.98 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the NSD15-12S5 to power 5V embedded systems from a wide-input source?

Yes, if the embedded system needs constant 5V output and stays within 3A and 15W. This converter accepts 9.4~36V input and is rated for constant-voltage 5V output.

Is this model suitable for 5V industrial control or monitoring electronics?

It is suitable for 5V control or monitoring electronics that require a regulated 5V rail and draw no more than 3A. The 15W rating sets the total output limit for the connected 5V load.

Can the NSD15-12S5 be used for 5V automation interfaces or low-power IT hardware?

Yes, when the interface or hardware is designed for constant 5V input and remains within 15W. Its 9.4~36V input range also supports use in systems where the available source voltage falls anywhere inside that range.

Does this converter support outdoor environments?

The operating temperature range is -40°C to +85°C, which covers demanding temperature conditions. However, no IP rating is listed, so the published specifications do not confirm suitability for exposed outdoor environments.

How does the NSD15-12S5 differ from the other NSD15 variants?

The NSD15 series includes 3.3V at 3.75A and 12.375W, 5V at 3A and 15W, 5V at 1.5A and 15W, 12V at 1.25A and 15W, 12V at 620A and 14.88W, 15V at 1A and 15W, and 15V at 500A and 15W. Those combinations appear in 9.4~36V input versions and 18~72V input versions. The NSD15-12S5 is the 9.4~36V input, 5V, 3A, 15W single-output model.

Model	Power	Voltage	Current	IP Rating
Mean Well NSD15-48S5 DC-DC Converter - 15W - 18~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well NSD15-48S3 DC-DC Converter - 12.375W - 18~72V in 3.3V out	12.37W	3.3V	3.75A	Indoor	View
Mean Well NSD15-48S15 DC-DC Converter - 15W - 18~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well NSD15-48S12 DC-DC Converter - 15W - 18~72V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well NSD15-48D5 DC-DC Converter - 15W - 18~72V in ±5V out	15W	5V	1.5A	Indoor	View
Mean Well NSD15-48D15 DC-DC Converter - 15W - 18~72V in ±15V out	15W	15V	0.5A	Indoor	View
Mean Well NSD15-48D12 DC-DC Converter - 14.88W - 18~72V in ±12V out	14.88W	12V	0.62A	Indoor	View
Mean Well NSD15-12S3 DC-DC Converter - 12.375W - 9.4~36V in 3.3V out	12.37W	3.3V	3.75A	Indoor	View
Mean Well NSD15-12S15 DC-DC Converter - 15W - 9.4~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well NSD15-12S12 DC-DC Converter - 15W - 9.4~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well NSD15-12D5 DC-DC Converter - 15W - 9.4~36V in ±5V out	15W	5V	1.5A	Indoor	View
Mean Well NSD15-12D15 DC-DC Converter - 15W - 9.4~36V in ±15V out	15W	15V	0.5A	Indoor	View
Mean Well NSD15-12D12 DC-DC Converter - 14.88W - 9.4~36V in ±12V out	14.88W	12V	0.62A	Indoor	View
