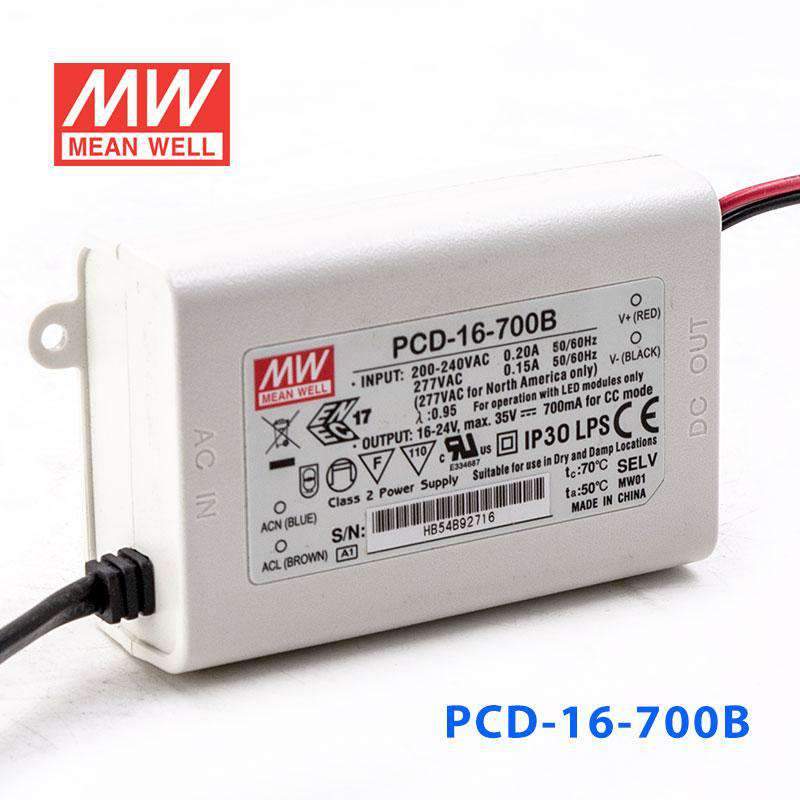

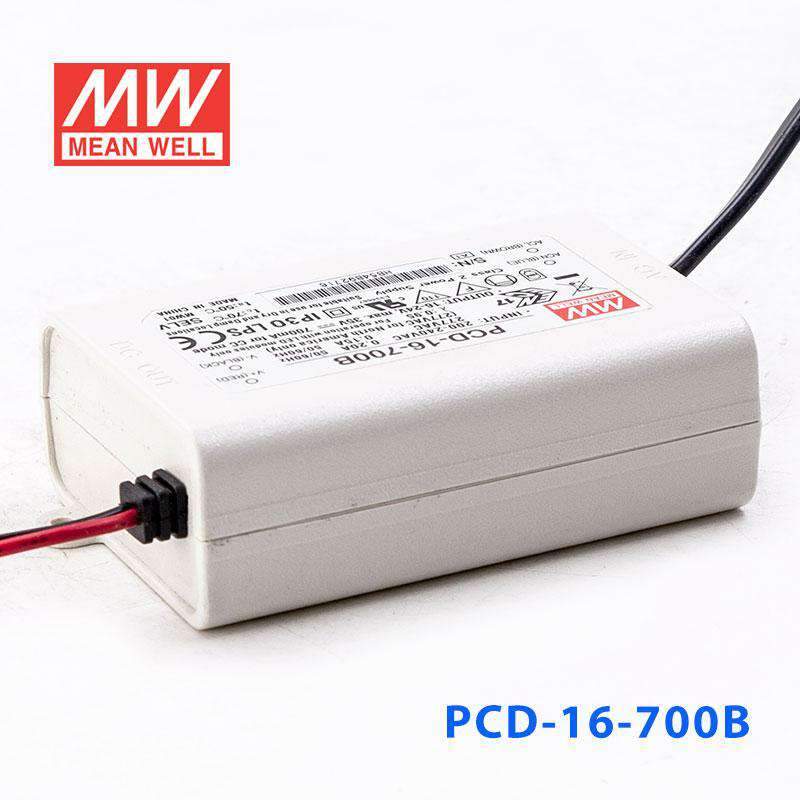

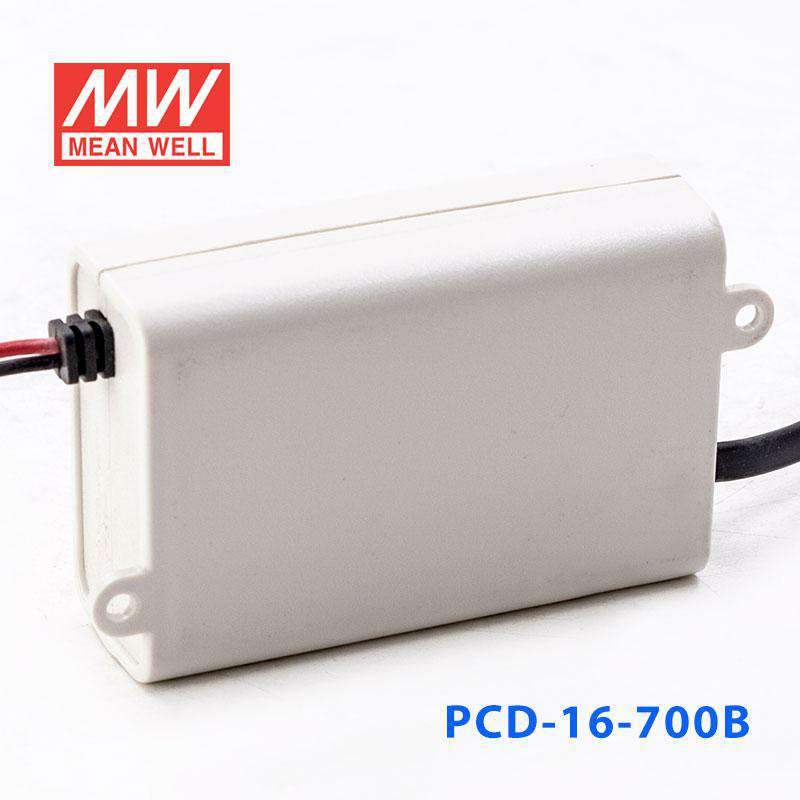

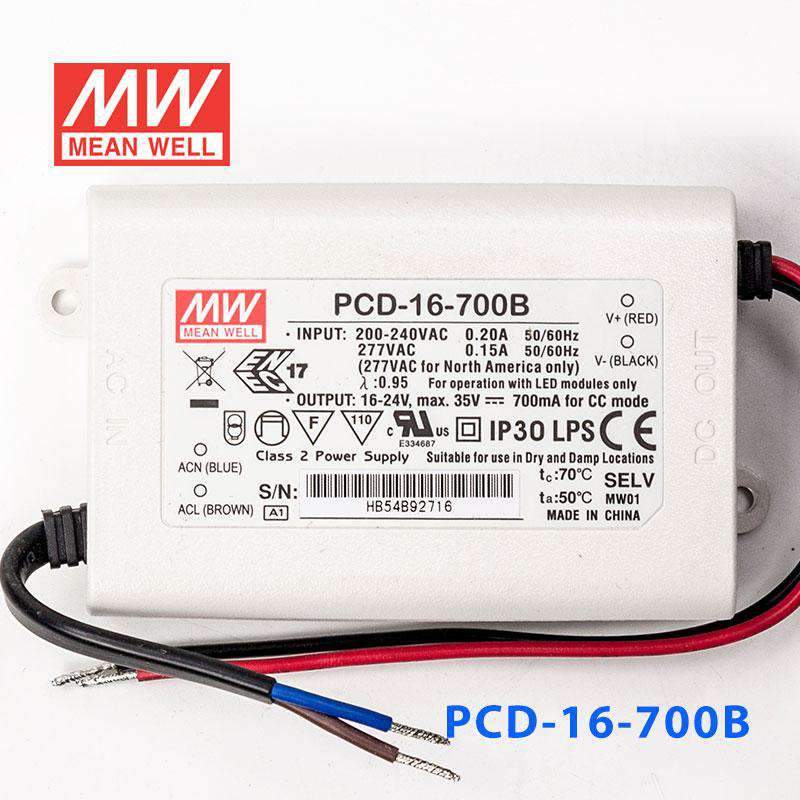

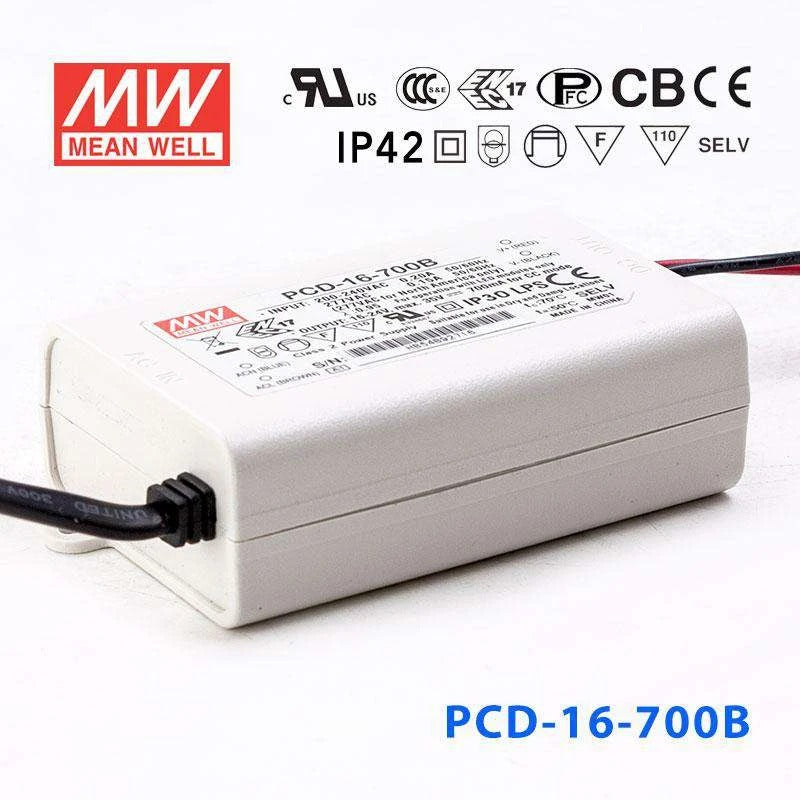

Mean Well PCD-16-700B Power Supply 16W 700mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current

SKU PCD-16-700B

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

PCD-16-700B is the model of this series: rated current 700mA, rated power 16.8W, typical efficiency 81%.

Features

AC phase-cut dimming
Work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
IP42 design
Class Ⅱ power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PCD-16-700BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 700mA
OPERATING VOLTAGE RANGE: 16 ~ 24V
CURRENT ACCURACY: ±5.0%
RATED POWER: 16.8W
RIPPLE & NOISE (max.)^Note.1: 2.7Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 35V
SETUP TIME: 500ms / 230VAC 2000ms / 115VAC at full load

INPUT

FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION A series: THD< 20% when output loading≧70% at 115VAC
TOTAL HARMONIC DISTORTION B series: THD< 20% when output loading≧70% at 230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.): 81%
AC CURRENT (Typ.): 0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT(max.): COLD START 10A(twidth=90μs measured at 50% Ipeak) at 115VAC / 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER A series: 58 units (circuit breaker of type B) / 58 units (circuit breaker of type C) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER B series: 128 units (circuit breaker of type B) / 128 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 120VAC / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN613471, BS EN/EN61347-2-13, BS EN/N62384(for B type only), BIS IS15885(for 350B,700B only),EAC TP TC 004, IP42 approved ; design refer to UL60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015 (B type only), BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment (A type only), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 6624.6K hrs min. Telcordia SR-332 (Bellcore) 906.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 84*57*29.5mm (L*W*H)
PACKING: 0.19Kg; 72pcs/14.7Kg/0.92CUFT

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-16-700B Mechanical Specification — Mechanical Specification

PCD-16-700B Block Diagram — Block Diagram

PCD-16-700B Derating Curve — Derating Curve

PCD-16-700B Power Factor Characteristic — Power Factor Characteristic

PCD-16-700B EFFICIENCY vs LOAD (PCD-16-350) — EFFICIENCY vs LOAD (PCD-16-350)

PCD-16-700B P C D - 1 6 series — P C D - 1 6 series

Downloads

Certificates5

UL Certificate (PCD-16)(EN) PDF Download

CB Certificate (PCD-16)(EN) PDF Download

EMC Certificate (PCD-16)(EN) PDF Download

FCC Certificate(PCD-16)(EN) PDF Download

ENEC Certificate (PCD-16)(EN) PDF Download

Test reports1

Test Report (PCD-16-700B)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PCD-16-700B be used with 700mA LED downlights?

Yes, if the downlight requires constant current at 700mA and the combined LED forward voltage stays within 16-24V. The driver is rated for 16.8W, so the load needs to remain within that output capacity.

Is this a good fit for signage modules on 180-295VAC input systems?

It can be, provided the signage module assembly is a constant-current 700mA load within the 16-24V constant-current range. This version is specified for 180-295VAC input, which is the main difference from the A version.

Can the PCD-16-700B power a small LED array instead of a constant-voltage strip?

Yes, if the small LED array is built for 700mA constant current and its forward-voltage demand falls between 16V and 24V. It is not intended for constant-voltage LED strips because the output mode is constant current.

What should I check before pairing the PCD-16-700B with LEDs?

Confirm that the LEDs need 700mA constant current and that the total forward voltage stays in the 16-24V constant-current window. The number of LEDs depends on the forward voltage of each LED, so there is no single fixed LED count for this driver.

Can the PCD-16-700B be used in dusty or damp areas?

The housing is IP42, so it is better suited to indoor or protected environments than directly exposed wet locations. Its operating temperature range is -30C to +60C, which defines the rated temperature window.
