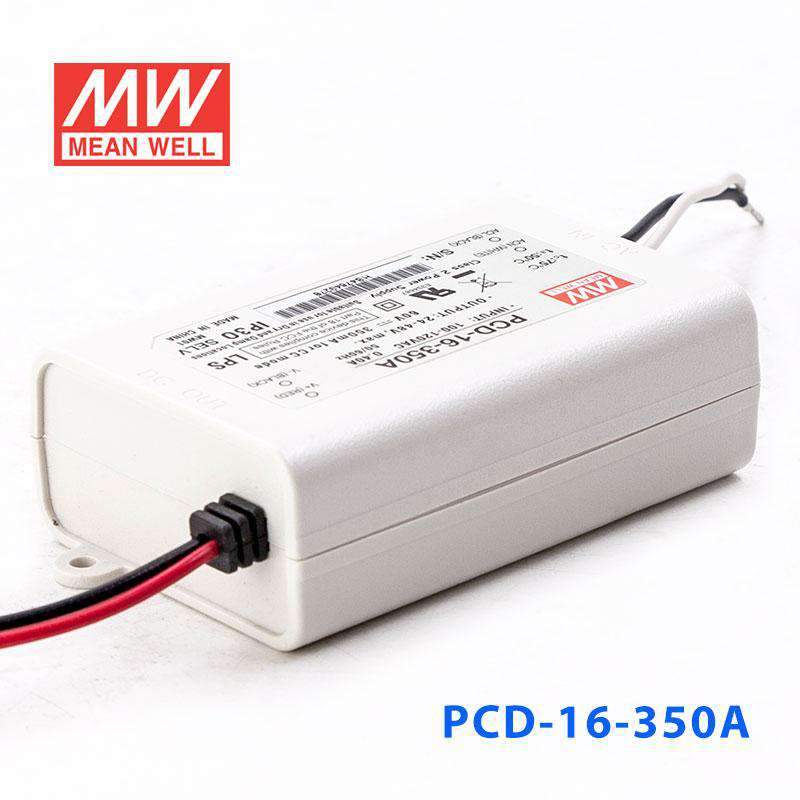

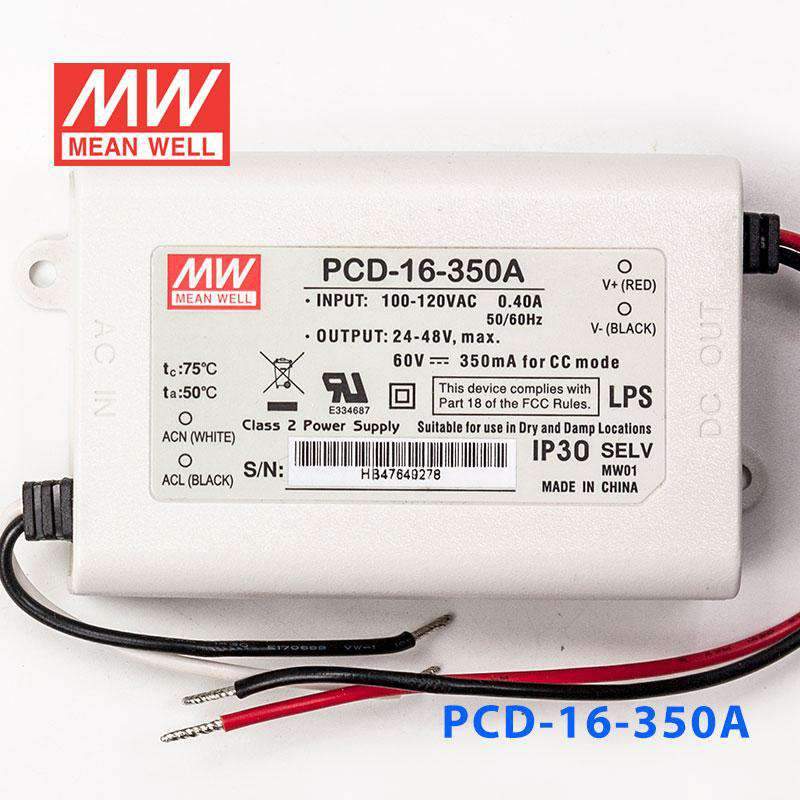

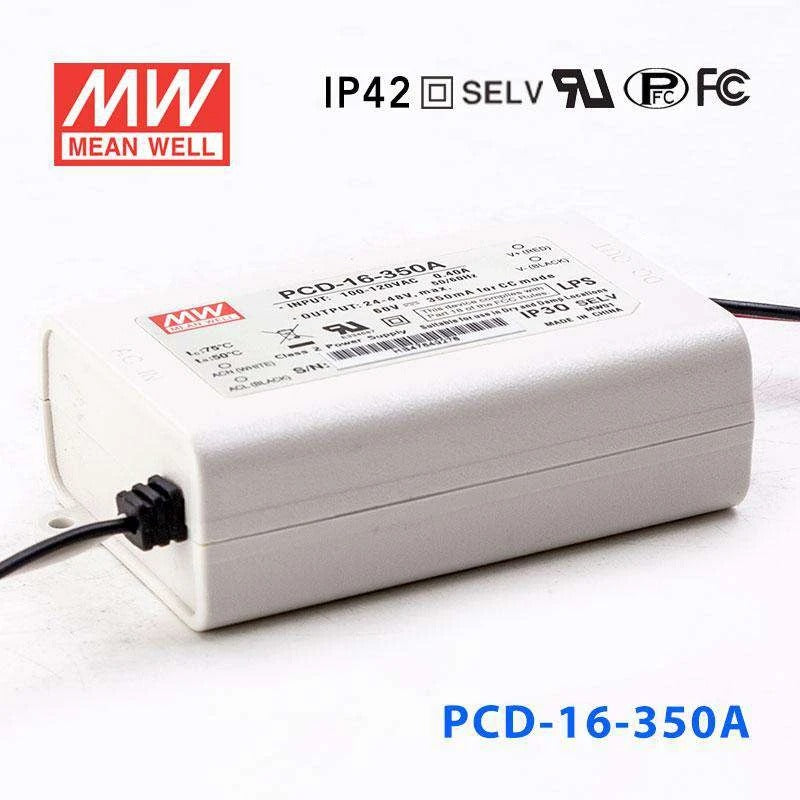

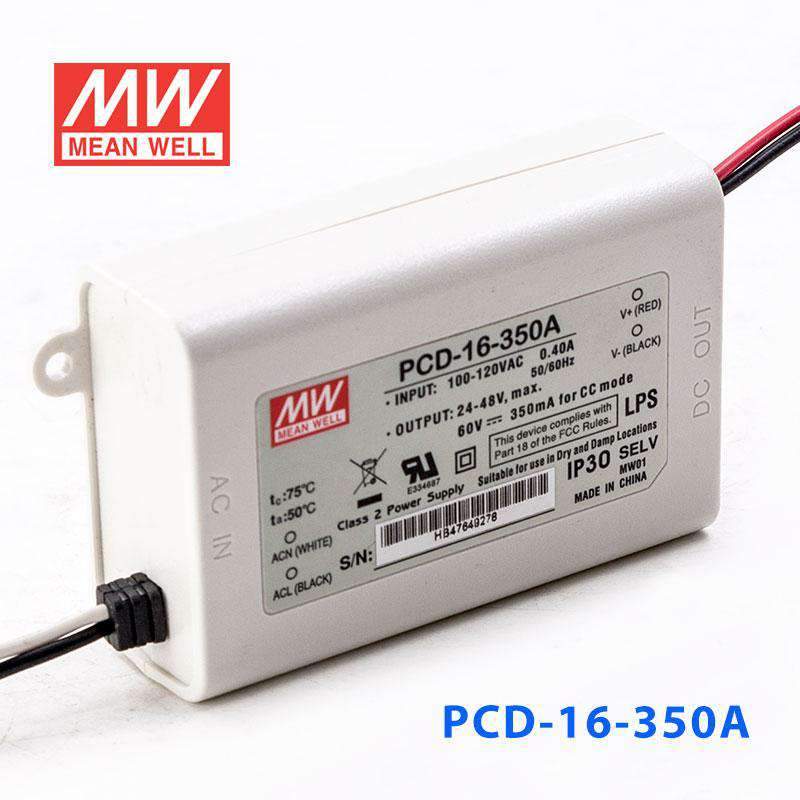

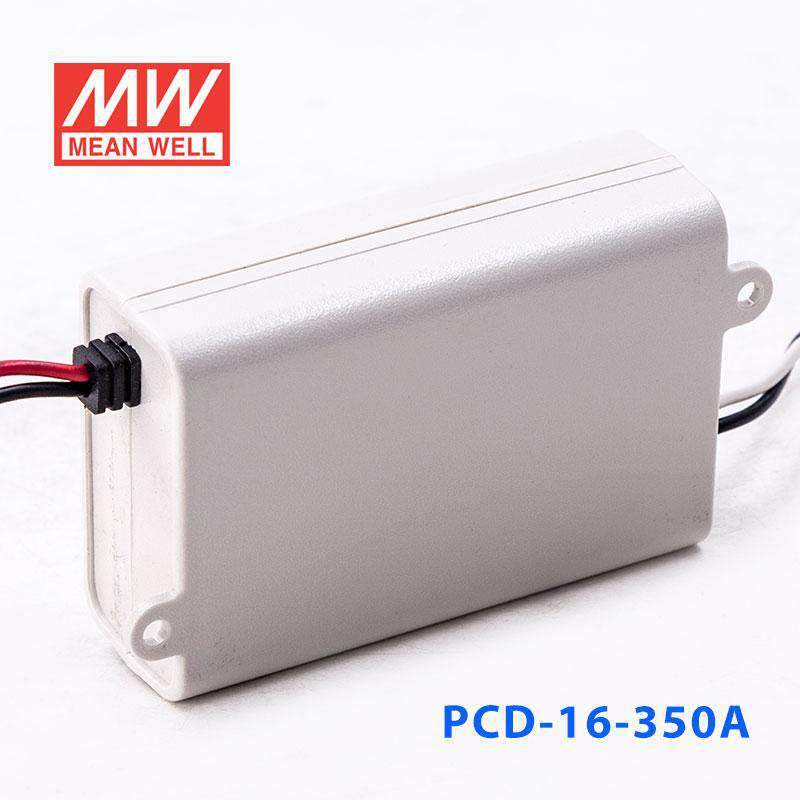

Mean Well PCD-16-350A Power Supply 16W 350mA

TRIAC dimmable, plastic casing IP42, Class II design without FG, constant current
SKU:
PCD-16-350A

|

Description

Features

AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
115VAC or 230VAC input
Protections: Short circuit / Over temperature
Constant current design (CC mode)
Class 2 power unit / Pass LPS
Isolation class II, no FG
Fully isolated plastic case
Cooling by free air convection
Built-in active PFC function
IP30 design
3 years warranty

General Specification

AC input voltage range 115VAC (90 ~ 135VAC) or 230VAC (180 ~ 295VAC)
AC inrush current (max.) Cold start, 10A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Working temperature -30 ~ + 60ºC (refer to output derating curve)
Safety standards UL8750 (PCD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (B-Type only) approved
EMC standards A-Type: FCC part 18 non-consumer equipment, B-Type: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input A-Type: UL1430 18AWGx2C (7.5cm); B-Type: NISPT-1 18AWGx2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 84x 57x 29.5

Specifications

  • Brand
    Mean Well
  • Series
    PCD Series
  • Power Rating
    16.8 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    90V~135V
  • Standards Met
    CE,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~60°C
  • Warranty
    3 Year
  • Length
    8.4 cm
  • Width
    5.7 cm
  • Height
    2.95 cm
  • Weight
    0.19 kg

File Downloads

::specification::
